Description

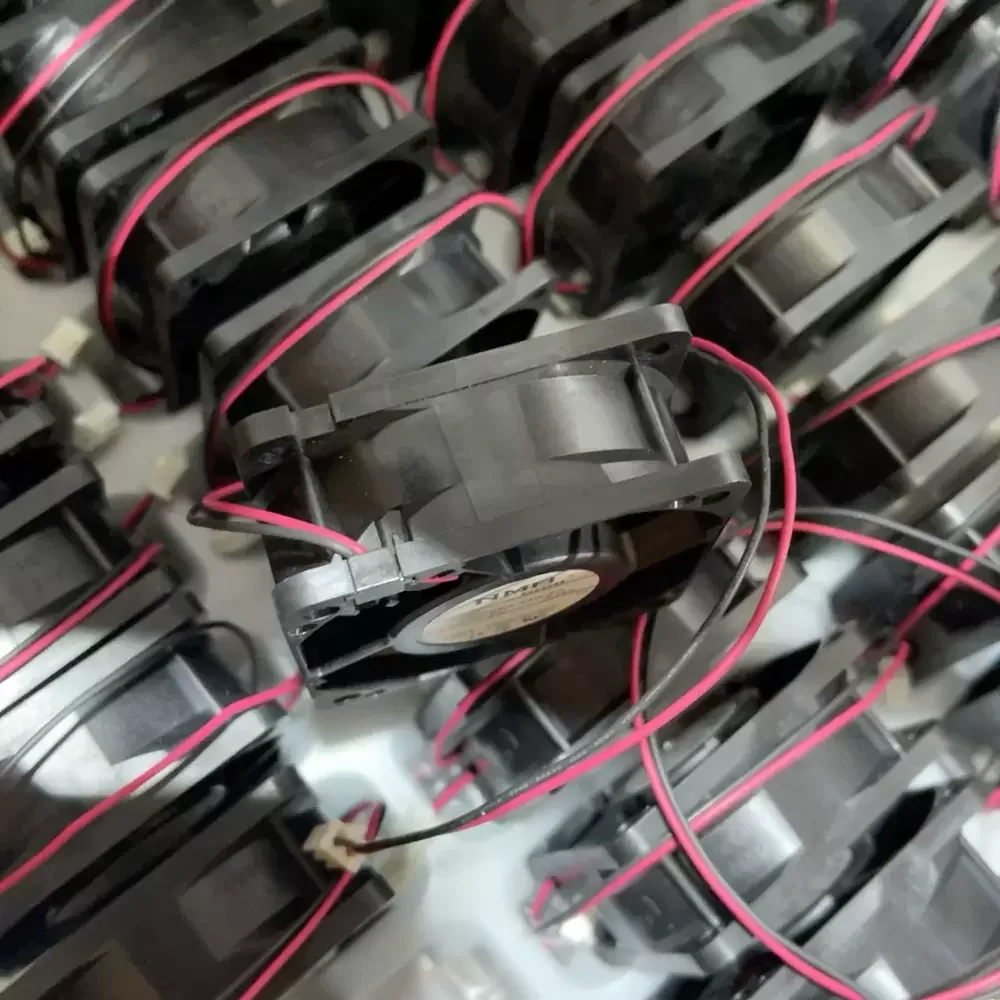

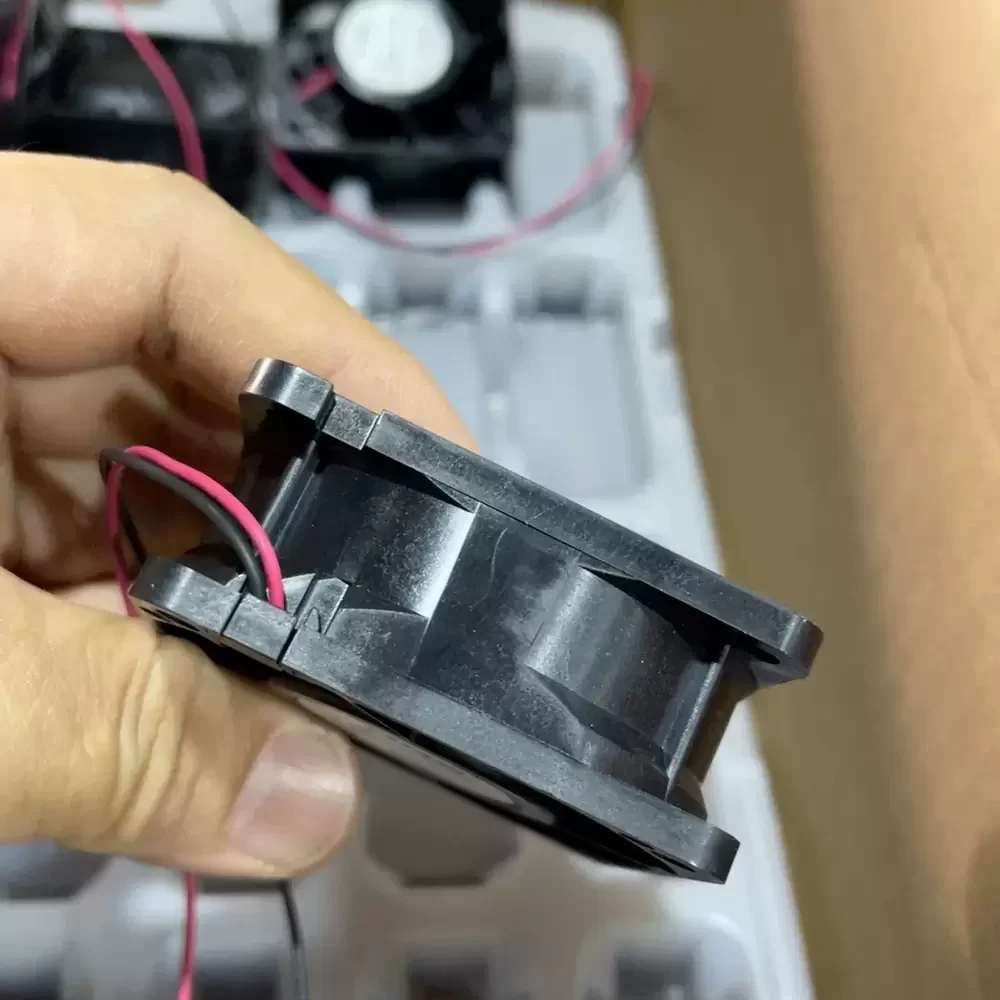

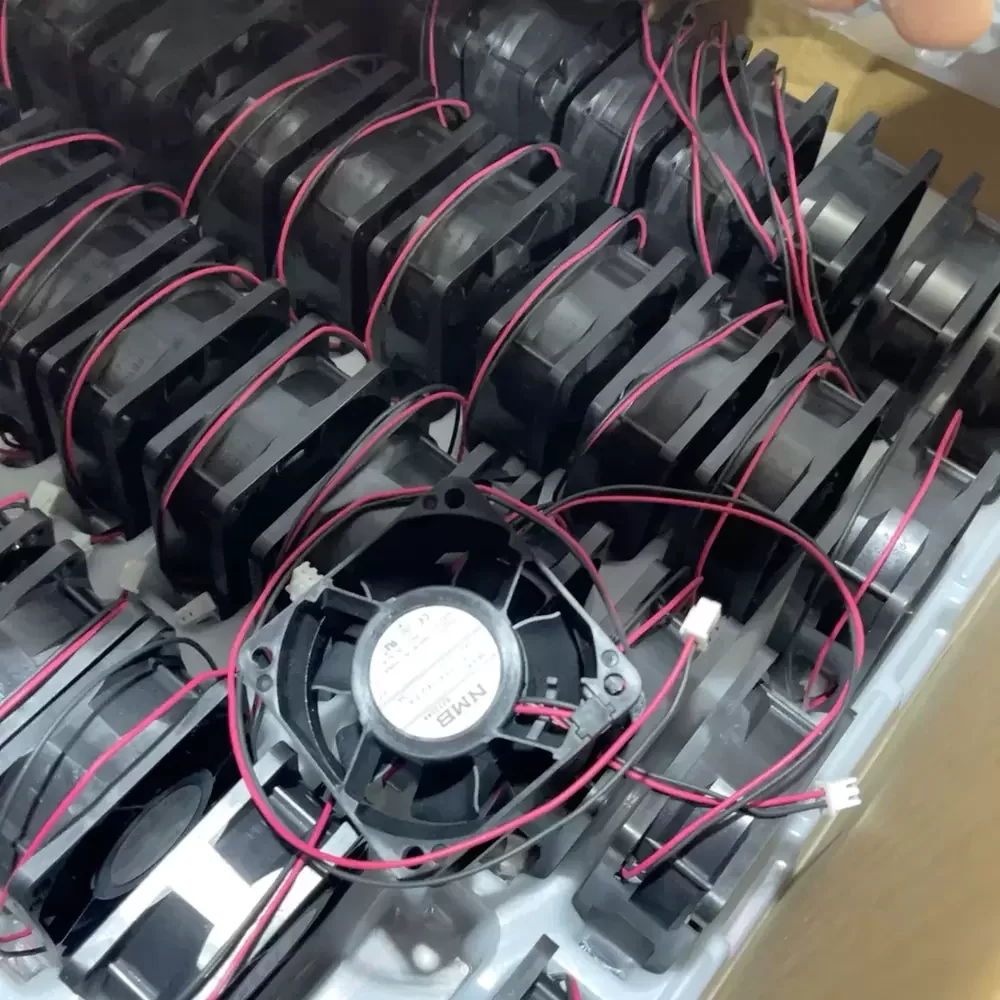

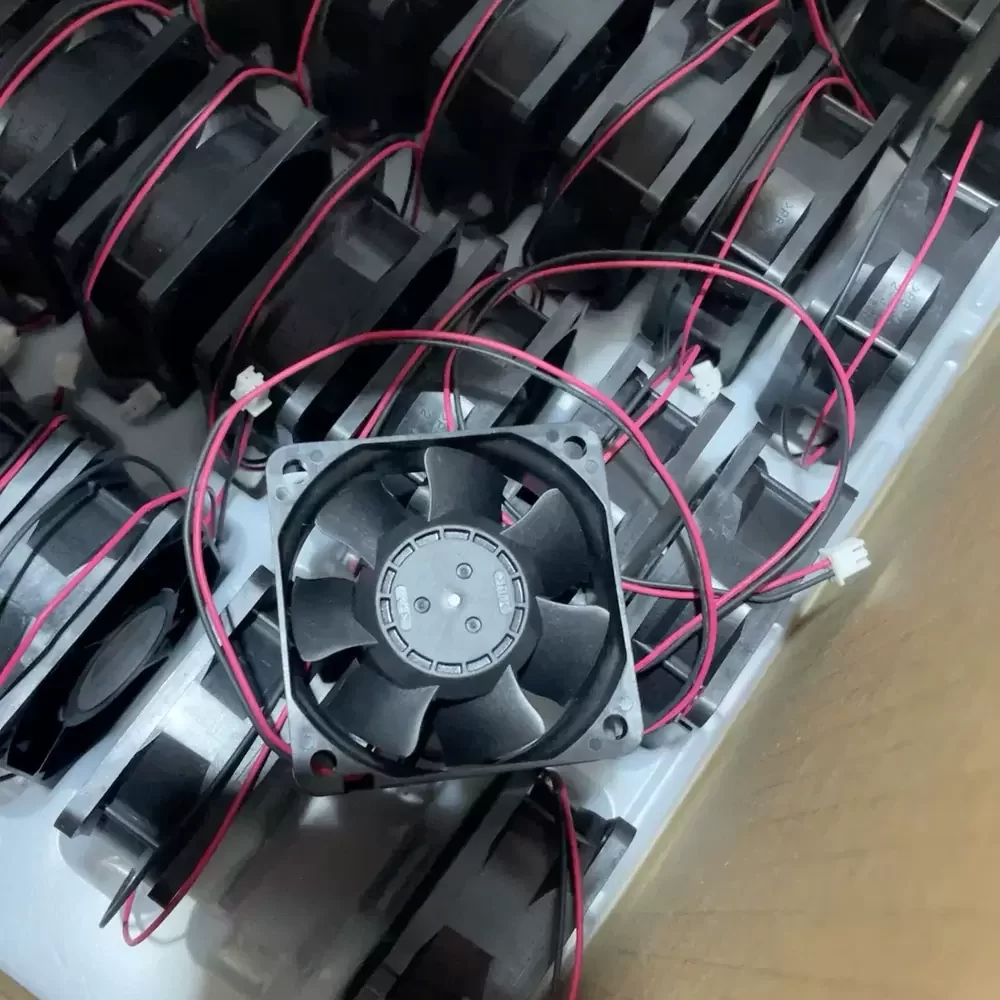

The NMB 06025SA-24Q-EA-DY is a precision-engineered DC axial fan designed by MinebeaMitsumi to deliver optimal thermal management in space-constrained industrial environments. Utilizing advanced aerodynamic blade geometry and a robust dual ball bearing architecture, this unit minimizes thermal impedance while maintaining structural rigidity under continuous operation. The motor assembly features a high-efficiency electromagnetic design, ensuring stable torque delivery and reduced vibration profiles. Constructed with UL94V-0 rated reinforced plastic, the 06025SA-24Q-EA-DY offers superior reliability and longevity, making it an ideal solution for critical cooling applications requiring consistent airflow and static pressure performance in challenging operational conditions.
Model Number: 06025SA-24Q-EA-DY
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.13 A
Power Input: 3.12 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 26.5 CFM (45.0 m³/h / 0.75 m³/min)
Max. Static Pressure: 6.86 mmH₂O (67.3 Pa / 0.27 inH₂O)
Dimensions: 60 x 60 x 25 mm
Weight: 65 g
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 38.0 dBA
Housing Material: Reinforced Plastic (UL94V-0)
Impeller Material: Reinforced Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 3-Wire Lead
Speed Control: Tachometer Output
Ingress Protection: IP40
Safety Certifications: UL, CSA, TUV, CE
This high-reliability cooling solution is specifically engineered for demanding industrial electronics, including variable frequency drives (VFDs), server chassis, and switching power supplies. The 06025SA-24Q-EA-DY excels in environments where consistent thermal dissipation is critical to component longevity, such as CNC control cabinets and telecommunications equipment. By integrating the 06025SA-24Q-EA-DY into compact enclosures, system integrators ensure efficient heat evacuation from dense circuitry, preventing thermal throttling in automation systems and medical instrumentation.
