ERPF-400-24 Mean Well 24VDC 400.8W 16.7A Enclosed Power Supply

Description

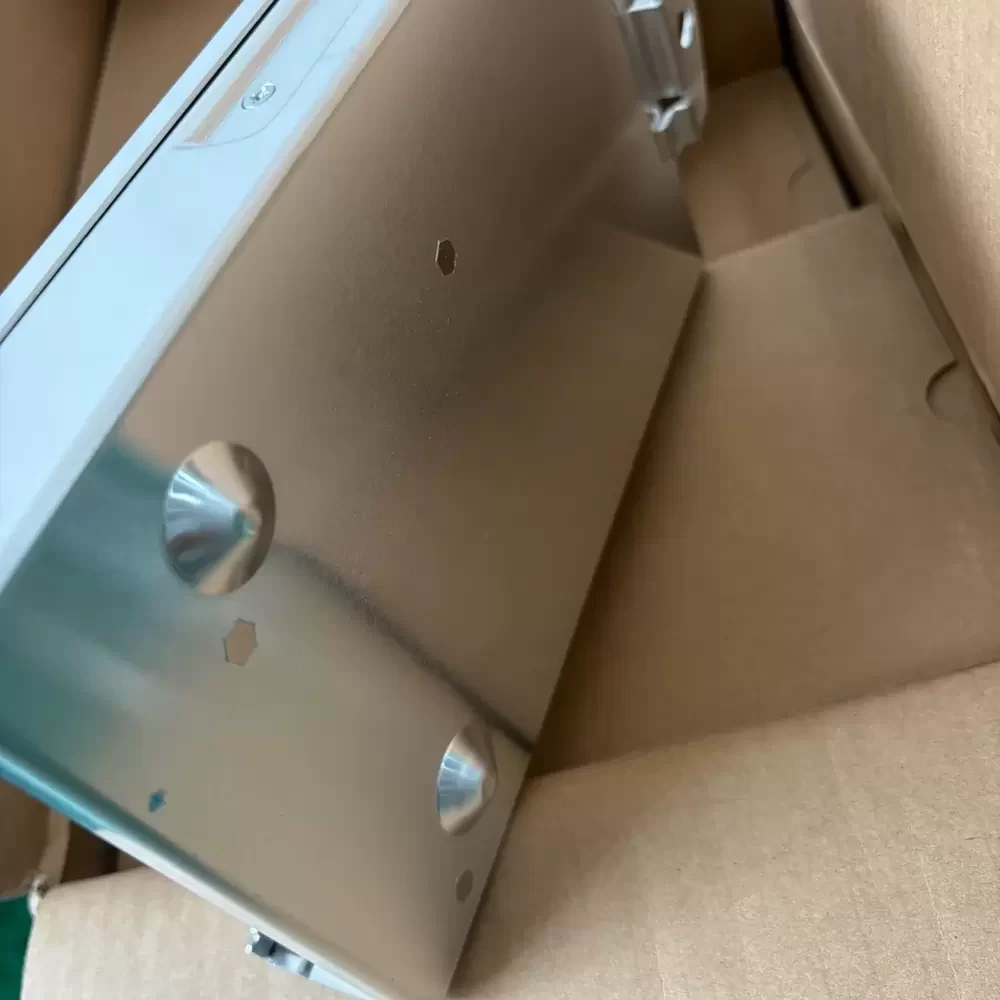

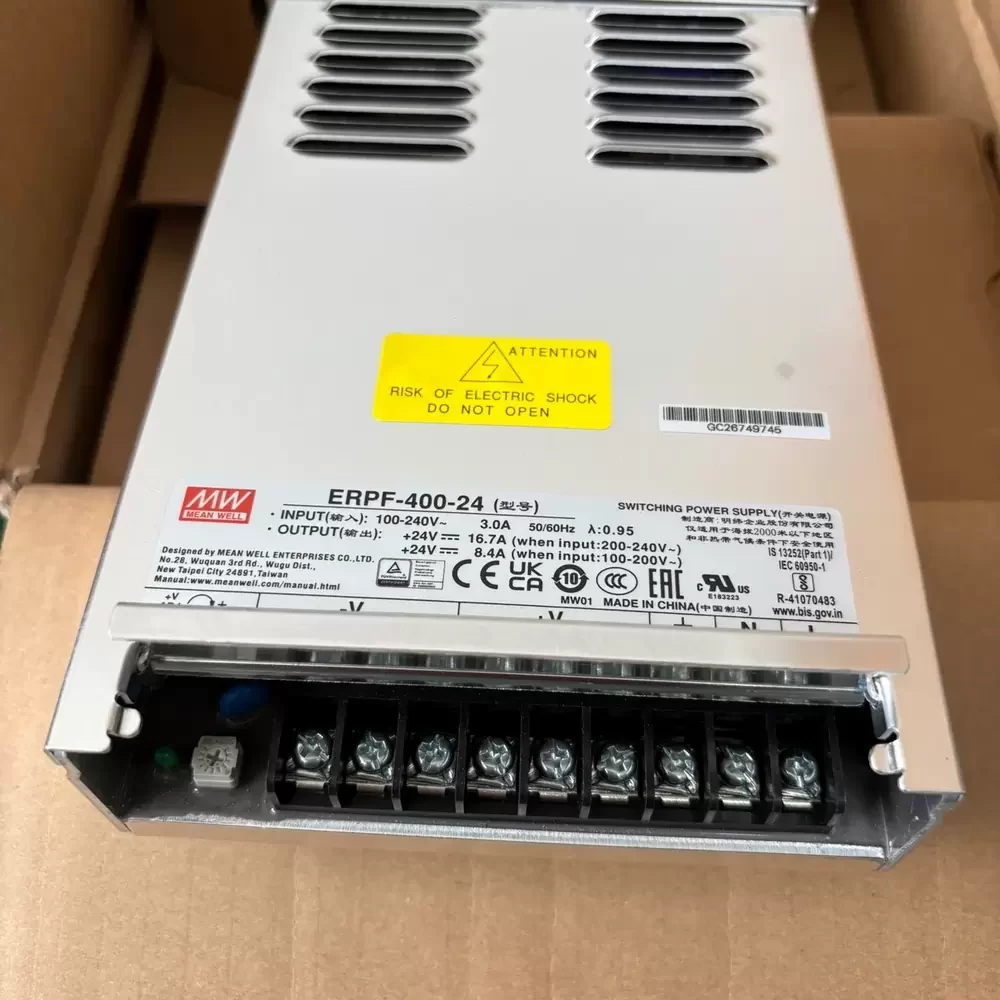

Mean Well ERPF-400-24 is a 400.8 W enclosed switching power supply featuring a 24 VDC output, 16.7 A rated current, and physical dimensions of 220.4 x 130 x 48 mm. The unit incorporates an active power factor correction (PFC) circuit and is housed in a semi-potted aluminum casing designed for rain splash and dust protection. Internal architecture includes high-efficiency power conversion stages, a terminal block interface for electrical connections, and an LED indicator for operational status. The hardware is engineered for cooling by free air convection without the requirement for internal fans.

ERPF-400-24 Specifications
Model: ERPF-400-24
Brand: Mean Well
Category: Enclosed Switching Power Supply
Output Voltage: 24 VDC
Rated Current: 16.7 A
Current Range: 0 to 16.7 A
Rated Power: 400.8 W
Ripple and Noise: 150 mVp-p
Voltage Adj. Range: 21.6 to 26.4 VDC
Voltage Tolerance: +/- 1.0 %
Line Regulation: +/- 0.5 %
Load Regulation: +/- 0.5 %
Input Voltage Range: 90 to 264 VAC / 127 to 370 VDC
Input Frequency: 47 to 63 Hz
Efficiency: 90 %
AC Current: 5.2 A / 115 VAC, 2.6 A / 230 VAC
Inrush Current: 80 A / 230 VAC
Power Factor: PF > 0.95 / 230 VAC
Leakage Current: < 1.0 mA / 240 VAC
Overload Protection: 105 to 135 % rated output power
Over Voltage Protection: 27.6 to 32.4 V
Over Temperature Protection: Shut down o/p voltage, re-power on to recover
Operating Temperature: -30 to +70 °C
Operating Humidity: 20 to 90 % RH non-condensing
Storage Temperature: -40 to +85 °C
Vibration: 10 to 500 Hz, 2G 10 min./1 cycle, 60 min. each along X, Y, Z axes
Safety Standards: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1
Withstand Voltage: I/P-O/P: 3 kVAC, I/P-FG: 2 kVAC, O/P-FG: 0.5 kVAC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500 VDC / 25 °C / 70 % RH
EMC Emission: BS EN/EN55032 Class A, BS EN/EN61000-3-2,3
EMC Immunity: BS EN/EN61000-4-2,3,4,5,6,8,11
MTBF: 168.2K hours min.
Dimensions: 220.4 x 130 x 48 mm (L x W x H)
Weight: 1.1 kg

ERPF-400-24 Applications
Primary applications include integration into outdoor LED moving signs, large-scale electronic billboards, and architectural channel letter lighting. Deployed within industrial automation control panels and high-power LED strip installations requiring rainproof protection.
