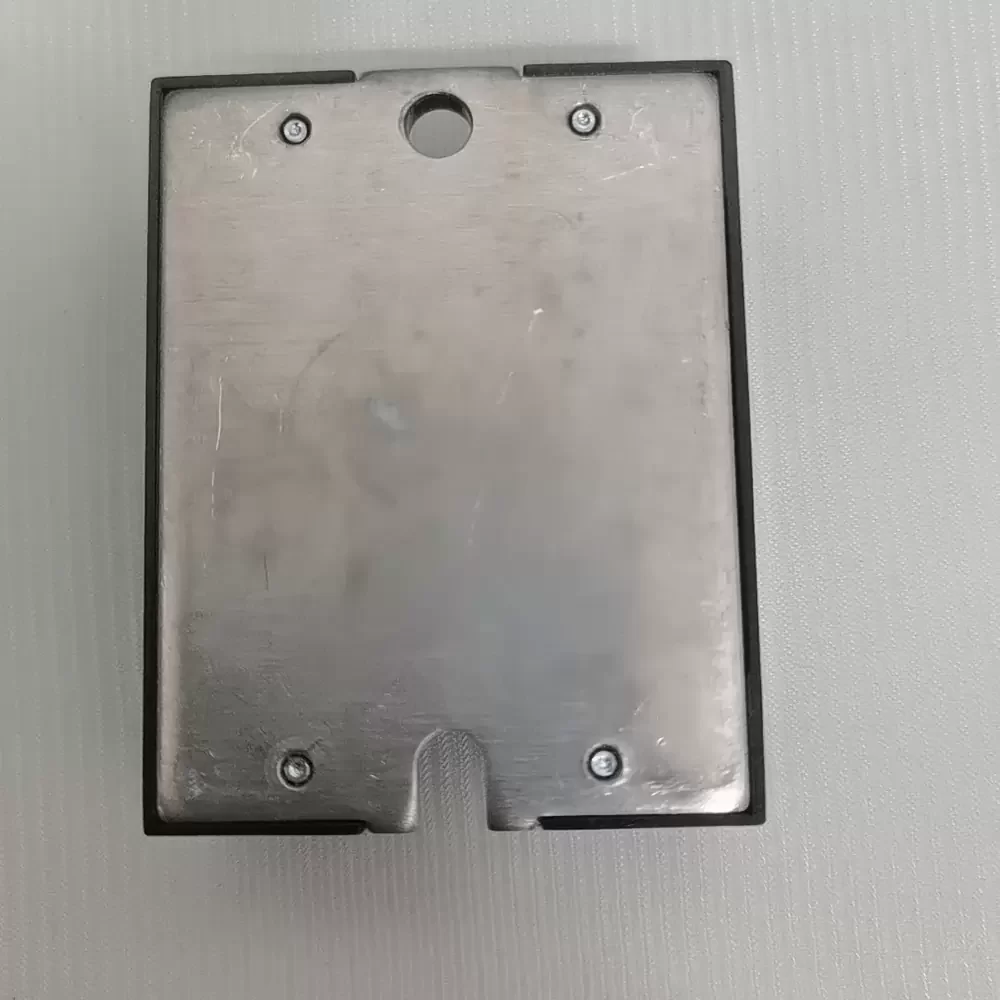

D2410 Crydom 10A 280VAC Panel Mount Solid State Relay

Description

Crydom D2410 is a panel-mounted solid state relay featuring a 10 A maximum load current, 24 to 280 VAC operating voltage, and a 3 to 32 VDC control voltage range. Housed in a standard hockey puck enclosure with anti-rotation barriers, this component utilizes an SCR output architecture engineered for heavy industrial loads. The unit incorporates screw terminals for secure wiring, delivers 4000 Vrms of I/O optical isolation, and operates utilizing a zero-voltage turn-on switching mechanism to minimize electromagnetic interference.

D2410 Specifications
Model Number: D2410
Brand: Crydom (Sensata Technologies)
Product Category: Solid State Relay (SSR)
Contact Configuration: SPST-NO (1 Form A)
Maximum Load Current: 10 A
Operating Voltage Range: 24 to 280 VAC
Control Voltage Range: 3 to 32 VDC
Transient Overvoltage: 600 Vpk
Maximum 1-Cycle Surge Current (50/60 Hz): 115 / 120 Apk
Maximum On-State Voltage Drop: 1.15 Vrms
Maximum Off-State Leakage Current: 1 mArms
Minimum Off-State dv/dt: 500 V/µsec
Thermal Resistance (Junction to Case): 1.03 °C/W
Maximum 1/2 Cycle I²t for Fusing (50/60 Hz): 66 / 60 A²sec
Minimum Power Factor: 0.5
I/O Isolation Voltage: 4000 Vrms
Switching Mode: Zero Voltage Turn-On (Zero Crossing)
Mounting Type: Panel Mount
Termination Style: Screw Terminal
Housing Style: Hockey Puck with Anti-Rotation Barriers
Operating Temperature Range: -40 °C to 80 °C
Ambient Temperature Range: -40 °C to 80 °C
Approvals / Certifications: UL, CSA, VDE, CE, RoHS

D2410 Applications
Primary applications include integration into packaging equipment, commercial food and beverage dispensers, and textile manufacturing machinery. Deployed within CNC spindle cooling systems, HVAC control panels, and automated test equipment, the relay provides precise thermal management and motor control. The component is also utilized in medical diagnostic hardware and industrial lighting arrays requiring high-cycle switching.
