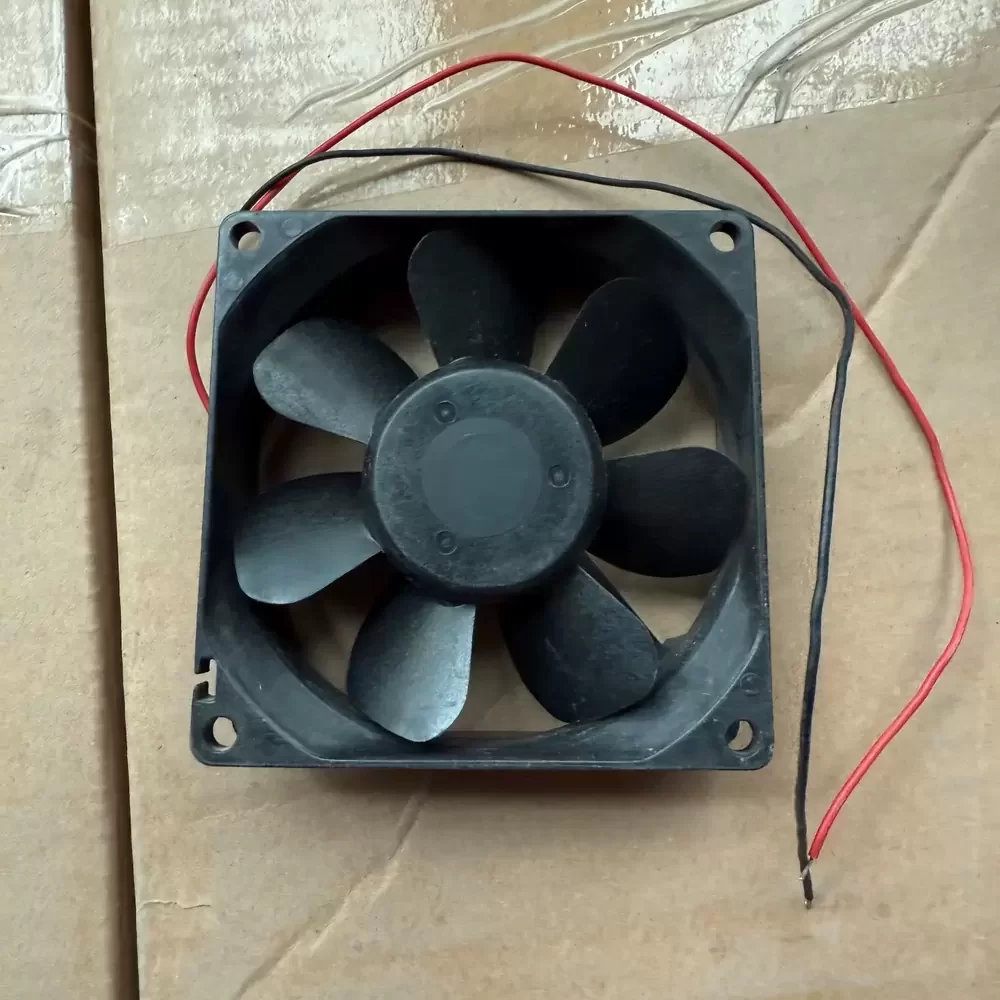

9A0812E401 Sanyo Denki 12VDC 2.88W 80x80x25mm Axial Fan

Description

Sanyo Denki 9A0812E401 is a high-performance DC axial fan measuring 80 x 80 x 25 mm, operating at a nominal 12 VDC with a 0.24 A current draw. It features a dual ball bearing system and a brushless DC motor housed in a UL 94V-0 rated plastic frame and impeller. The unit delivers a maximum airflow of 1.31 m³ / min (46.3 CFM) and a static pressure of 51 Pa at a rotational speed of 3800 RPM. The 2-wire interface provides a simple power connection without sensor feedback, optimized for continuous duty thermal management.

9A0812E401 Specifications
Model Number: 9A0812E401
Brand: Sanyo Denki
Series: San Cooler 80 (9A Type)
Frame Size: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7 to 13.8 VDC
Rated Current: 0.24 A
Rated Input: 2.88 W
Rated Speed: 3800 RPM
Maximum Airflow: 1.31 m³ / min (46.3 CFM)
Maximum Static Pressure: 51 Pa (0.205 inchH2O)
Noise Level: 37 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Lead Wire: 2-wire (Red: +, Black: -)
Operating Temperature: -20 to +70 °C
Expected Life: 40,000 Hours at 60 °C
Mass: 100 g
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection

9A0812E401 Applications
Primary applications include integration into industrial frequency converters, server chassis cooling, and power supply thermal management systems. Deployed within telecommunications base stations and medical diagnostic equipment requiring high-reliability axial ventilation.
