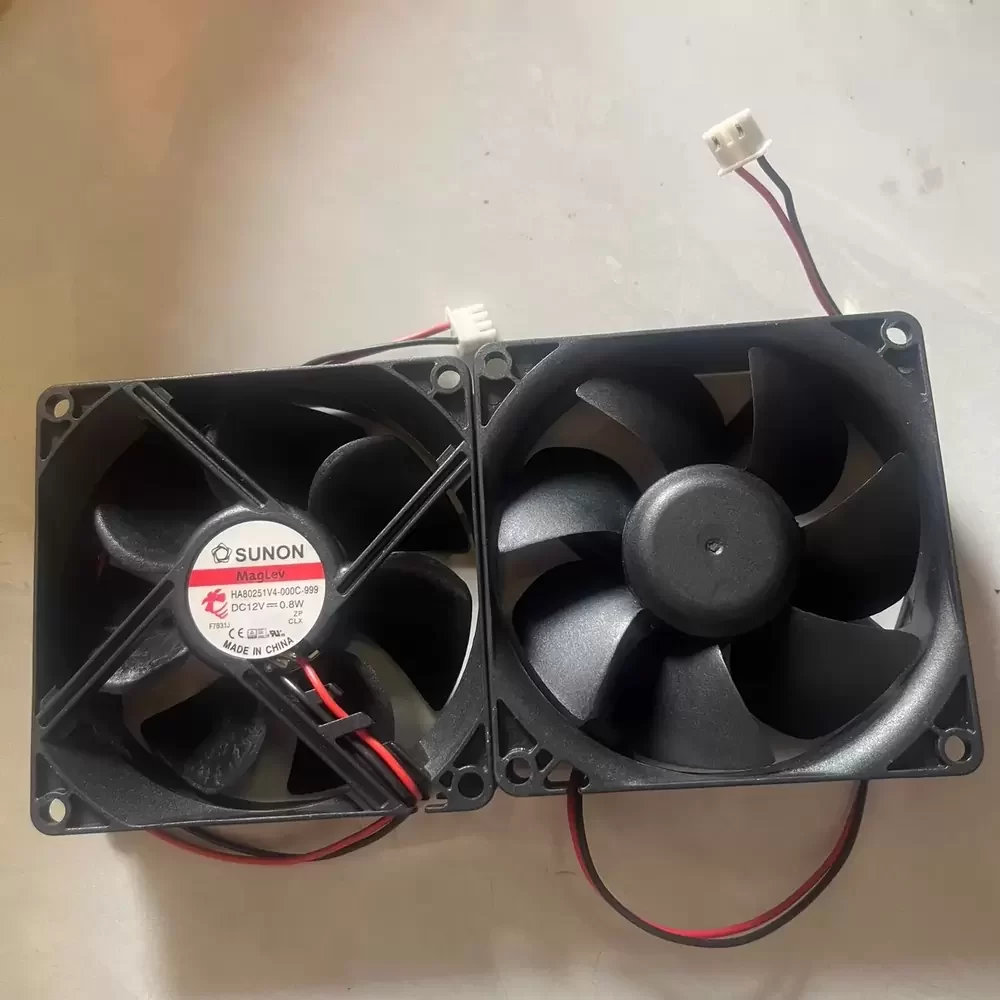

HA80251V4-000C-999 SUNON 12VDC 0.8W 80x80x25mm Axial Fan

Description

SUNON HA80251V4-000C-999 is an 80 x 80 x 25 mm axial fan operating at 12 VDC with a power consumption of 0.8 W and a rated speed of 2000 RPM. The unit features a Vapo bearing system integrated with a MagLev motor design to minimize friction and vibration. The housing and impeller are constructed from UL 94V-0 rated thermoplastic PBT. It utilizes a brushless DC motor architecture with auto-restart and polarity protection, delivering 23.7 CFM of airflow and 0.05 Inch-H2O static pressure through a 2-wire lead interface.

HA80251V4-000C-999 Specifications
Model: HA80251V4-000C-999
Brand: SUNON
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Rated Current: 66 mA
Rated Power: 0.8 W
Rated Speed: 2000 RPM
Airflow: 23.7 CFM
Static Pressure: 0.05 Inch-H2O
Noise Level: 22.1 dBA
Bearing Type: Vapo (MagLev)
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Motor Type: Brushless DC Motor
Connection: 2-Wire (Lead Wire)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Weight: 75 g
Safety Approvals: UL, TUV, CE
Insulation Resistance: 10 M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute

HA80251V4-000C-999 Applications
Primary applications include integration into industrial PC chassis, telecommunications server racks, and medical diagnostic equipment requiring low-noise thermal management. Deployed within power supply units, CNC control cabinets, and network switches to maintain optimal operating temperatures for sensitive electronic components.
