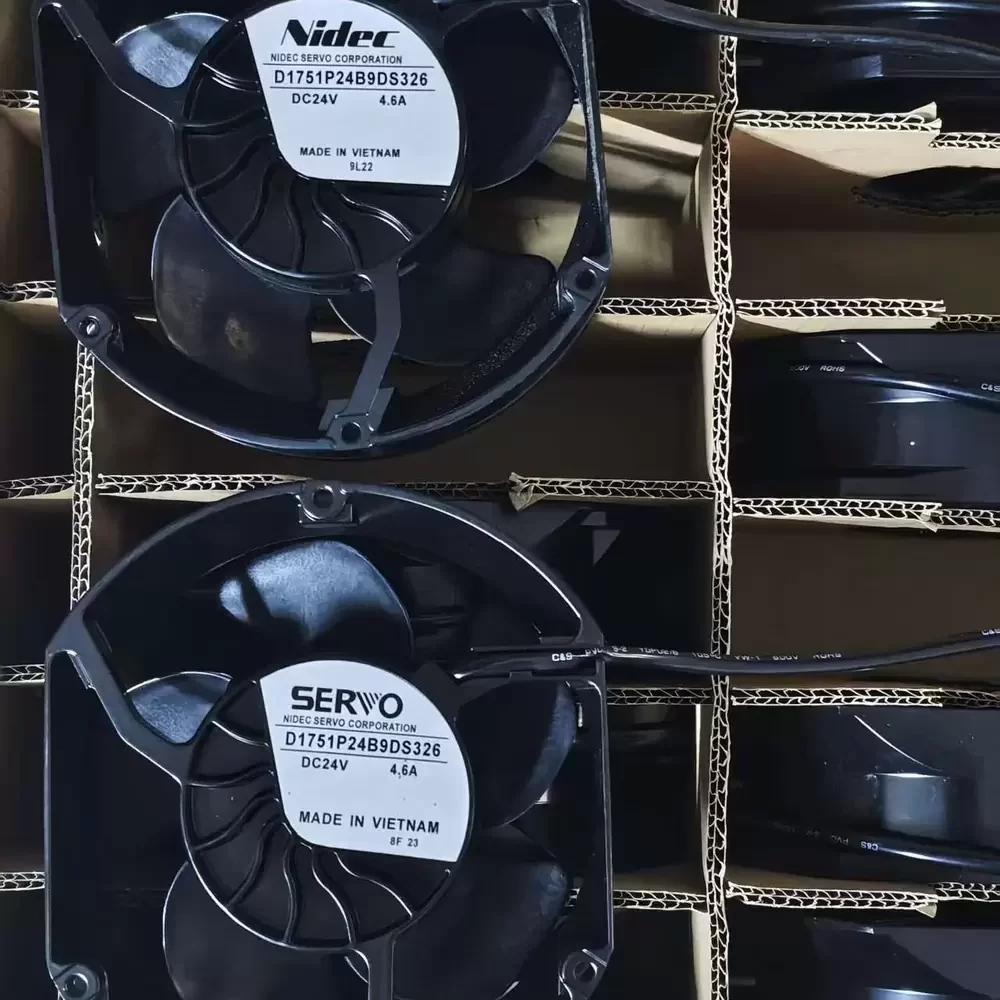

D1751P24B9DS326 Nidec Servo 24VDC 4.6A 172x150x51mm Axial Fan

Description

Nidec Servo D1751P24B9DS326 172 x 150 x 51 mm, 24 VDC, 4.6 A, and 501 CFM is a high-performance DC axial fan. The unit features a robust aluminum die-cast frame and high-strength plastic impellers, driven by a brushless motor with dual ball bearings for extended service life. It utilizes a 4-wire interface for precise PWM speed control and tachometer feedback, delivering significant airflow and static pressure for thermal management in high-density power electronics.

D1751P24B9DS326 Specifications
Model: D1751P24B9DS326
Brand: Nidec Servo
Category: DC Axial Fan
Rated Voltage: 24 VDC
Operating Voltage Range: 16 to 28 VDC
Rated Current: 4.6 A
Power Consumption: 110.4 W
Dimensions: 172 x 150 x 51 mm
Frame Material: Aluminum
Blade Material: Plastic
Bearing Type: Dual Ball Bearing
Termination: 4-wire Leads
Interface: PWM Control, Tachometer Output
Airflow: 501 CFM
Static Pressure: 640 Pa
Noise Level: 76 dB(A)
Weight: 830 g
Operating Temperature: -20 to 70 °C
Certifications: UL, cUL, TUV

D1751P24B9DS326 Applications
Primary applications include integration into Yaskawa high-power inverters, variable frequency drives, and industrial CNC control cabinets. Deployed within server infrastructure and telecommunications base stations for high-density thermal dissipation.
