Description

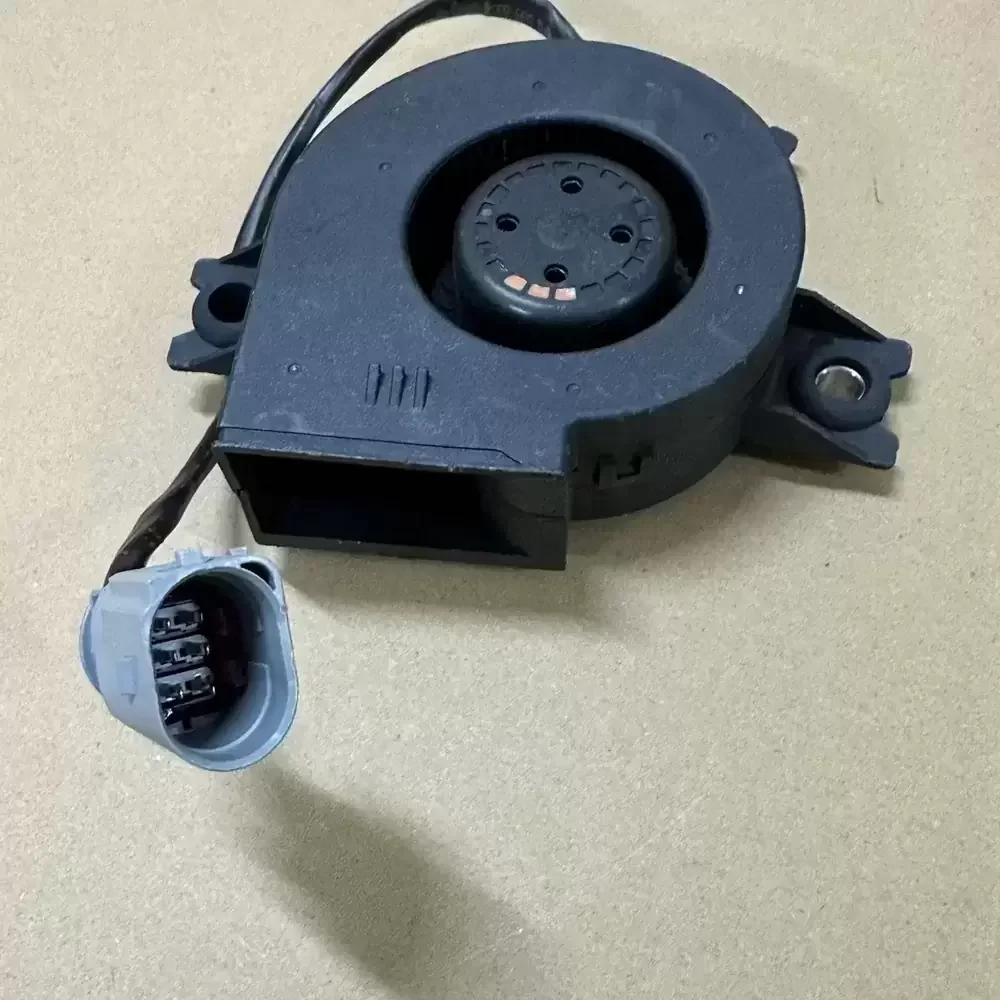

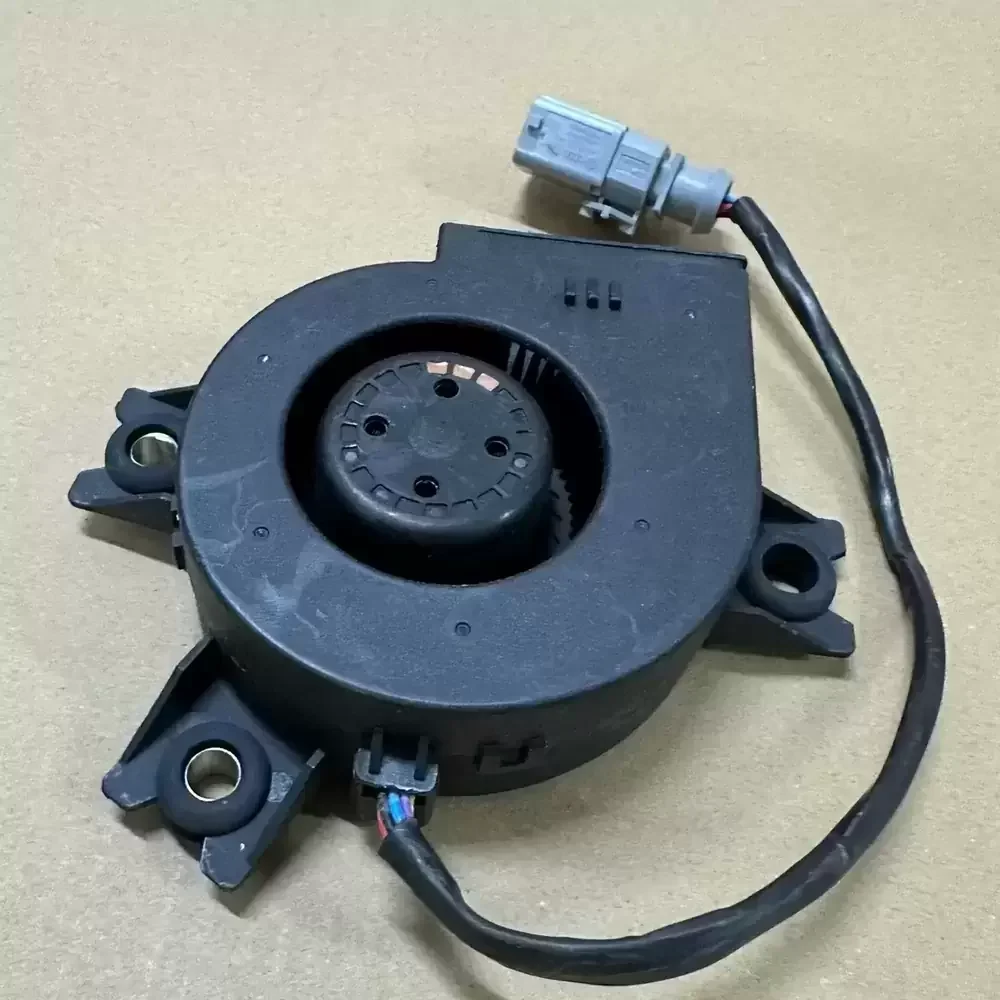

The Delta BFB1012UHKB8 is a specialized centrifugal blower engineered for high-static pressure applications, including automotive seat ventilation and industrial cooling. Featuring a robust DC brushless motor and a precision dual ball bearing system, this unit offers superior structural rigidity and thermal resilience. The aerodynamic volute design maximizes air velocity while minimizing turbulence, ensuring efficient thermal impedance management in space-constrained environments.
Model Number: BFB1012UHKB8
OEM Part Number: 1T6.819.451.AA
Brand: Delta Electronics
Product Type: Centrifugal Blower
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 2.70 A
Power: 32.40 W
Rated Speed: 5300 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 46.61 CFM (79.19 m³/h / 1.32 m³/min)
Max. Static Pressure: 48.0 mmH₂O (470.7 Pa / 1.89 inH₂O)
Dimensions: 97 x 94 x 33 mm
Weight: 180 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 64.0 dB-A
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Ingress Protection: IP54
Termination: Lead Wires with Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Safety Approvals: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
The BFB1012UHKB8 is primarily utilized in automotive climate control systems, specifically for seat ventilation and heating distribution, corresponding to VW part 1T6.819.451.AA. Additionally, the BFB1012UHKB8 is suitable for electronics cooling in server racks, 3D printers, and industrial automation equipment where directing airflow through ducts or heatsinks requires significant static pressure capabilities.
