Description

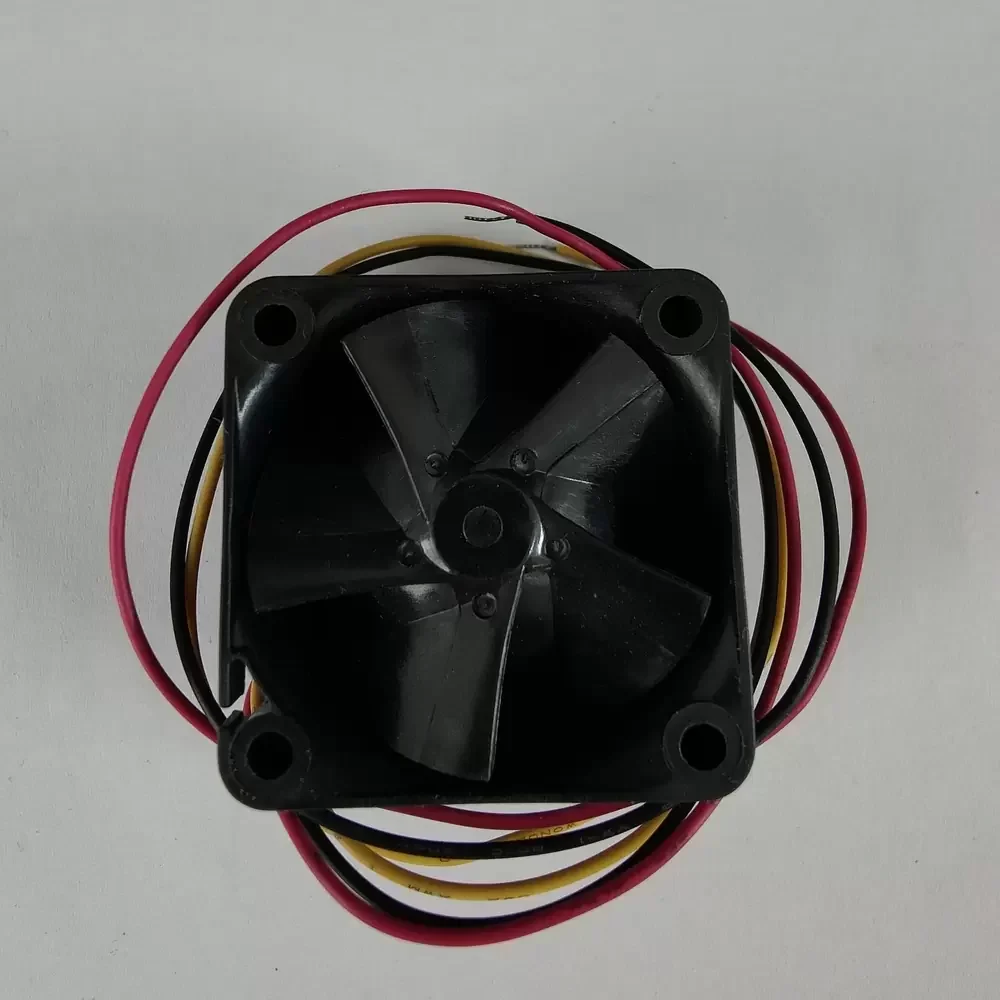

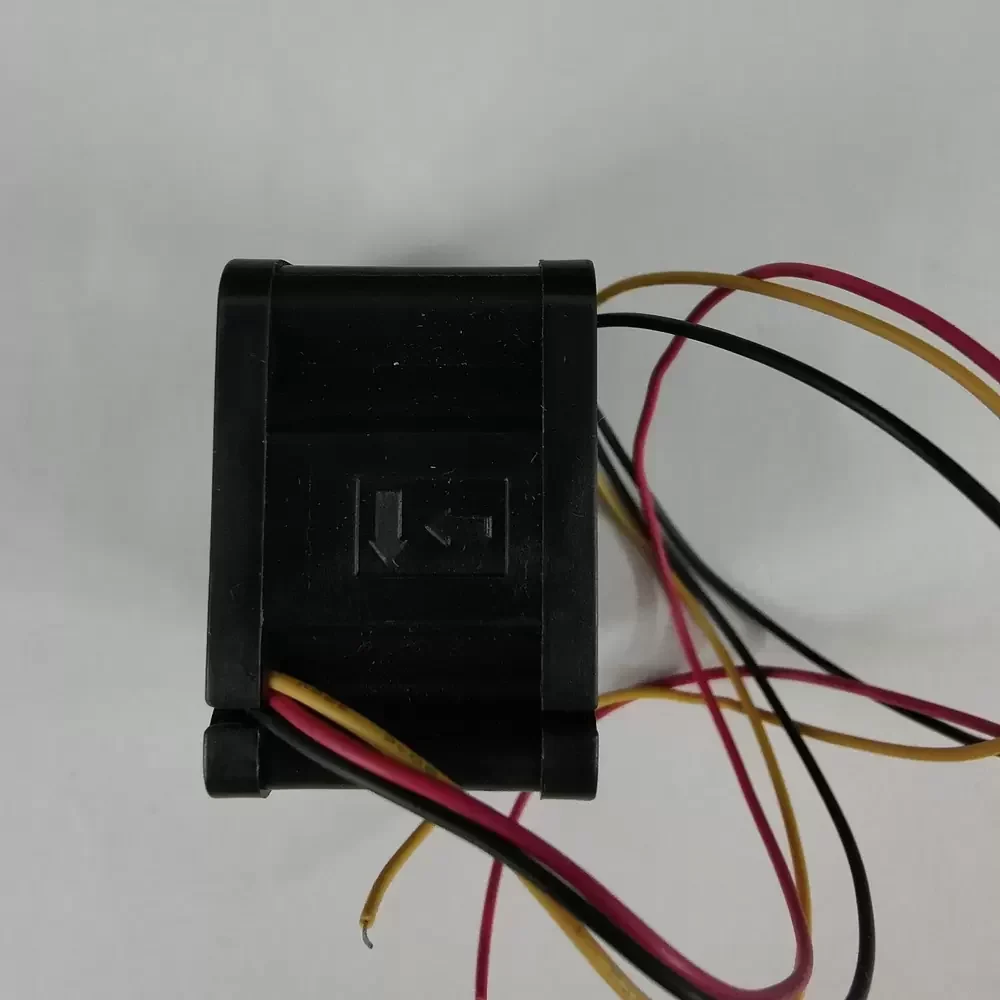

The Protechnic MGT4012XB-R28 is a precision-engineered DC axial fan designed for high-density thermal management applications requiring substantial static pressure. Utilizing advanced dual ball bearing architecture, this unit ensures exceptional rotational stability and longevity under continuous operation, significantly reducing the risk of mechanical failure. The aerodynamic impeller design optimizes airflow dynamics while minimizing acoustic resonance, resulting in a favorable thermal impedance profile. Constructed with robust housing materials to withstand industrial environments, the MGT4012XB-R28 delivers reliable cooling performance, making it an ideal solution for maintaining structural rigidity and component integrity in sensitive electronic assemblies requiring efficient heat dissipation.
Model Number: MGT4012XB-R28
Brand: Protechnic
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.25 A
Power Input: 3.00 W
Rated Speed: 9500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 16.5 CFM (28.03 m³/h / 0.47 m³/min)
Max. Static Pressure: 14.22 mmH₂O (139.45 Pa / 0.56 inH₂O)
Dimensions: 40x40x28mm
Weight: 48 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 42.0 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Ingress Protection: IP40
Insulation Class: Class A
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: Lead Wires (UL1007 AWG26)
Safety Certifications: UL, cUL, TUV, CE
This high-performance cooling solution is specifically engineered for compact industrial enclosures, particularly variable frequency drive (VFD) inverters and server chassis where space is limited. The MGT4012XB-R28 excels in environments where high static pressure is required to force air through dense component arrays and heat sinks. Additionally, the MGT4012XB-R28 is frequently utilized in telecommunications equipment, network switches, and precision medical instrumentation where reliable thermal regulation is critical for system uptime and performance stability.
