Description

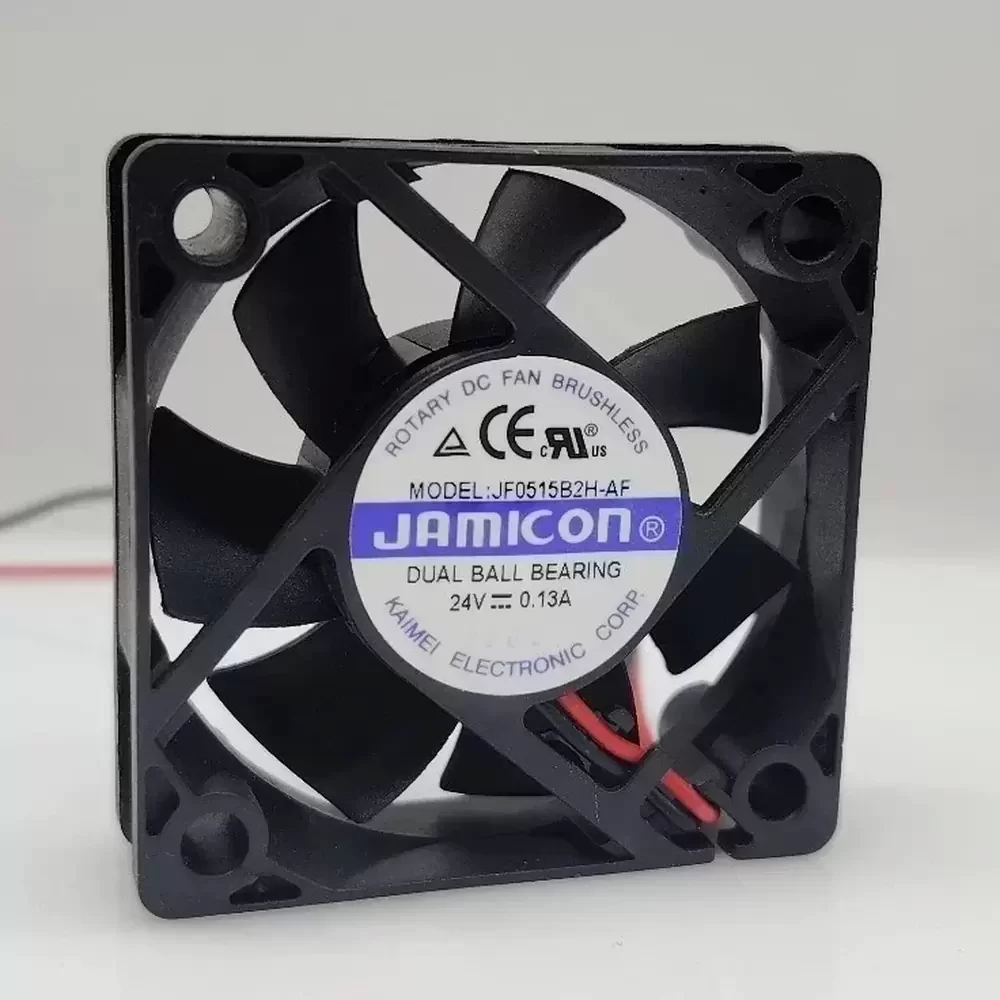

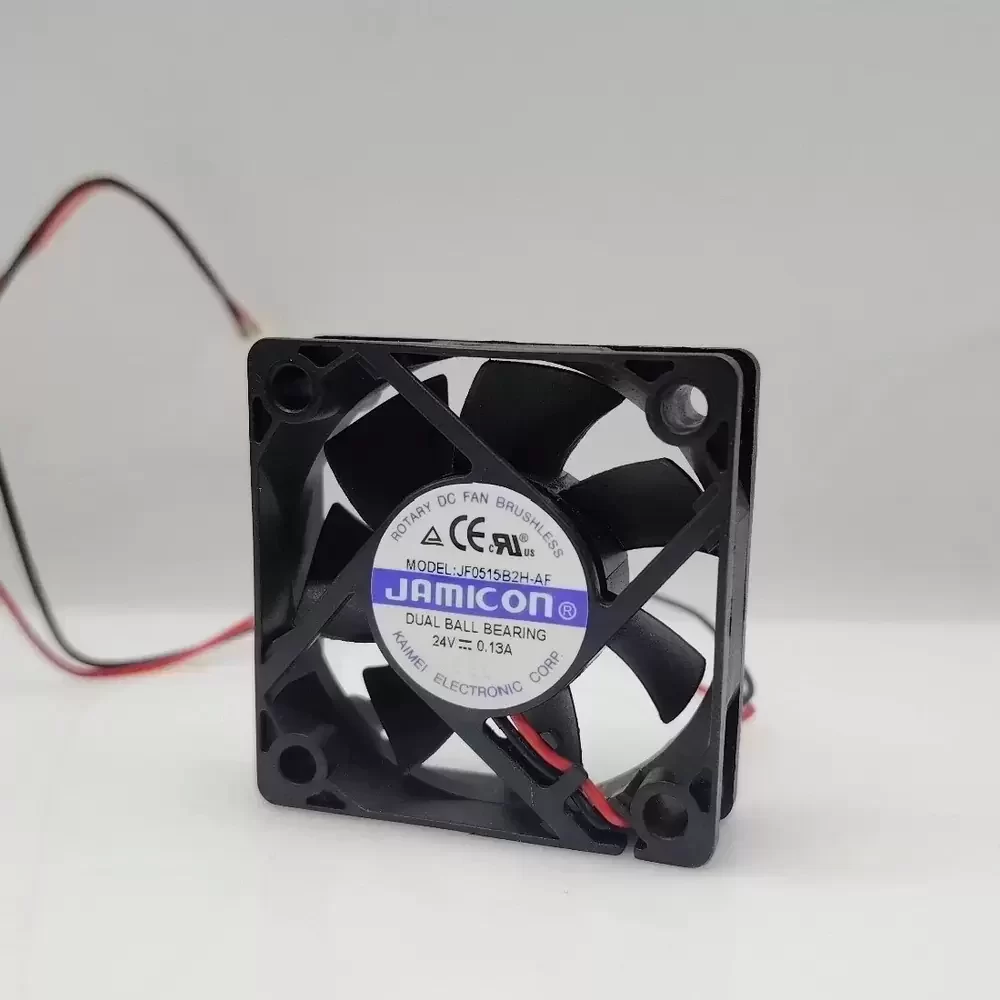

The Jamicon JF0515B2H-AF is a precision-engineered DC Axial Fan designed for critical thermal management in industrial electronics. Utilizing advanced DC motor technology paired with a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, effectively reducing thermal impedance within high-density enclosures. Engineered for reliability, the JF0515B2H-AF provides consistent cooling performance, making it an essential component for maintaining system stability in demanding environments.
Model Number: JF0515B2H-AF
Brand: Jamicon (Kaimei Electronic Corp)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.13 A
Power: 3.12 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 14.5 CFM (24.6 m³/h / 0.41 m³/min)
Max. Static Pressure: 4.8 mmH₂O (47.1 Pa / 0.19 inH₂O)
Dimensions: 50 x 50 x 15 mm
Weight: 30 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 32 dBA
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C

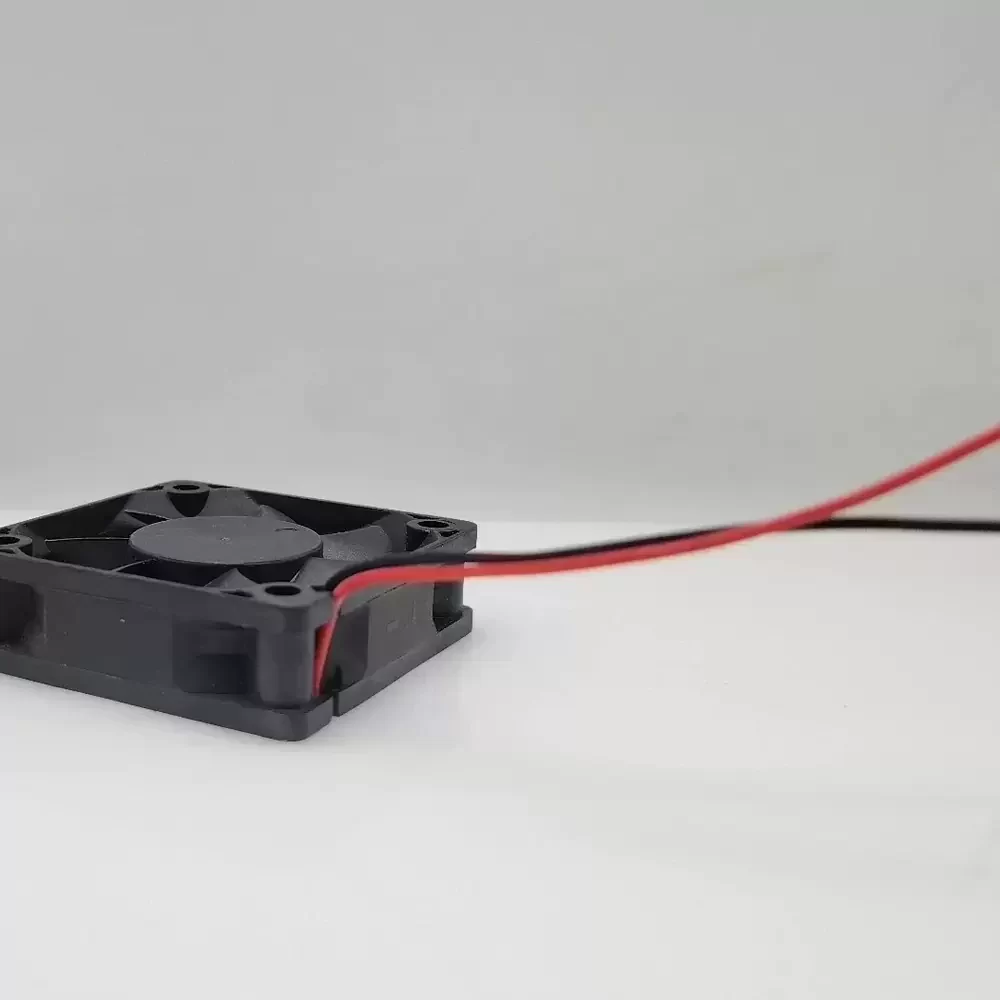

Termination: 2-Wire Lead
Mounting Orientation: Any
Ingress Protection: IP20
Certifications: CE, UL, TUV
The JF0515B2H-AF is specifically engineered for integration into compact industrial equipment where space is at a premium but airflow cannot be compromised. Frequently utilized within variable frequency drives (VFDs) and power inverters, the JF0515B2H-AF ensures critical components remain within safe thermal operating limits. Its robust construction also makes it suitable for server rack cooling modules, CNC control panels, and telecommunications equipment requiring sustained, reliable air movement.
