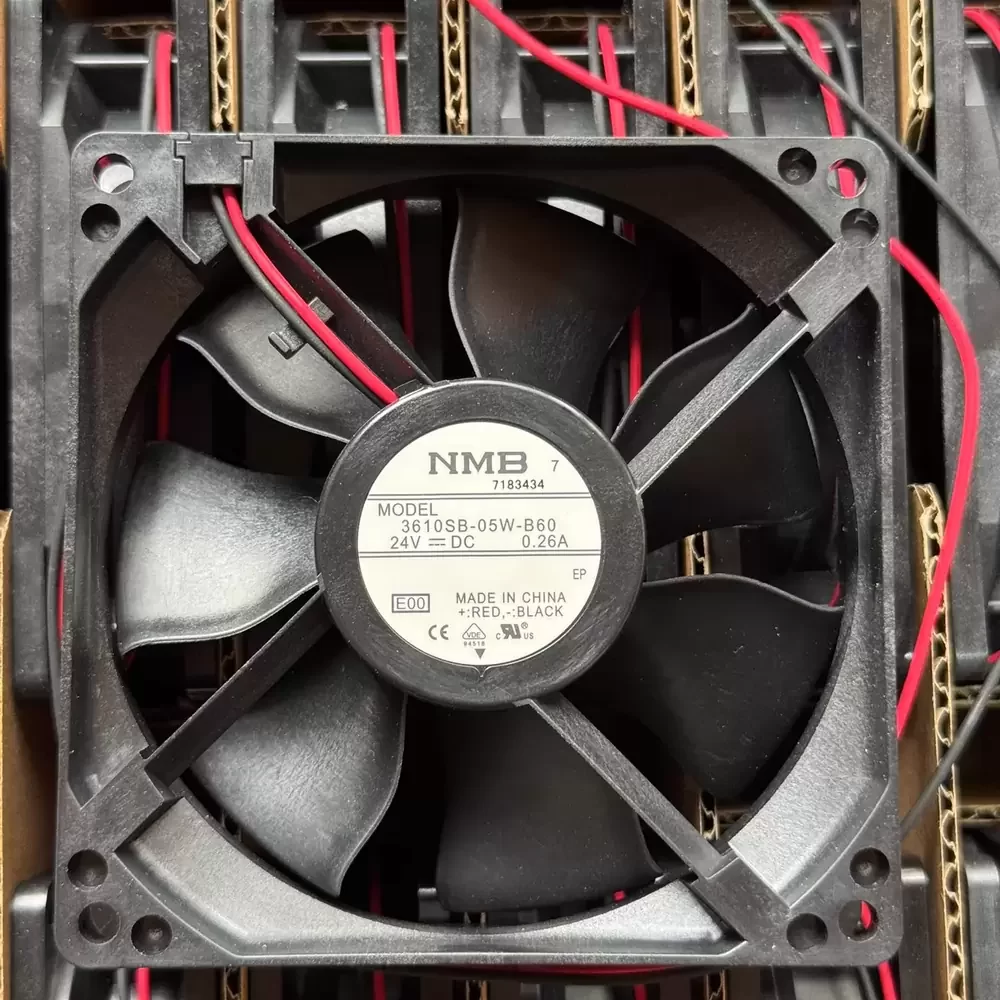

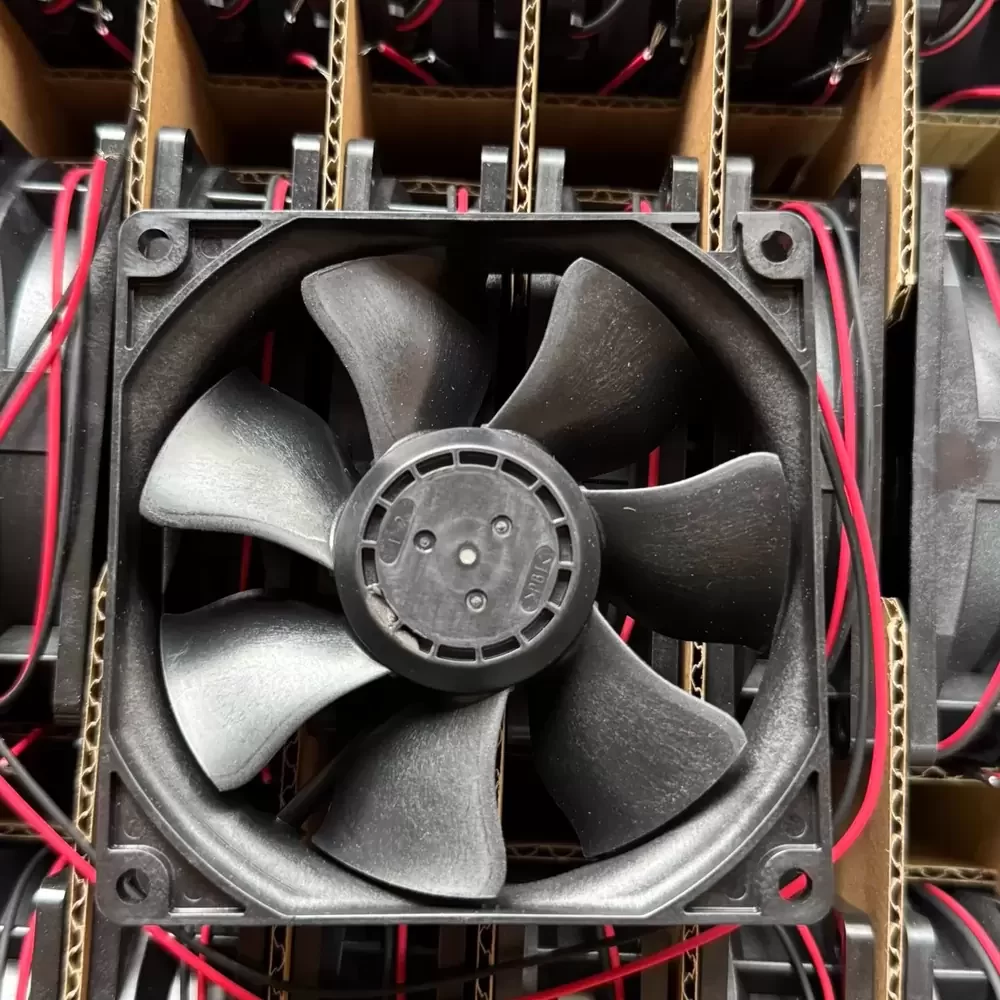

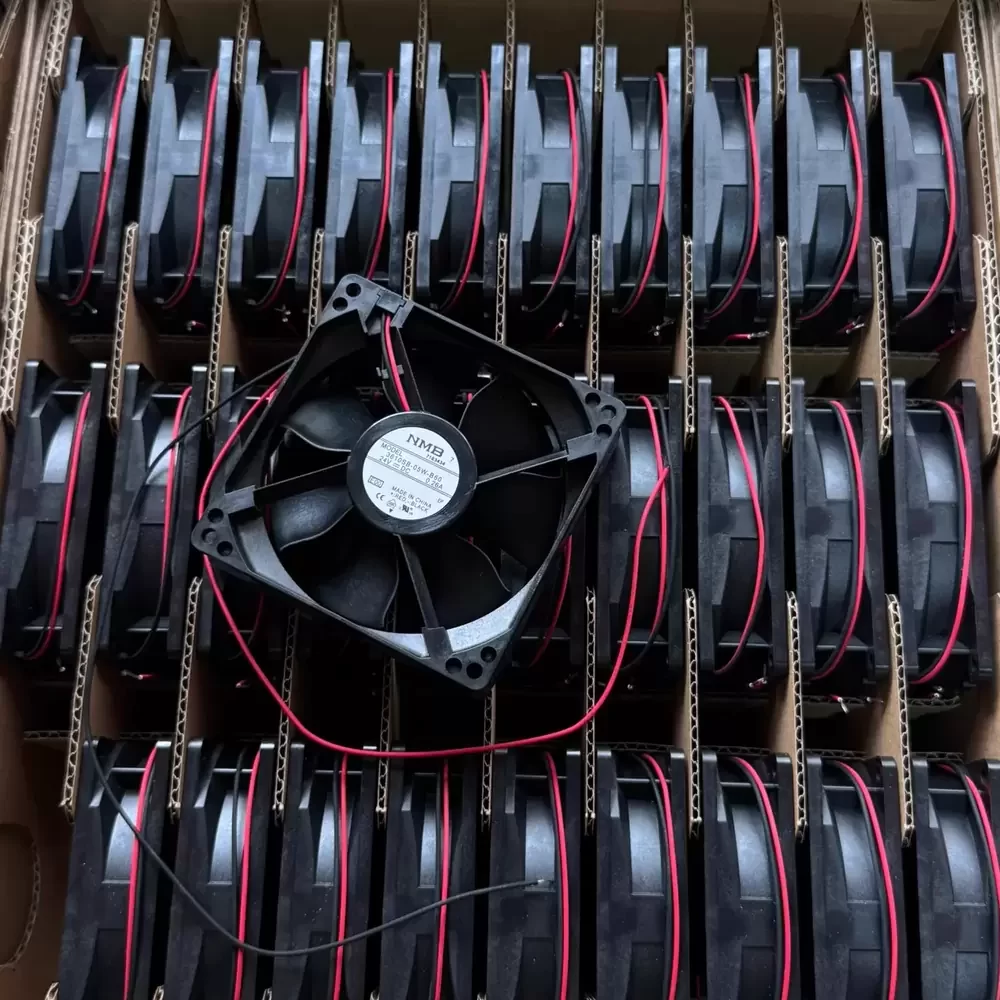

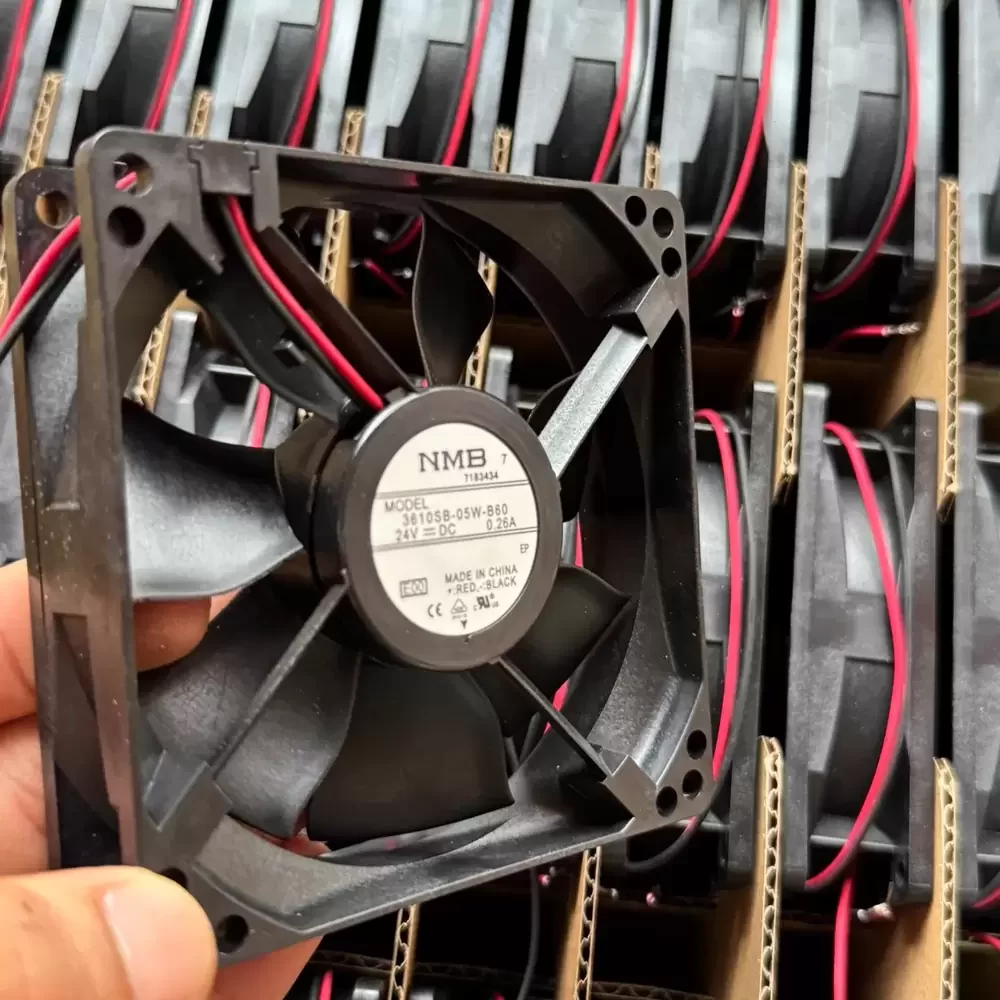

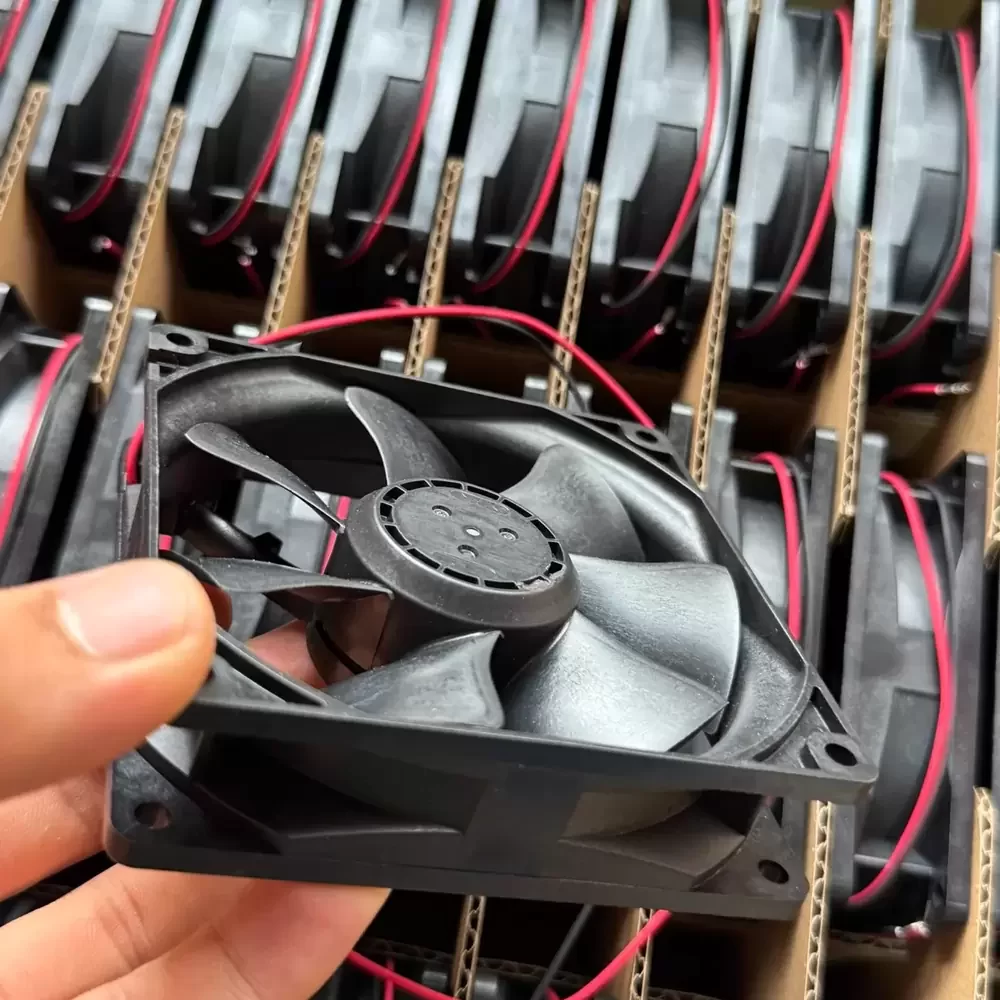

3610SB-05W-B60-E00 NMB 24VDC 0.26A 92x92x25mm Axial Fan

Description

NMB 3610SB-05W-B60-E00 is a 92 x 92 x 25 mm DC axial cooling fan operating at a nominal 24 VDC with a 0.26 A current draw and 6.24 W power consumption. The unit features a dual ball bearing system and a thermoplastic housing and impeller rated to UL 94V-0 flammability standards. It delivers a maximum airflow of 60 CFM and a static pressure of 70 Pa at a rotational speed of 3,800 RPM. The fan is equipped with two lead wires for electrical termination and includes internal protection mechanisms such as auto-restart and polarity protection.

3610SB-05W-B60-E00 Specifications
Model: 3610SB-05W-B60-E00
Brand: NMB (MinebeaMitsumi)
Category: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10.0 to 27.6 VDC
Current Rating: 0.26 A
Input Power: 6.24 W
Speed: 3,800 RPM
Airflow: 60 CFM
Airflow: 1.70 m³/min
Static Pressure: 70 Pa
Static Pressure: 0.28 in H2O
Noise Level: 39.0 dB
Bearing Type: Dual Ball Bearing
Mass: 95 g
Material (Casing): Thermoplastic (Black) UL 94V-0
Material (Impeller): Thermoplastic (Black) UL 94V-0
Termination: 2-Wire (Lead Wires)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 100,000 hours (at 25 °C)
Insulation Resistance: 10 M Ohm min. at 500 VDC
Dielectric Withstand Voltage: AC 700 V 1 s
Protection: Auto Restart / Polarity Protection

3610SB-05W-B60-E00 Applications
Primary applications include integration into industrial frequency inverters, server rack enclosures, and telecommunications base stations. Deployed within CNC machine control panels, medical diagnostic imaging systems, and high-density power supply units for critical thermal management.
