Description

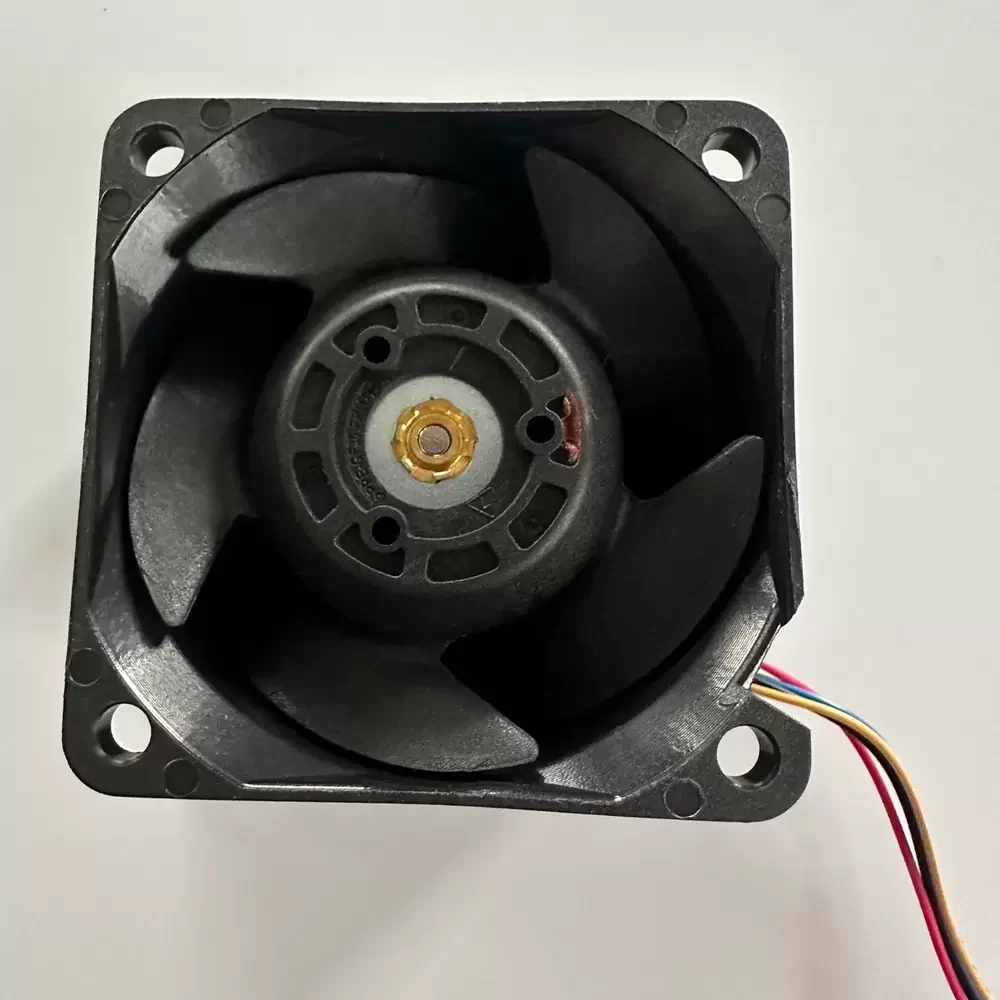

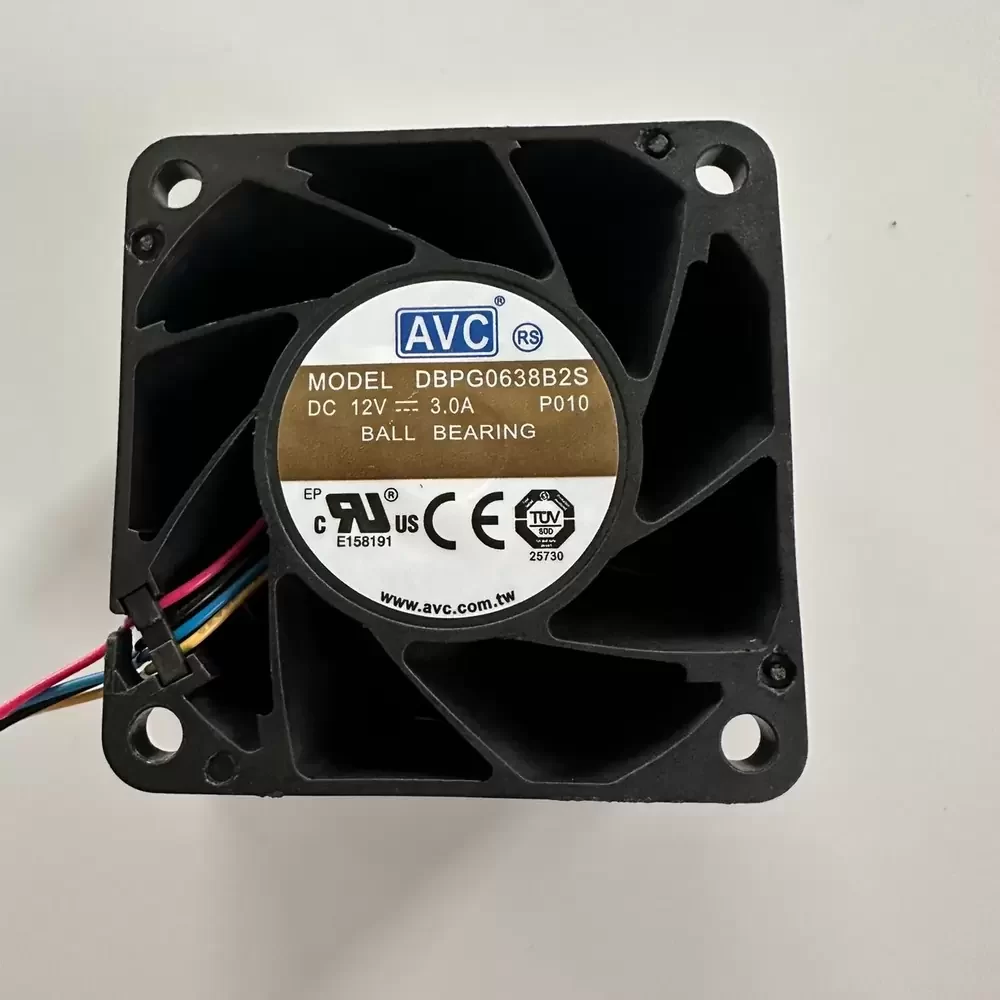

AVC DBPG0638B2S-P010 is a 12VDC 60x60x38mm Axial Fan optimized for high-density thermal management in restricted enclosures. This unit utilizes a high-torque DC motor and dual ball bearing architecture to ensure structural rigidity and long-term reliability. Its aerodynamic impeller is engineered to minimize thermal impedance by delivering exceptional static pressure, essential for cooling high-resistance heat sinks. Operating at 3.0A with a 36W power rating, the fan integrates a 4-wire PWM interface for precise RPM modulation. This makes it a critical component for maintaining optimal operating temperatures in mission-critical hardware where airflow velocity is paramount.
Model Number: DBPG0638B2S-P010
Brand: AVC
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 3.0 A
Power: 36.0 W
Rated Speed: 16500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 67.5 CFM (114.7 m³/h / 1.91 m³/min)
Max. Static Pressure: 52.4 mmH₂O (513.8 Pa / 2.06 inH₂O)
Dimensions: 60 x 60 x 38 mm
Weight: 125 g
Life Expectancy: 70,000 hours at 40 °C
Speed Control: PWM (Pulse Width Modulation)
Monitoring Output: Tachometer (Frequency Generator)
Termination: 4-wire lead wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
DBPG0638B2S-P010 Applications
1. 1U/2U Rackmount Servers: High static pressure overcomes the dense internal impedance of compact server chassis, serving as a high-efficiency replacement fan for enterprise networking gear.
2. Cryptocurrency Mining Rigs: The 3.0A high-velocity output provides the necessary thermal dissipation for overclocked ASIC or GPU components in multi-unit arrays.
3. Industrial Power Supplies: Ideal for cooling high-wattage VFDs and switch-mode power converters where concentrated heat loads require rapid air exchange.
