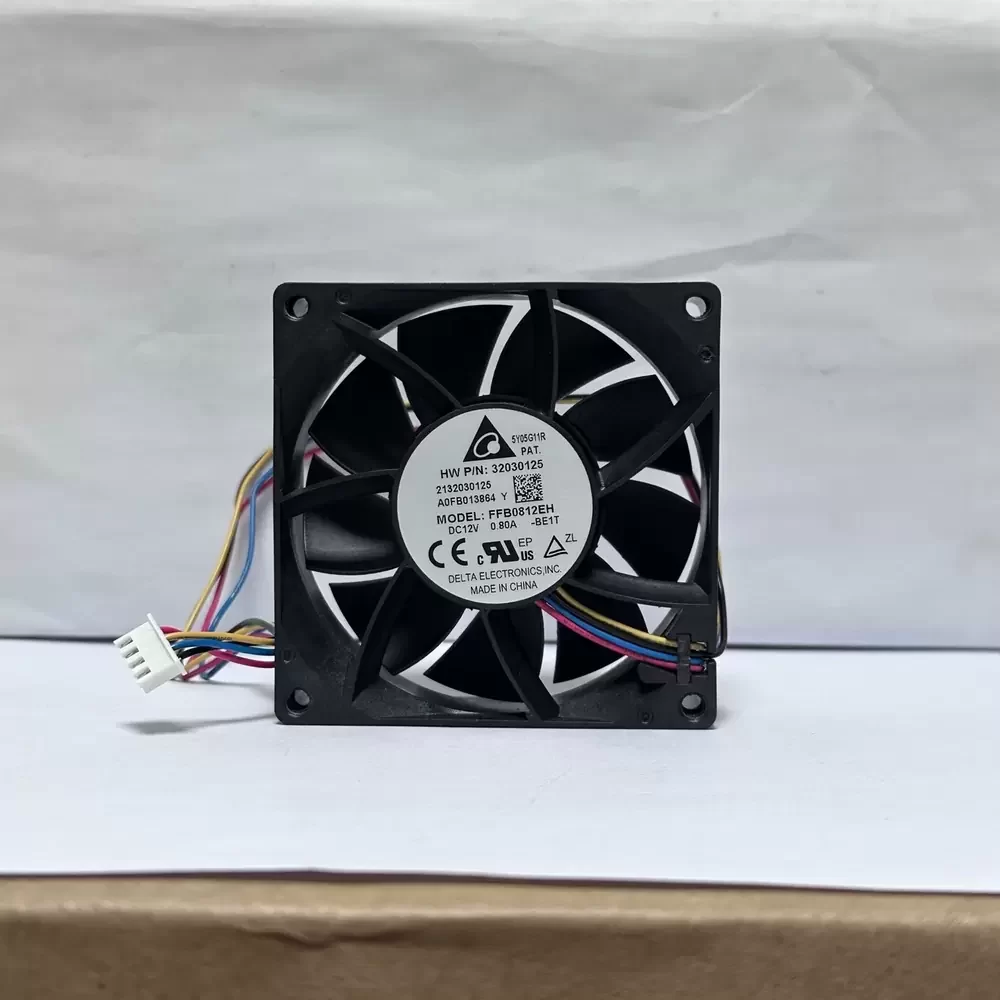

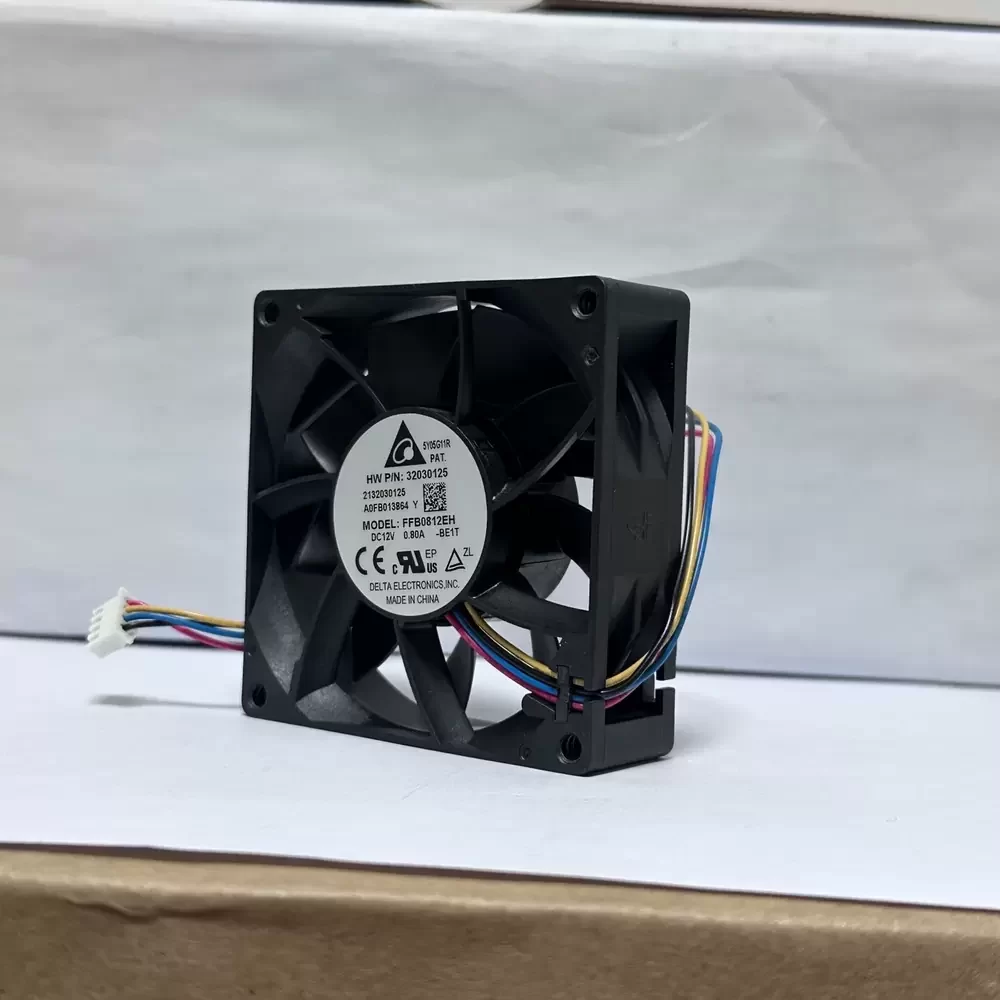

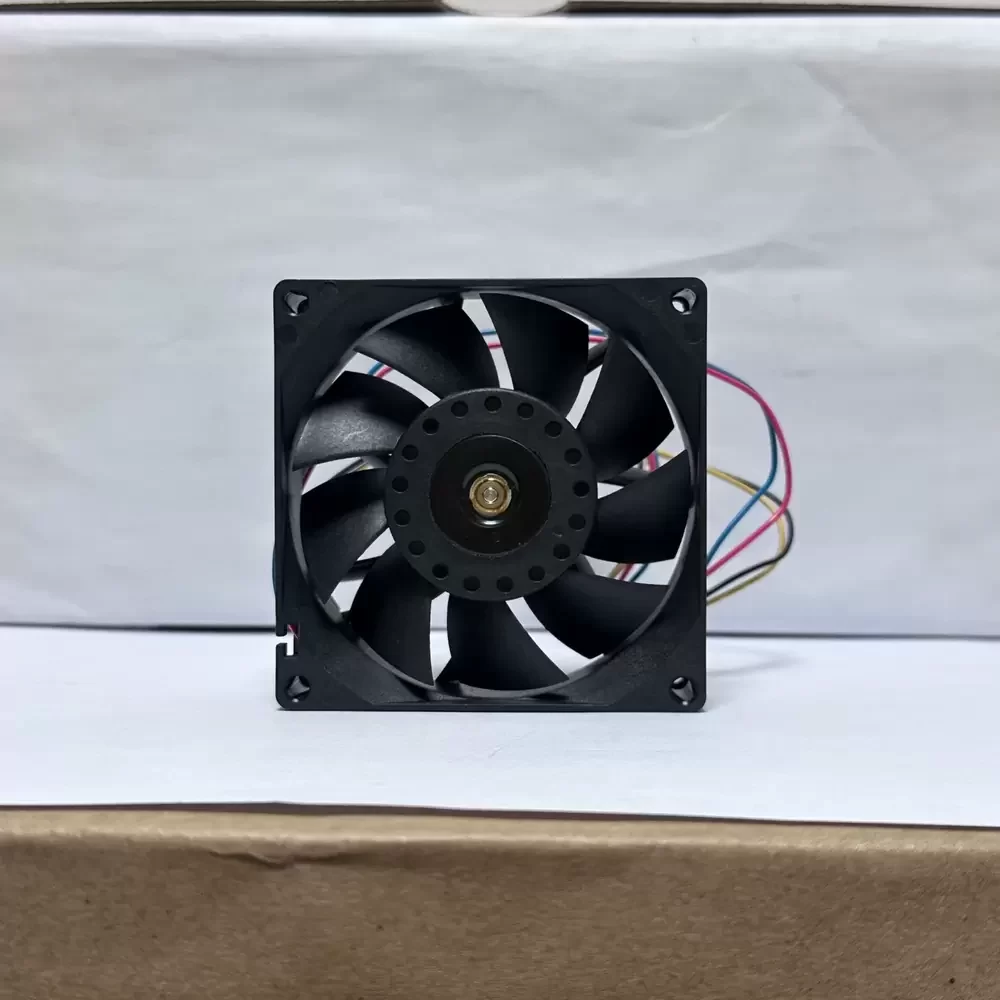

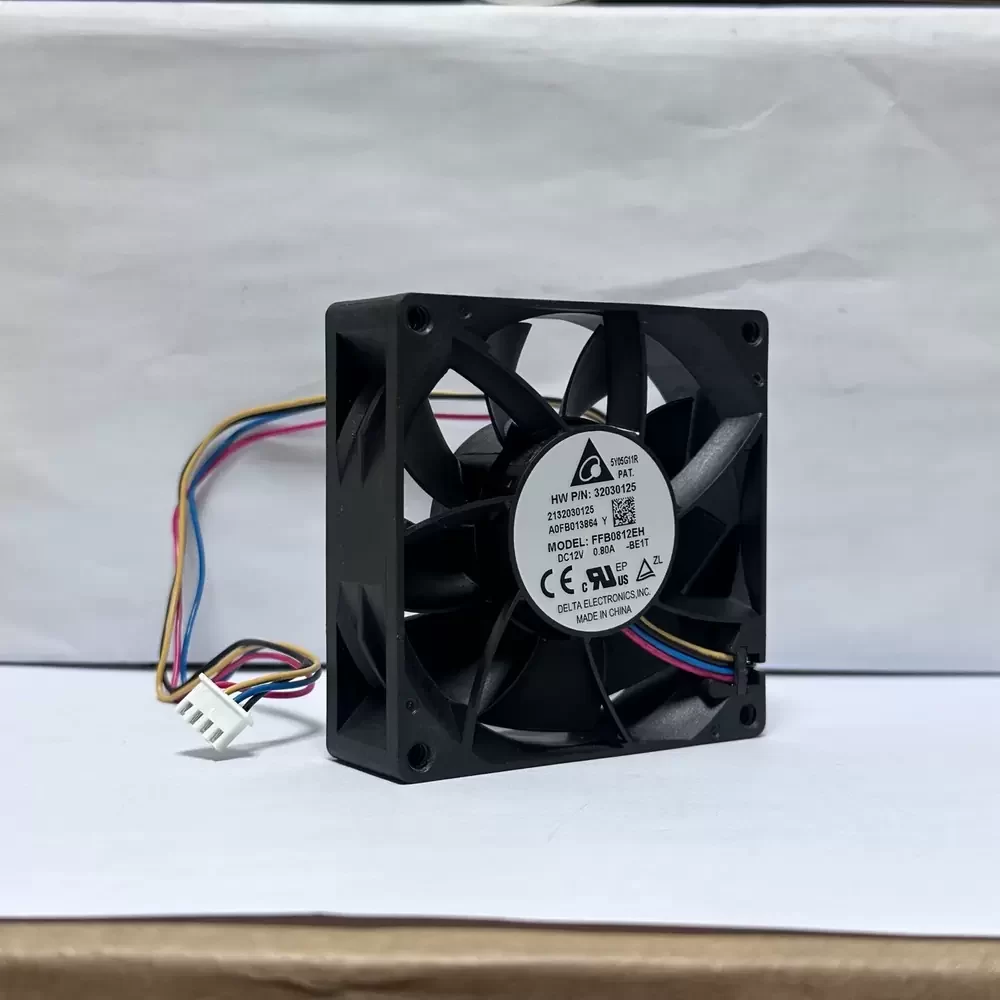

FFB0812EH-BE1T Delta 12VDC 0.80A 80x80x25mm PWM Axial Fan

Description

Delta FFB0812EH-BE1T is an 80 x 80 x 25.4 mm axial fan operating at 12 VDC with a maximum current of 0.80 A and a rated speed of 6200 RPM. The unit features a dual ball bearing system and a glass fiber reinforced plastic impeller and frame rated UL 94V-0. It utilizes a 4-wire interface supporting PWM speed control and frequency generator (tachometer) output. Internal protection includes locked rotor protection and polarity protection to prevent circuit damage during stall or incorrect installation.

FFB0812EH-BE1T Specifications
Model: FFB0812EH-BE1T
Brand: Delta Electronics
Category: DC Axial Fan
Dimensions: 80 x 80 x 25.4 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Rated Current: 0.80 A
Rated Input Power: 9.6 W
Speed: 6200 RPM
Bearing Type: Dual Ball Bearing
Material Frame: Plastic (UL 94V-0)
Material Impeller: Plastic (UL 94V-0)
Termination: 4-wire leads
Function: PWM Speed Control, Tachometer Output
Weight: 115 g
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 75 °C
Protection: Locked Rotor Protection, Polarity Protection

FFB0812EH-BE1T Applications
Primary applications include integration into high-density server chassis, network switch cooling systems, and telecommunications base station power supplies. Deployed within industrial workstations and medical diagnostic equipment requiring high static pressure thermal management.
