Description

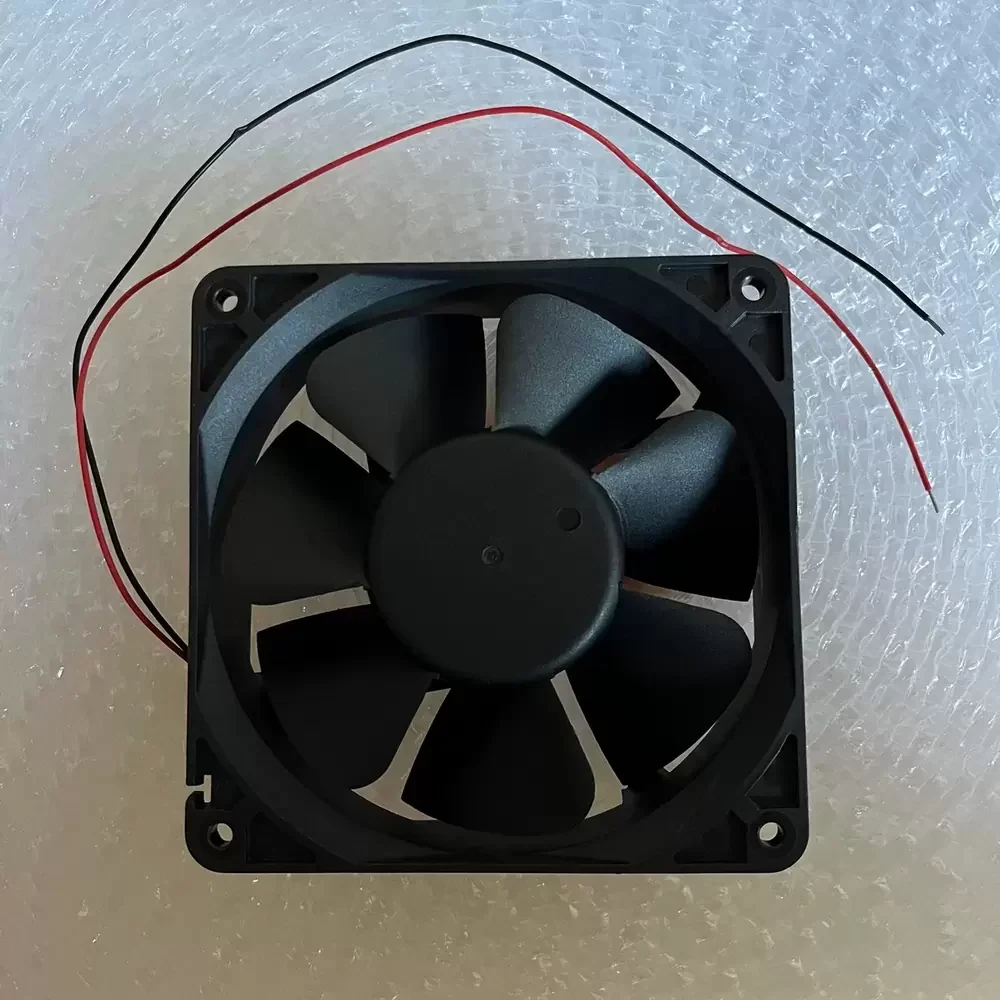

The SNOWFAN YY12038L24B-15 is a high-performance DC Axial Fan engineered for demanding industrial thermal management. Utilizing a robust dual ball bearing architecture, this unit is designed to minimize thermal impedance while maintaining structural rigidity under continuous operation. The aerodynamic impeller design is optimized for high-pressure delivery, ensuring efficient heat dissipation in high-density electronic enclosures. Its brushless DC motor technology provides reliable commutation and energy efficiency, making it an ideal solution for critical cooling applications where long-term durability and high volumetric airflow are essential requirements.
Model Number: YY12038L24B-15
Brand: SNOWFAN
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.6A
Power: 38.4W
Bearing Type: Dual Ball Bearing
Dimensions: 120x120x38mm
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: 2-Wire Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Polarity Protection
Mounting Orientation: Any
Life Expectancy: 70,000 Hours at 40°C
This cooling solution is specifically designed for high-power industrial equipment such as frequency converters, welding machines, and server infrastructure. The YY12038L24B-15 provides the necessary static pressure to overcome resistance in tightly packed internal components, ensuring that the YY12038L24B-15 maintains optimal operating temperatures for sensitive electronics in CNC machinery and telecommunications cabinets.
