Description

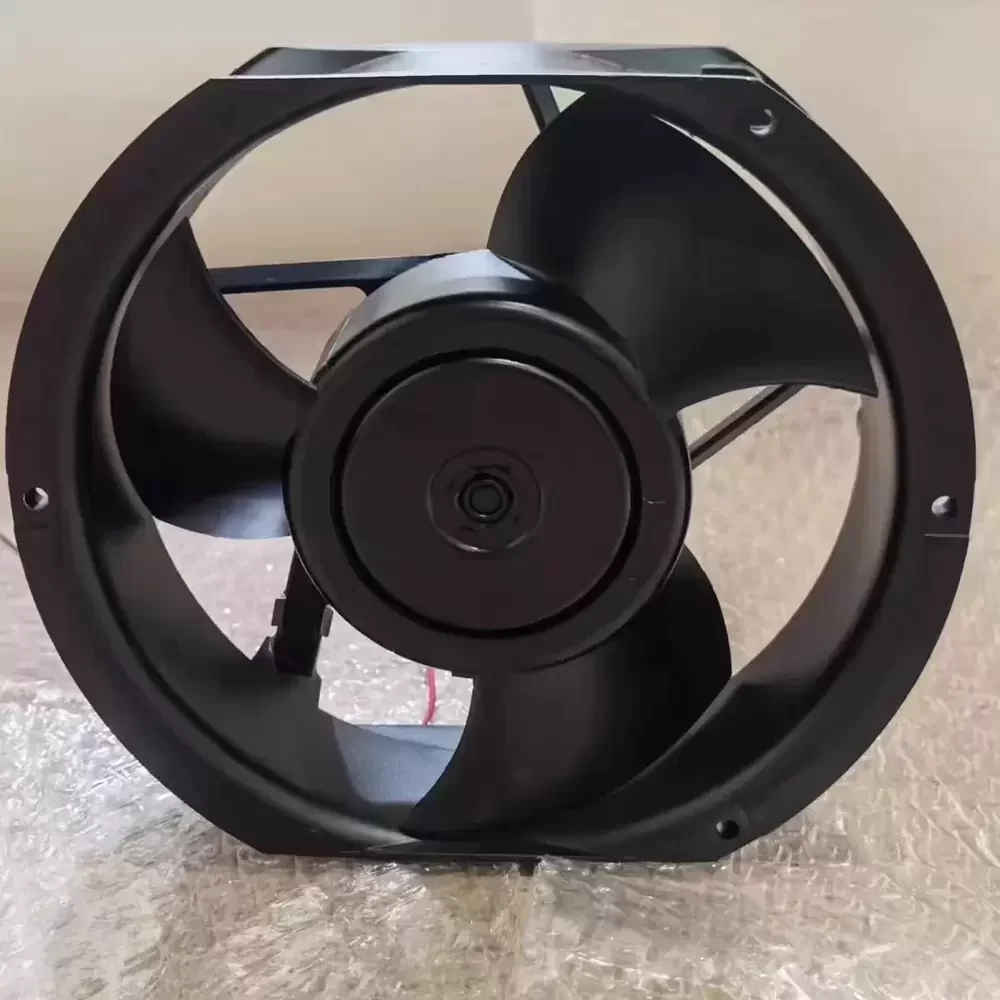

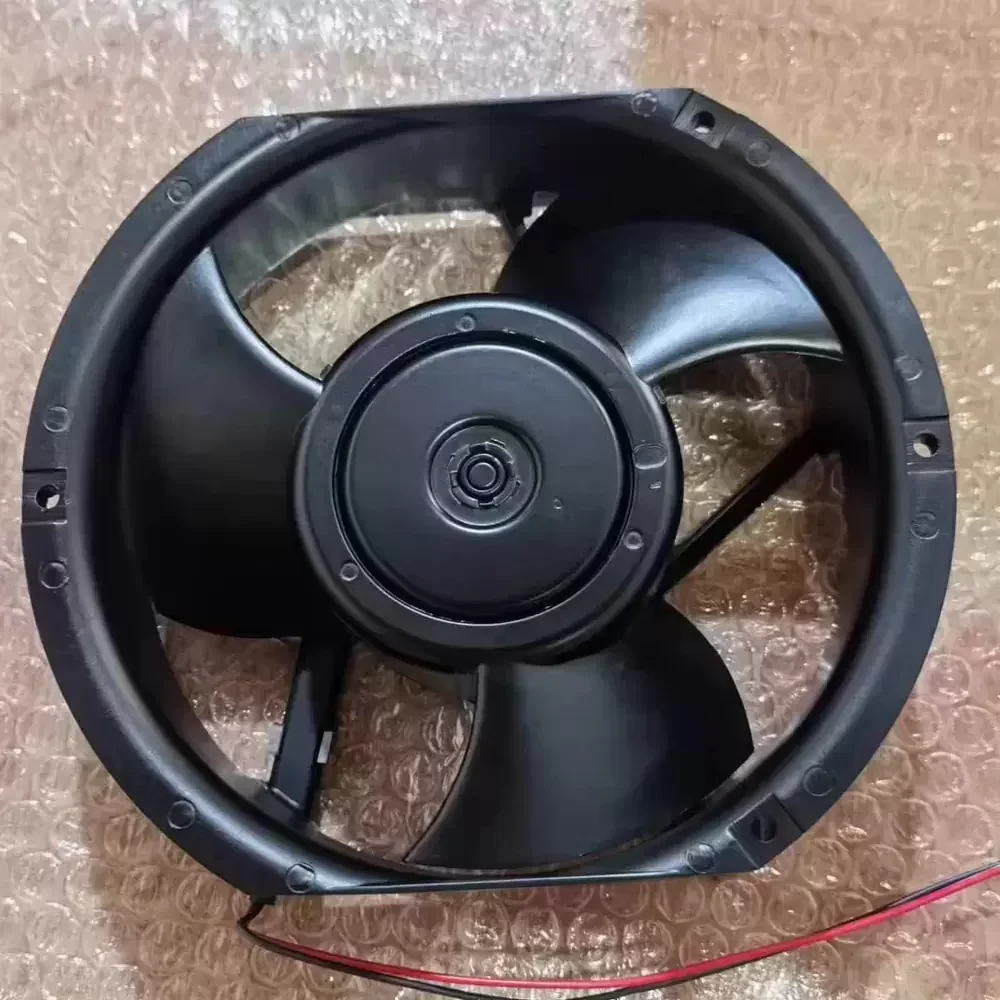

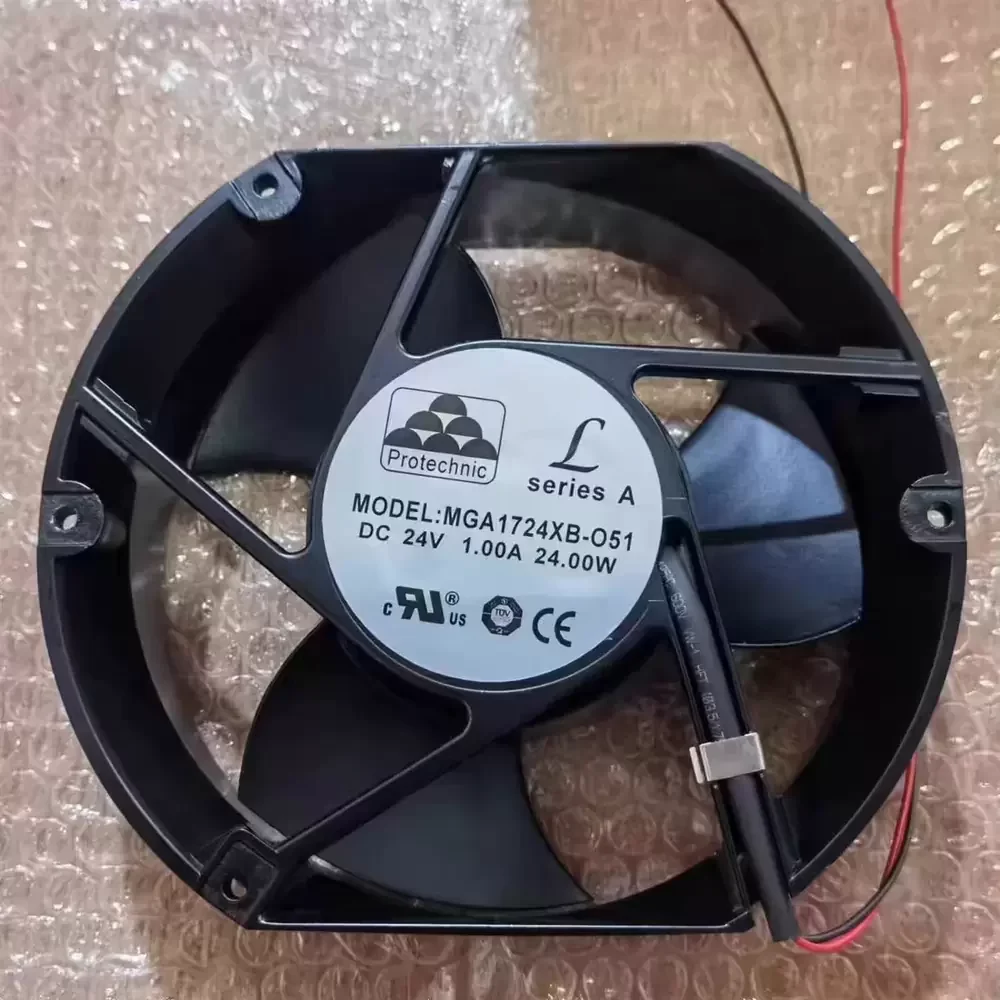

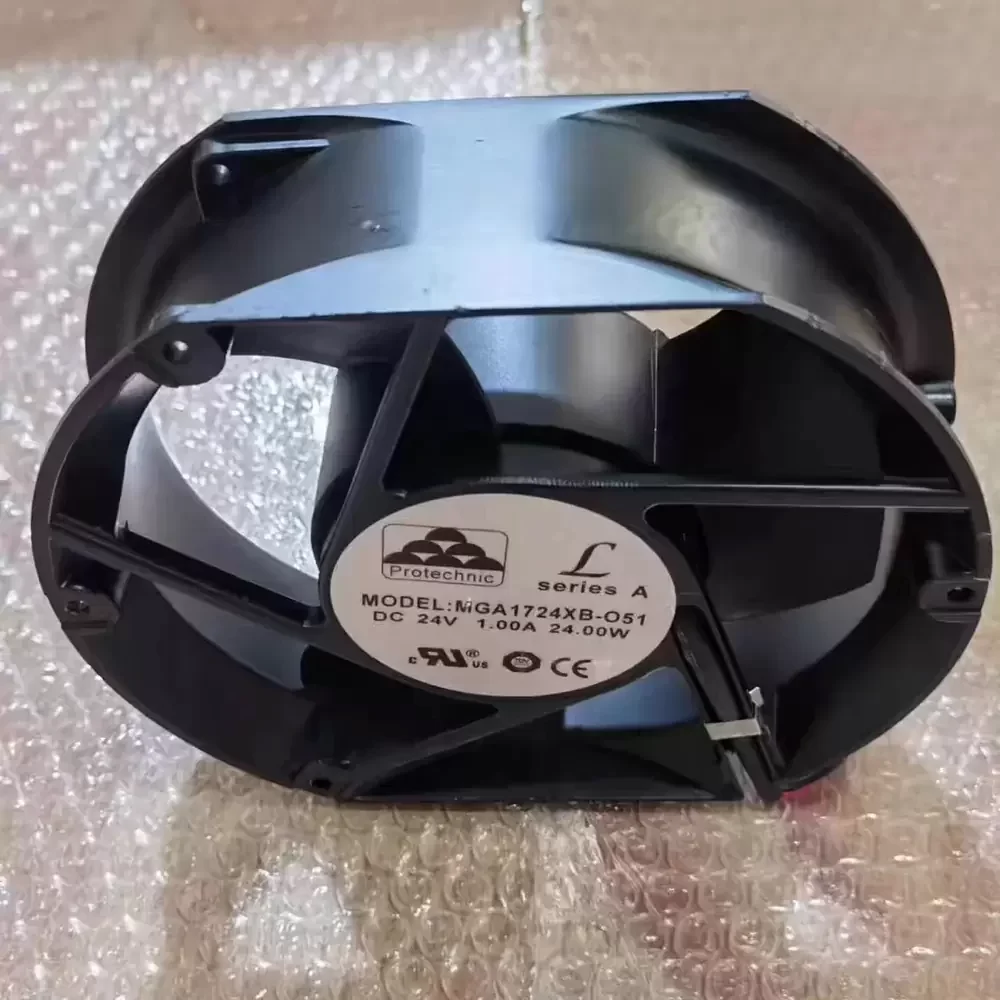

The Protechnic MGA1724XB-O51 is a robust DC axial fan engineered for demanding industrial thermal management applications requiring substantial airflow and static pressure. This unit utilizes a high-efficiency DC motor architecture paired with a precision dual ball bearing system, ensuring reduced frictional coefficients and extended operational longevity under continuous load. The aerodynamic design of the impeller, housed within a rigid aluminum die-cast frame, optimizes the pressure-to-flow ratio, effectively overcoming high thermal impedance in densely packed electronic enclosures. With a power rating of 24.00W, this fan delivers aggressive cooling performance while maintaining structural rigidity and reliability in harsh operating environments.
Model Number: MGA1724XB-O51
Brand: Protechnic Electric
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 16.0 – 27.6 VDC
Rated Current: 1.00 A
Power Consumption: 24.00 W
Rated Speed: 3400 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 235.0 CFM (399.2 m³/h / 6.65 m³/min)
Max. Static Pressure: 19.6 mmH₂O (192.2 Pa / 0.77 inH₂O)
Dimensions: 172 x 150 x 51 mm
Frame Material: Aluminum Die-Cast (Black Coated)
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: 2 Lead Wires (Red +, Black -)
Weight: 830 g
Life Expectancy: 70,000 Hours at 40°C
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 56.0 dBA
Ingress Protection: IP20 (Standard)
Safety Certifications: UL, cUL, TUV, CE
The MGA1724XB-O51 is specifically designed for high-performance applications such as telecommunications cabinets, server rack ventilation, and industrial automation control panels. Its high-static pressure capabilities make the MGA1724XB-O51 ideal for forcing air through restrictive filters or heat sinks in CNC machinery and power supply units, ensuring critical components remain within safe thermal operating limits.
