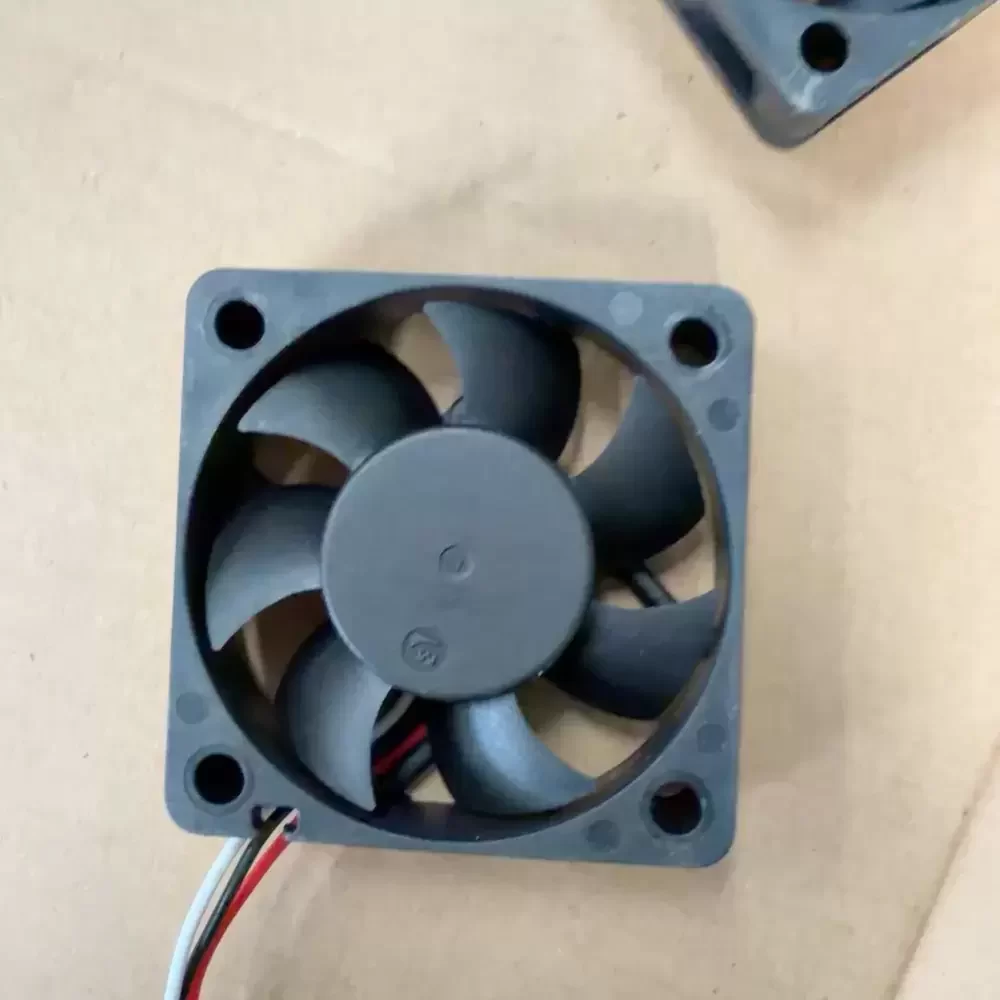

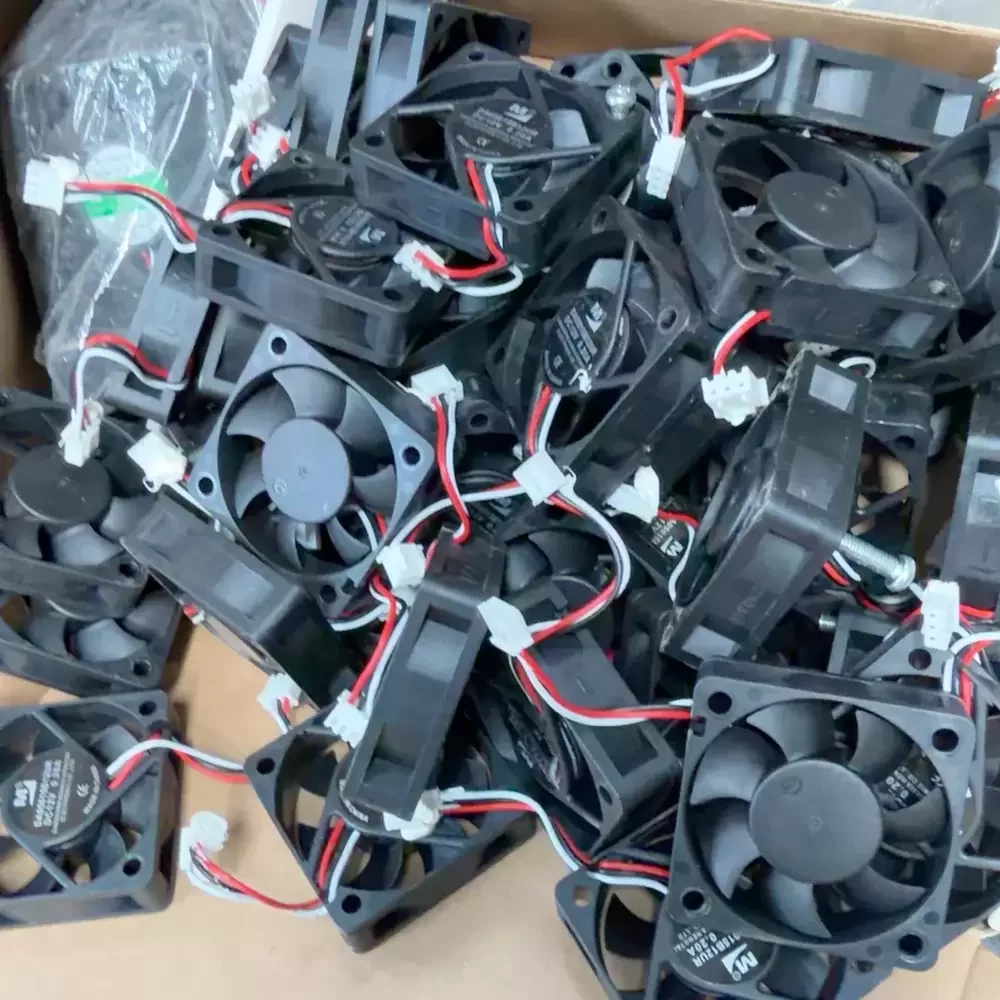

DA05015B12UR Yimeng 12VDC 0.20A 50x50x15mm Axial Fan

Description

Yimeng DA05015B12UR 50 x 50 x 15 mm 12 VDC 0.20 A axial cooling fan features a dual ball bearing assembly and a PBT thermoplastic frame and impeller. This unit operates with a 2.4 W power consumption and utilizes a 3-wire interface for power and tachometer signal feedback. The internal mechanism is designed for high-speed rotation at 5,500 RPM, producing a maximum airflow of 14.8 CFM and a static pressure of 5.2 mmH2O. The structural design incorporates UL 94V-0 rated materials and a brushless DC motor for continuous operation.

DA05015B12UR Specifications
Model: DA05015B12UR
Brand: Yimeng (Huaxia Hengtai)
Category: DC Axial Fan
Dimensions: 50 x 50 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.8 to 13.2 VDC
Rated Current: 0.20 A
Input Power: 2.4 W
Bearing Type: Dual Ball Bearing
Rated Speed: 5,500 RPM
Maximum Airflow: 14.8 CFM
Static Pressure: 5.2 mmH2O
Noise Level: 34.5 dBA
Interface: 3-wire with terminal
Lead Wire: UL 1007 AWG #26
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 25 g

DA05015B12UR Applications
Primary applications include integration into server power supply units, compact inverter cooling systems, and desktop computer chassis. Deployed within telecommunications switching equipment and industrial LED driver thermal management modules.
