PF97331B1-B00C-S99 SUNON 12VDC 19.2W 97mm Centrifugal Blower

Description

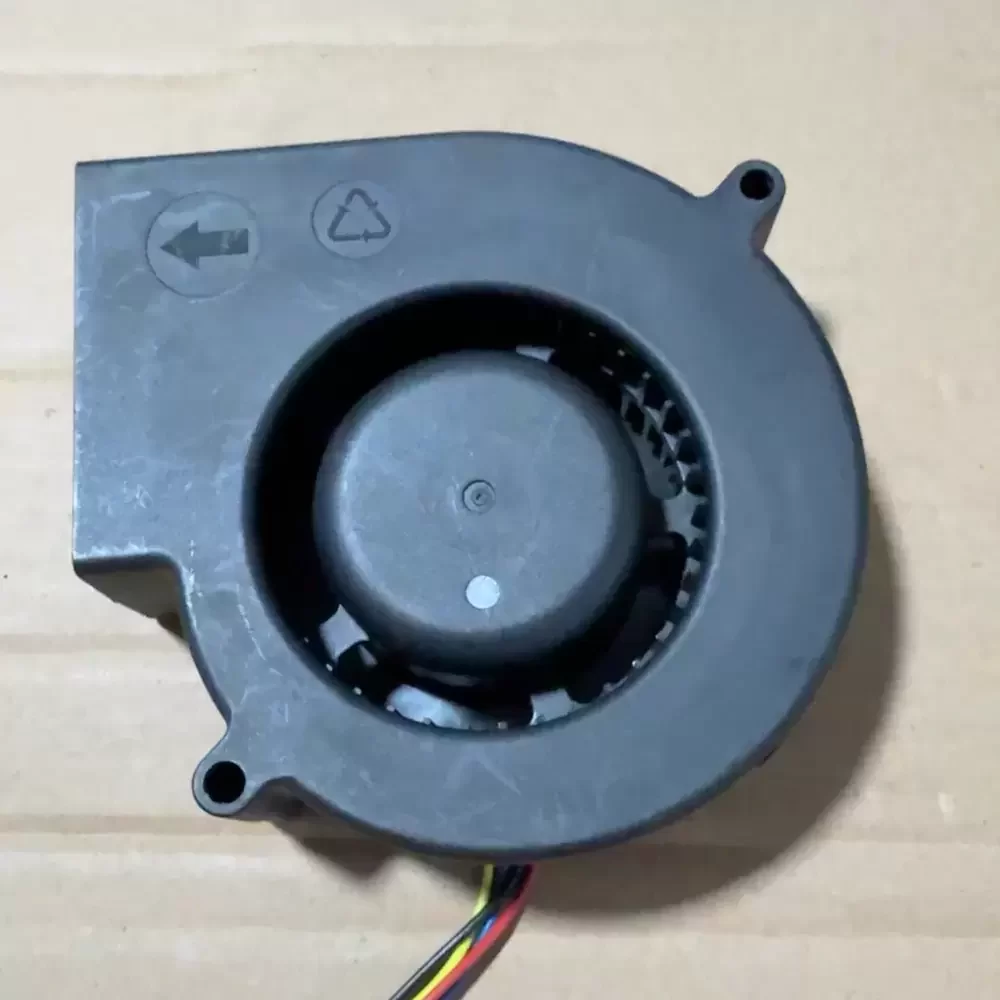

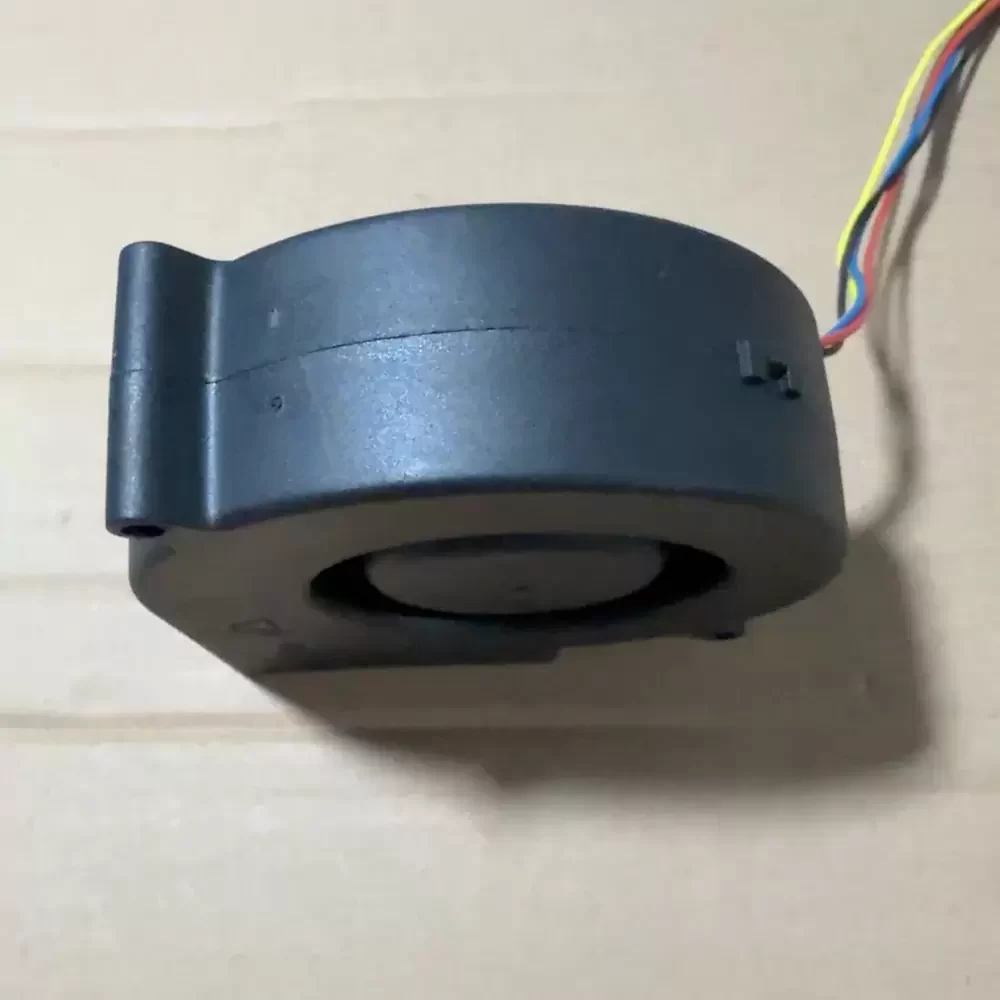

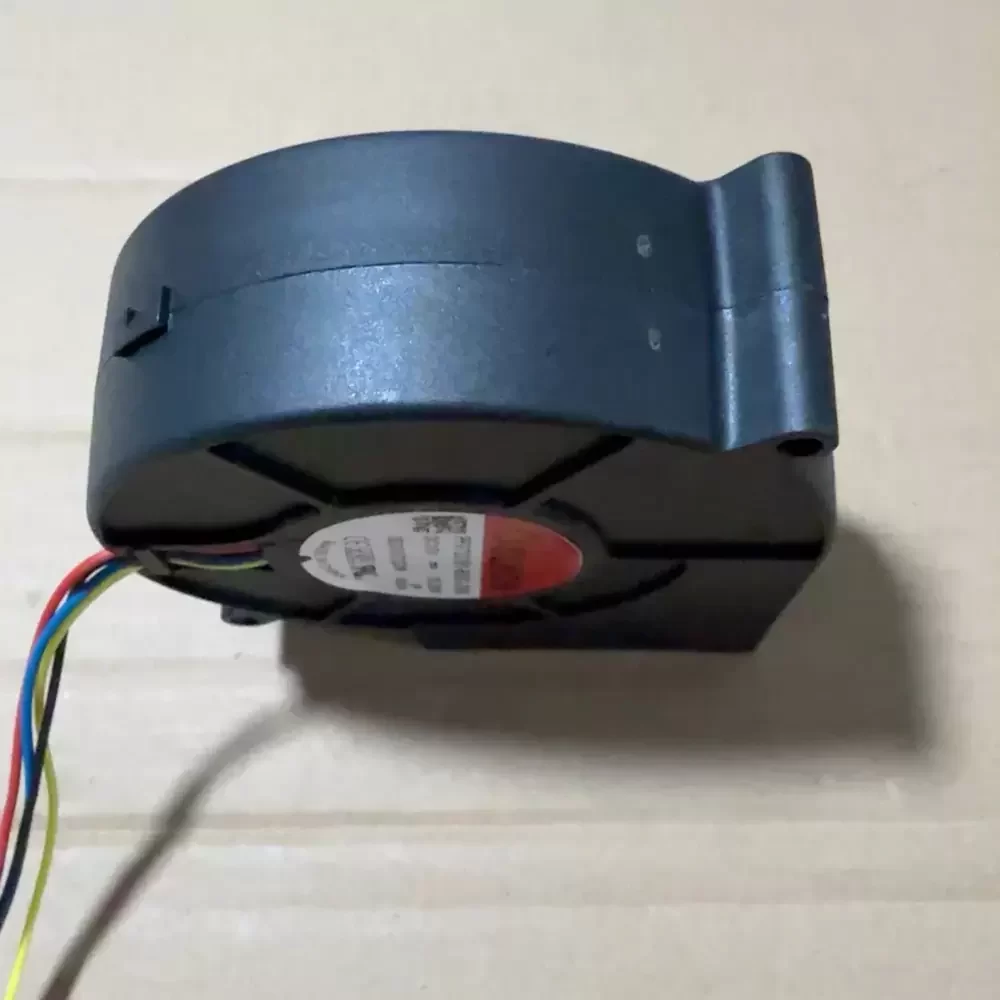

SUNON PF97331B1-B00C-S99 is a 97 x 97 x 33 mm centrifugal blower operating at a nominal 12 VDC with a power consumption of 19.2 W. The unit features a thermoplastic PBT (UL94V-0) impeller and housing, utilizing a high-precision dual ball bearing system for extended operational life. It delivers a maximum airflow of 44.2 CFM and a static pressure of 3.39 Inch-H2O at a rated speed of 5400 RPM. The electrical interface consists of a 4-wire lead system supporting PWM speed control and tachometer output, with an integrated brushless DC motor design.

PF97331B1-B00C-S99 Specifications
Model: PF97331B1-B00C-S99
Brand: SUNON
Category: Centrifugal Blower
Dimensions: 97 x 97 x 33 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 1.6 A
Rated Power: 19.2 W
Rated Speed: 5400 RPM
Airflow: 44.2 CFM
Static Pressure: 3.39 Inch-H2O
Noise Level: 58.0 dBA
Bearing Type: Dual Ball Bearing

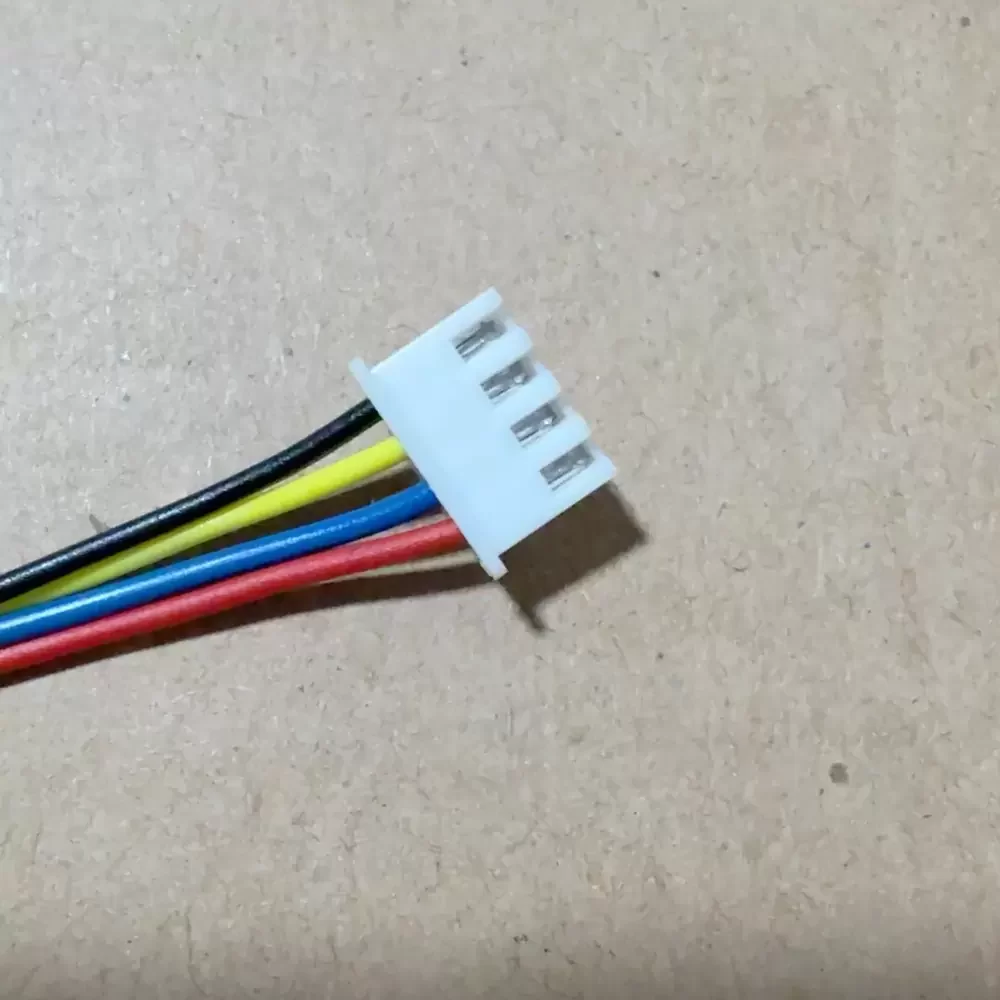

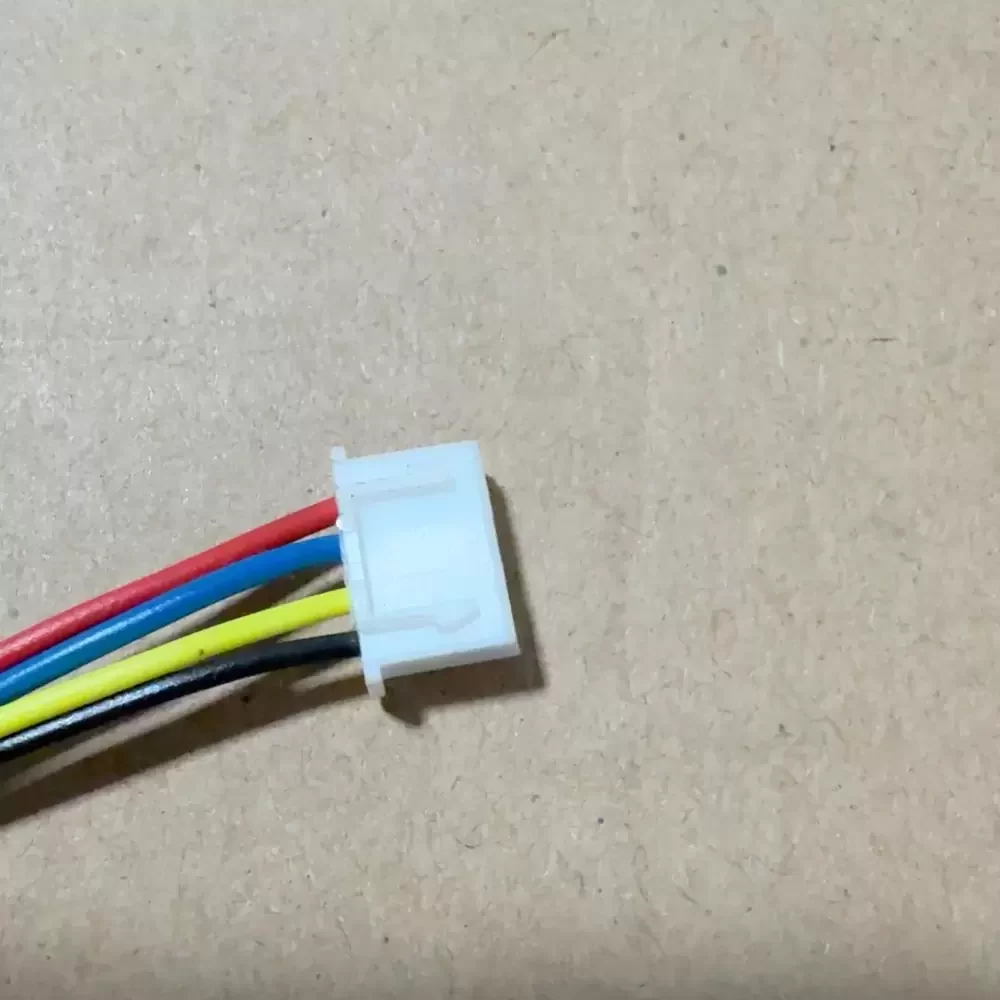

Interface: 4-wire (Red: +, Black: -, Yellow: FG, Blue: PWM)
Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Weight: 184 g
Safety Approvals: UL, TUV, CE
Insulation Resistance: 10M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute

PF97331B1-B00C-S99 Applications
Primary applications include integration into server rack cooling systems, high-density telecommunications enclosures, and industrial power supply thermal management units. Deployed within medical diagnostic equipment, automated laboratory analyzers, and large-format 3D printer ventilation modules requiring concentrated high-pressure airflow.
