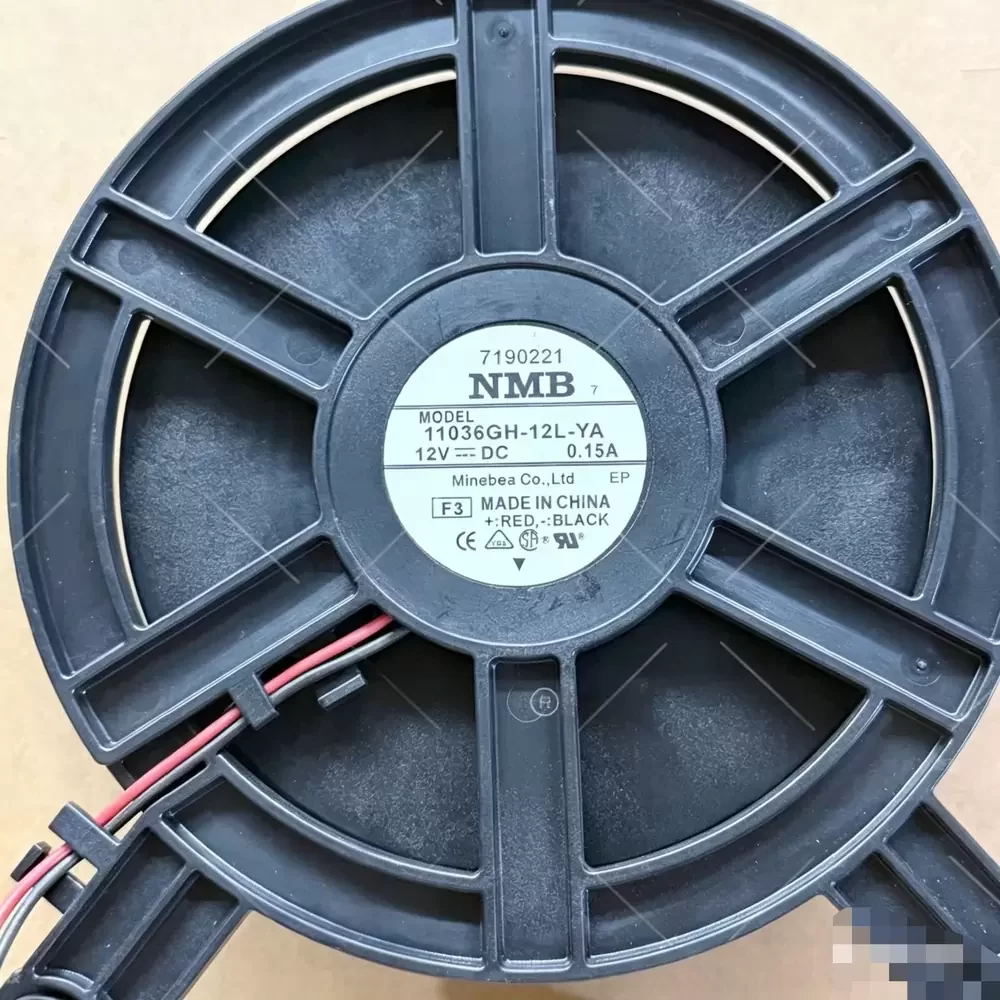

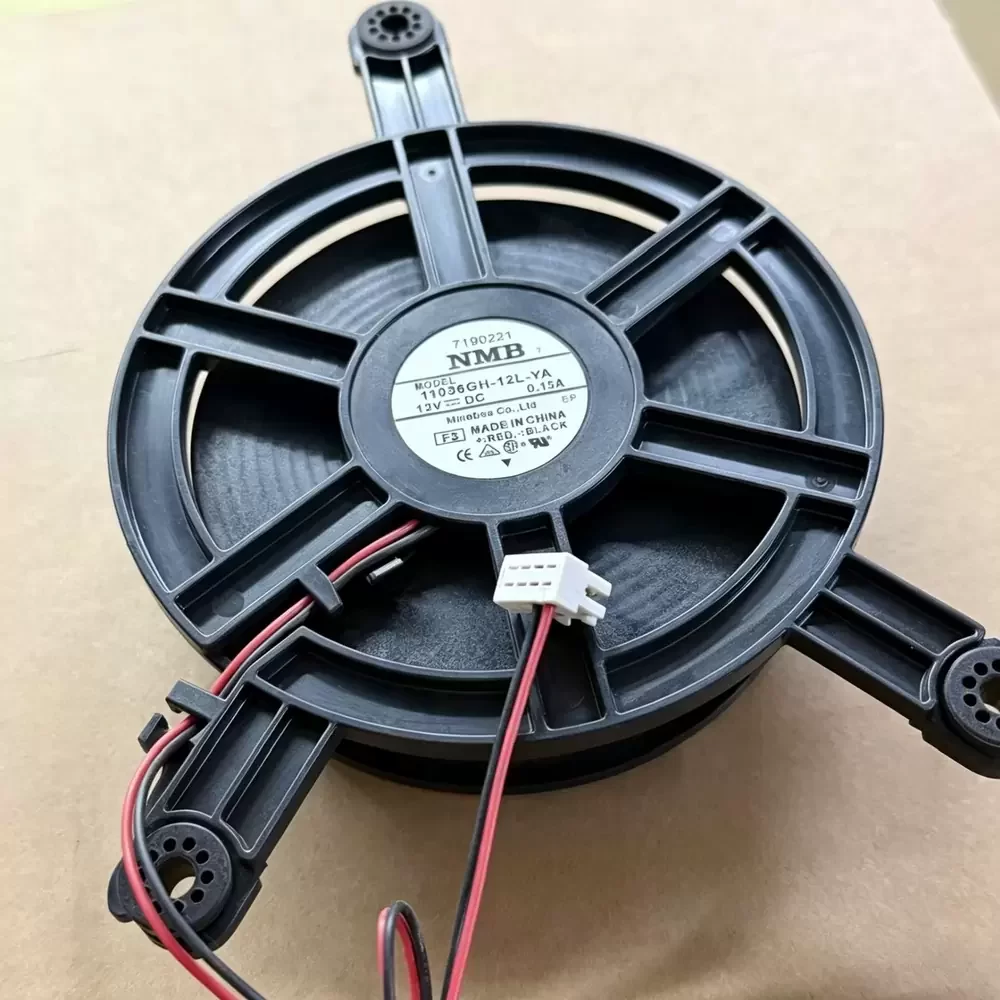

1036GH-12L-YA-F3 NMB 12VDC 0.15A 100x36mm Centrifugal Blower Fan

Description

NMB 1036GH-12L-YA-F3 is a 100 x 36 mm centrifugal blower fan operating at 12 VDC with a 0.15 A current rating and 1.8 W power consumption. The unit features a high-precision dual ball bearing system and a reinforced plastic impeller housed within a durable UL 94V-0 rated frame. It utilizes a 2-wire lead connection for power input and incorporates a brushless DC motor with integrated electronic commutation and polarity protection for stable performance in high-humidity environments.

1036GH-12L-YA-F3 Specifications
Model: 1036GH-12L-YA-F3
Brand: NMB (MinebeaMitsumi)
Category: Centrifugal Blower Fan
Voltage: 12 VDC
Current: 0.15 A
Power: 1.8 W
Dimensions: 100 x 100 x 36 mm
Bearing Type: Dual Ball Bearing
Speed: 2100 RPM
Airflow: 15.5 CFM
Static Pressure: 0.42 inH2O
Noise Level: 42.0 dB
Connection: 2-Wire Lead
Material: Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 50,000 Hours
Weight: 180 g
Certifications: UL, CSA, CE, RoHS

1036GH-12L-YA-F3 Applications
Primary applications include integration into domestic refrigerator evaporation units, commercial freezer cooling systems, and medical laboratory refrigeration equipment. Deployed within telecommunications enclosures and server rack thermal management modules requiring high static pressure airflow for localized heat dissipation.
