P6358-TPS Ikura 200VAC 20W 172x51mm Industrial Axial Cooling Fan

Description

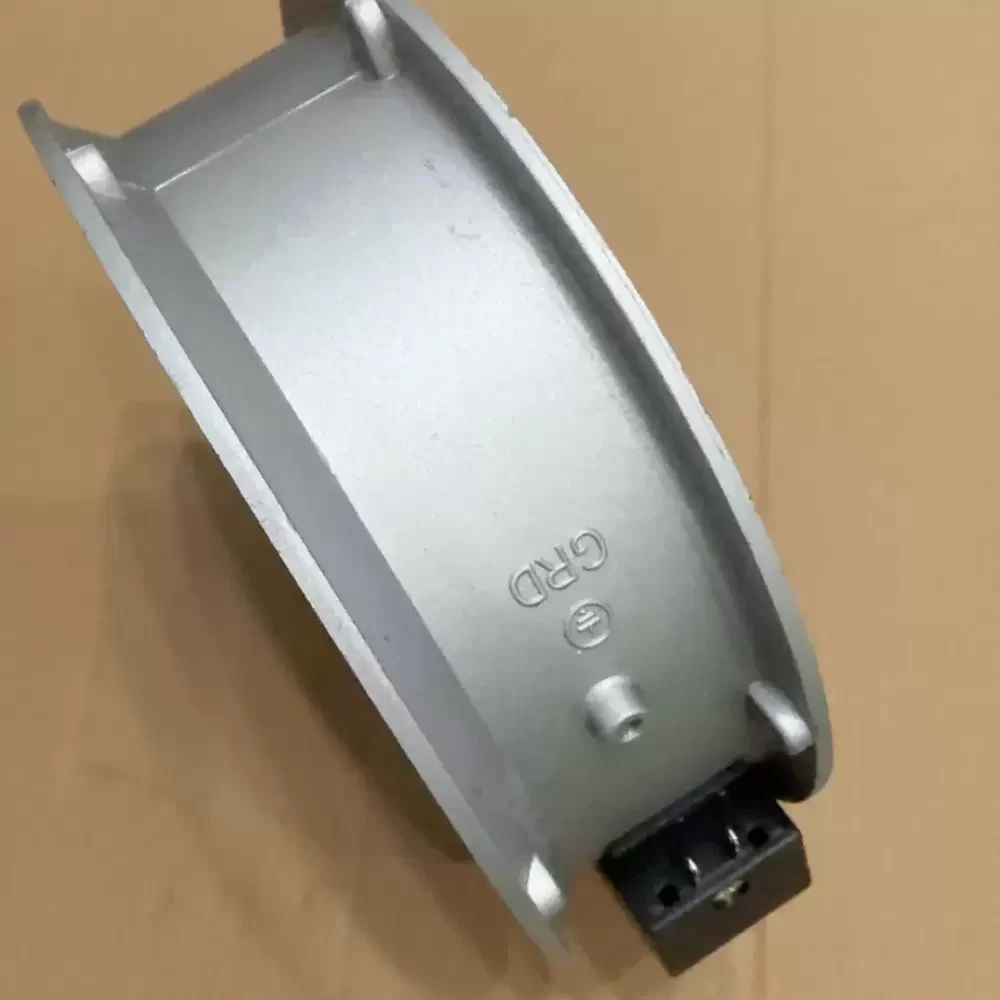

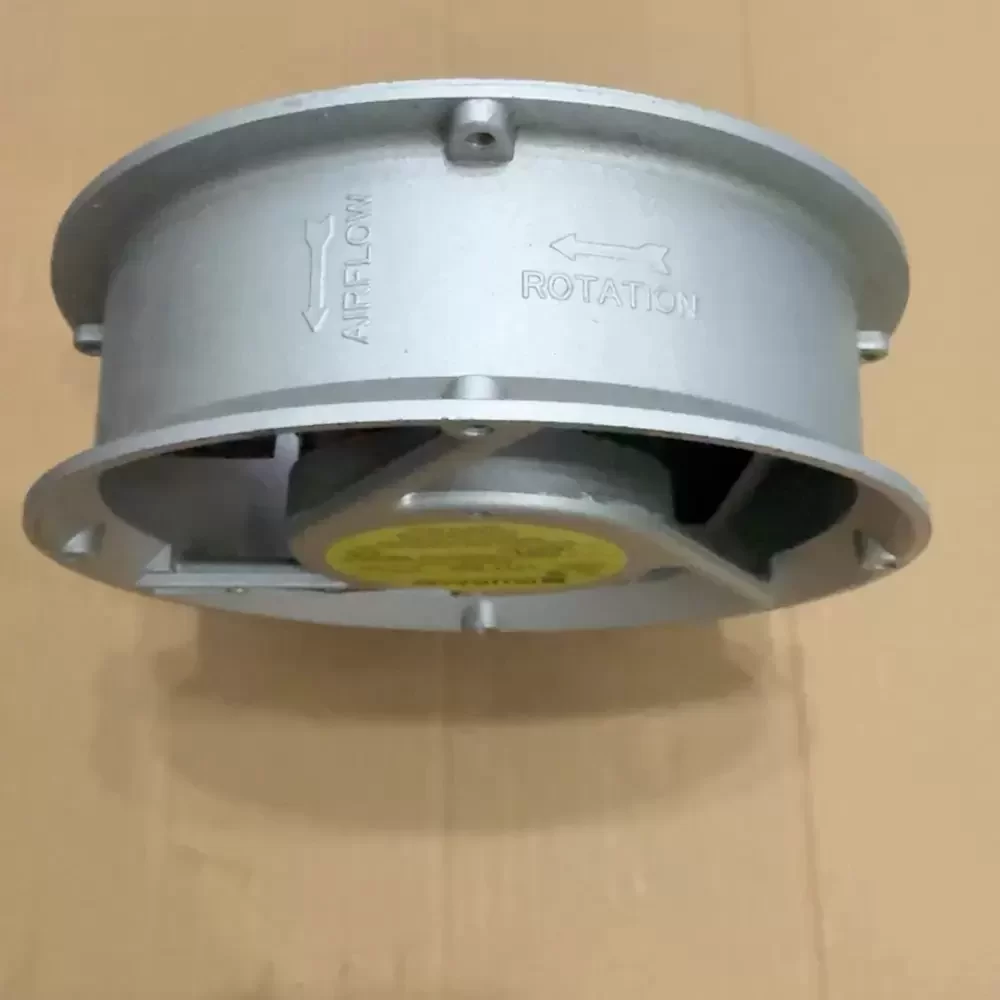

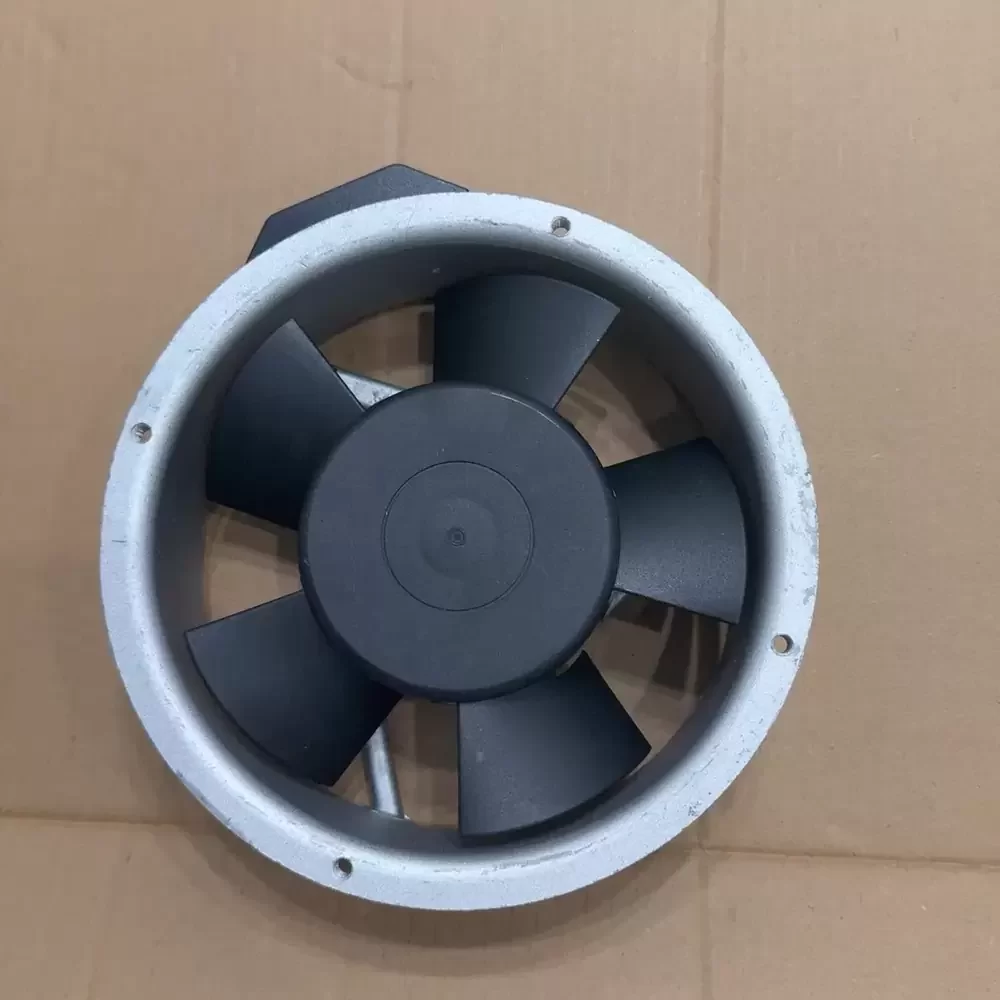

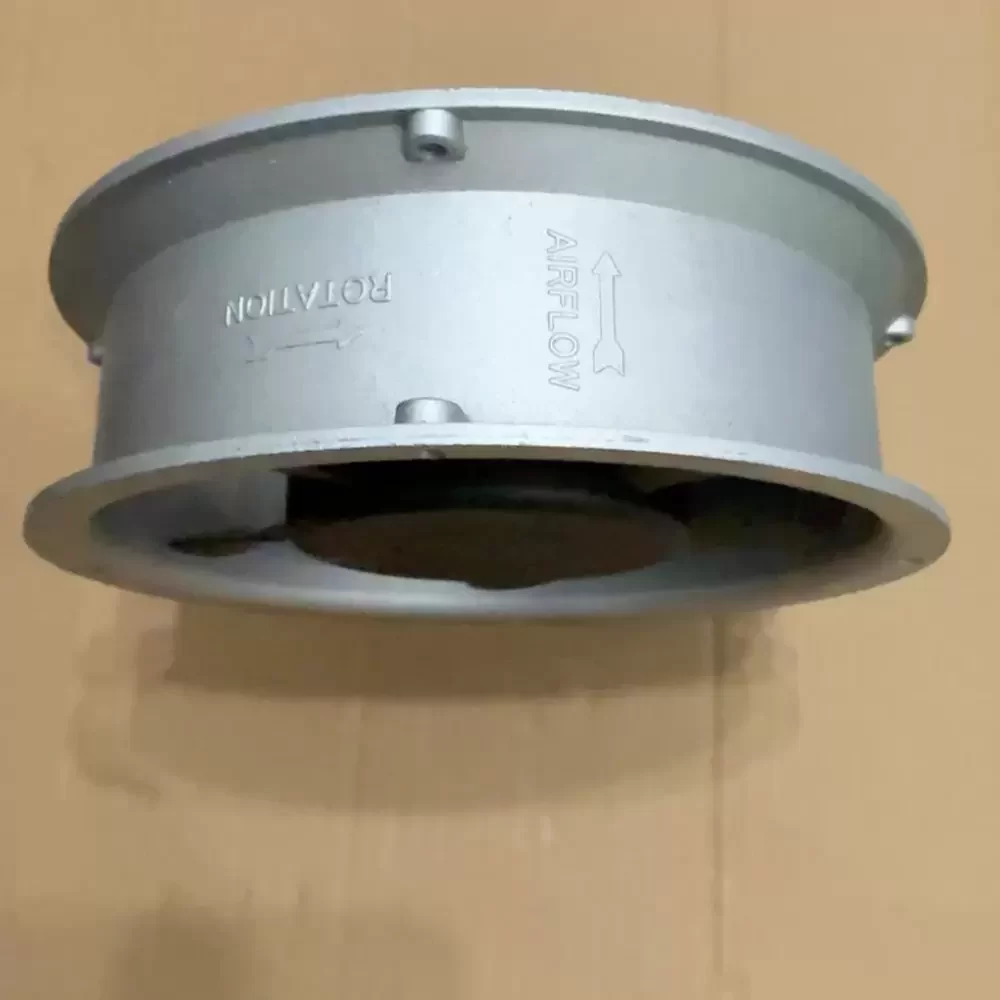

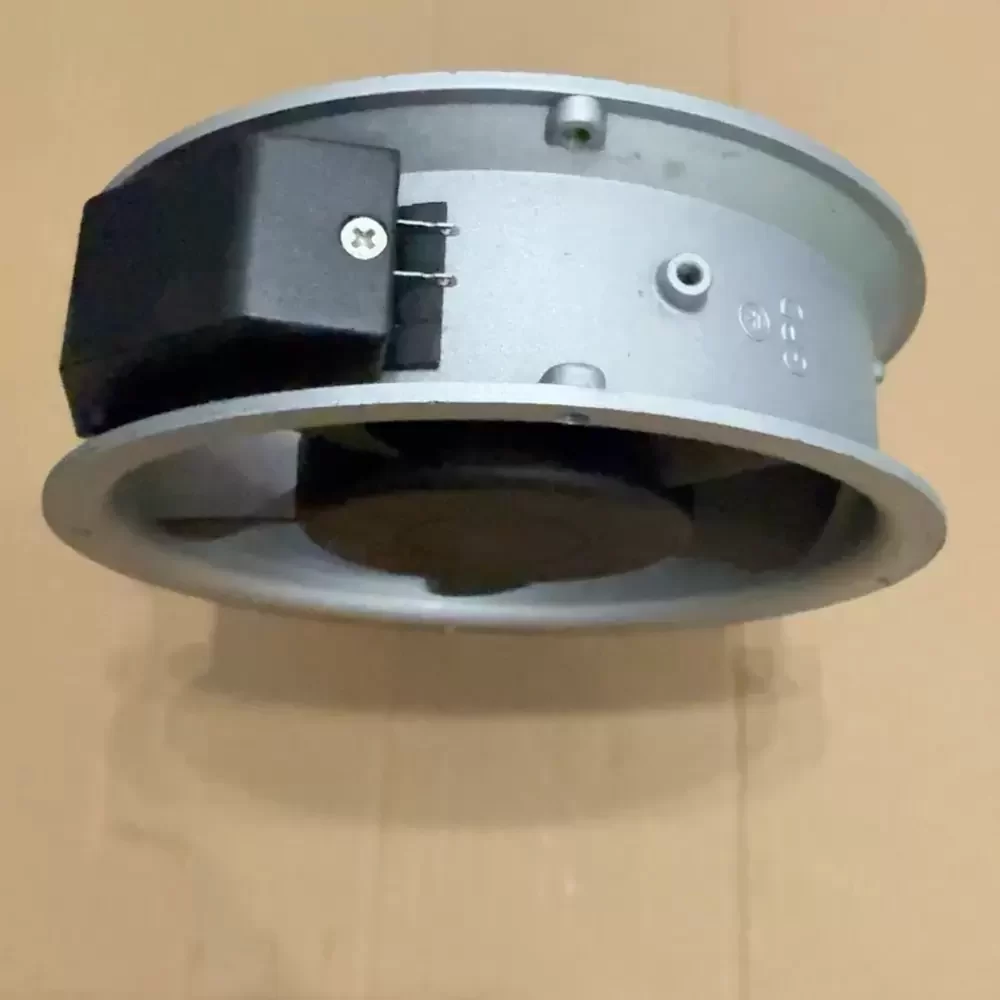

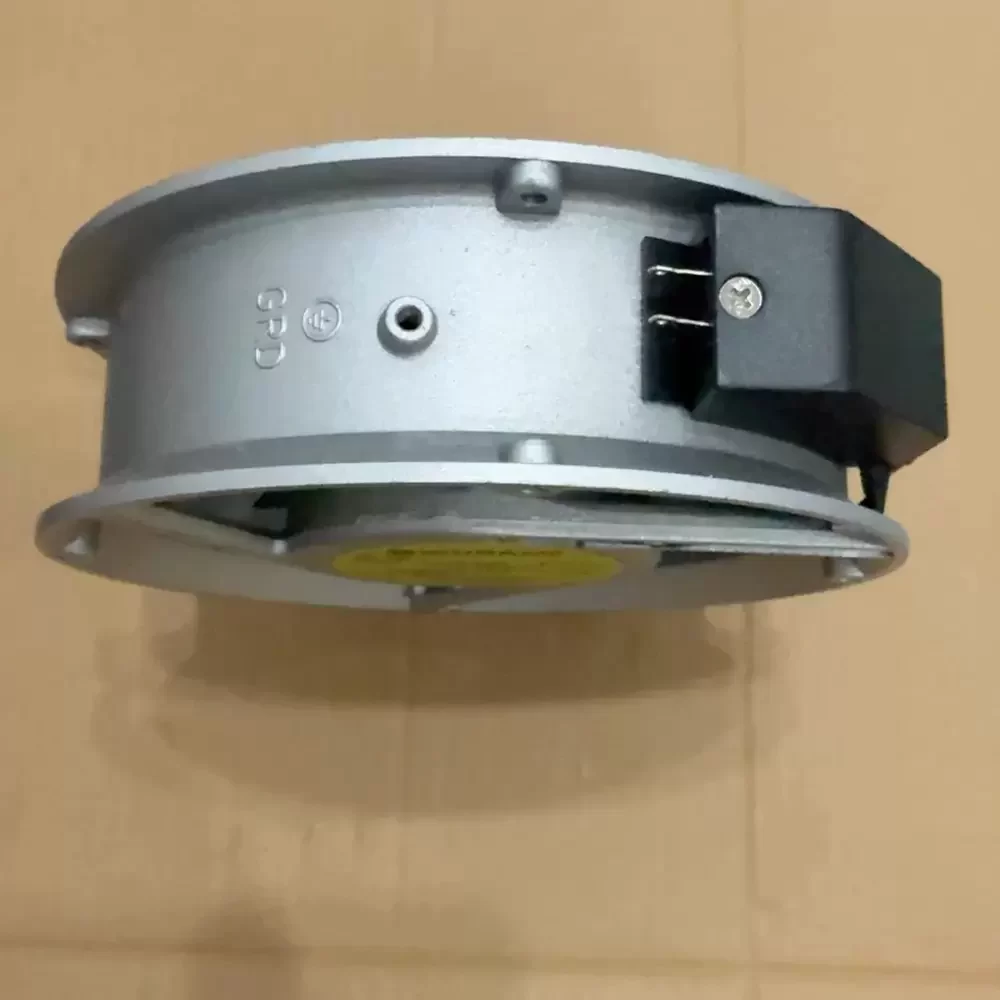

Ikura P6358-TPS is a 172 x 172 x 51 mm full-round axial fan operating at 200 VAC with a power consumption of 18/20 W and a maximum airflow of 5.3 m³/min. The unit features an aluminum die-cast housing and a UL 94V-0 rated plastic impeller supported by a precision dual ball bearing system. It utilizes a terminal-type electrical interface and operates at speeds up to 3100 RPM, generating a static pressure of 157 Pa. The internal motor is a shaded-pole induction type with Class E insulation and impedance protection.

P6358-TPS Specifications
Model Number: P6358-TPS (1317-338)
Brand: Ikura Seiki (Ikura Fan)
Category: Axial Cooling Fan
Input Voltage: 200 VAC
Frequency: 50/60 Hz
Power Consumption: 18/20 W
Rated Current: 0.13/0.12 A
Dimensions: 172 x 172 x 51 mm
Frame Shape: Full Round
Speed: 2700/3100 RPM
Max Airflow: 4.5/5.3 m³/min
Max Static Pressure: 117/157 Pa
Noise Level: 48/52 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Die-cast
Impeller Material: Plastic (UL 94V-0)
Termination: Terminal Type
Insulation Class: E
Protection: Impedance Protected
Operating Temperature: -10 to +70 °C
Weight: 850 g

P6358-TPS Applications
Primary applications include integration into industrial frequency inverters, CNC machine tool control cabinets, and high-density server racks. Deployed within power supply cooling systems and automated manufacturing equipment requiring high-static pressure thermal management.
