Description

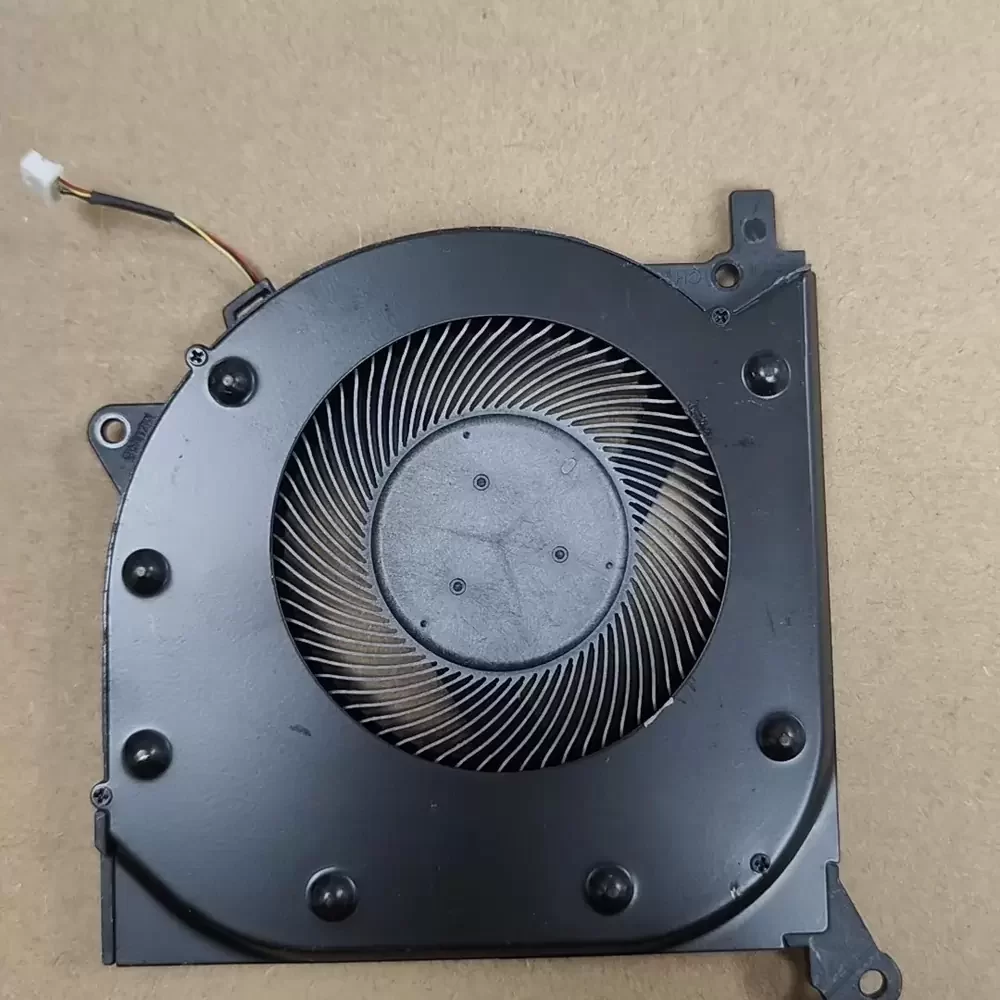

The AVC BAPA0909R5HY008 is a 5VDC 90mm Blower optimized for high-density thermal management in mobile computing platforms. Engineered with advanced hydraulic bearing architecture, this unit minimizes friction and acoustic output while maintaining structural rigidity under high thermal loads. The DC brushless motor operates at 0.50A, delivering precise airflow to reduce thermal impedance across heat pipe assemblies. Its aerodynamic impeller design is specifically tuned to overcome the high static pressure environments found in slim chassis designs. This replacement fan ensures stable 5VDC operation, providing a reliable cooling solution for Lenovo Legion Y7000 and 7000P 2020 series laptops.
Model Number: BAPA0909R5HY008
Brand: AVC
Product Type: Blower Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.50A
Power: 2.5W
Rated Speed: 4500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 8.5 CFM (14.4 m³/h / 0.24 m³/min)
Max. Static Pressure: 12.0 mmH₂O (117.6 Pa / 0.47 inH₂O)
Dimensions: 90mm x 90mm x 10mm
Weight: 45g
Life Expectancy: 40,000 hours at 40°C
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Termination: 4-Pin Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
BAPA0909R5HY008 Applications
1. Lenovo Legion Y7000/7000P 2020 Series: Direct replacement fan for CPU cooling modules, engineered to match the specific impedance curves of the OEM heat sink.
2. High-Performance Gaming Laptops: Ideal for slim-profile thermal solutions where high static pressure is required to exhaust heat through dense fin stacks.
