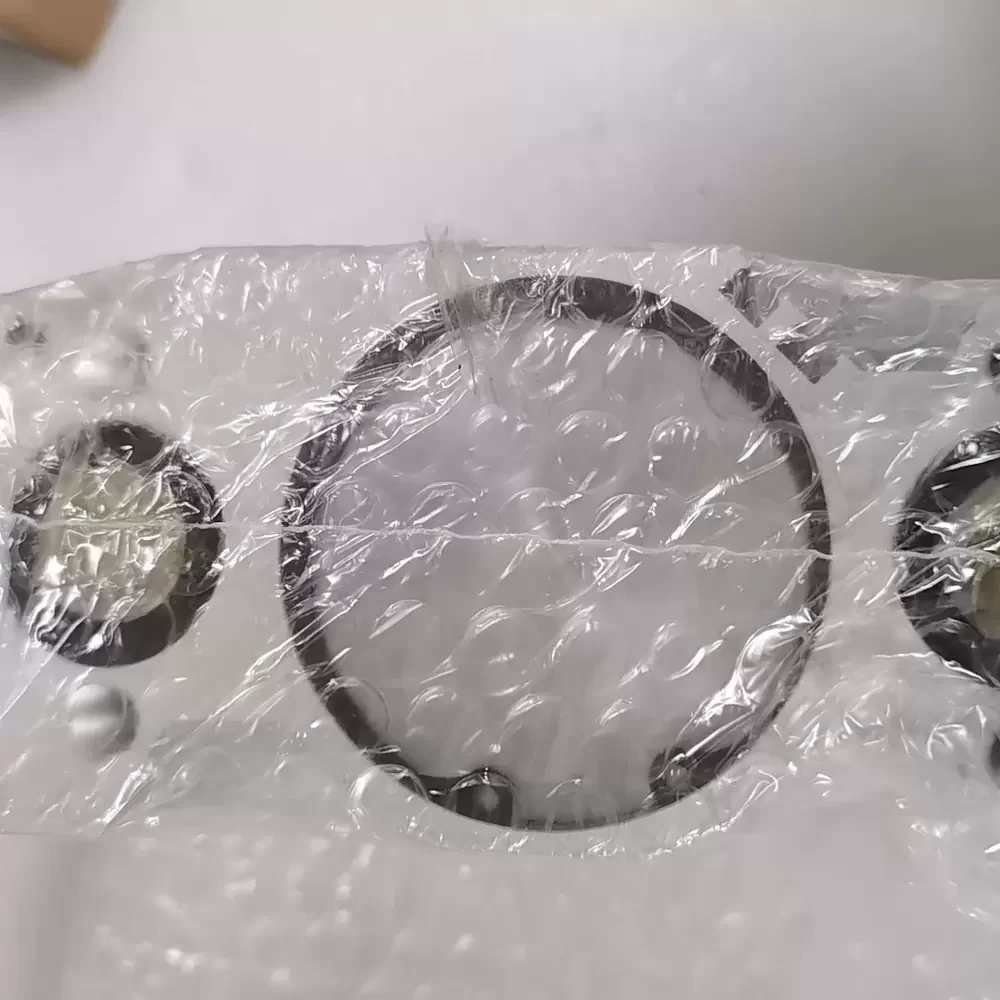

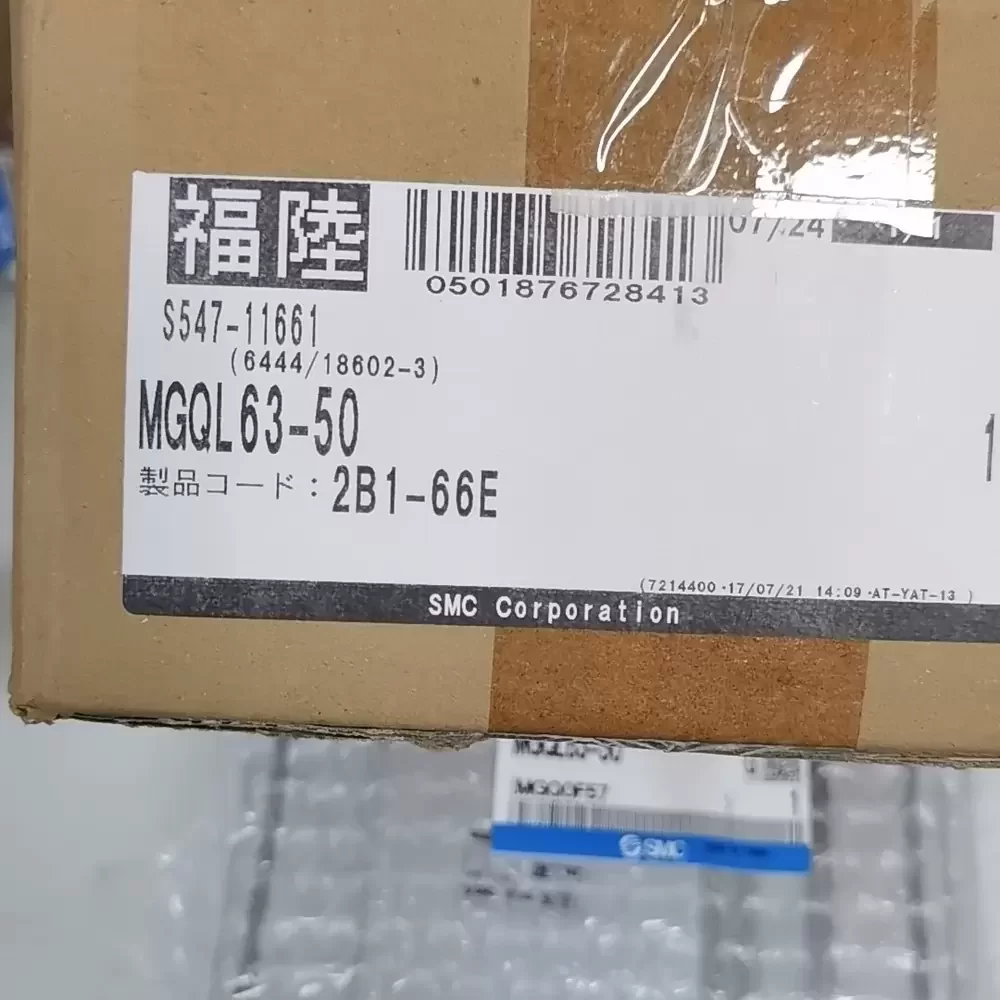

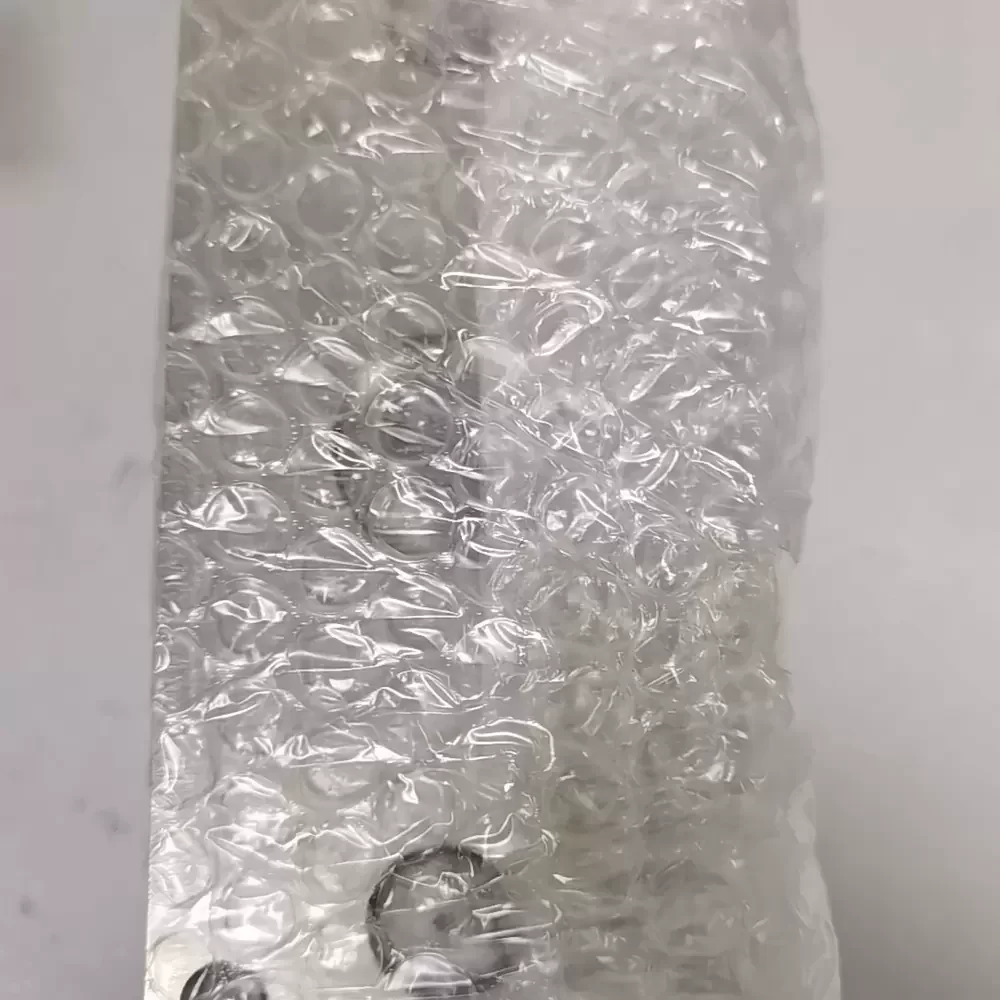

MGQL63-50 SMC 63mmBore 50mmStroke Ball Bushing Guided Cylinder

Description

SMC MGQL63-50 is a compact guided cylinder featuring a 63 mm bore, 50 mm stroke, and high-precision ball bushing bearings for smooth linear motion. The unit utilizes a double acting pneumatic mechanism with an aluminum alloy housing and carbon steel guide rods to isolate load bearings from the actuator rod and seals. It operates within a pressure range of 0.12 MPa to 1.0 MPa and includes rubber bumpers on both ends to minimize impact noise and vibration. The internal piston is equipped with a magnet for auto-switch sensing and requires no lubrication for standard operation.

MGQL63-50 Specifications
Model: MGQL63-50
Brand: SMC
Category: Guided Cylinder
Bore Size: 63 mm
Stroke: 50 mm
Bearing Type: Ball Bushing Bearing
Action: Double Acting
Fluid: Compressed Air
Proof Pressure: 1.5 MPa
Maximum Operating Pressure: 1.0 MPa
Minimum Operating Pressure: 0.12 MPa
Ambient and Fluid Temperature: -10 to 60 °C
Piston Speed: 50 to 500 mm/s
Cushion: Rubber Bumper on both ends
Stroke Length Tolerance: +1.5 mm
Port Size: Rc 1/4
Lubrication: Non-lube
Body Material: Aluminum Alloy
Guide Rod Material: Carbon Steel
Non-rotating Accuracy: +/- 0.06 °

MGQL63-50 Applications
Primary applications include integration into automated material handling systems, precision clamping fixtures, and pick-and-place robotic assemblies. Deployed within conveyor line stoppers, pneumatic lifting platforms, and industrial packaging machinery requiring high non-rotating accuracy and side load capacity.
