Description

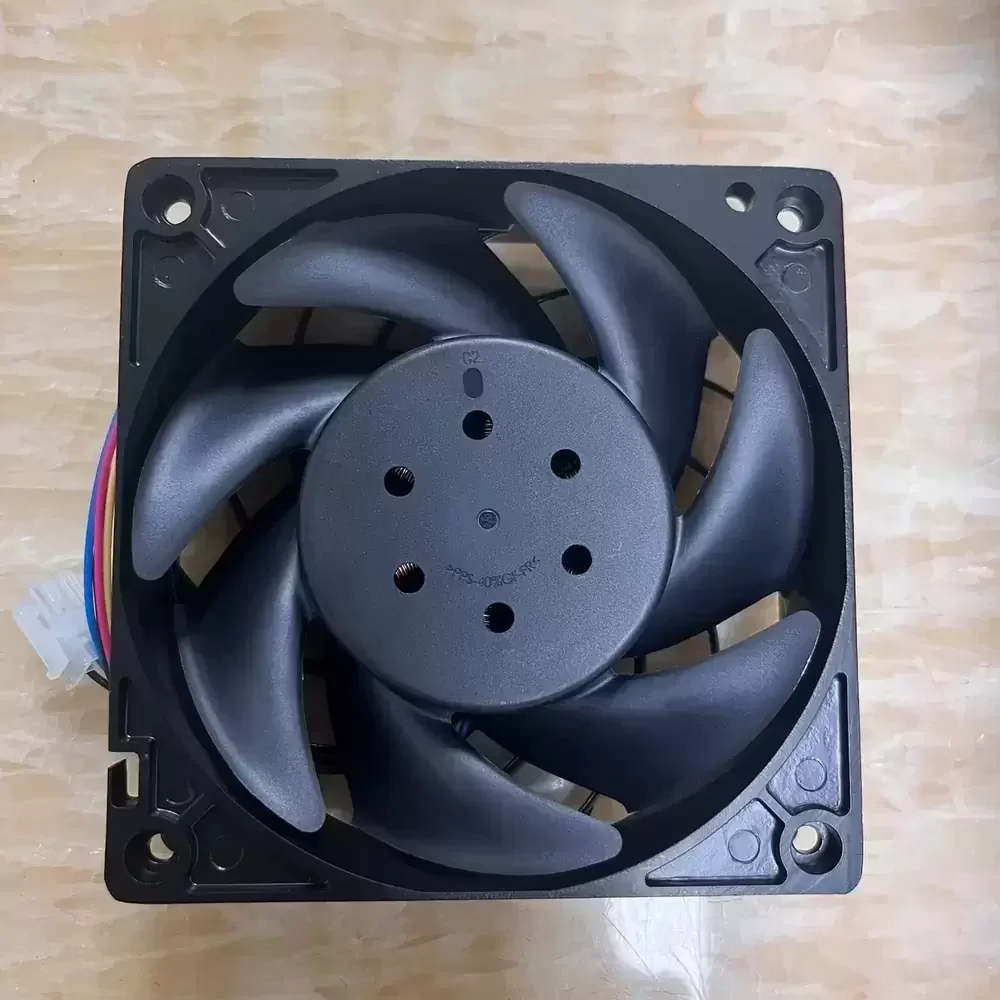

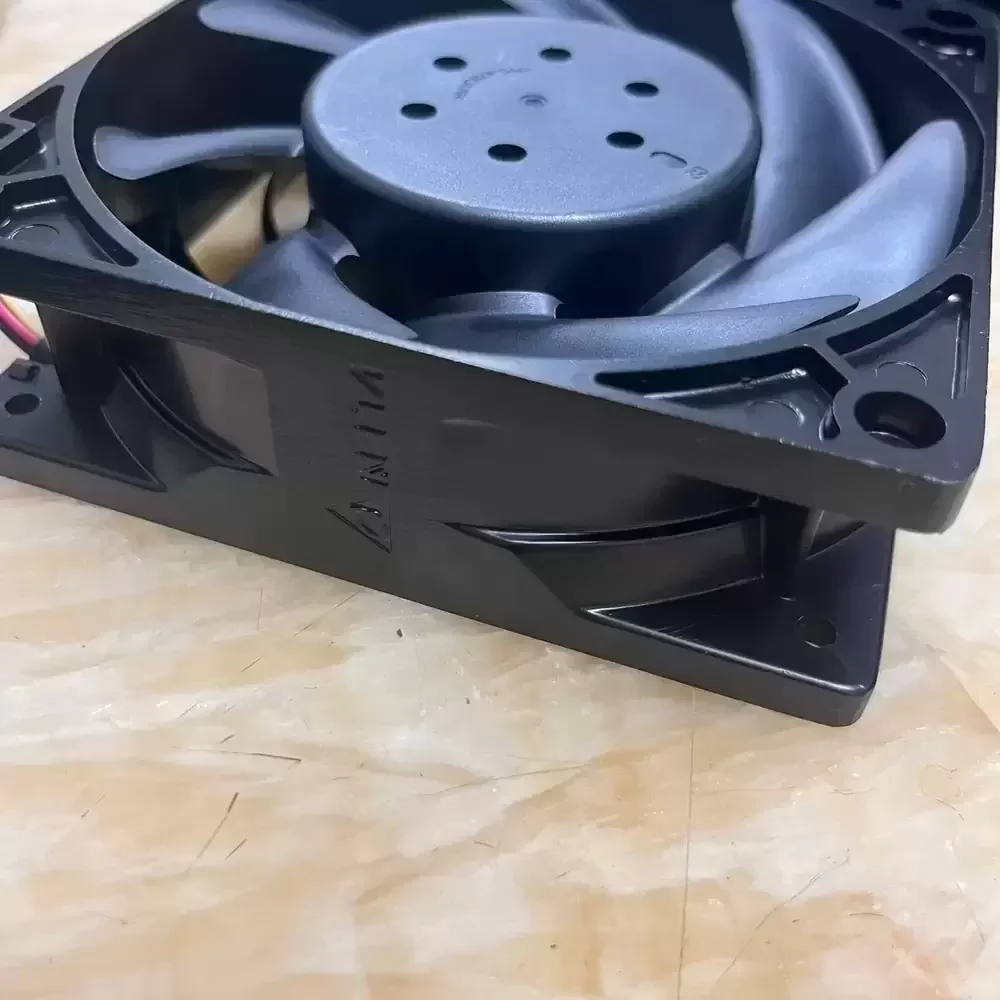

The Delta THD1248BE-00D1C is a robust Axial Fan engineered for critical thermal management in high-density industrial environments. Utilizing advanced DC motor technology with a 12-pole design, this unit ensures consistent torque delivery and operational stability under heavy loads. The construction features a durable aluminum die-cast frame which significantly enhances structural rigidity and aids in heat dissipation, lowering overall thermal impedance. Designed with precision aerodynamics, the impeller maximizes airflow efficiency while maintaining mechanical integrity at high rotational speeds, making it an ideal solution for systems requiring aggressive cooling performance.
Model Number: THD1248BE-00D1C
Brand: Delta
Product Type: Axial Fan
Rated Voltage: 48VDC
Voltage Range: 36.0 – 56.0 VDC
Rated Current: 5.00 A
Power: 240 W
Rated Speed: 9000 RPM ±10%
Bearing Type: Ball Bearing
Max. Air Flow: 260.0 CFM (441.7 m³/h)
Max. Static Pressure: 2.85 inH₂O (710 Pa)
Dimensions: 120 x 120 x 38 mm
Weight: 480 g
Frame Material: Aluminum Die-Cast
Motor Type: 12-Pole DC Motor
Speed Control: PWM

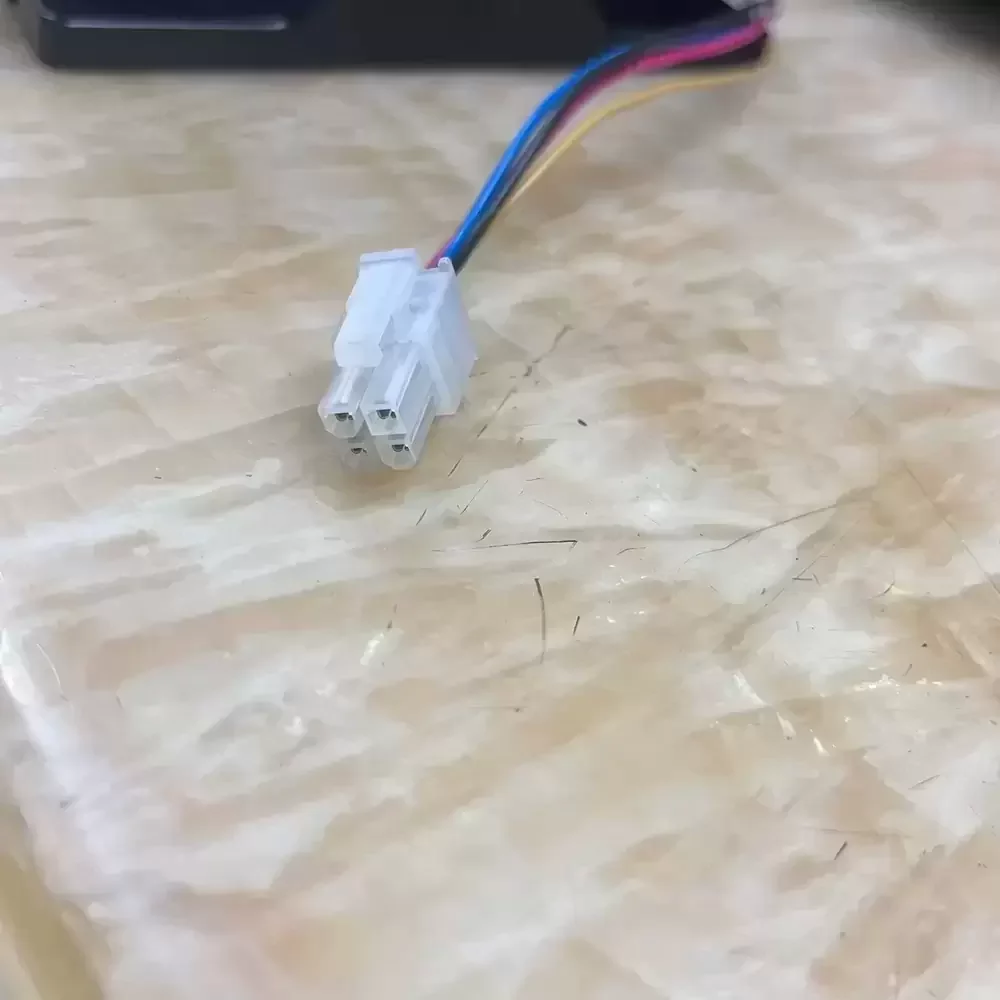

Termination: 4-Wire Leads
Operating Temperature: -10°C to +70°C
Application: Server/Telecom
The THD1248BE-00D1C is specifically calibrated for high-static pressure applications such as enterprise server racks and telecommunications base stations where airflow resistance is significant. Its robust aluminum housing makes the THD1248BE-00D1C suitable for industrial automation equipment and CNC machinery that generate substantial heat loads, ensuring component longevity through rapid thermal evacuation.
