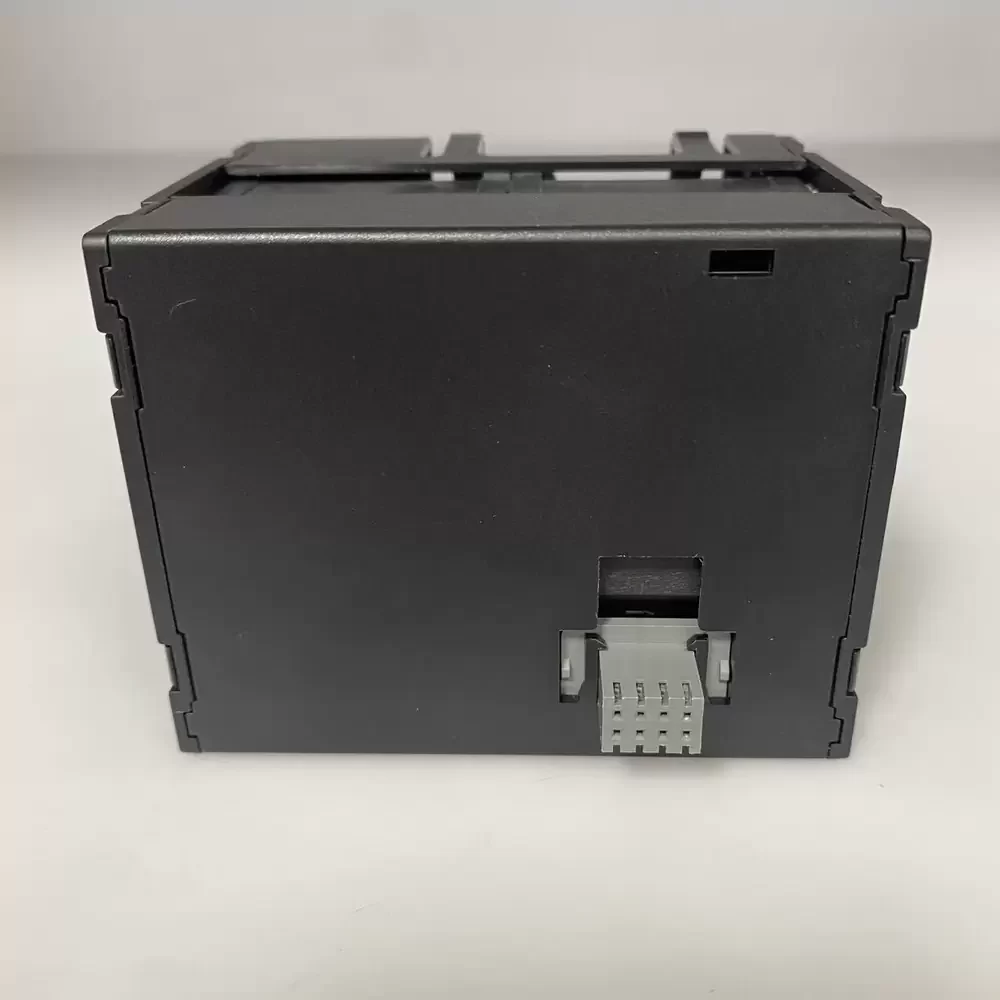

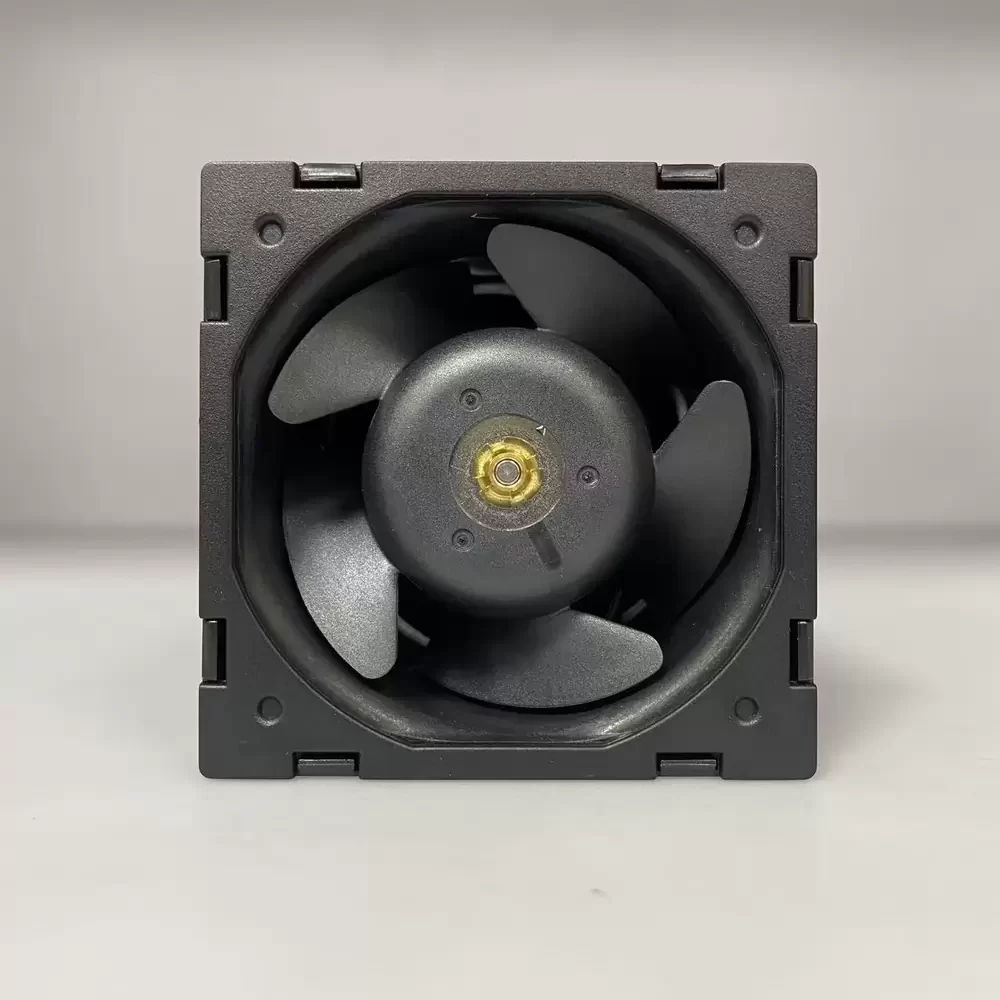

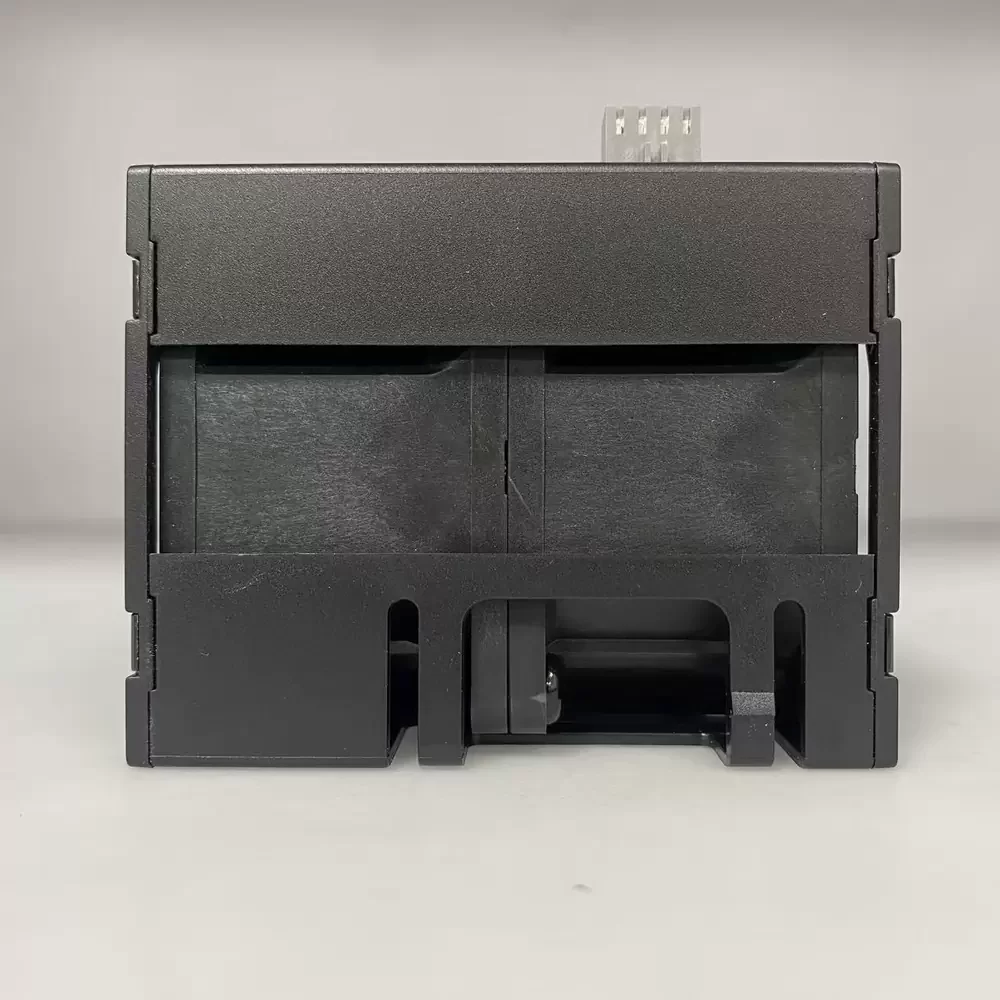

PIA060K12W-P09-EB Foxconn 12VDC 6.50A 60x60x76mm DC Axial Fan

Description

Foxconn PIA060K12W-P09-EB 60 x 60 x 76 mm 12 VDC 6.50 A 78 W DC axial fan features a dual-rotor counter-rotating design housed in a PBT UL 94V-0 plastic frame with integrated dual ball bearings for extended operational life. The unit utilizes a 4-wire interface supporting PWM speed control and tachometer output, delivering high static pressure and volumetric airflow through precision-engineered impellers. The internal brushless motor is polarity protected and designed for continuous high-speed operation.

PIA060K12W-P09-EB Specifications
Model: PIA060K12W-P09-EB
Brand: Foxconn
Category: DC Axial Fan
Frame Size: 60 x 60 x 76 mm
Voltage: 12 VDC
Current: 6.50 A
Power: 78 W
Bearing Type: Dual Ball Bearing
Interface: 4-wire (PWM, Tachometer)
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Safety Certifications: UL, TUV, CE
Weight: 350 g
Motor Type: Brushless DC
Protection: Polarity Protected, Locked Rotor Protected

PIA060K12W-P09-EB Applications
Primary applications include integration into high-density server chassis, telecommunications rack cooling systems, and enterprise-grade network switches. Deployed within cryptocurrency mining rigs and industrial power supply units requiring high-pressure thermal management.
