Description

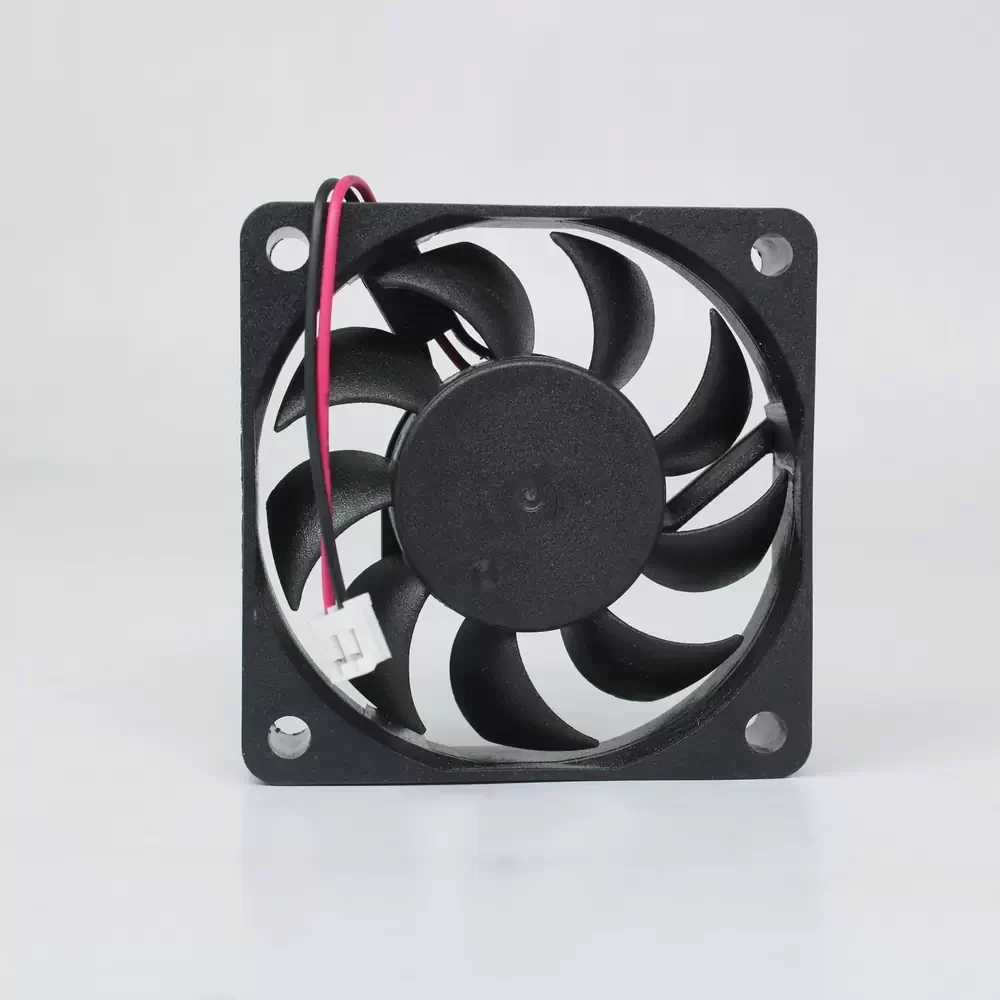

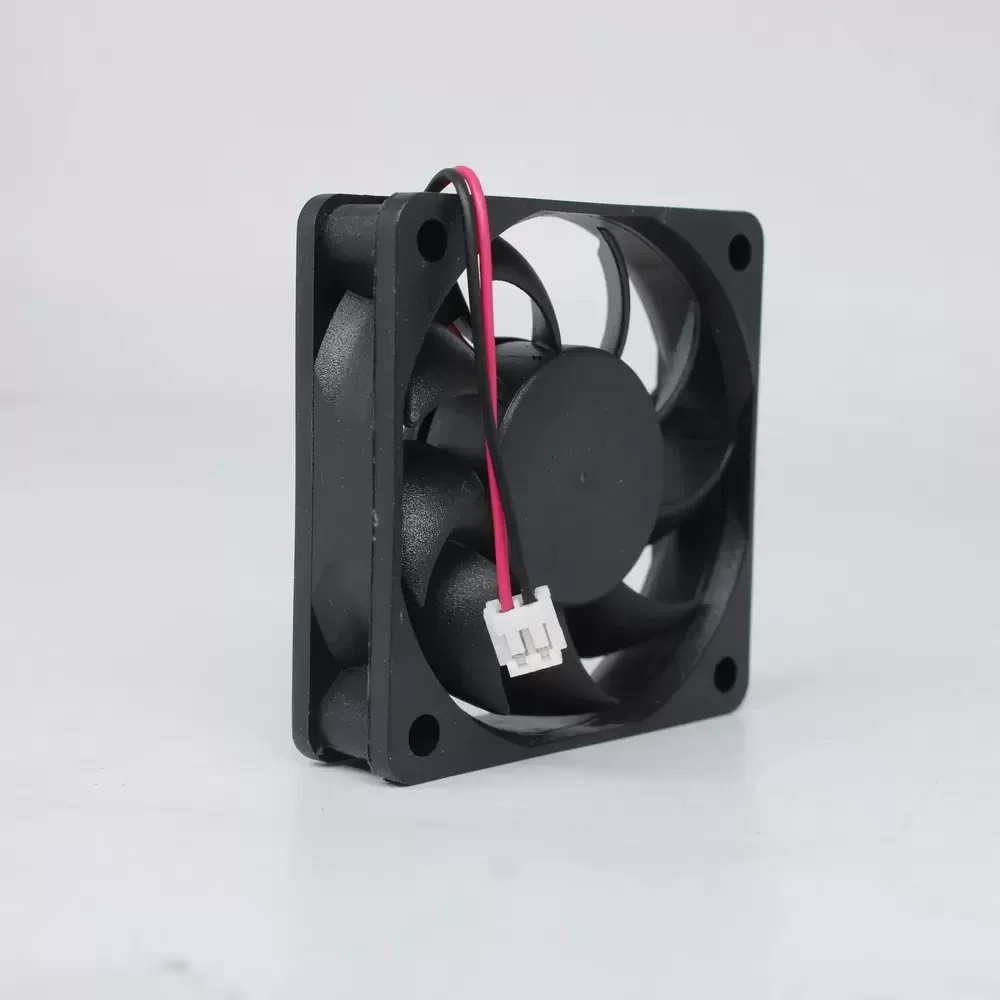

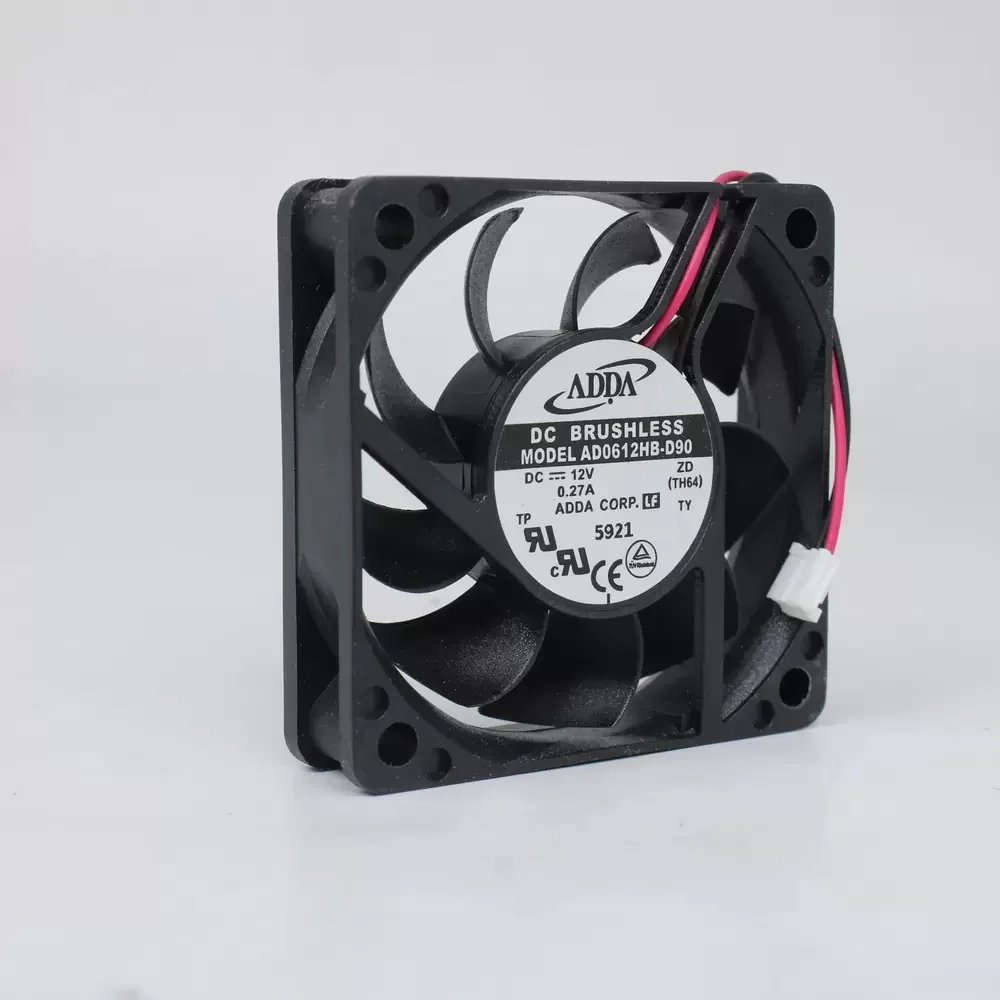

The ADDA AD0612HB-D90 is a high-efficiency DC Axial Fan engineered for precision thermal management in compact industrial environments. Utilizing advanced brushless DC motor technology combined with a robust Dual Ball Bearing architecture, this unit ensures minimized frictional resistance and extended operational longevity under continuous loads. The 60x60x15mm frame is constructed from reinforced thermoplastic to maintain structural rigidity, optimizing airflow dynamics to significantly reduce thermal impedance within dense electronic enclosures. Its aerodynamic impeller design balances static pressure and volume flow, making it a reliable solution for critical cooling applications requiring stable performance.
Model Number: AD0612HB-D90
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.27 A
Power Consumption: 3.24 W
Rated Speed: 5200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 22.5 CFM (38.2 m³/h / 0.63 m³/min)
Max. Static Pressure: 4.8 mmH₂O (47.0 Pa / 0.19 inH₂O)
Dimensions: 60 x 60 x 15 mm
Weight: 42 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 36.5 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 2-Wire Lead
Wire Gauge: 24 AWG
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, CUL, TUV, CE
The AD0612HB-D90 is specifically designed for integration into space-constrained electronic assemblies where heat dissipation is critical. Common deployment scenarios include 1U server power supplies, network switches, and industrial automation control panels. The AD0612HB-D90 provides consistent cooling for telecommunications equipment and medical instrumentation, ensuring component stability by effectively evacuating waste heat from dense circuit board configurations.
