Description

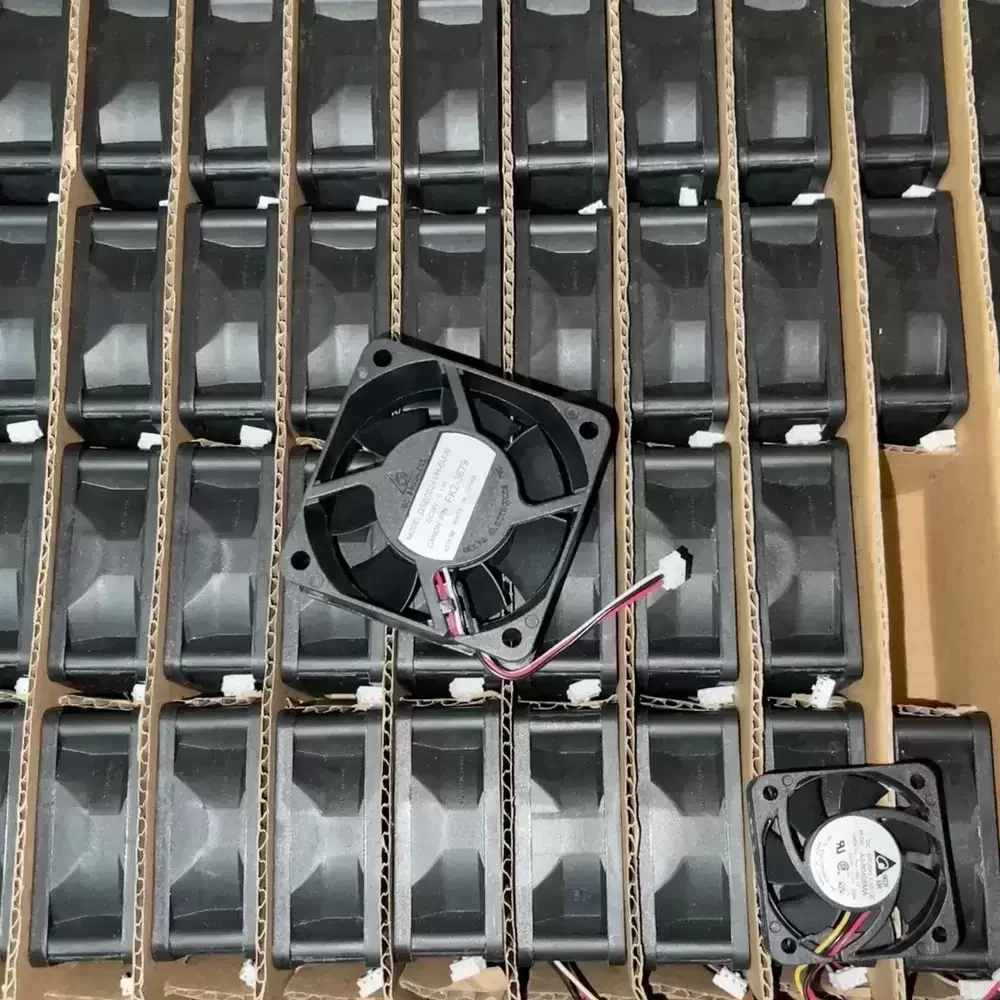

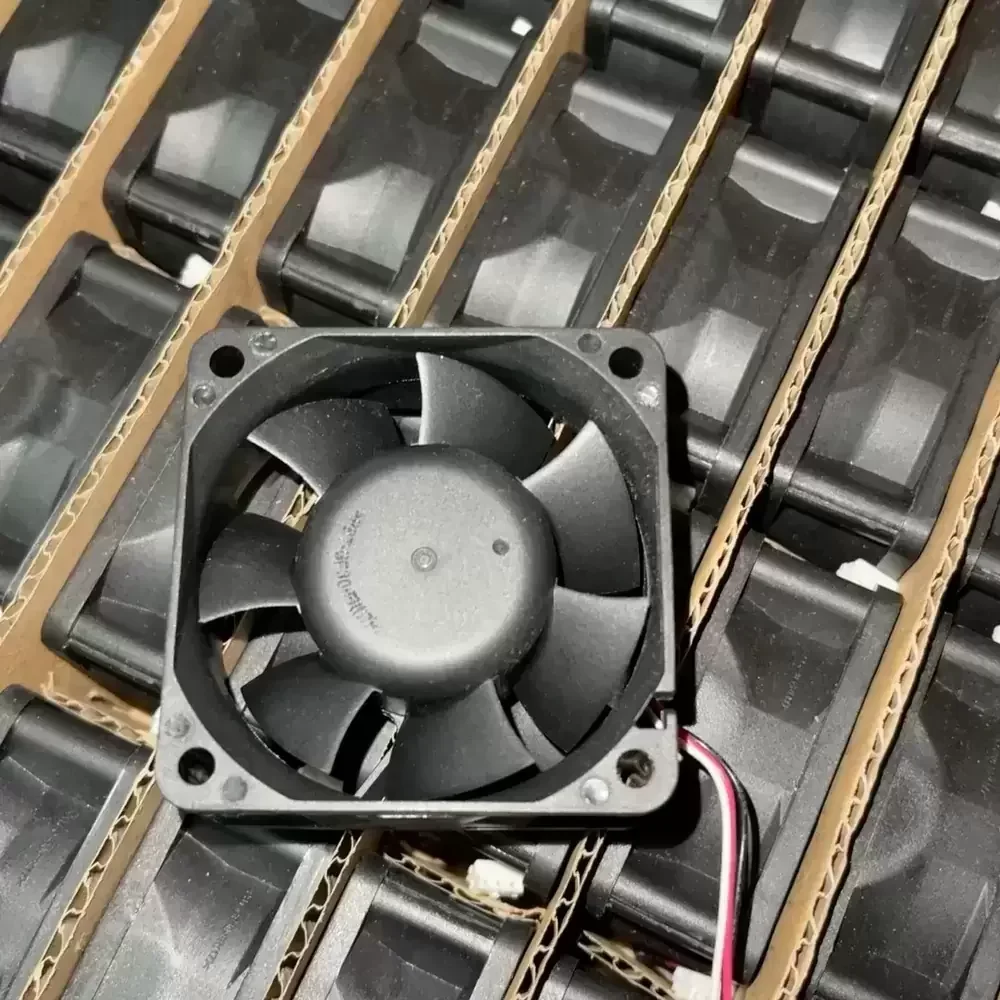

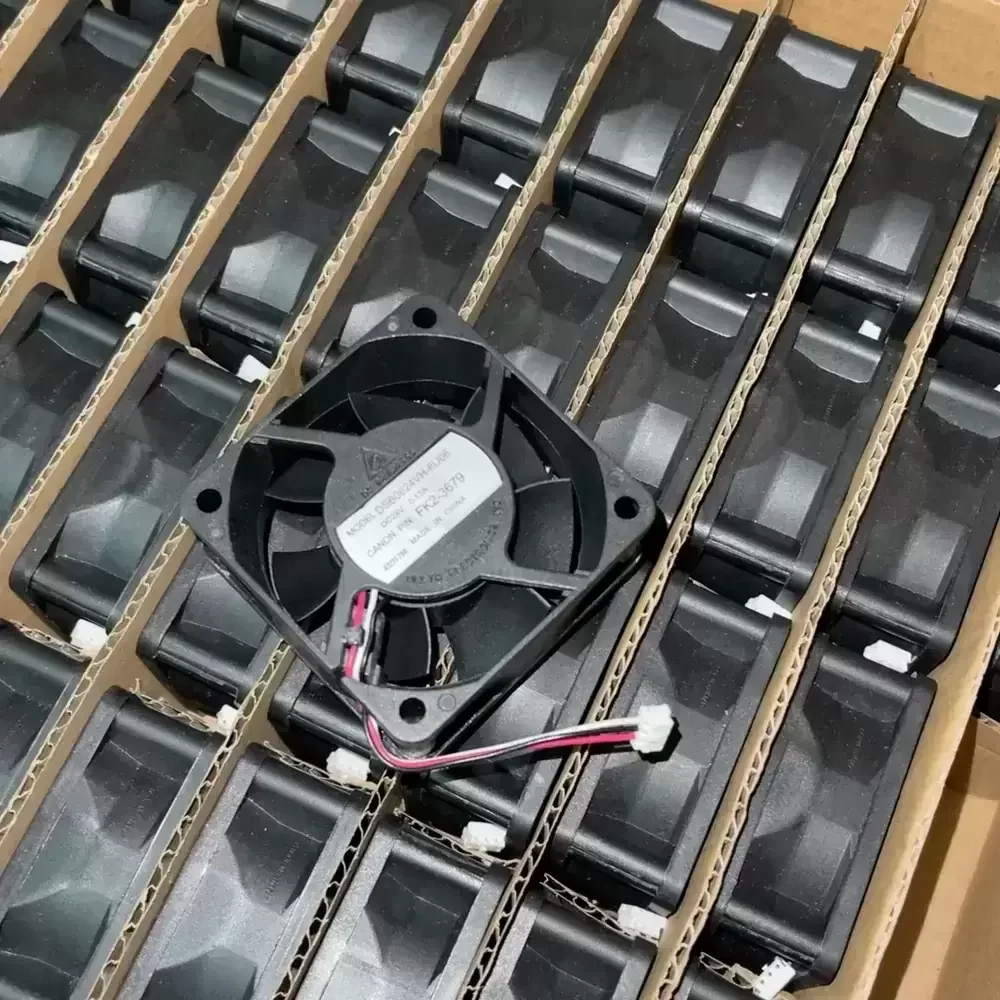

The Delta DSB0624VH-6U06 is a precision-engineered DC Axial Fan designed for critical thermal management in industrial electronics and power conversion systems. Utilizing an advanced sleeve bearing architecture, this unit balances structural rigidity with aerodynamic efficiency to deliver consistent airflow in compact environments. The motor assembly operates on a 24VDC platform, optimized for low power consumption while maintaining high static pressure capabilities essential for overcoming system impedance. Its thermoplastic housing ensures durability and compliance with flammability standards, making it an ideal solution for inverter cooling and high-density component ventilation where thermal reliability and reduced thermal impedance are paramount.
Model Number: DSB0624VH-6U06
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.13 A
Power Input: 3.12 W
Rated Speed: 4500 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 26.63 CFM (45.24 m³/h / 0.75 m³/min)
Max. Static Pressure: 7.85 mmH₂O (77.0 Pa / 0.31 inH₂O)
Dimensions: 60x60x25mm
Weight: 68 g
Life Expectancy: 40,000 Hours at 40°C
Noise Level: 38.0 dBA
Termination: 3-Wire (Lead Wire)
Speed Control: Tachometer Output (Frequency Generator)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP20
Insulation Class: Class A
Safety Certifications: UL, cUL, TUV, CE
Mounting Orientation: Any
This cooling solution is specifically engineered for variable frequency drives and industrial inverters, where the DSB0624VH-6U06 ensures optimal operating temperatures for sensitive power electronics. Its compact 60mm footprint allows for seamless integration into rack-mounted server chassis, telecommunications equipment, and precision medical instrumentation. The DSB0624VH-6U06 is also widely utilized in CNC control panels and power supply units, providing the necessary airflow to prevent thermal throttling in continuous-duty applications.
