Description

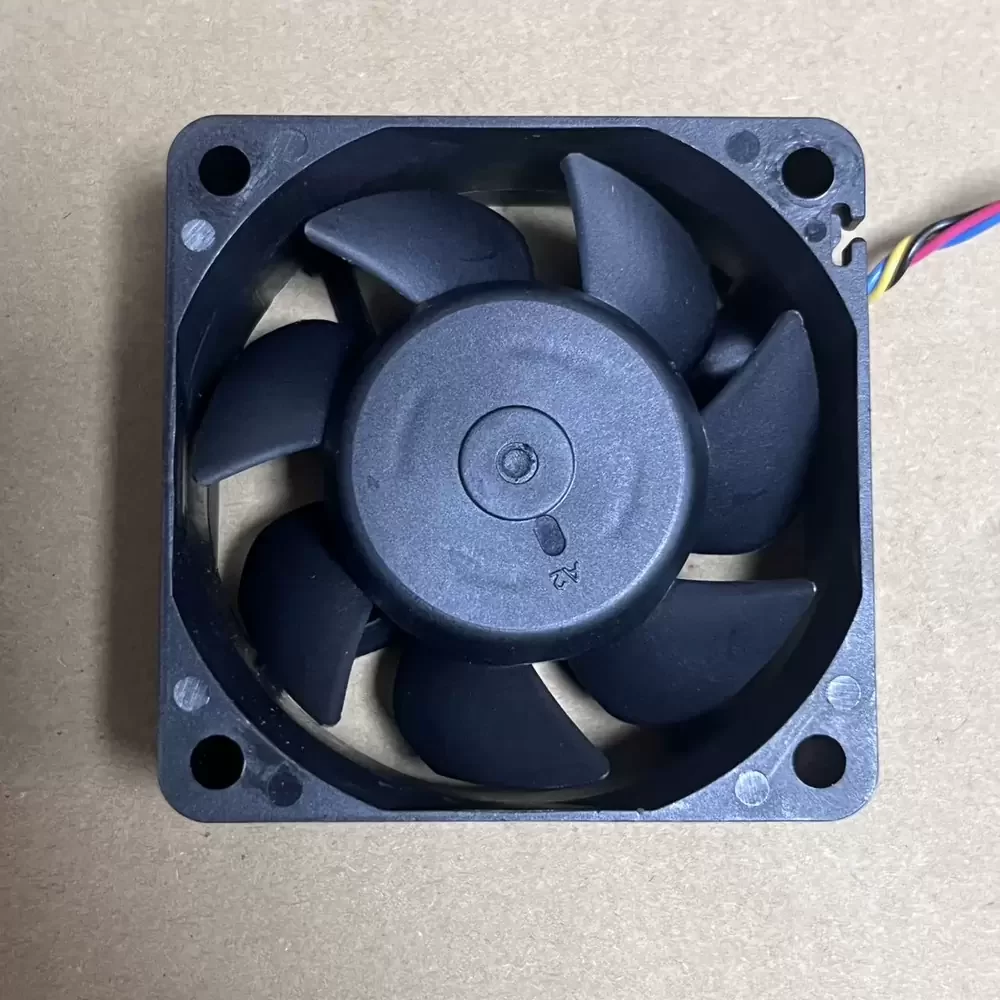

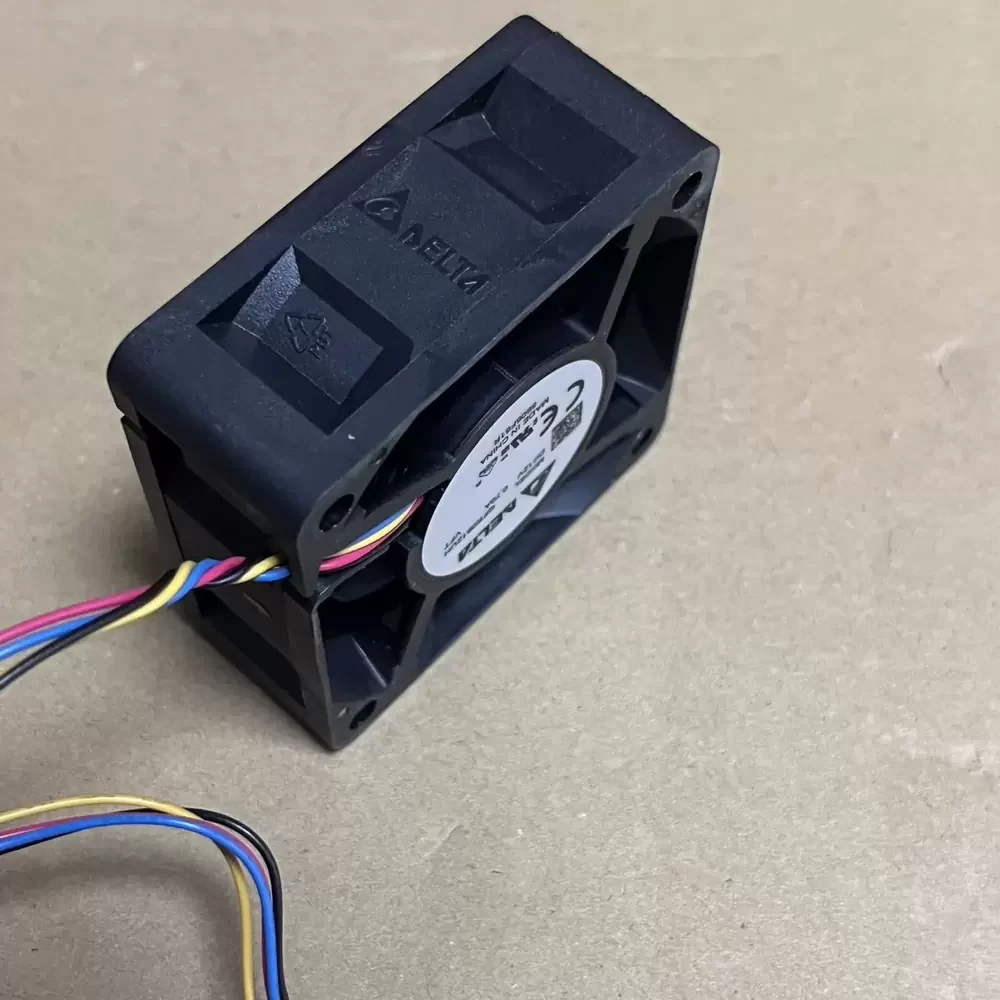

The Delta QFR0612UH-VFT is a precision-engineered Axial Fan designed for high-density thermal management applications requiring substantial airflow and static pressure. Utilizing advanced DC motor technology and a robust Dual Ball Bearing architecture, this unit optimizes aerodynamic efficiency to deliver superior airflow-to-noise ratios. The structural rigidity of the 60mm thermoplastic frame ensures minimal vibration during operation, while the integrated 4-wire speed control interface allows for dynamic thermal impedance adjustment based on system load. Engineered for reliability, the QFR0612UH-VFT maintains consistent performance parameters under demanding industrial conditions, making it an ideal solution for critical cooling infrastructures requiring precise air movement and long-term operational stability.
Model Number: QFR0612UH-VFT
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.70 A
Power Input: 8.40 W
Rated Speed: 7600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 36.6 CFM (62.18 m³/h / 1.04 m³/min)
Max. Static Pressure: 12.5 mmH₂O (122.58 Pa / 0.49 inH₂O)
Dimensions: 60 x 60 x 25 mm
Weight: 90 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 44.8 dB(A)

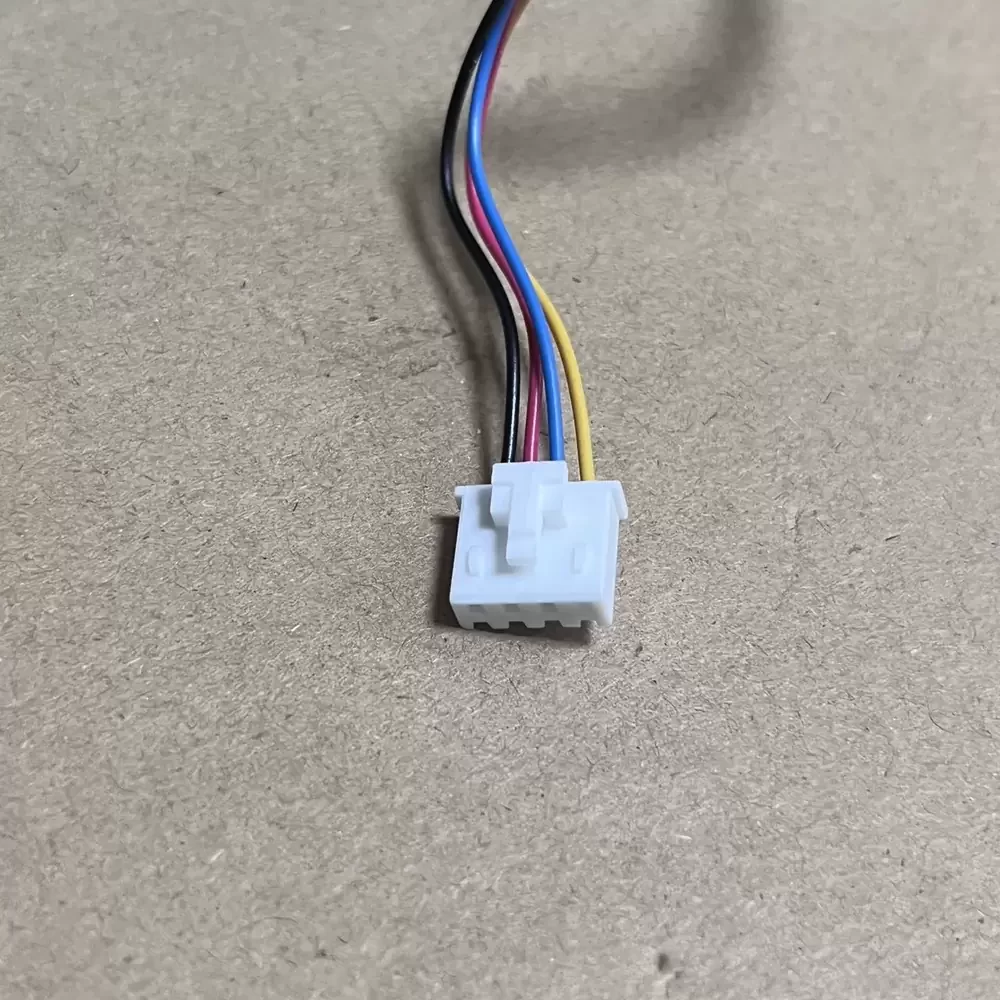

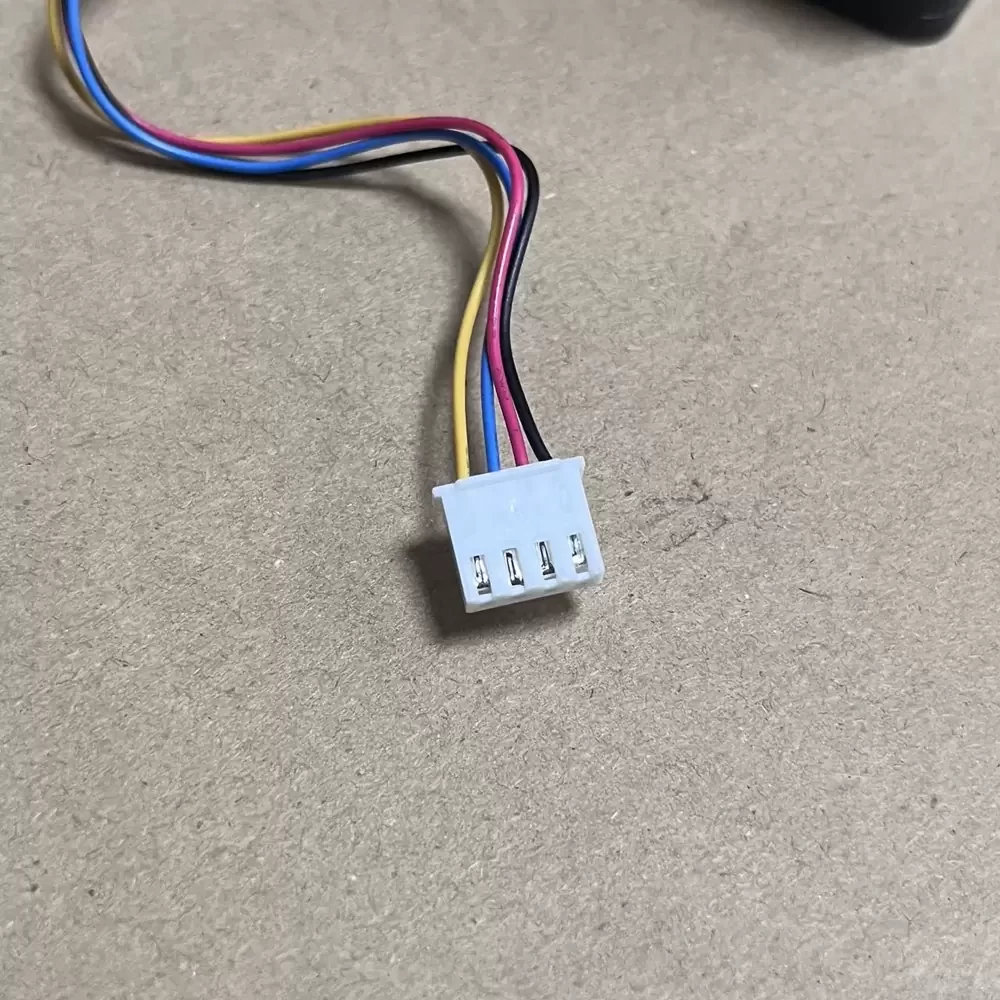

Termination: 4-Wire Leads
Speed Control: PWM / Tachometer
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10 to +70 °C
Ingress Protection: IP54 (Standard Industrial)
This high-performance cooling solution is specifically calibrated for demanding environments such as electric vehicle charging pile modules and industrial automation systems. The QFR0612UH-VFT excels in restricted spaces where high static pressure is required to overcome system resistance, such as in dense server racks and telecommunications equipment. By integrating the QFR0612UH-VFT into power supply units and CNC machinery, operators ensure optimal thermal regulation, preventing component degradation and extending the service life of critical electronic hardware.
