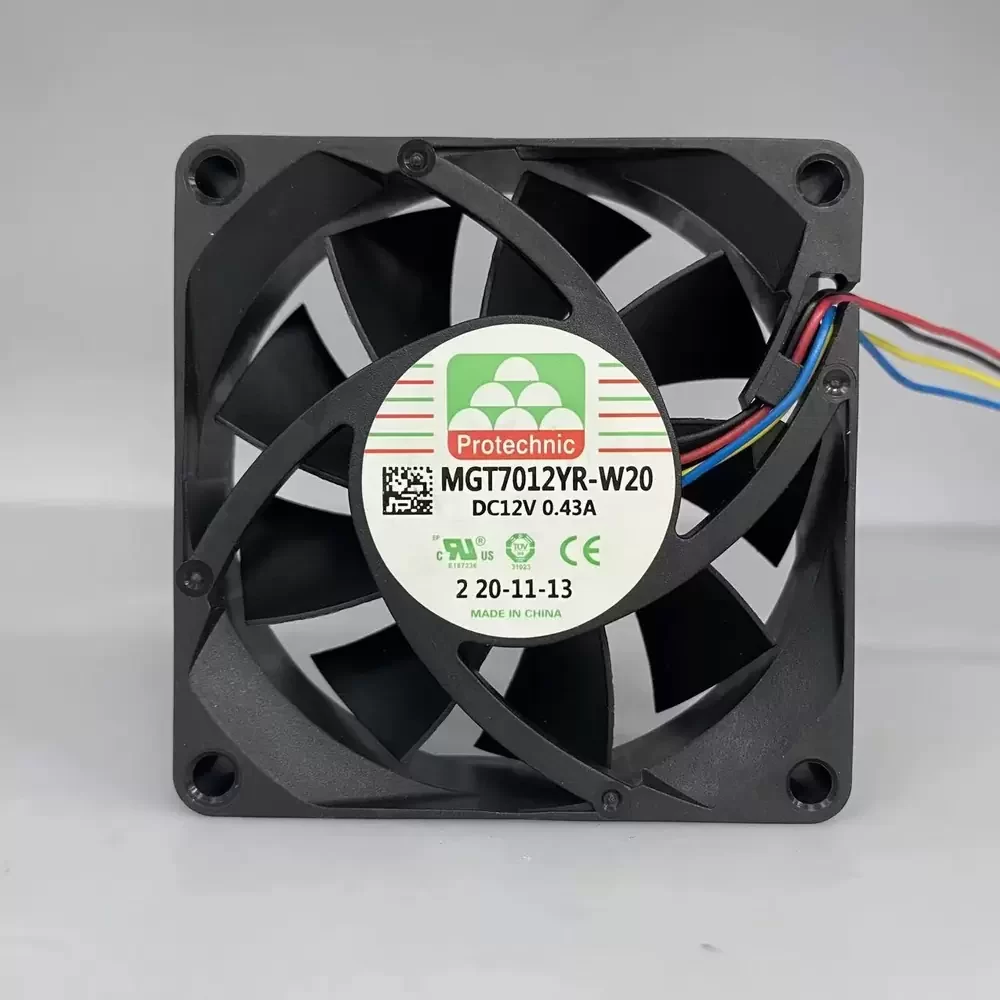

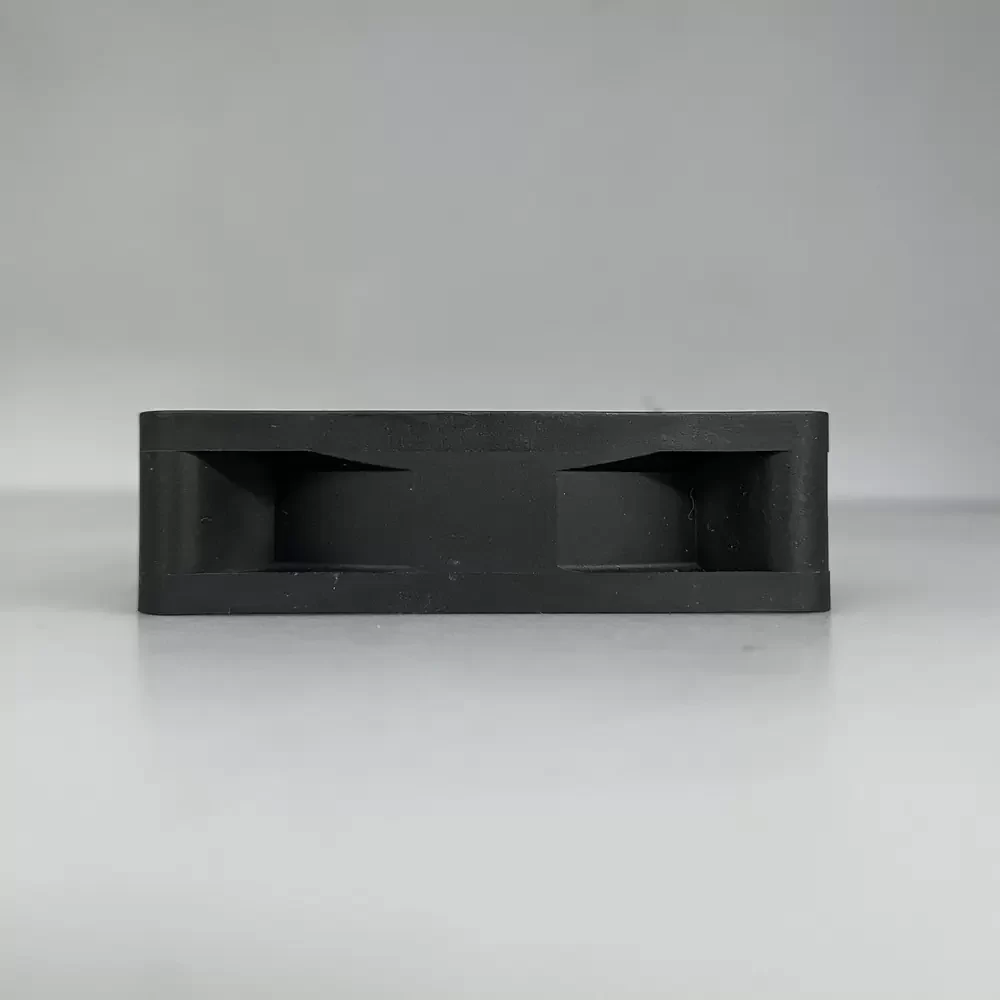

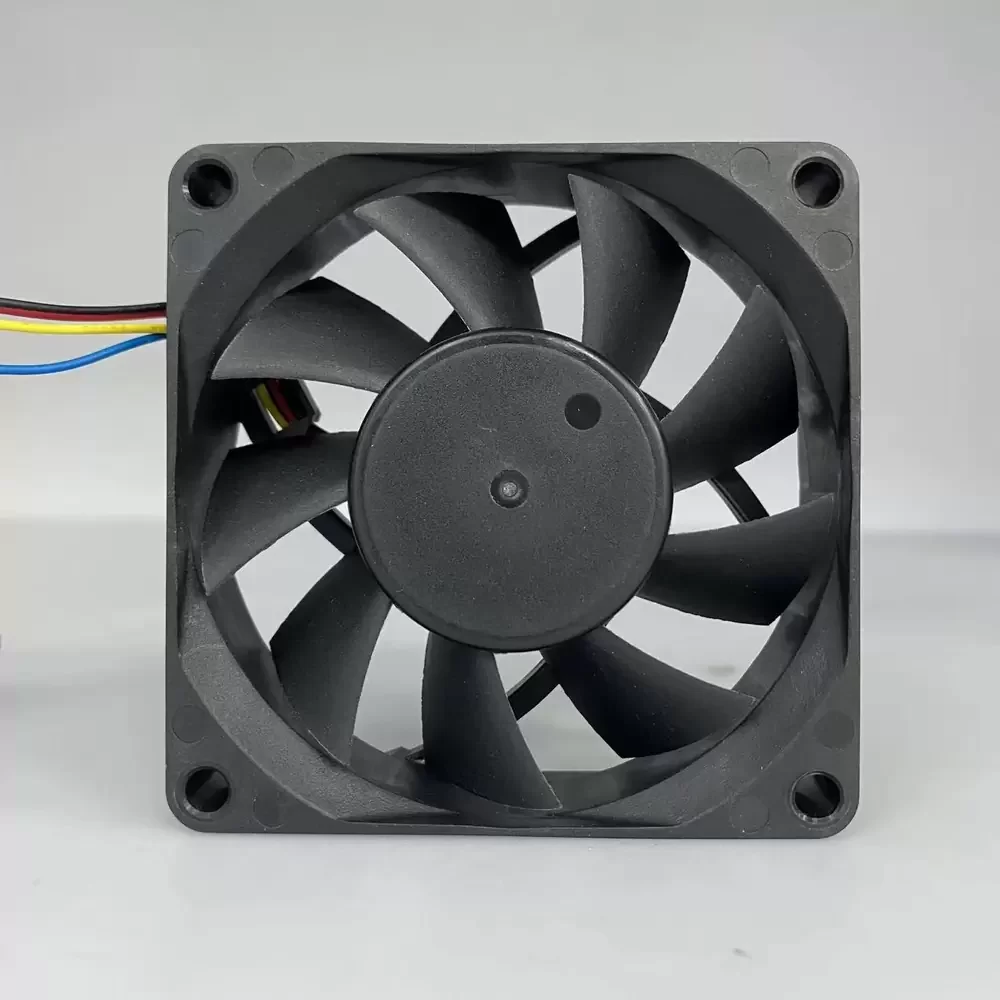

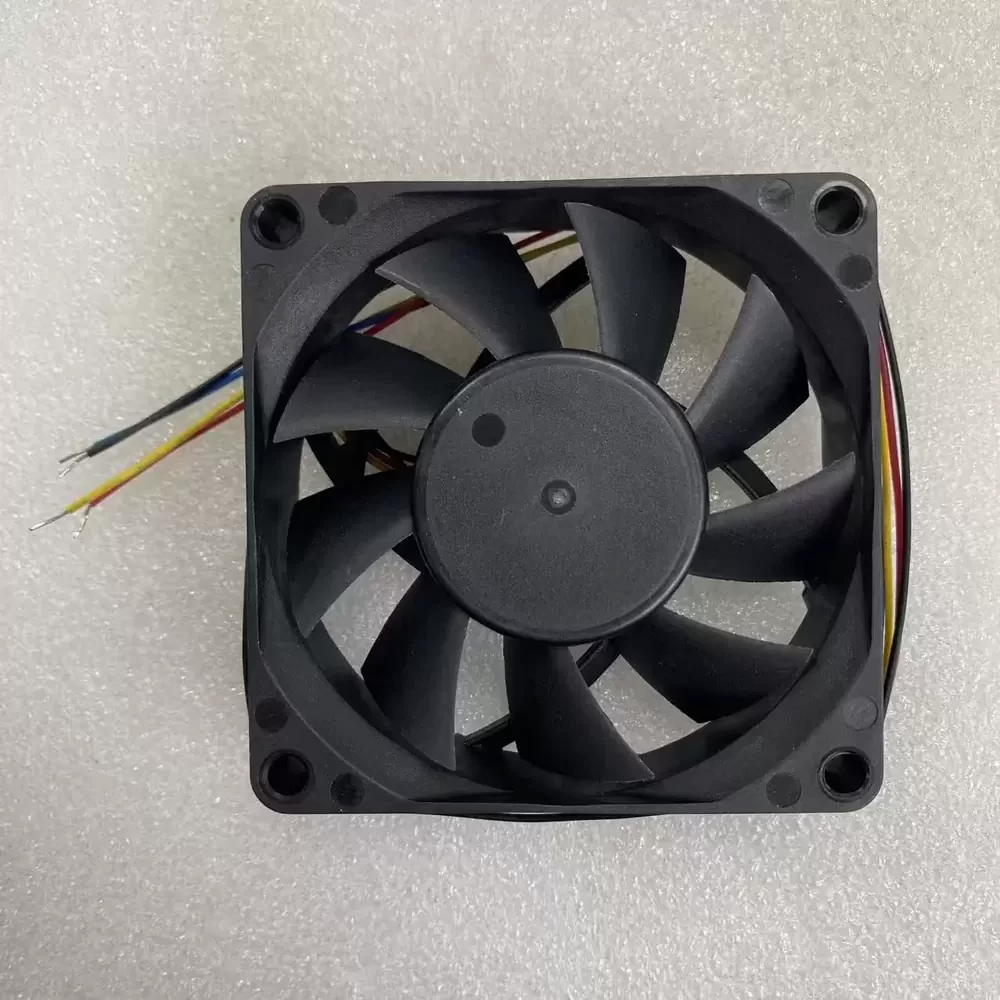

MGT7012YR-W20 Protechnic 12VDC 0.43A 70x70x20mm Axial Fan

Description

Protechnic MGT7012YR-W20 is a 70 x 70 x 20 mm high-performance axial fan operating at 12 VDC with a 0.43 A current rating. It features a dual ball bearing system and a 4-wire interface supporting PWM speed control and tachometer feedback. The housing and impeller are constructed from UL 94V-0 rated thermoplastic PBT. The internal motor utilizes a brushless DC design with integrated polarity protection and auto-restart functionality.

MGT7012YR-W20 Specifications
Model: MGT7012YR-W20
Brand: Protechnic Electric
Category: DC Axial Fan
Dimensions: 70 x 70 x 20 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.2 to 13.8 VDC
Rated Current: 0.43 A
Input Power: 5.16 W
Rated Speed: 4800 RPM
Maximum Airflow: 38.5 CFM
Static Pressure: 6.2 mmH2O
Noise Level: 42.5 dB(A)
Bearing Type: Dual Ball Bearing
Interface: 4-wire (PWM, Tachometer)
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 75 g

MGT7012YR-W20 Applications
Primary applications include integration into server chassis enclosures, industrial power supply units, and telecommunications rack cooling systems. Deployed within CNC controller cabinets and high-density network switch thermal management modules.
