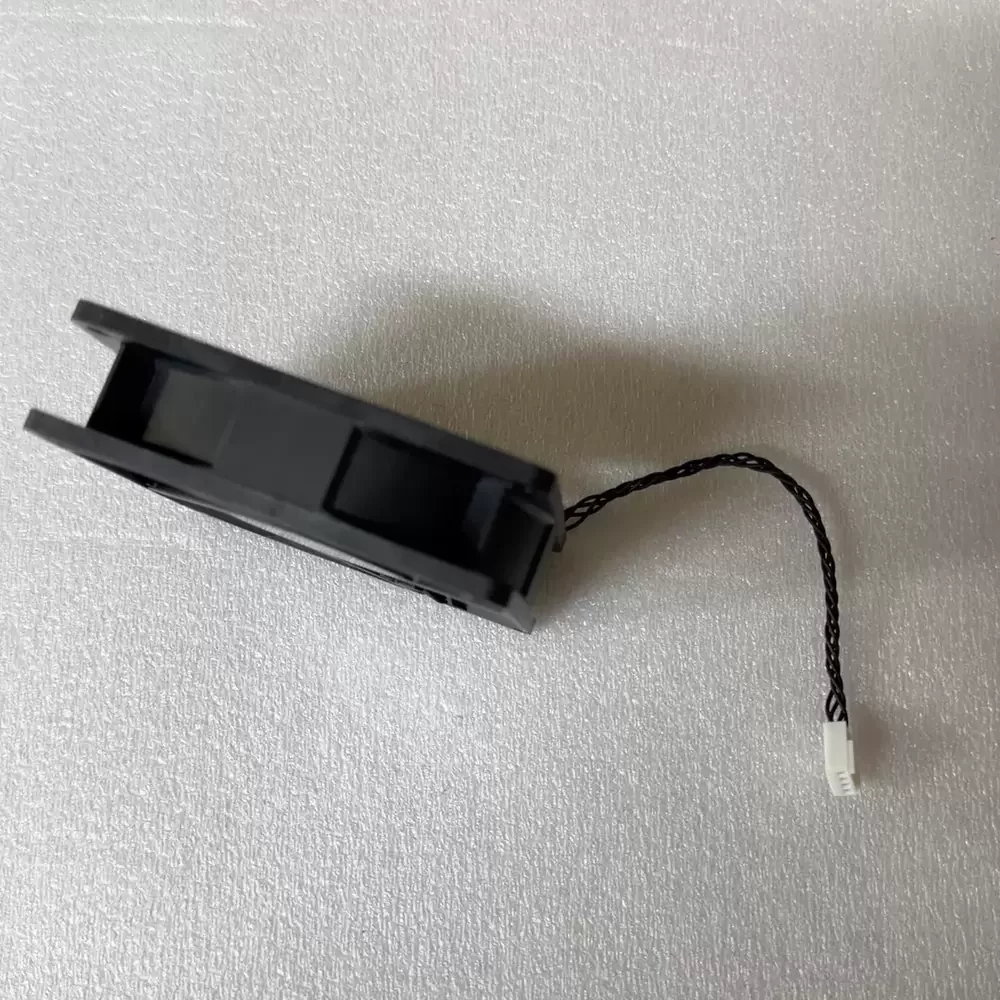

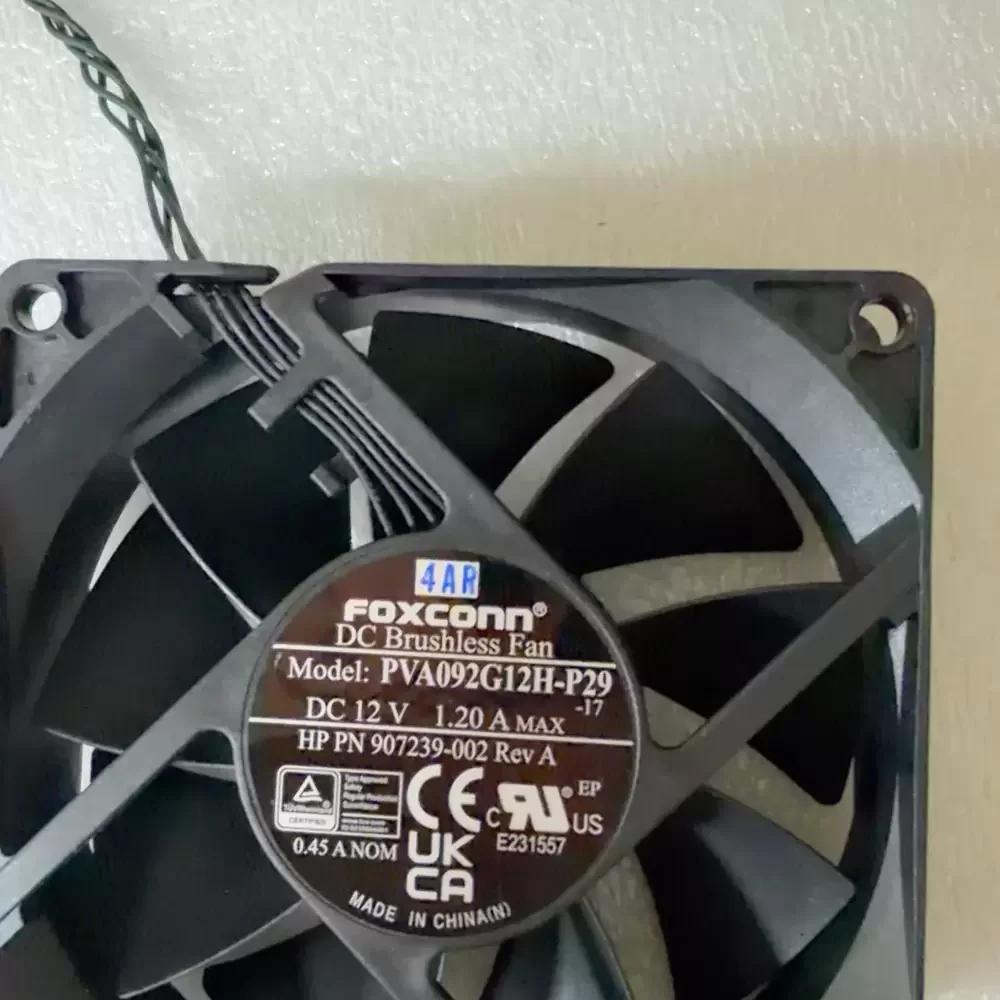

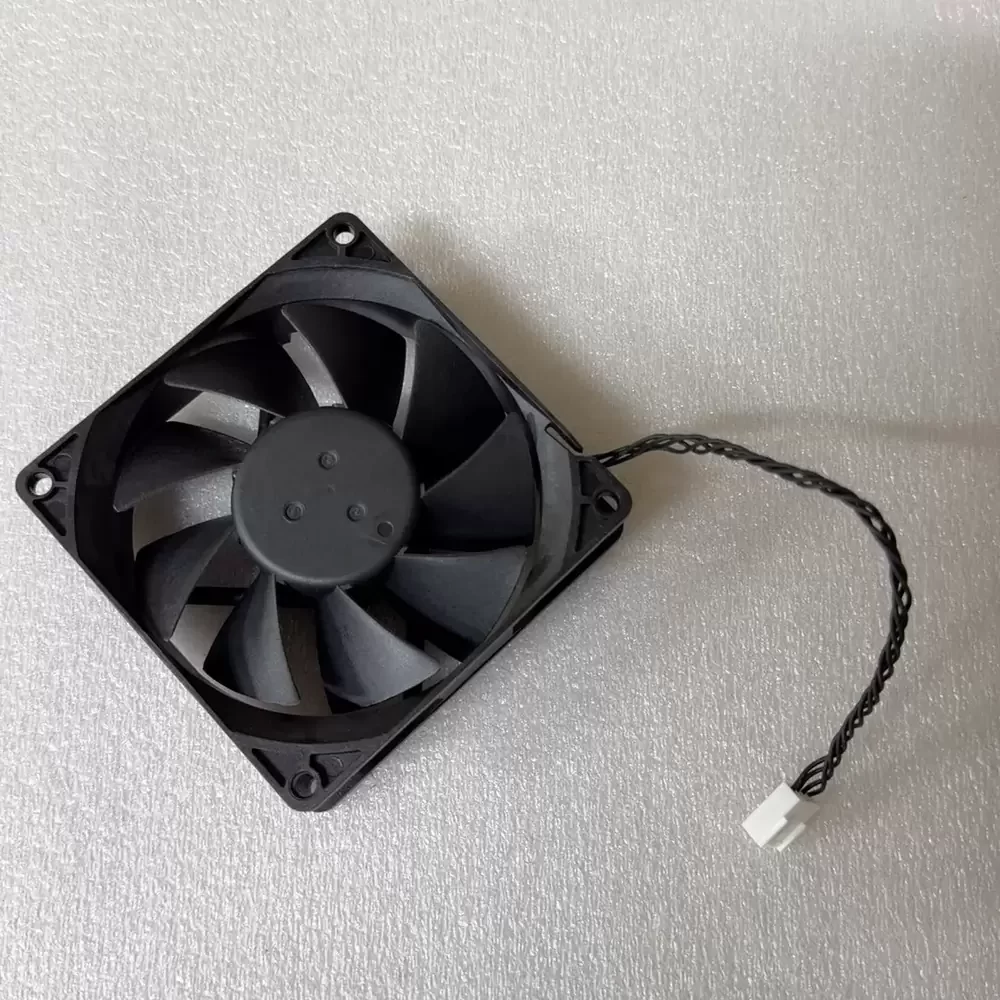

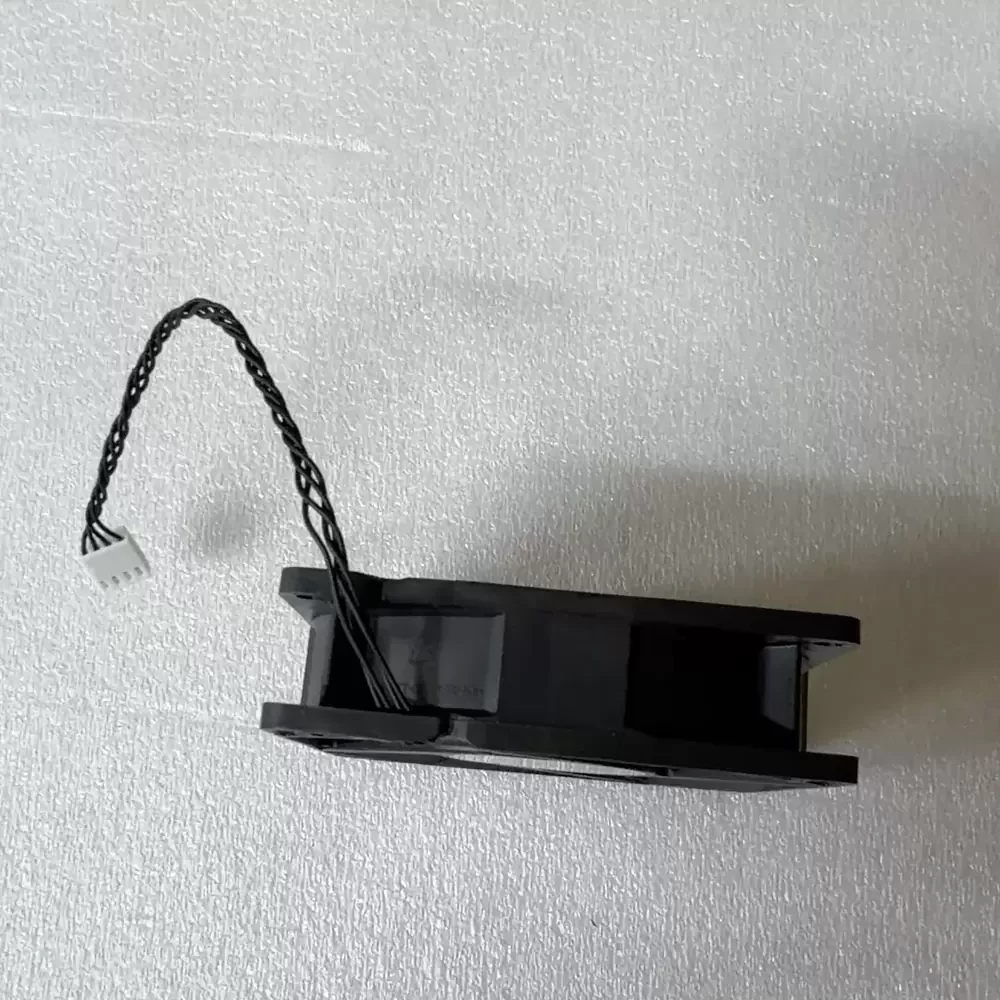

PVA092G12H-P29 Foxconn 12VDC 1.20A 92x92x25mm Axial Fan

Description

Foxconn PVA092G12H-P29 is a 92 x 92 x 25 mm axial cooling fan operating at 12 VDC with a 1.20 A current rating. It features a dual ball bearing system and a 4-pin PWM interface for precise speed modulation. The frame and impeller are constructed from UL 94V-0 rated thermoplastic PBT. This high-performance unit delivers significant static pressure and airflow through a 7-blade design, utilizing a brushless DC motor architecture for continuous operation.

PVA092G12H-P29 Specifications
Model: PVA092G12H-P29
Brand: Foxconn
HP Part Number: 907239-002
Dimensions: 92 x 92 x 25 mm
Voltage: 12 VDC
Current: 1.20 A
Power: 14.4 W
Bearing Type: Dual Ball Bearing
Connector: 4-pin PWM
Material: PBT Plastic (UL 94V-0)
Blade Count: 7
Motor Type: Brushless DC
Operating Voltage Range: 7.0 to 13.8 VDC
Safety Certifications: UL, CE, TUV
Weight: 120 g

PVA092G12H-P29 Applications
Primary applications include integration into HP Z8 G4 workstation memory cooling shrouds and high-density server chassis. Deployed within enterprise computing hardware and specialized thermal management modules for high-performance RAM banks.
