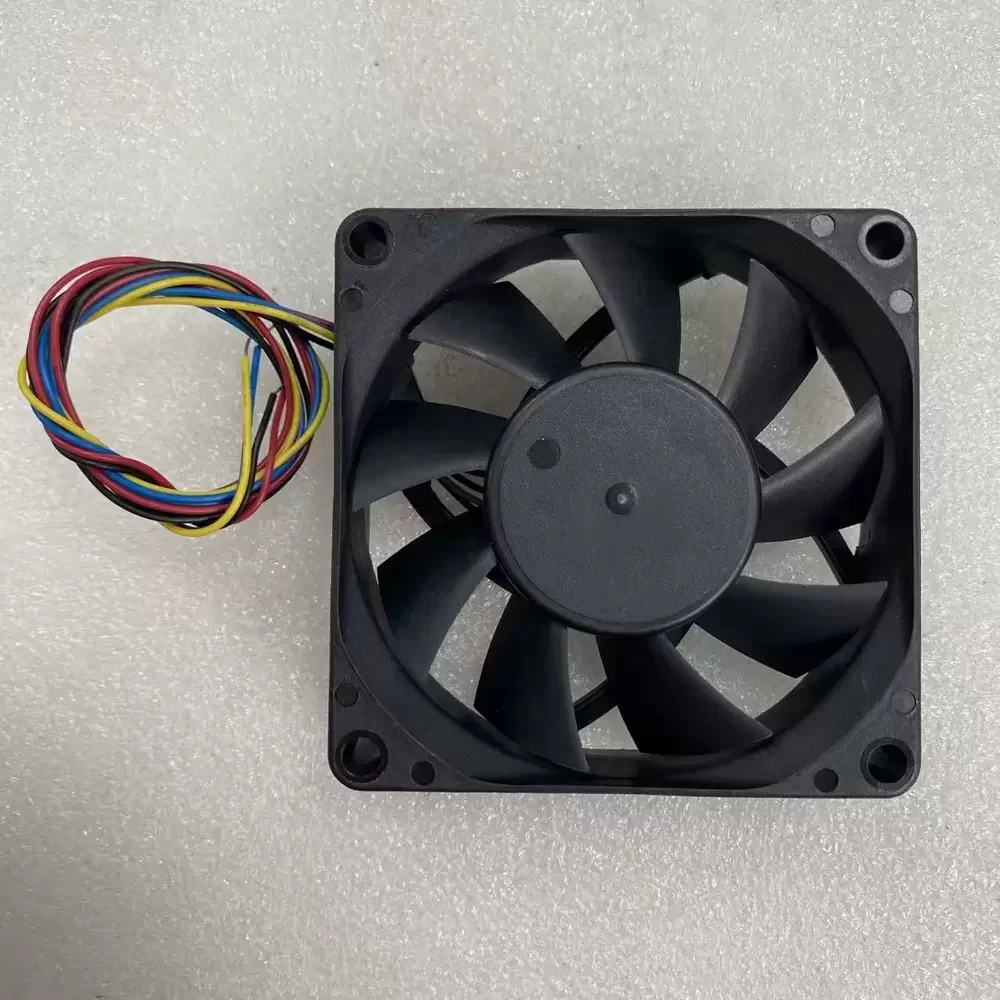

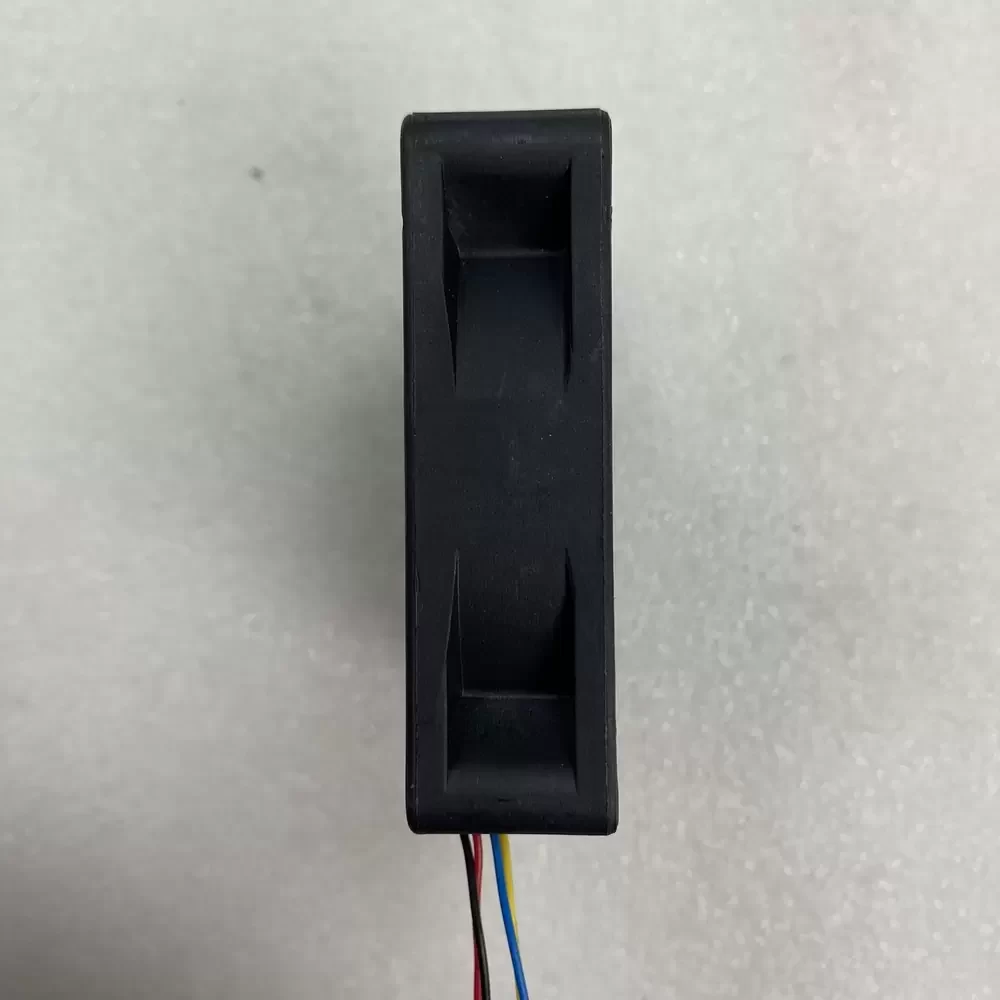

MGT7012HB-W20 MAGIC 12VDC 70x70x20mm 0.27A Axial Fan

Description

MAGIC MGT7012HB-W20 is a 70 x 70 x 20 mm axial DC fan operating at 12 VDC with a 0.27 A current rating. The unit features a high-performance dual ball bearing system and a 4-wire interface supporting PWM speed control and tachometer output. Constructed with a PBT thermoplastic frame and impeller rated to UL 94V-0 standards, it utilizes a brushless DC motor architecture to deliver high static pressure and airflow. The internal circuitry includes polarity protection and auto-restart functionality.

MGT7012HB-W20 Specifications
Model: MGT7012HB-W20
Brand: MAGIC (Protechnic Electric)
Category: DC Axial Fan
Frame Size: 70 x 70 x 20 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 0.27 A
Input Power: 3.24 W
Rated Speed: 4500 RPM
Maximum Airflow: 32.5 CFM
Static Pressure: 5.82 mmH2O
Noise Level: 41.5 dBA
Bearing Type: Dual Ball Bearing
Interface: 4-wire (Red: +, Black: -, Yellow: FG, Blue: PWM)
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 65 g

MGT7012HB-W20 Applications
Primary applications include integration into server chassis, industrial laser power supplies, and telecommunications networking equipment. Deployed within CNC controller cabinets and medical diagnostic imaging systems requiring precise thermal management via PWM modulation.
