Description

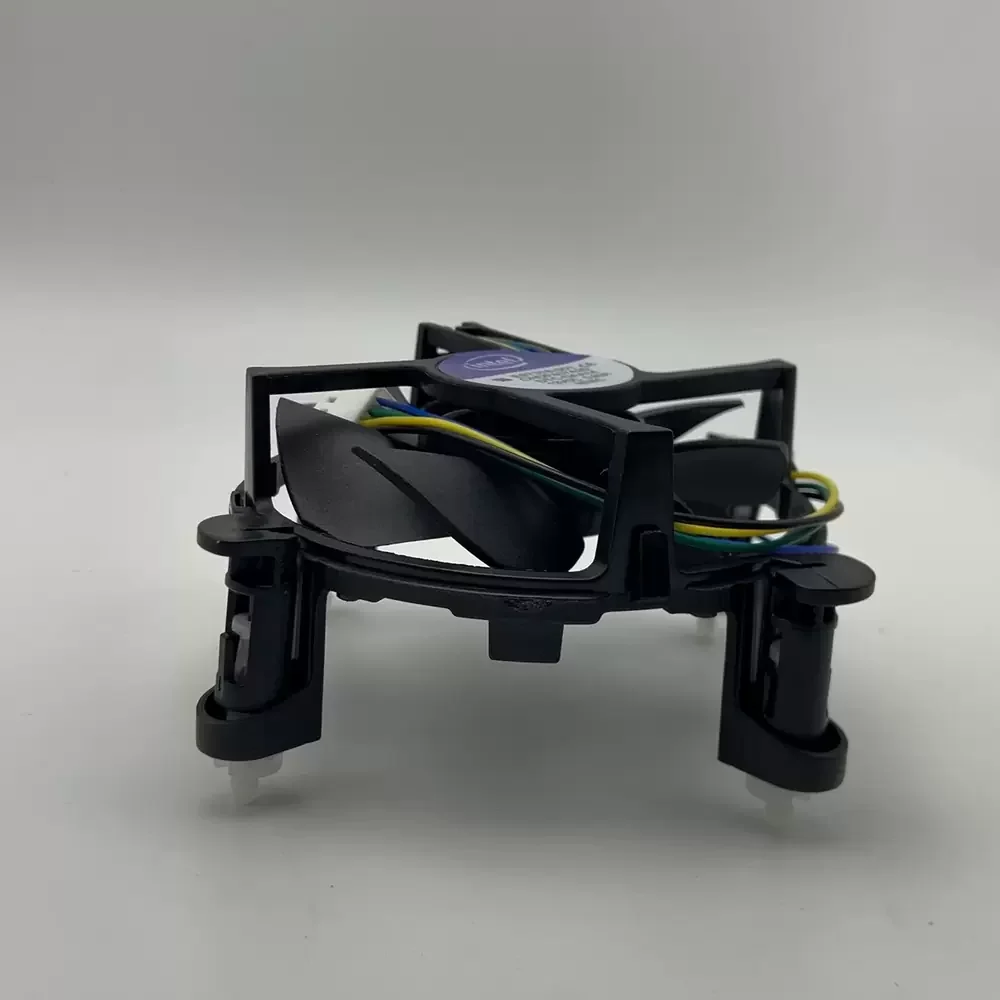

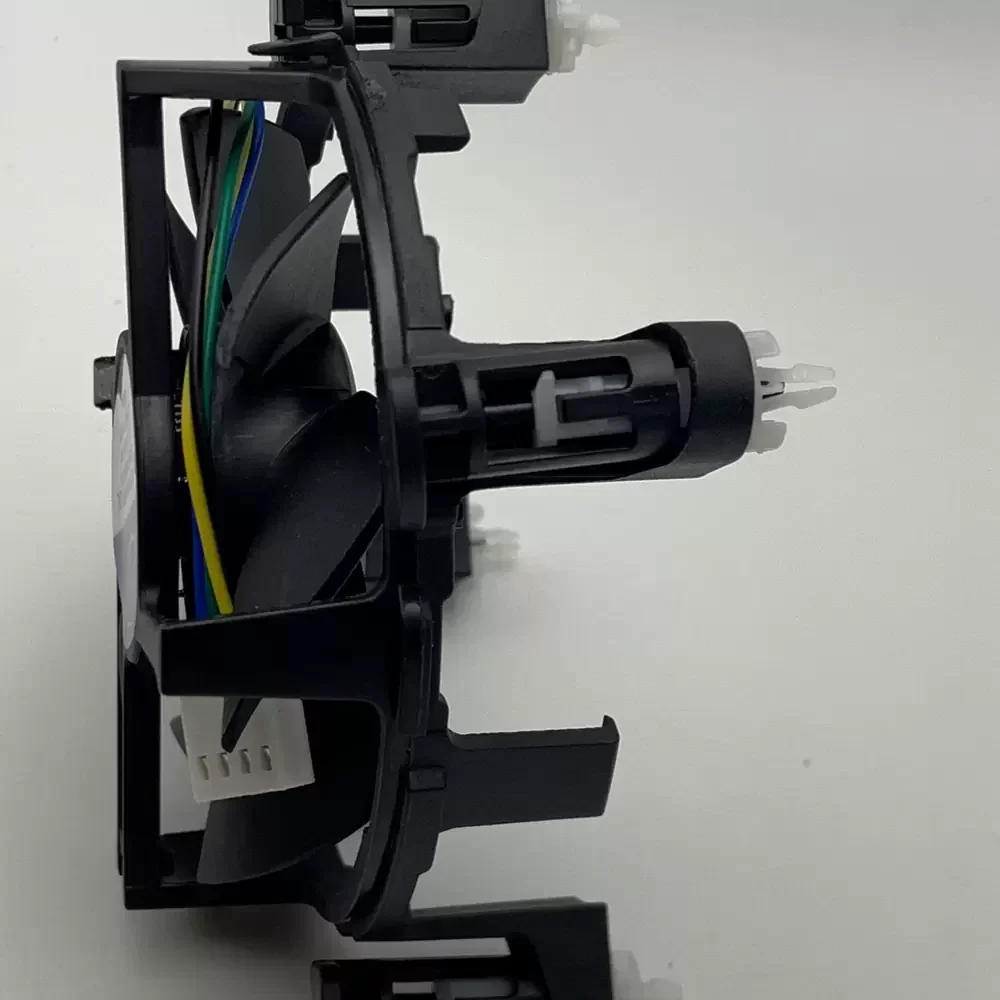

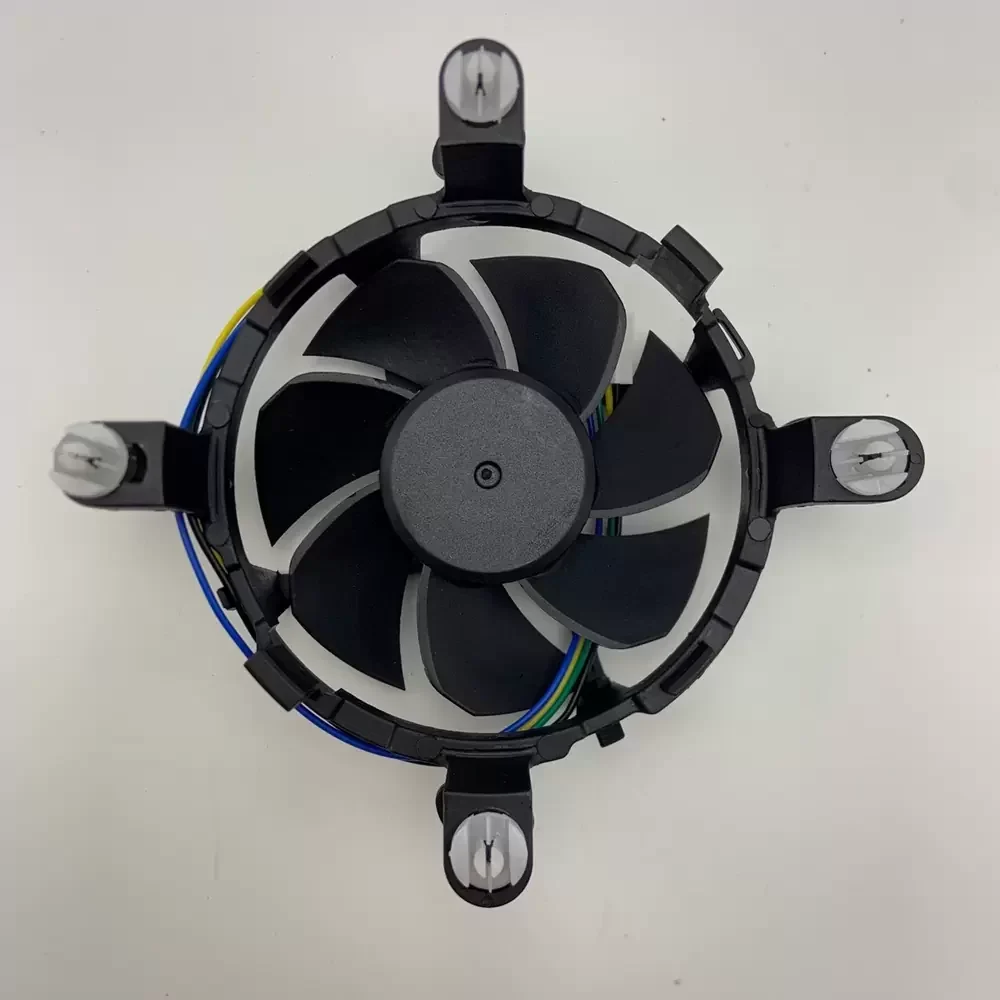

The Intel E97378-001 is a specialized CPU thermal management solution designed specifically for the LGA775 socket architecture. Engineered with a robust 12VDC motor, this active cooling assembly integrates a high-efficiency aluminum heatsink with a PWM-controlled fan to optimize thermal impedance under varying processing loads. The unit features a 4-pin connector allowing for precise RPM modulation via the motherboard’s BIOS, ensuring a balance between acoustic performance and heat dissipation. Its structural rigidity and radial fin design maximize airflow distribution across the processor surface, maintaining operational stability for compatible Intel Core 2 Duo and Quad series processors.
Model Number: E97378-001
Brand: Intel
Product Type: CPU Cooler Assembly
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.60 A
Power: 7.20 W
Socket Compatibility: LGA 775 (Socket T)
Heatsink Material: Aluminum Extrusion
Fan Diameter: 90mm (Approximate)
Bearing Type: Hydraulic Bearing
Speed Control: 4-Pin PWM
Connector Type: 4-Pin Motherboard Header
Mounting Mechanism: Push-Pin Clips
Airflow Direction: Down-Flow (Blow-Down)
Wire Count: 4 Wires
Compatible Processors: Intel Core 2 Duo, Core 2 Quad, Pentium Dual-Core
Operating Temperature: -10°C to +70°C
Life Expectancy: 40,000 Hours at 40°C
Cooling Method: Active Air Cooling
This thermal solution is primarily utilized in the maintenance and assembly of desktop workstations and industrial computing units requiring LGA775 socket support. The E97378-001 is essential for legacy system restoration, ensuring reliable cooling for Intel Core 2 Duo and Quad processors in office environments, point-of-sale terminals, and older server racks. Technicians frequently deploy the E97378-001 to replace failing stock coolers in mission-critical hardware where specific form factor and push-pin mounting compliance are mandatory for system uptime.
