Description

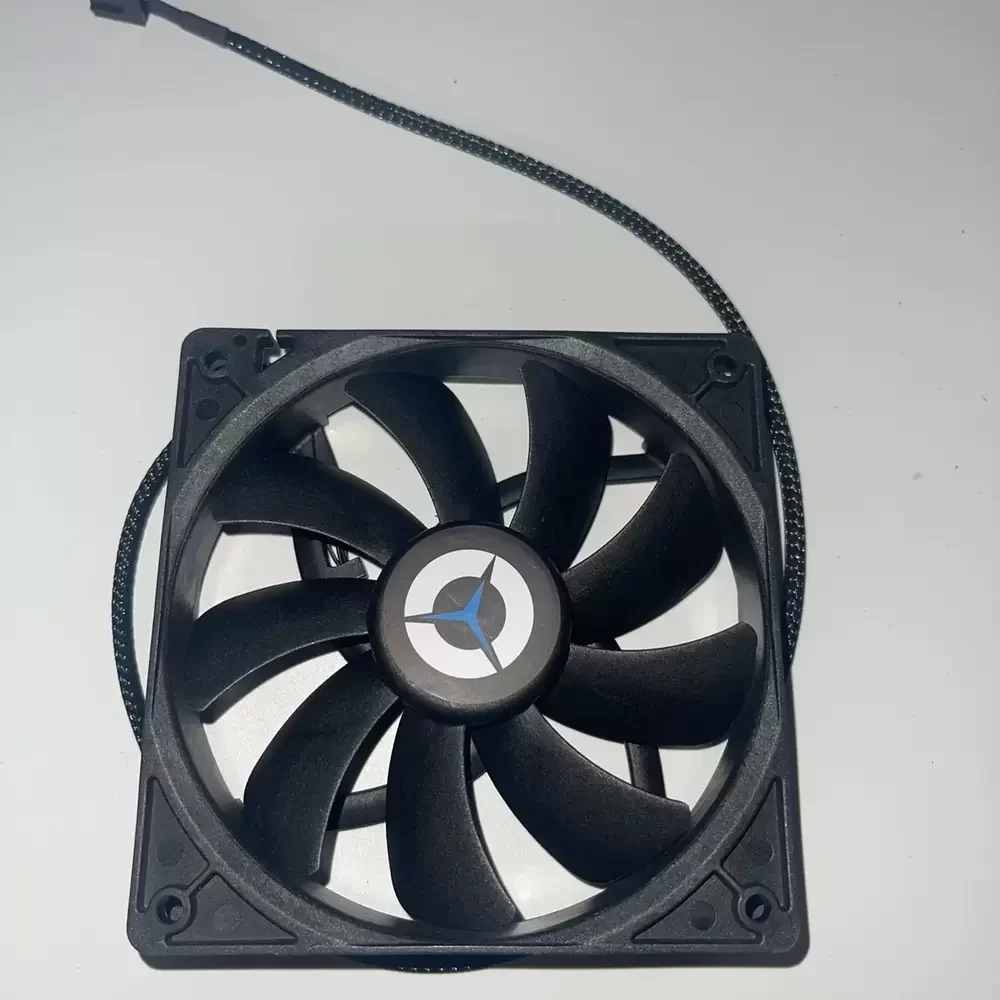

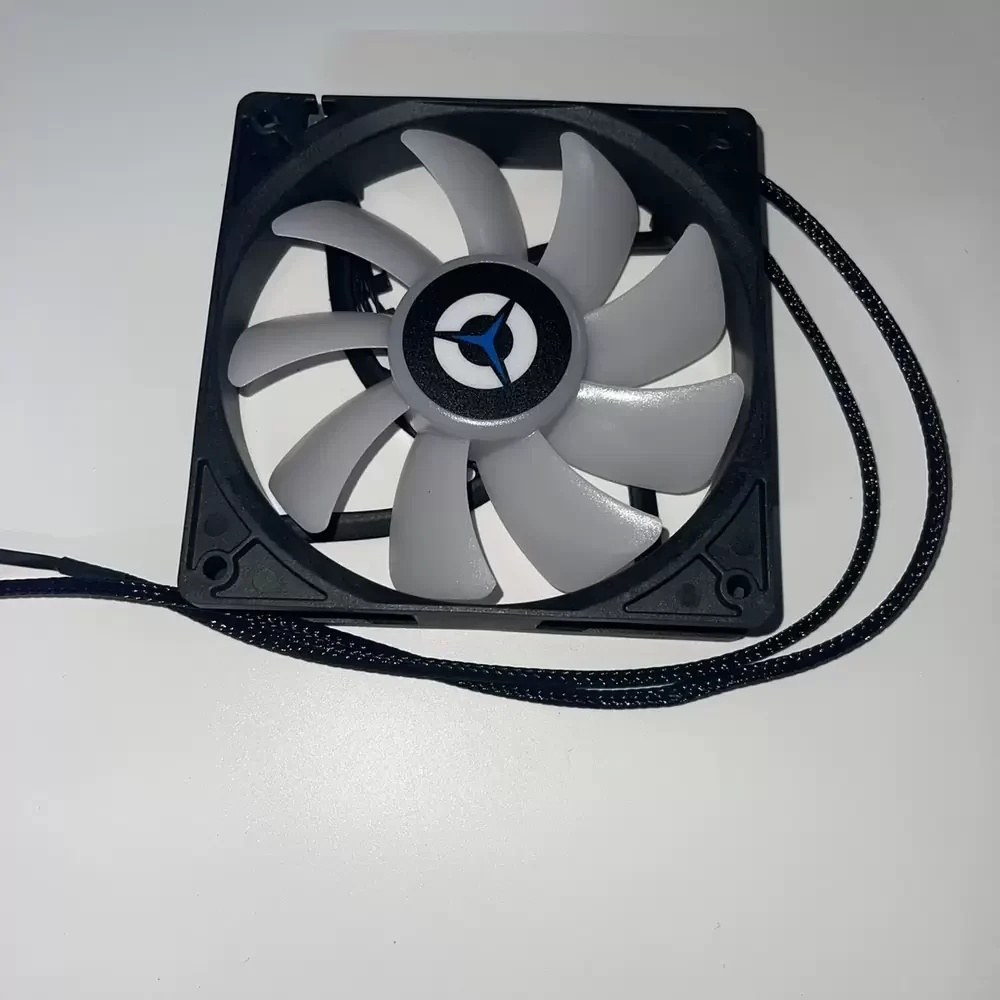

The AVC DAZG1225R2H-P049 is a high-performance Axial Fan engineered for critical thermal regulation in dense computing architectures. Featuring a robust Hydraulic Bearing system, this unit ensures prolonged operational stability while mitigating frictional wear and acoustic noise. The 12VDC motor is driven by a 4-wire PWM interface, enabling precise speed modulation to match dynamic thermal impedance loads. Its 9-blade impeller design is aerodynamically optimized to generate significant static pressure, making it ideal for restrictive intake or exhaust applications. With a high current rating of 0.8A, this component delivers substantial airflow required for high-TDP processors and system components.
Model Number: DAZG1225R2H-P049
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.80 A
Power: 9.60 W
Rated Speed: 3500 RPM (±10%)
Bearing Type: Hydraulic Bearing
Max. Air Flow: 98.5 CFM (167.3 m³/h / 2.79 m³/min)
Max. Static Pressure: 7.2 mmH₂O (70.6 Pa / 0.28 inH₂O)
Dimensions: 120 x 120 x 25 mm
Weight: 165 g
Life Expectancy: 40,000 Hours at 40°C
Speed Control: 4-Wire PWM (Pulse Width Modulation)
Termination: 4-Pin Motherboard Header
Blade Count: 9 Blades
Housing Material: PBT Synthetic Plastic (UL94V-0)
Blade Material: PBT Synthetic Plastic (UL94V-0)
Color: Pure Black
Application: Lenovo Legion Blade 7000K/9000K (2022)
Originally integrated into the Lenovo Legion Blade 7000K and 9000K (2022) series, the DAZG1225R2H-P049 is a preferred choice for enthusiasts and system integrators requiring aggressive cooling performance. Its high-static pressure capabilities make the DAZG1225R2H-P049 suitable for radiator cooling, high-end gaming rigs, and industrial workstations where maintaining low component temperatures is paramount.
