MGT9224YB-W38E Protechnic 24VDC 1.50A 92x92x38mm IP68 Fan

Description

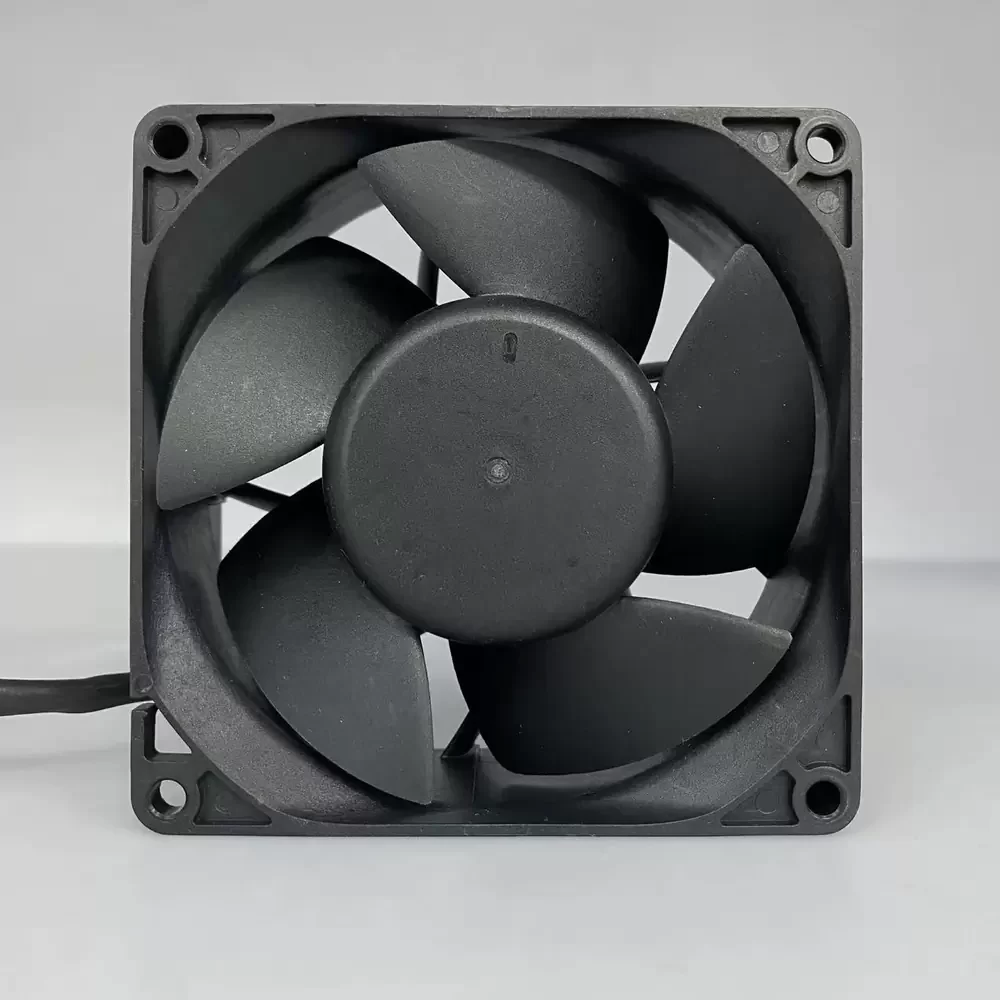

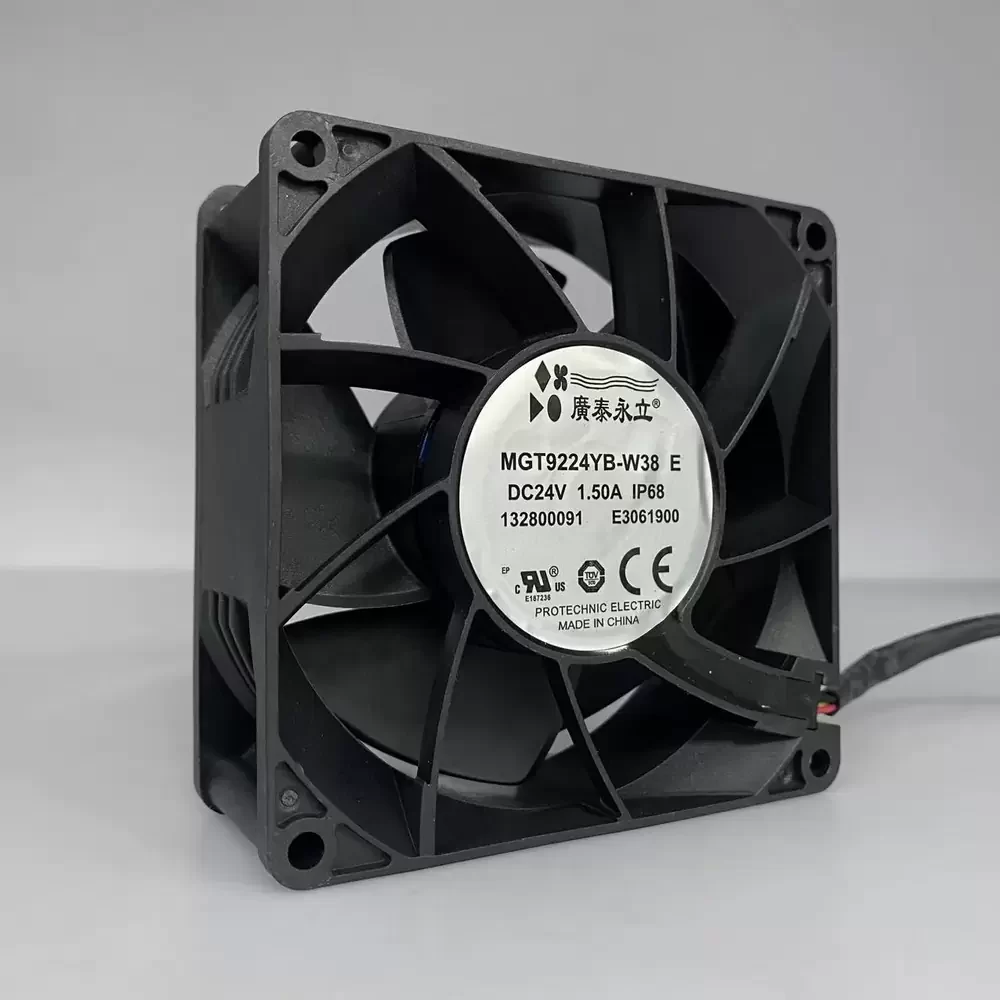

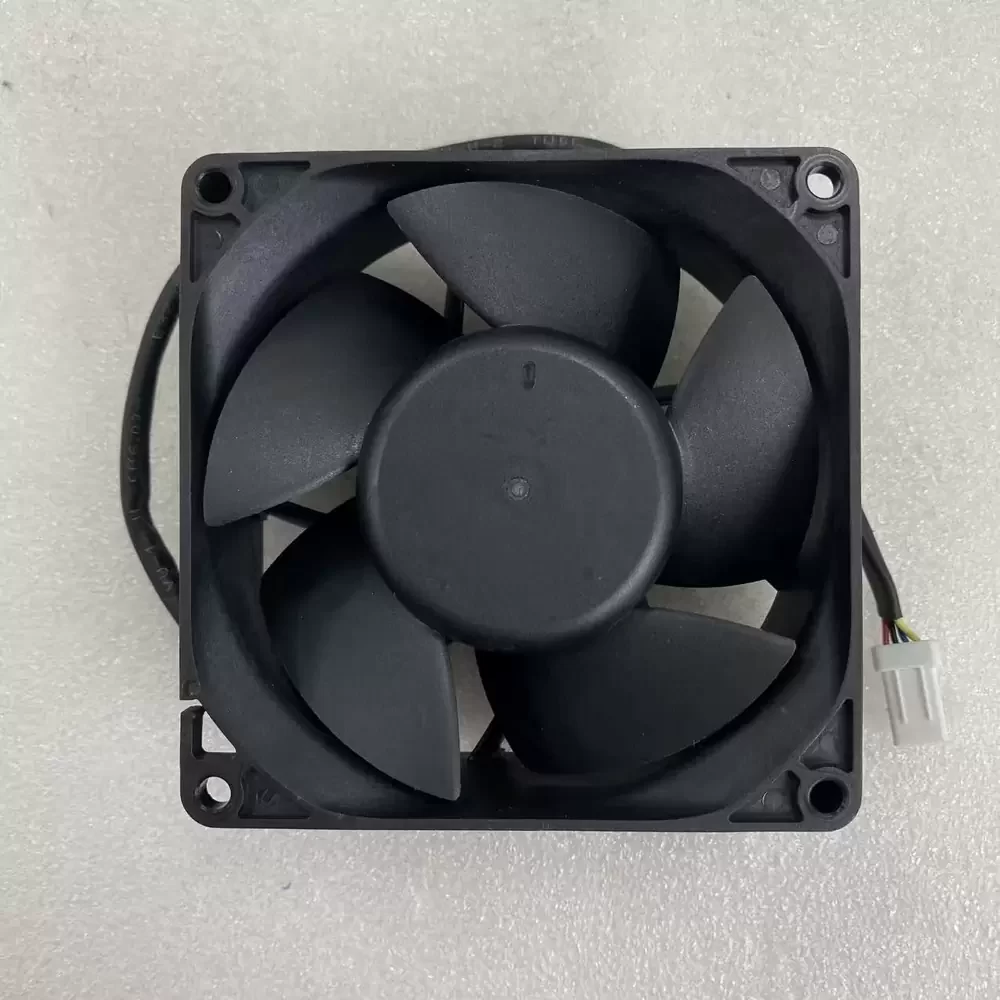

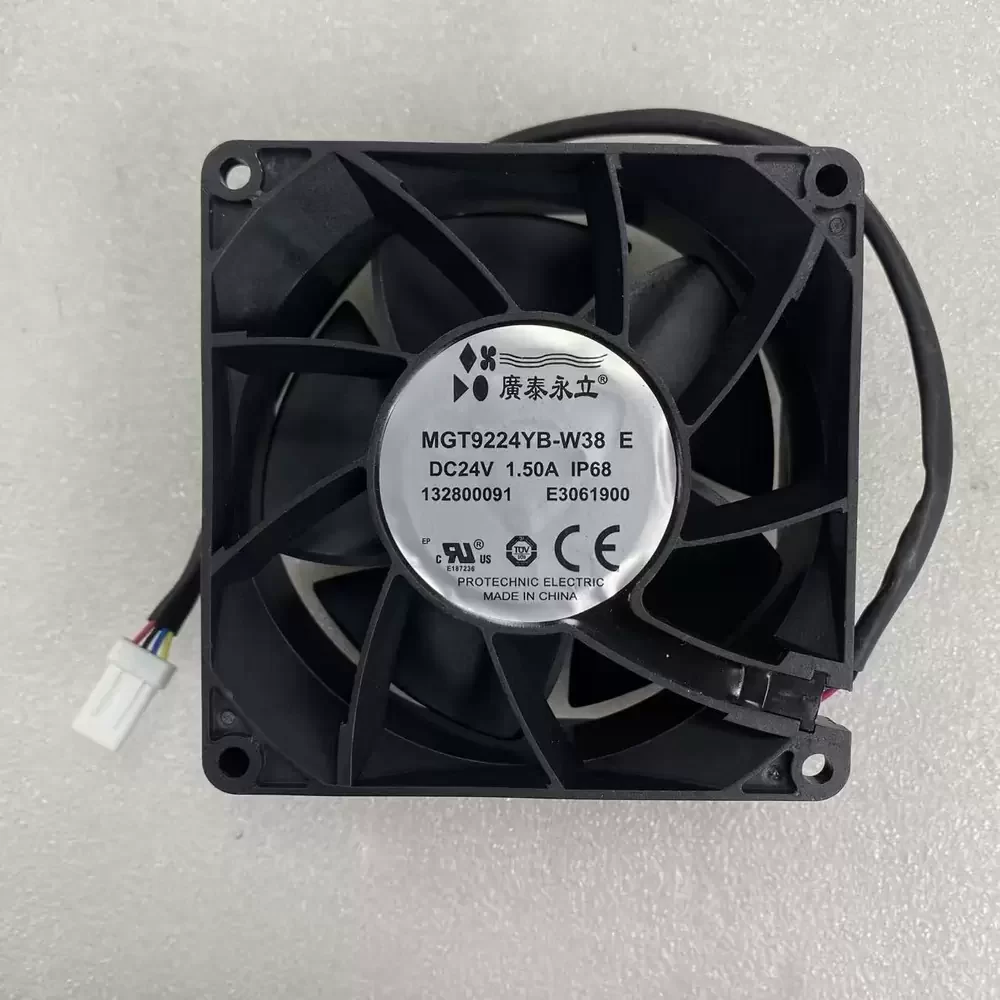

Protechnic MGT9224YB-W38E is a 92 x 92 x 38 mm high-performance axial fan operating at 24 VDC with a 1.50 A rated current. It features a robust dual ball bearing system and a five-blade PBT plastic impeller (UL 94V-0 rated). The unit is fully encapsulated to achieve an IP 68 ingress protection rating, ensuring total resistance to water submersion and dust. Electrical connection is provided via a 4-wire lead assembly supporting PWM speed control and tachometer feedback. The internal motor architecture is optimized for high-speed operation and extreme static pressure output.

MGT9224YB-W38E Specifications
Model: MGT9224YB-W38E
Brand: Protechnic Electric
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 1.50 A
Rated Power: 36.0 W
Bearing Type: Dual Ball Bearing
Ingress Protection: IP 68
Blade Count: 5 Blades
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Termination: 4-Wire Lead (PWM/Tachometer)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Safety Approvals: UL, TUV, CE

MGT9224YB-W38E Applications
Primary applications include integration into outdoor telecommunications enclosures, solar inverters, and industrial frequency converters requiring high-density thermal management. Deployed within marine electronics, heavy-duty CNC machine control cabinets, and automated car wash control systems where exposure to moisture and particulate matter is constant.
