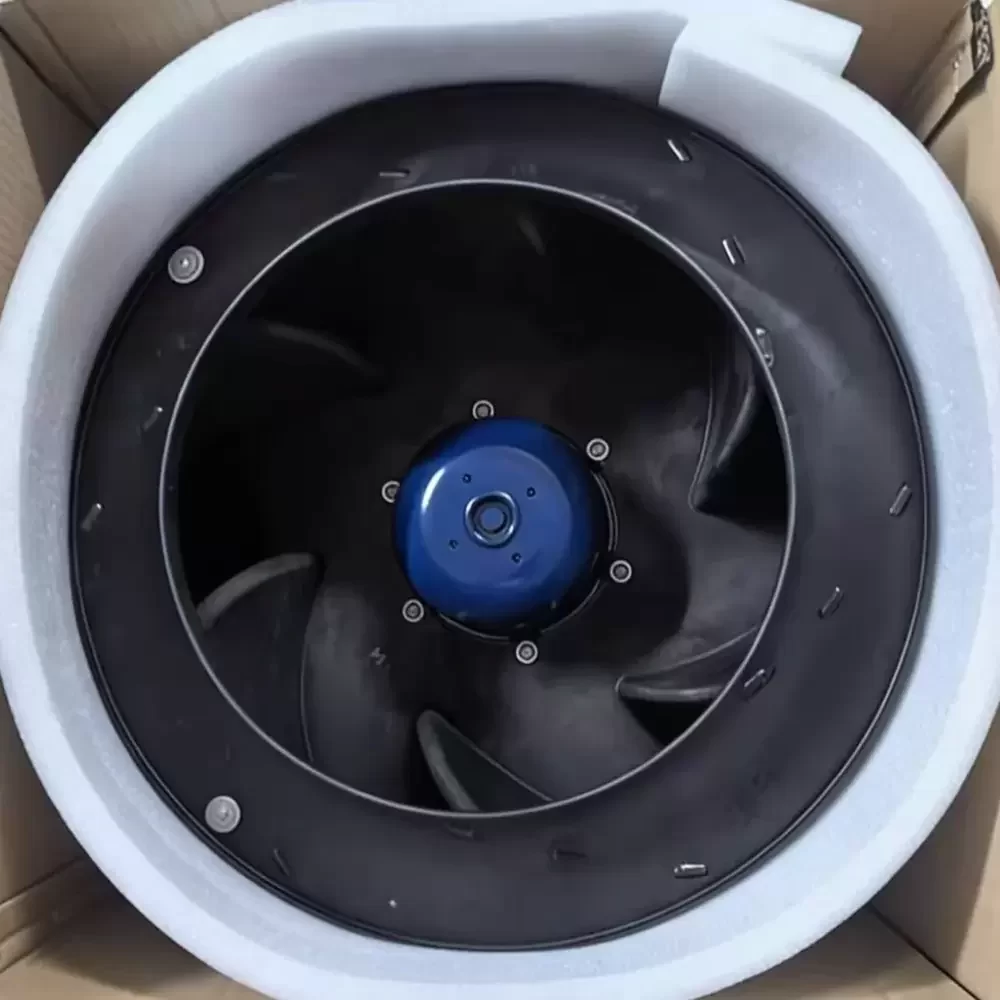

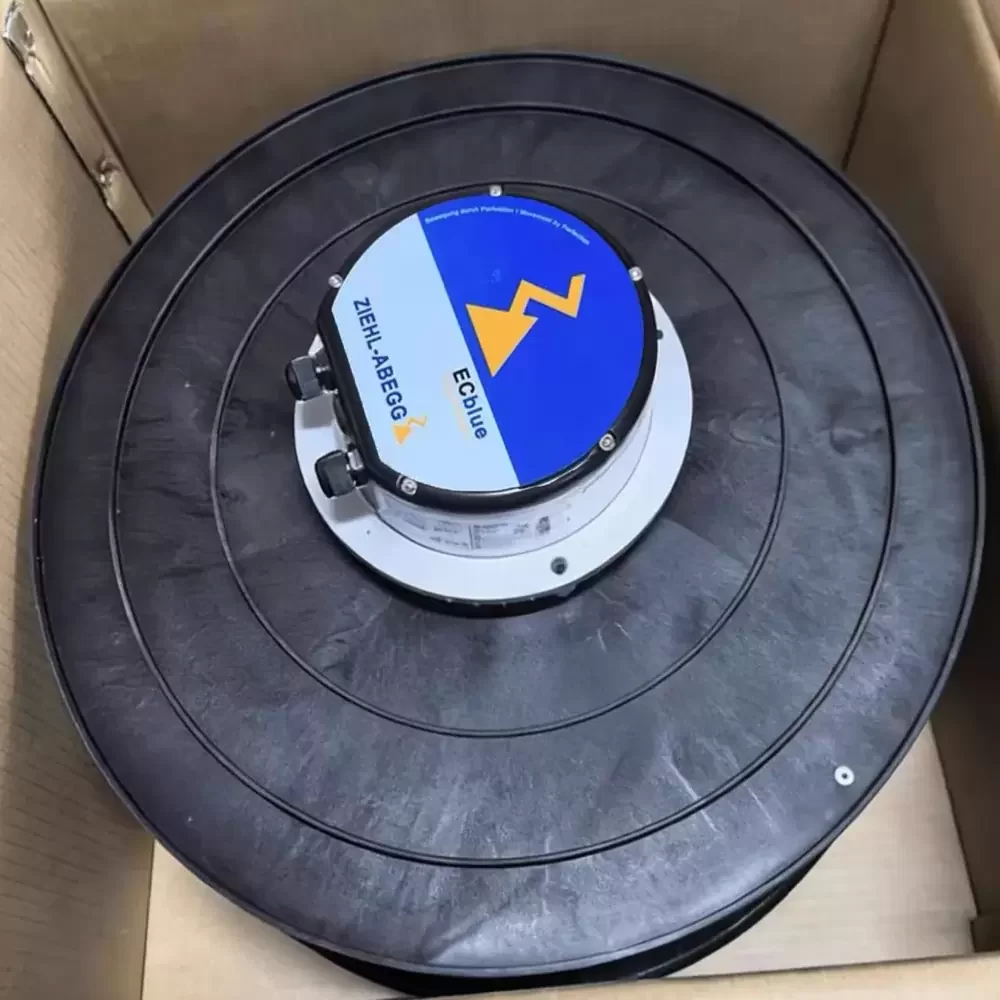

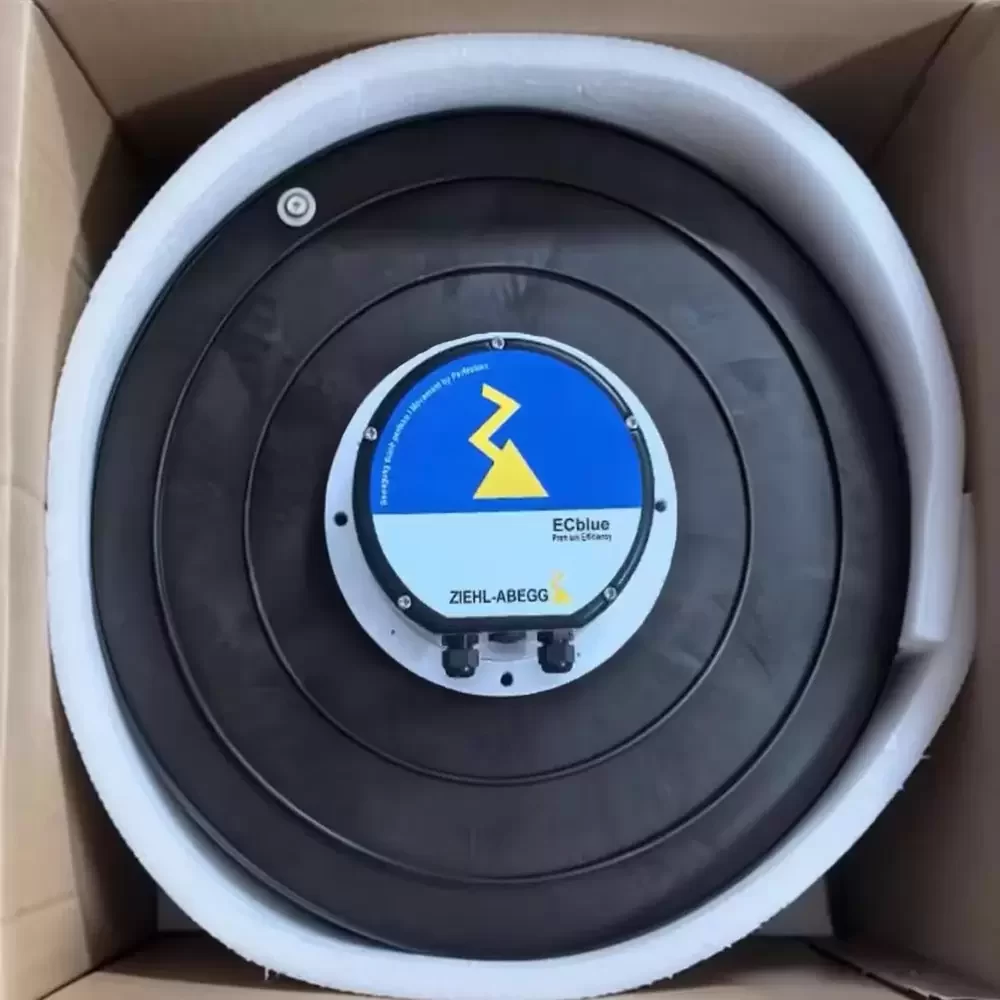

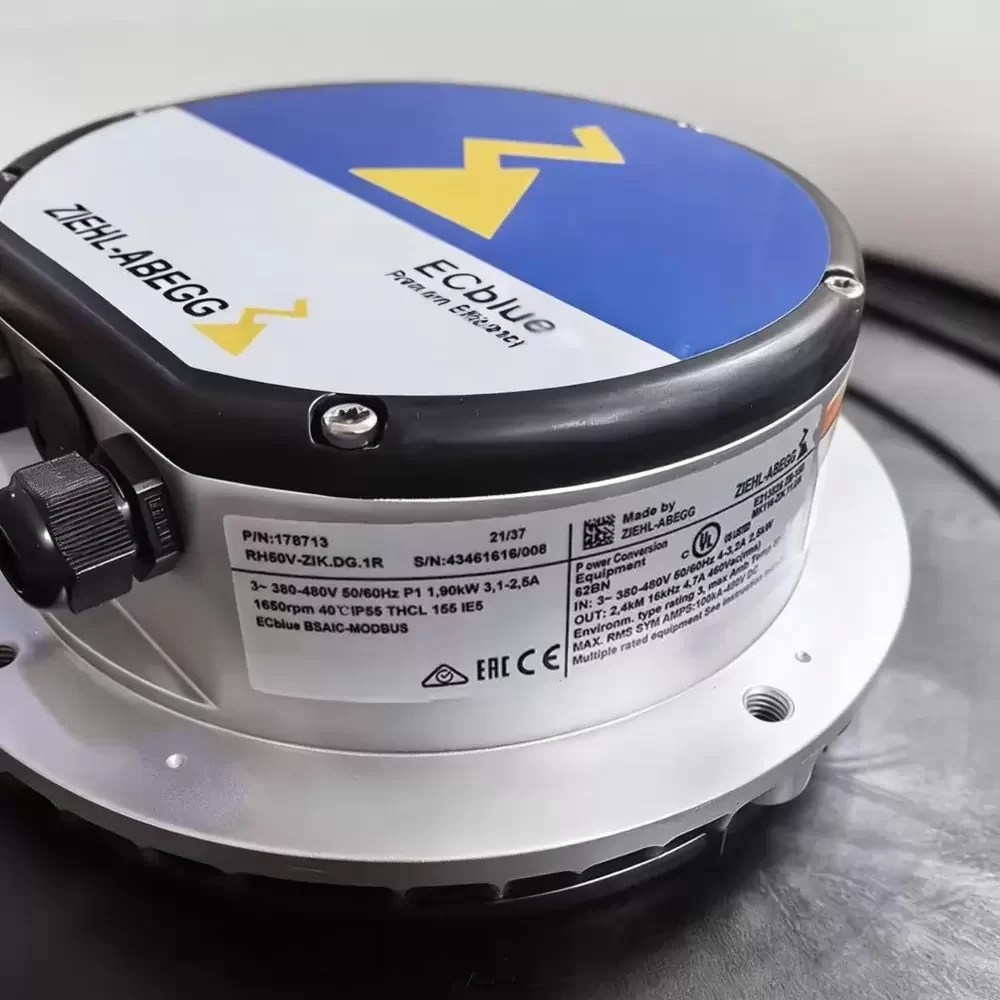

RH50V-ZIK.DG.1R Ziehl-Abegg 1.90kW 380-480V 500mm Centrifugal Fan

Description

Ziehl-Abegg RH50V-ZIK.DG.1R is a 500 mm diameter centrifugal fan featuring a 1.90 kW ECblue motor, 380-480 V three-phase input, and 8010 m³/h airflow capacity. The unit utilizes a high-performance composite impeller with six backward-curved blades designed for low-noise operation and high efficiency. It incorporates an integrated EC controller for precise speed regulation and is housed in a robust assembly with an IP54 protection rating. The external rotor motor design ensures compact dimensions and optimal cooling of the electronics during continuous operation.

RH50V-ZIK.DG.1R Specifications
Model: RH50V-ZIK.DG.1R
Brand: Ziehl-Abegg
Impeller Diameter: 500 mm
Motor Technology: ECblue (External Rotor)
Input Voltage: 3~ 380-480 V AC
Frequency: 50/60 Hz
Rated Power: 1.90 kW
Rated Current: 3.10 – 2.50 A
Nominal Speed: 1650 min⁻¹
Max Airflow: 8010 m³/h
Number of Blades: 6
Direction of Rotation: Clockwise
Protection Class: IP54
Insulation Class: 155
Impeller Material: High Performance Composite
Operating Temperature: -15 to +40 °C
Control Interface: Integrated EC Controller
Dimensions: 521 x 190 x 303 mm
Weight: 13.00 kg
Certifications: CE, ErP 2015

RH50V-ZIK.DG.1R Applications
Primary applications include integration into precision air conditioning units, data center cooling systems, and high-efficiency air handling units. Deployed within cleanroom ventilation modules and industrial heat recovery systems requiring low-noise, high-volume airflow management.
