Description

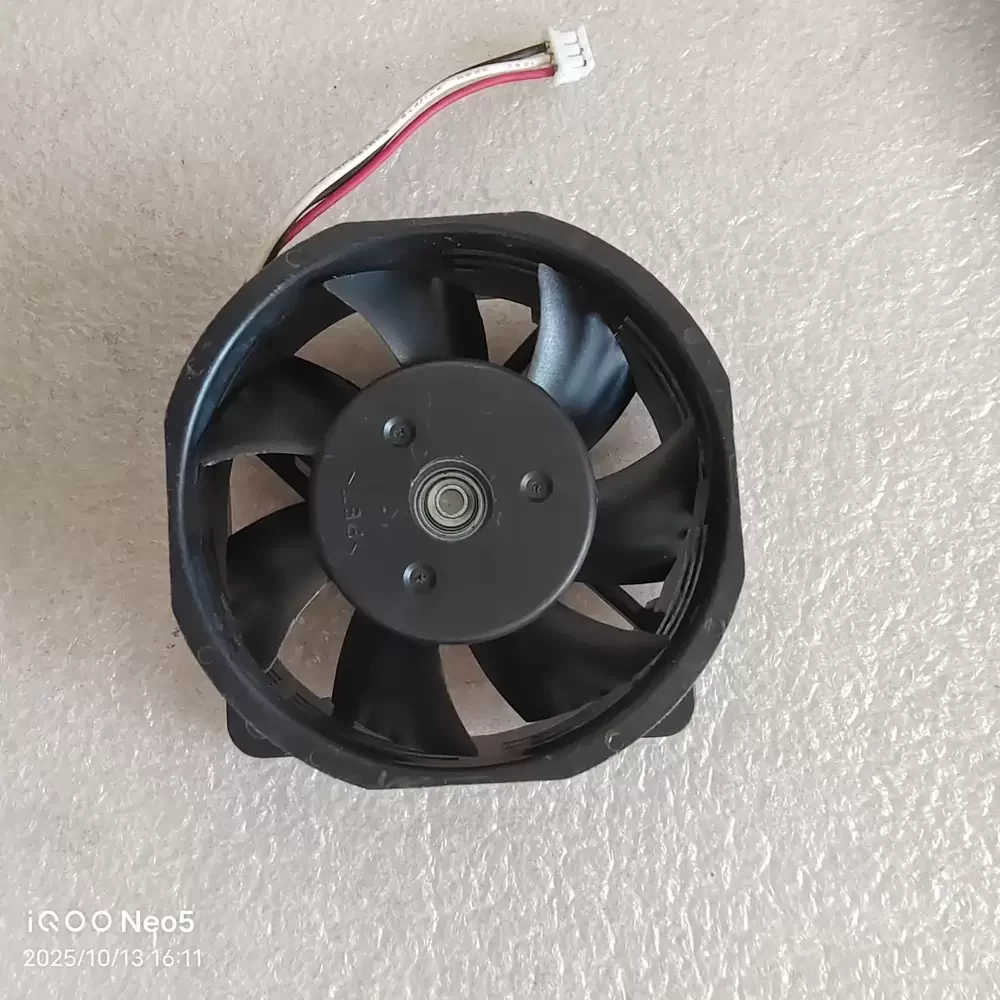

The NMB-MAT 2110RL-04W-B49-X04 is a precision-engineered DC Axial Fan designed to deliver superior thermal management in compact electronic environments. Leveraging MinebeaMitsumi’s advanced dual ball bearing architecture, this unit minimizes frictional losses and ensures exceptional rotational stability over an extended service life. The aerodynamic impeller profile is optimized to balance high static pressure with airflow efficiency, effectively lowering thermal impedance in dense component layouts. Housed in a rigid, UL94V-0 rated reinforced plastic frame, the motor assembly features sophisticated commutation electronics that reduce electromagnetic interference and enhance structural rigidity, making it an ideal solution for systems requiring continuous, reliable cooling performance.
Model Number: 2110RL-04W-B49-X04
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.29 A
Input Power: 3.48 W
Rated Speed: 6100 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 20.1 CFM (34.1 m³/h / 0.57 m³/min)
Max. Static Pressure: 6.5 mmH₂O (63.7 Pa / 0.25 inH₂O)
Dimensions: 50 x 50 x 25 mm
Weight: 40 g
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 38.0 dBA
Speed Control: Tachometer Output (3-Wire)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ohm min. at 500VDC
Dielectric Strength: 700VAC for 1 second
Protection: Locked Rotor Protection, Polarity Protection
This cooling component is widely deployed in applications demanding high reliability within limited spatial envelopes, such as multimedia projectors, optical engines, and compact industrial power supplies. The 2110RL-04W-B49-X04 provides the necessary static pressure to force air through dense heatsinks found in server chassis and telecommunications equipment. Furthermore, the 2110RL-04W-B49-X04 is suitable for medical instrumentation and automation control units where consistent thermal regulation is paramount for preventing system failure and ensuring operational continuity.
