Description

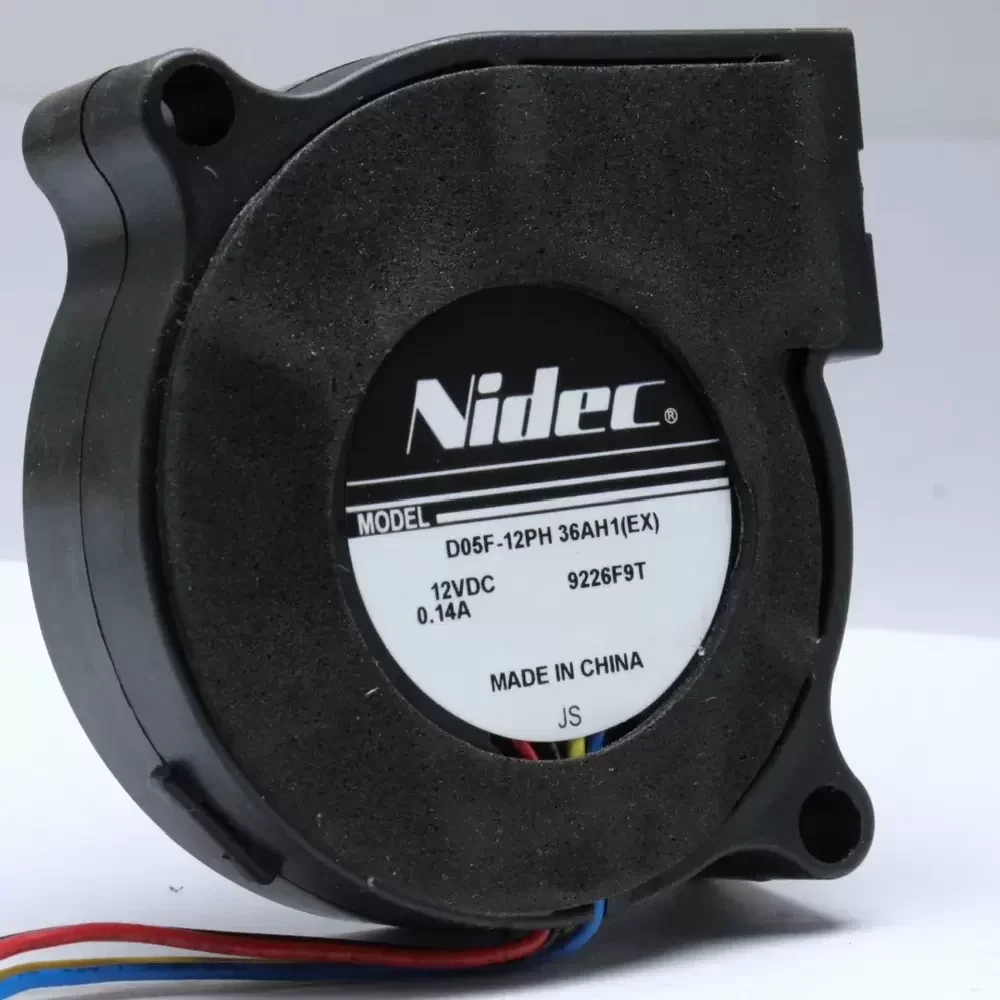

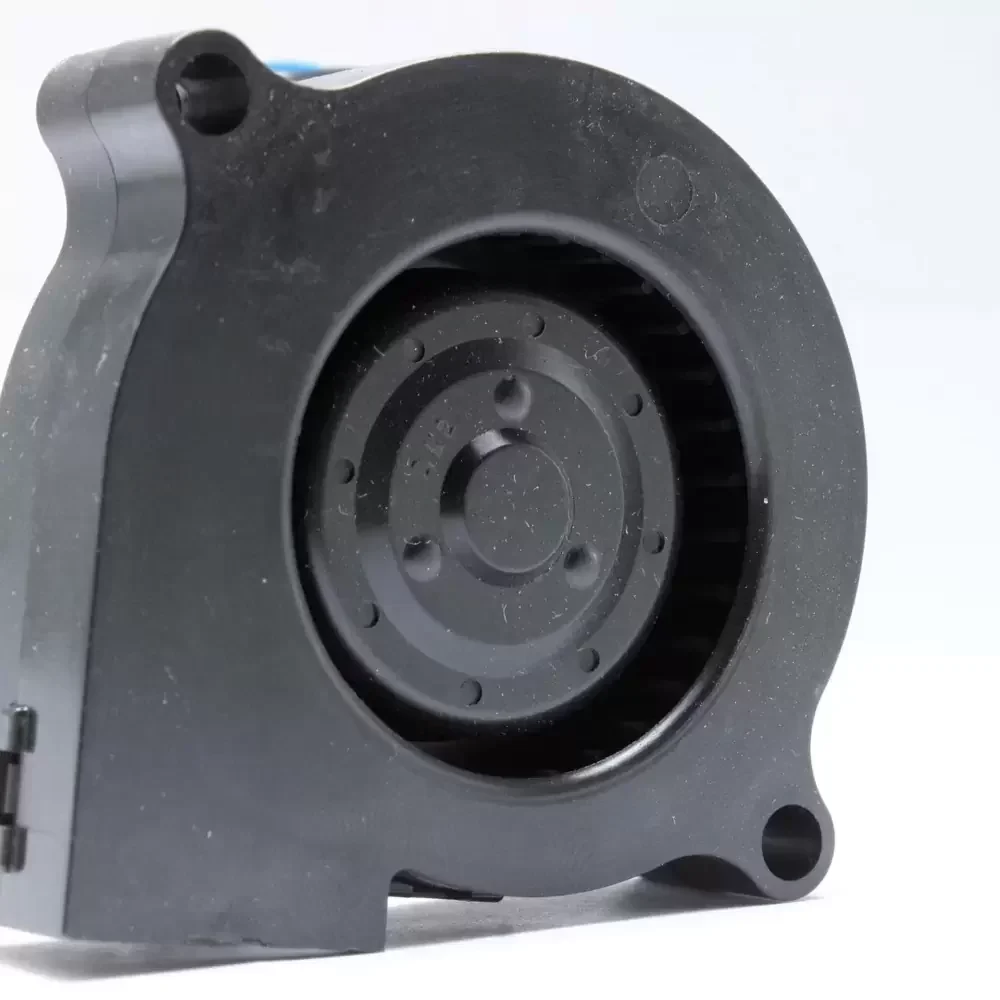

The Nidec D05F-12PH 36AH1(EX) is a precision-engineered DC centrifugal blower designed for high-density thermal management applications. Utilizing advanced aerodynamic turbine blade geometry, this unit optimizes static pressure delivery while maintaining a compact footprint, essential for overcoming high thermal impedance in restricted enclosures. The motor assembly features a robust brushless DC architecture paired with a durable bearing system, ensuring long-term operational stability and structural rigidity under continuous load. Engineered for efficiency, the D05F-12PH 36AH1(EX) minimizes electromagnetic interference and vibration, making it a critical component for sensitive industrial and electronic cooling circuits requiring reliable forced convection.
Model Number: D05F-12PH 36AH1(EX)
Brand: Nidec
Product Type: Centrifugal Blower Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.14 A
Power Consumption: 1.68 W
Rated Speed: 5200 RPM
Bearing Type: Maintenance-Free Nidec Bearing System
Max. Air Flow: 4.2 CFM (7.13 m³/h / 0.11 m³/min)
Max. Static Pressure: 11.2 mmH₂O (109.8 Pa / 0.44 inH₂O)
Dimensions: 50x50x20mm
Weight: 28 g
Life Expectancy: 40,000 Hours at 40°C
Noise Level: 31.0 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 4-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Safety Certifications: UL, cUL, TUV, CE
This centrifugal blower is specifically calibrated for applications demanding concentrated airflow in confined spaces. The D05F-12PH 36AH1(EX) is frequently integrated into compact projection equipment, portable medical instrumentation, and server rack spot cooling solutions where axial fans lack the necessary static pressure. Additionally, the D05F-12PH 36AH1(EX) serves as a vital thermal component in industrial automation controllers and 3D printing cooling ducts, ensuring critical components remain within safe operating temperature ranges.
