Description

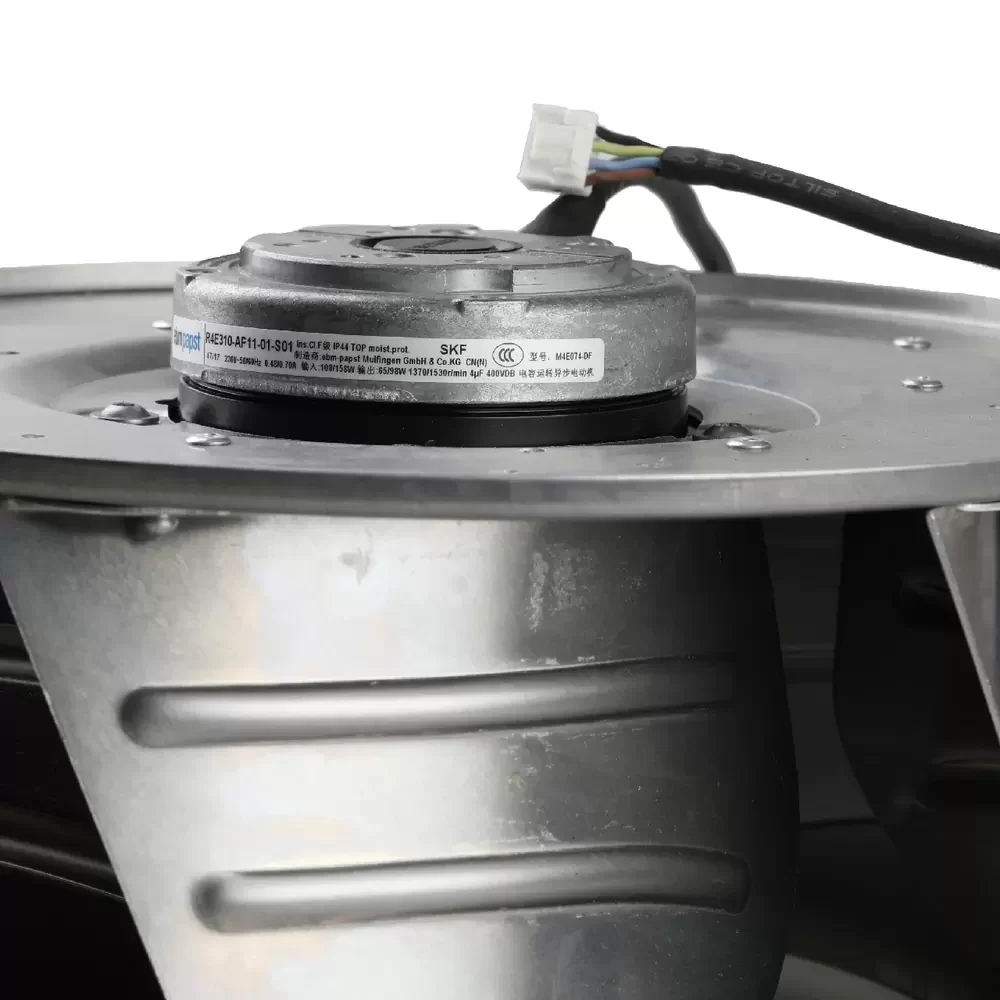

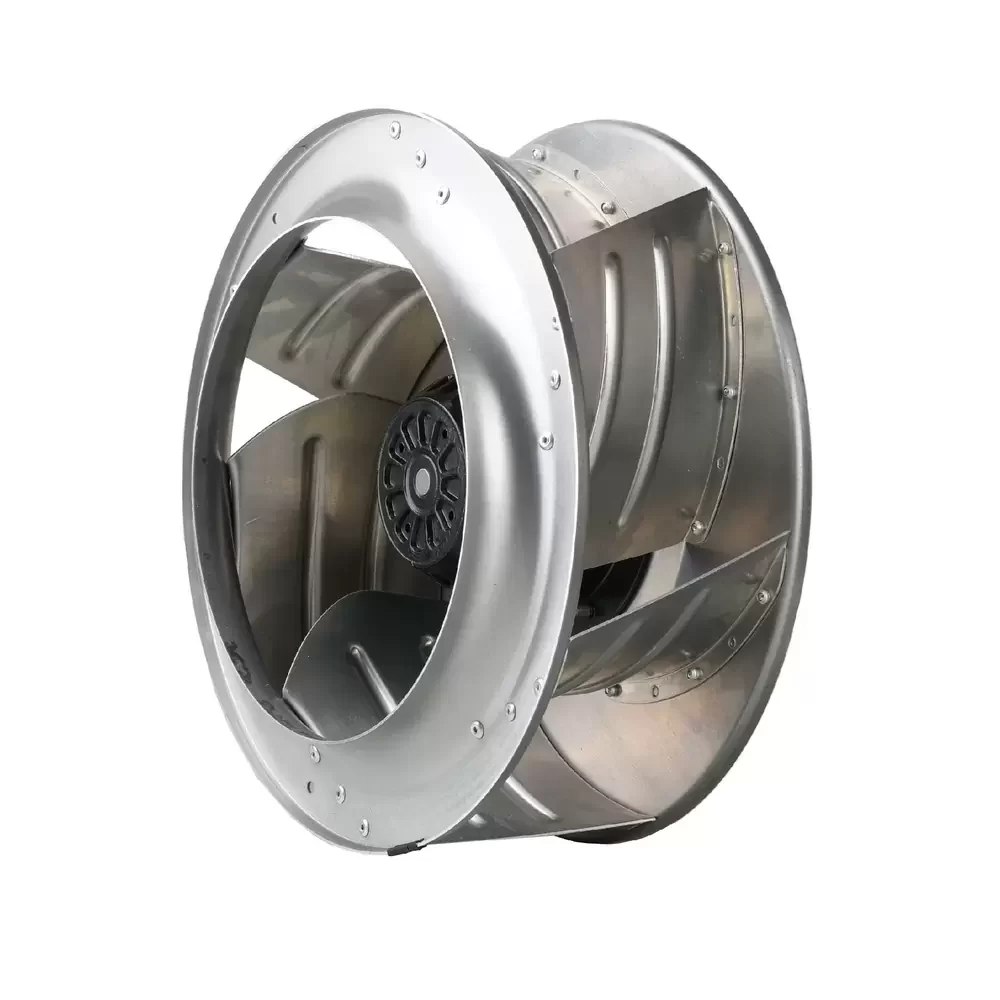

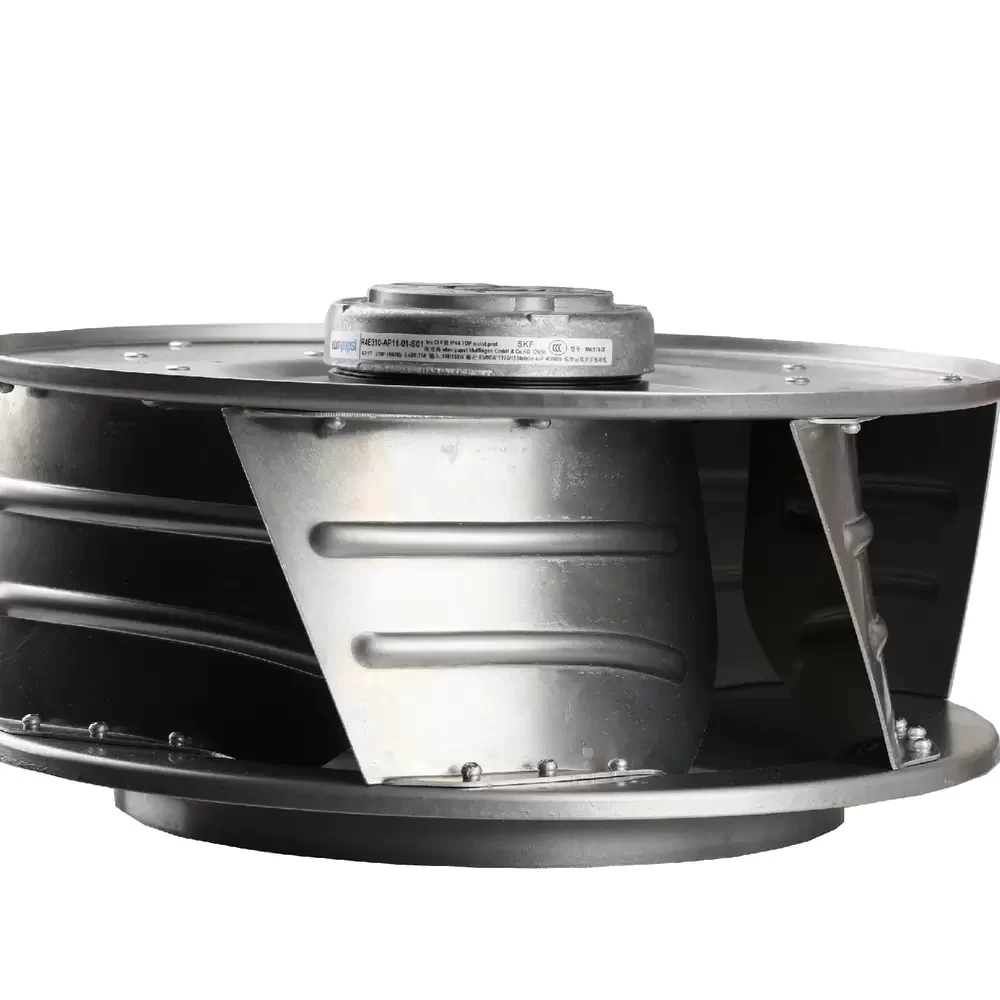

The ebm-papst R4E310-AF11-01-S01 is a high-efficiency backward-curved motorized impeller designed for critical ventilation applications. Featuring an advanced AC external rotor motor, this unit integrates the impeller directly onto the rotor, ensuring superior structural rigidity and reduced thermal impedance during continuous operation. The aerodynamic design of the blades minimizes turbulence and noise generation while maximizing static pressure capabilities. Built with precision ball bearings and robust insulation, the fan delivers reliable performance in demanding industrial environments, maintaining optimal airflow stability under varying load conditions.
Model Number: R4E310-AF11-01-S01
Brand: ebm-papst
Product Type: Backward Curved Centrifugal Fan / Motorized Impeller
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Voltage Range: 200 – 240 VAC
Rated Current: 0.40 A
Power Input: 88 W
Rated Speed: 1390 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 1029 CFM (1750 m³/h / 29.16 m³/min)
Max. Static Pressure: 36.71 mmH₂O (360 Pa / 1.45 inH₂O)
Dimensions: 310 mm (Diameter)
Weight: 2.6 kg
Life Expectancy: 40000 hrs @ 40°C
Motor Technology: AC External Rotor (M4E068-EC)
Impeller Material: PA Plastic (Glass-fiber reinforced) / Sheet Steel
Ingress Protection: IP44
Insulation Class: F
Capacitor: 3 µF / 400 VDB
Motor Protection: Thermal Overload Protector (TOP) wired internally
Operating Temperature: -25 to +60 °C
Mounting Orientation: Any
Certification: CE, CCC, VDE
Termination: Lead Wires
The R4E310-AF11-01-S01 is widely utilized in industrial air purification systems and clean room filtration modules where consistent high-pressure airflow is essential. Its compact form factor allows for seamless integration into roof fans, duct fans, and complex HVAC assemblies. Engineers frequently specify the R4E310-AF11-01-S01 for cooling electronic cabinets, heat exchangers, and dehumidifiers, relying on its robust construction to withstand continuous duty cycles in commercial and industrial settings.
