Description

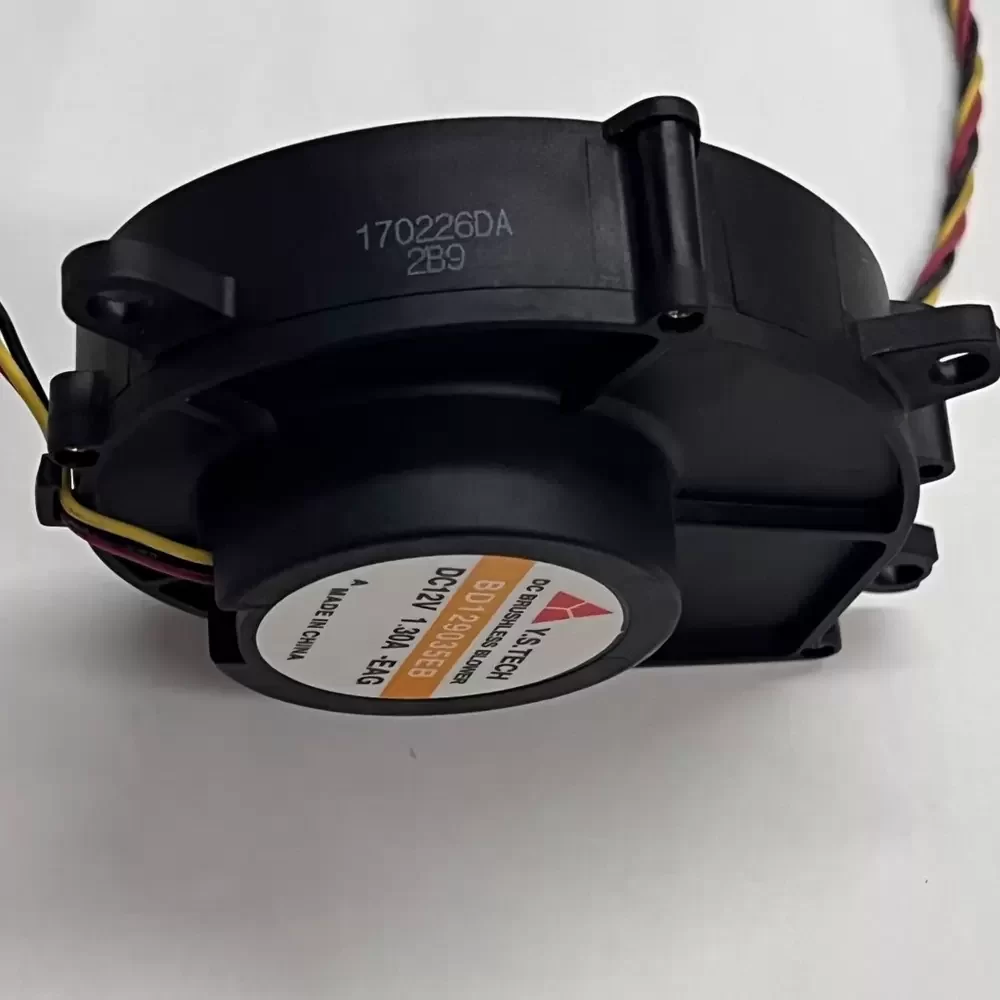

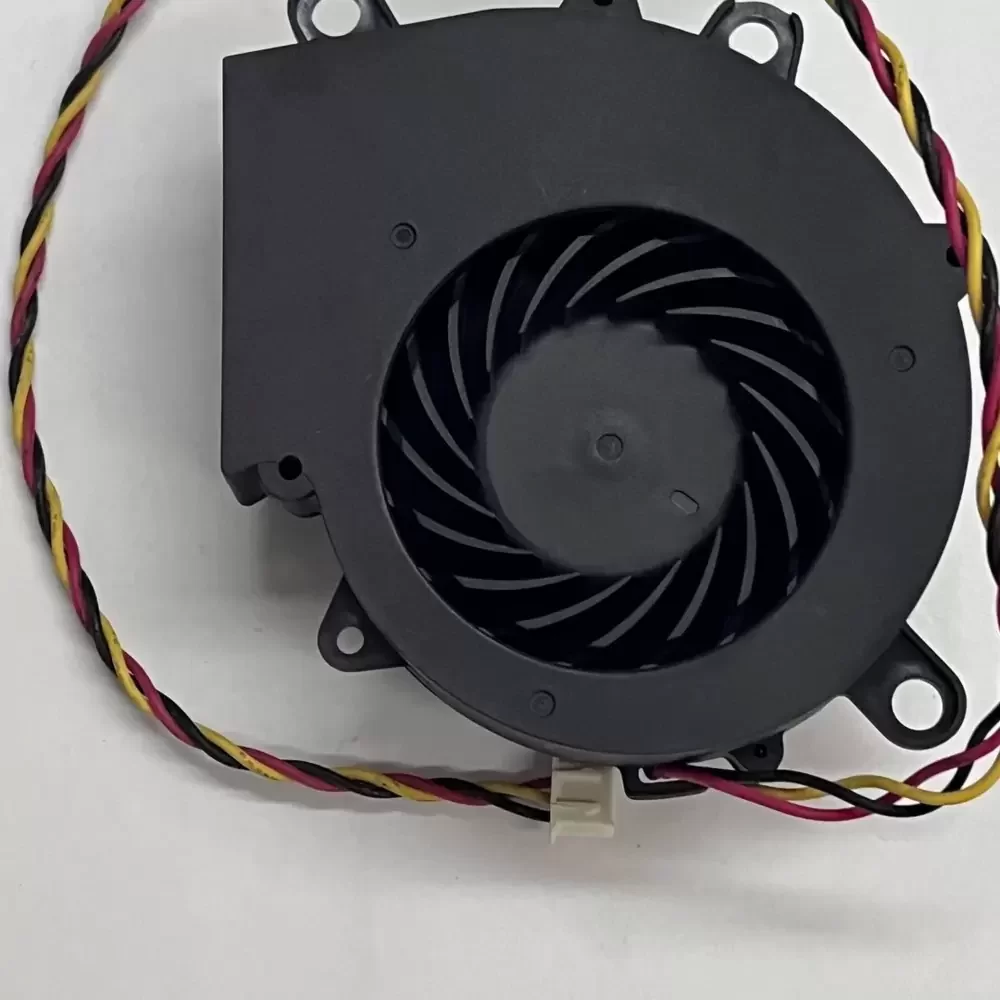

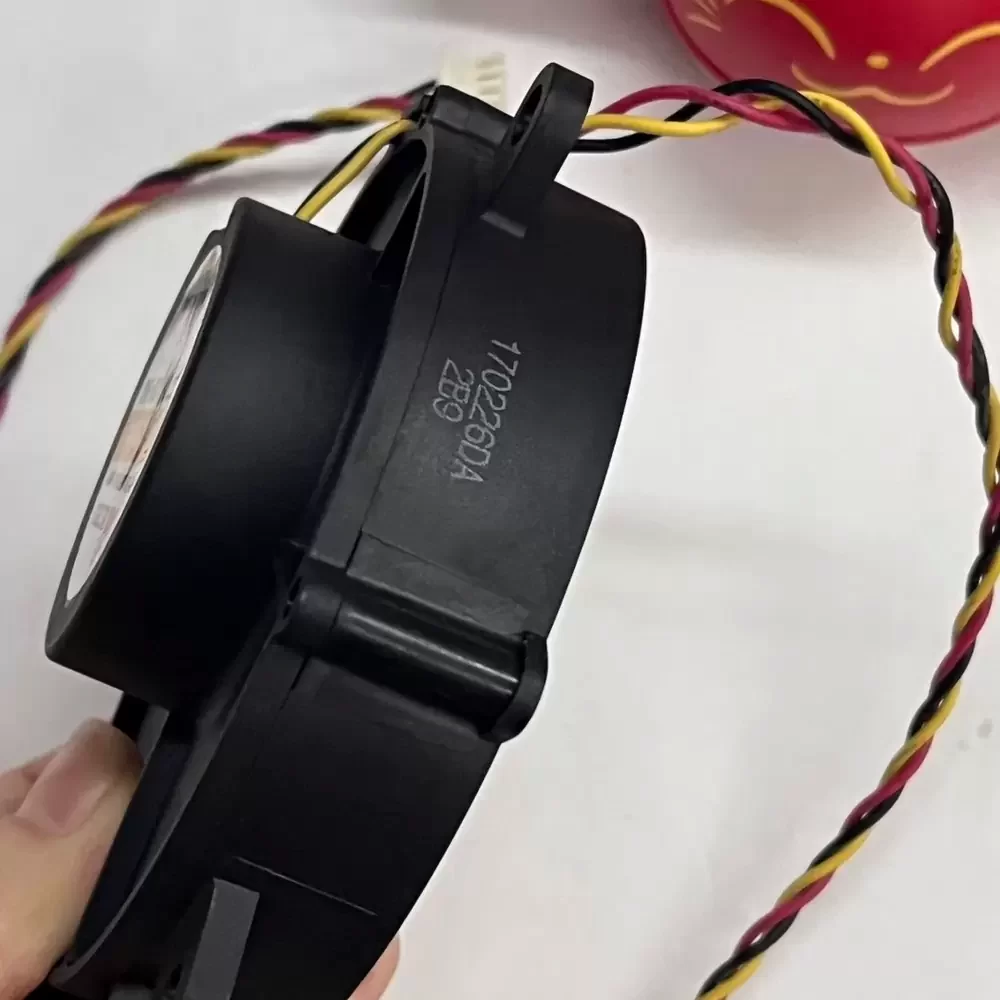

The Y.S.TECH BD129035EB is a high-performance DC Blower engineered for demanding thermal management applications. Utilizing advanced DC motor technology and a robust dual ball bearing architecture, this unit ensures exceptional structural rigidity and long-term reliability. Its aerodynamic impeller design is optimized to minimize thermal impedance by delivering concentrated, high-pressure airflow. The BD129035EB is constructed with UL94V-0 rated materials, providing superior flame retardancy and durability in harsh industrial environments. This blower is specifically designed to overcome high static pressure resistance in compact enclosures, ensuring efficient heat dissipation for critical electronic components.
Model Number: BD129035EB
Brand: Y.S.TECH
Product Type: Blower
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.30A
Power: 15.6W
Rated Speed: 3500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 28.5 CFM (0.807 m³/min / 13.45 L/s)
Max. Static Pressure: 32.0 mmH₂O (313.8 Pa / 1.26 inH₂O)
Dimensions: 97x94x33mm
Weight: 185g
Life Expectancy: 70,000 Hours at 40C
Speed Control: Tachometer (FG)
Noise Level: 54.0 dB(A)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 3 Lead Wires
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +80C
Insulation Class: Class A
Protection Features: Auto Restart, Polarity Protection, Locked Rotor Protection
Certifications: UL, CUL, TUV, CE, RoHS
The BD129035EB is ideally suited for high-density server racks, telecommunications equipment, and industrial power supplies where space is constrained and static pressure is high. In CNC machinery and medical diagnostic devices, the BD129035EB provides critical cooling for internal circuitry and power modules. Its robust design makes it a preferred choice for automotive infotainment systems and projection equipment, where the BD129035EB ensures stable operating temperatures during continuous duty cycles.
