Description

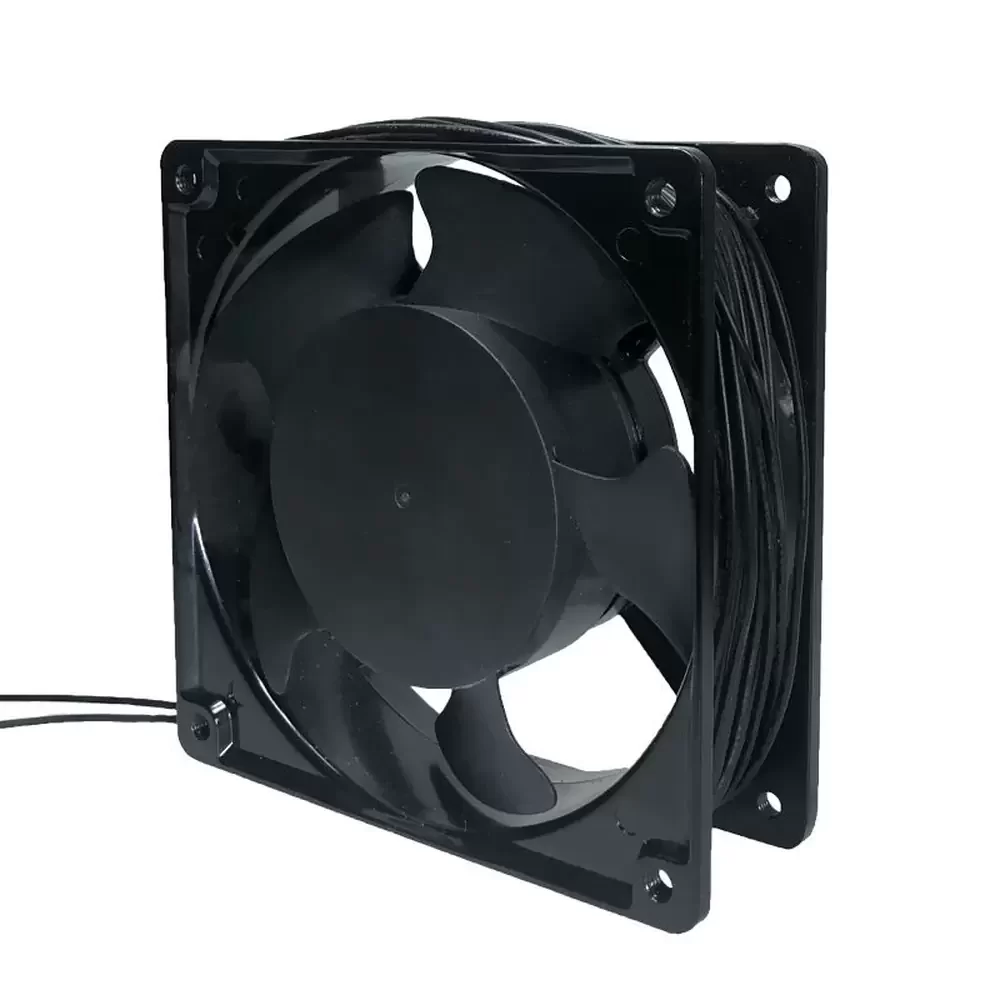

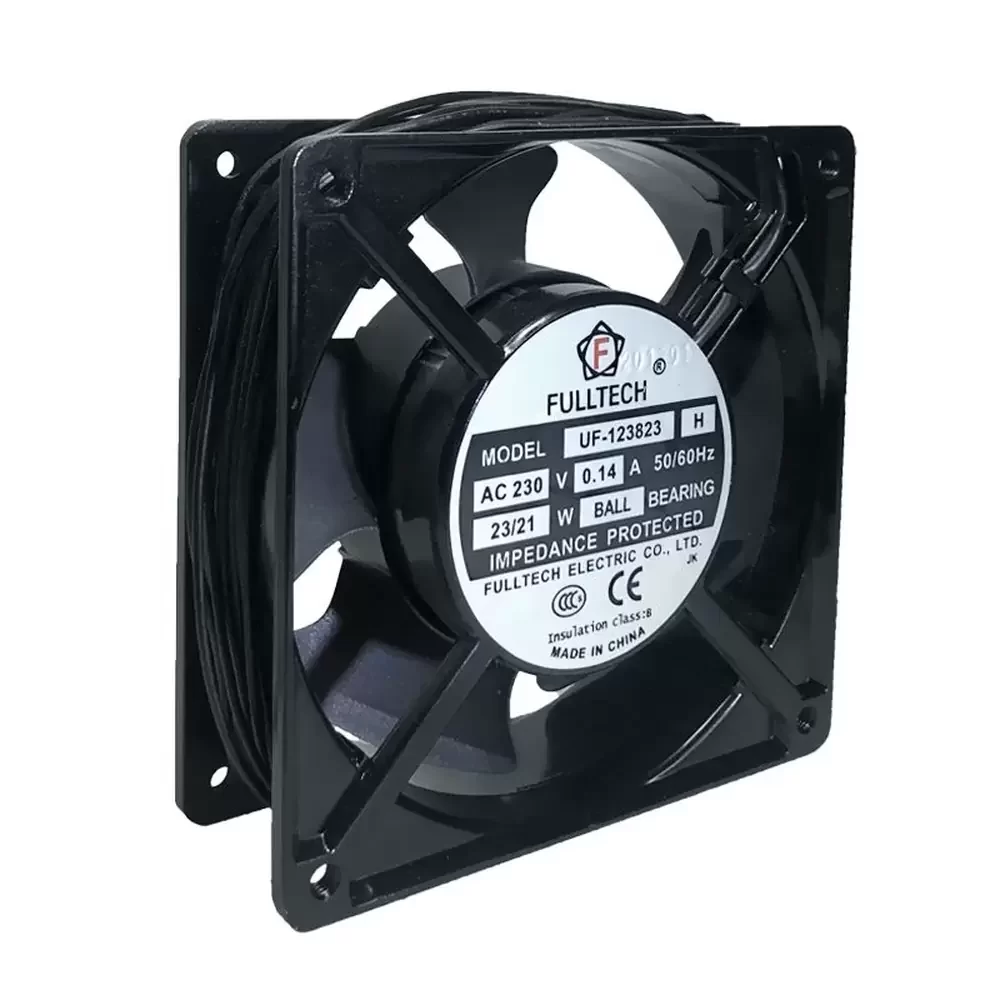

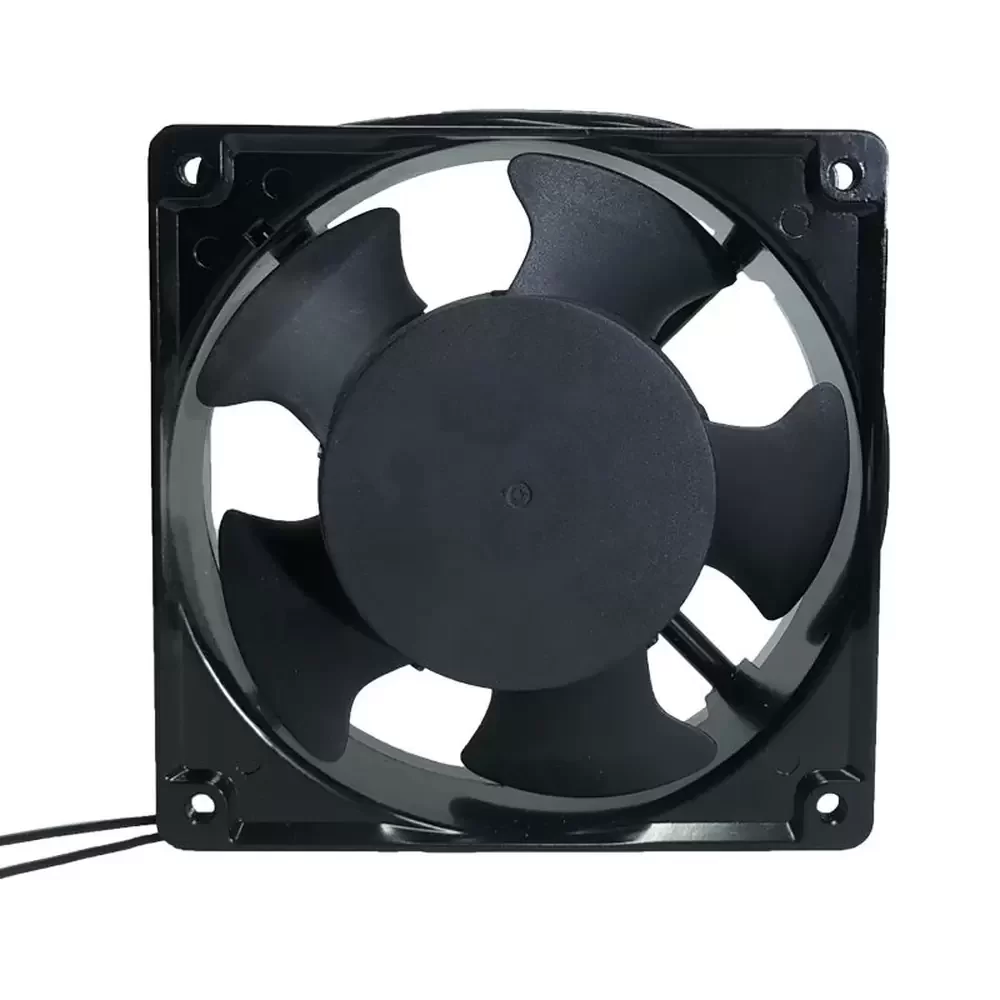

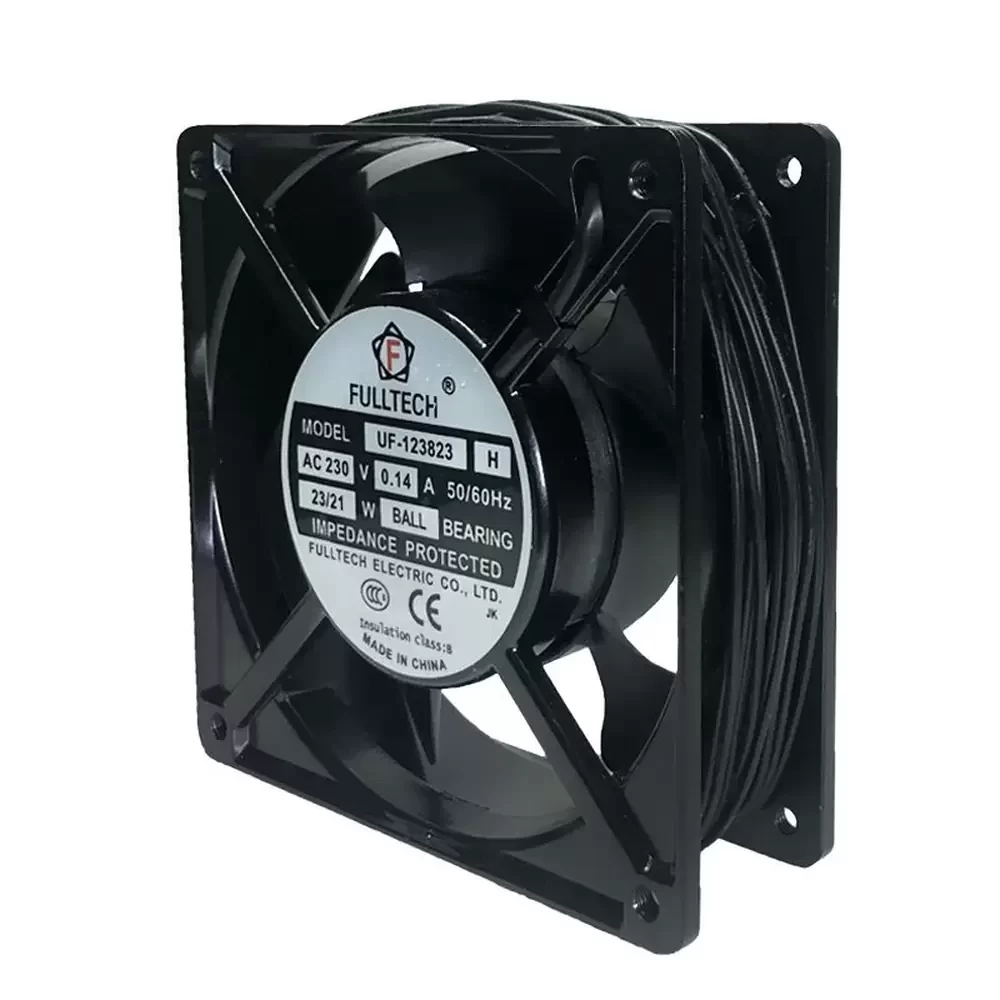

The Fulltech UF-123823H is a robust AC Axial Fan engineered for demanding industrial thermal management applications. Utilizing an advanced AC motor architecture paired with a precision ball bearing system, this unit ensures consistent rotational stability and reduced frictional wear over extended operational cycles. The aerodynamic impeller design optimizes airflow dynamics, effectively lowering thermal impedance within high-density enclosures. Constructed with structural rigidity in mind, the UF-123823H maintains performance integrity under continuous load, making it a critical component for maintaining equilibrium in sensitive electronic and mechanical systems requiring reliable heat dissipation.
Model Number: UF-123823H
Brand: Fulltech
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Rated Current: 0.14 A
Input Power: 23/21 W
Rated Speed: 2600 / 3000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 97.0 / 117.0 CFM (164.8 / 198.7 m³/h)
Max. Static Pressure: 0.30 / 0.34 inH₂O (7.62 / 8.63 mmH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 530 g
Frame Material: Aluminum Die-Cast
Impeller Material: PBT (UL94V-0)
Noise Level: 43 / 48 dB(A)
Motor Type: Shaded Pole Induction Motor
Insulation Class: Class B
Dielectric Strength: 1500 VAC for 1 min
Insulation Resistance: >100 MΩ at 500 VDC
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +80°C
Life Expectancy: 50,000 Hours at 25°C
Termination: Lead Wires / Terminals
Protection: Impedance Protected
Mounting: Flange Mount
Designed for versatility in industrial environments, the UF-123823H is frequently integrated into compressor units and injection molding machinery where consistent cooling is paramount. Its robust frame allows for secure installation in 4-inch server cabinets and telecommunication racks, preventing overheating in critical infrastructure. The UF-123823H also serves effectively in automation control panels and power supply units, ensuring operational continuity by mitigating thermal stress in enclosed spaces.
