Description

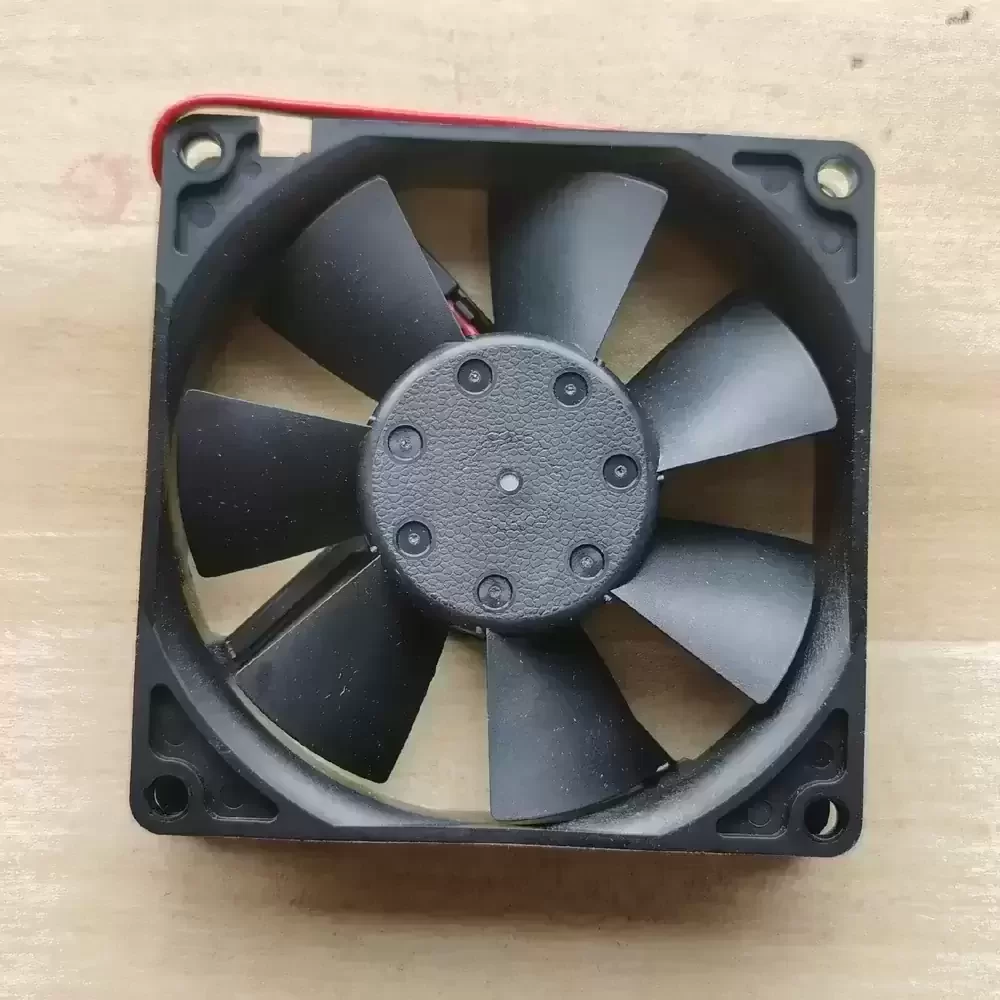

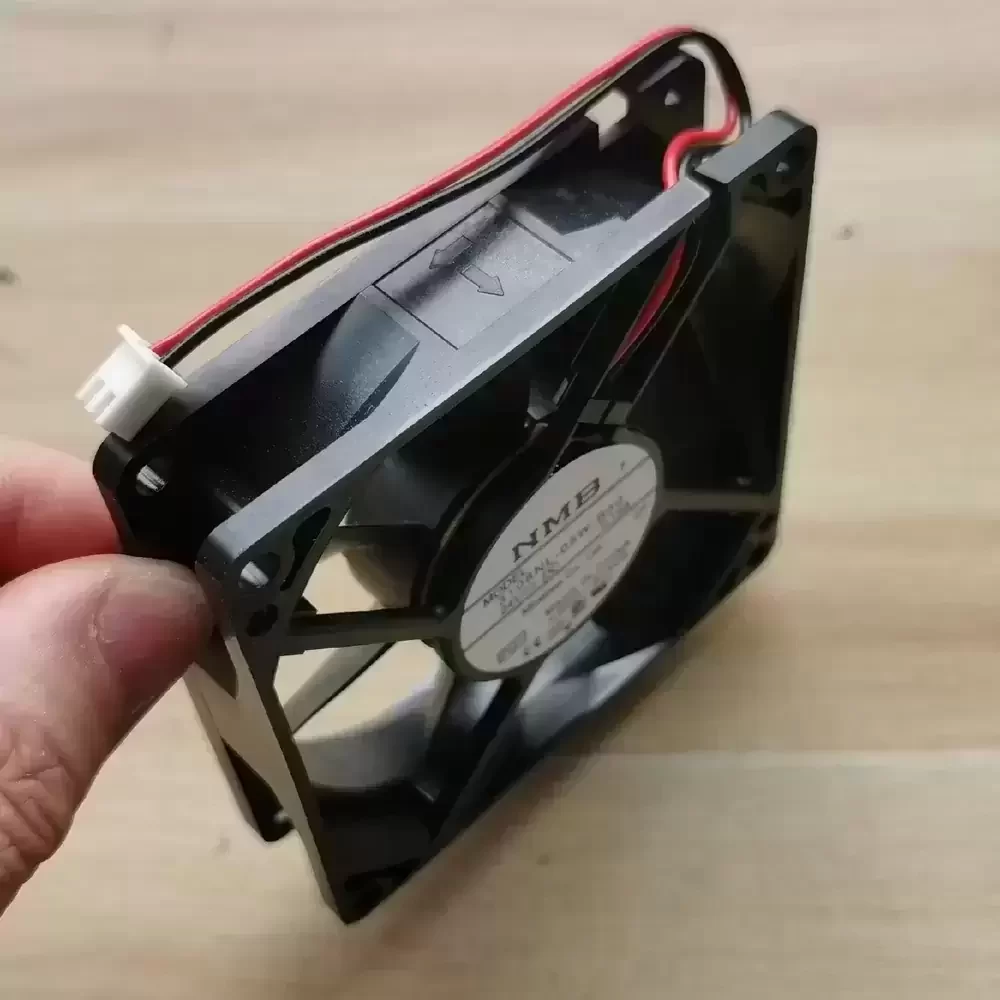

The NMB 3108NL-05W-B50-PQ1 is a high-precision DC Axial Fan engineered for demanding industrial thermal management. Utilizing advanced brushless DC motor technology and a dual ball bearing architecture, this unit provides exceptional structural rigidity and low thermal impedance. The aerodynamic impeller design is optimized for efficient laminar airflow, ensuring stable pressure characteristics even in high-impedance environments. Its robust construction and precision-engineered components are designed to maintain long-term operational stability, making it a reliable solution for critical cooling applications where downtime must be minimized through superior mechanical endurance.
Model Number: 3108NL-05W-B50-PQ1
Brand: NMB (MinebeaMitsumi)
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 10.0 – 27.6 VDC
Rated Current: 0.19A
Power: 4.56W
Rated Speed: 3400 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.1 CFM (1.08 m³/min)
Max. Static Pressure: 42.2 Pa (0.17 inH₂O)
Dimensions: 80x80x20mm
Weight: 85g
Life Expectancy: 50,000 Hours at 25°C
Noise Level: 36.0 dB
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 2-Wire Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
The 3108NL-05W-B50-PQ1 is primarily utilized in high-density power electronics and industrial automation systems, such as frequency converters and variable speed drives. Given its compact 80x80x20mm profile, the 3108NL-05W-B50-PQ1 is an ideal choice for cooling server rack components, telecommunications hardware, and medical diagnostic equipment where space and reliability are paramount.
