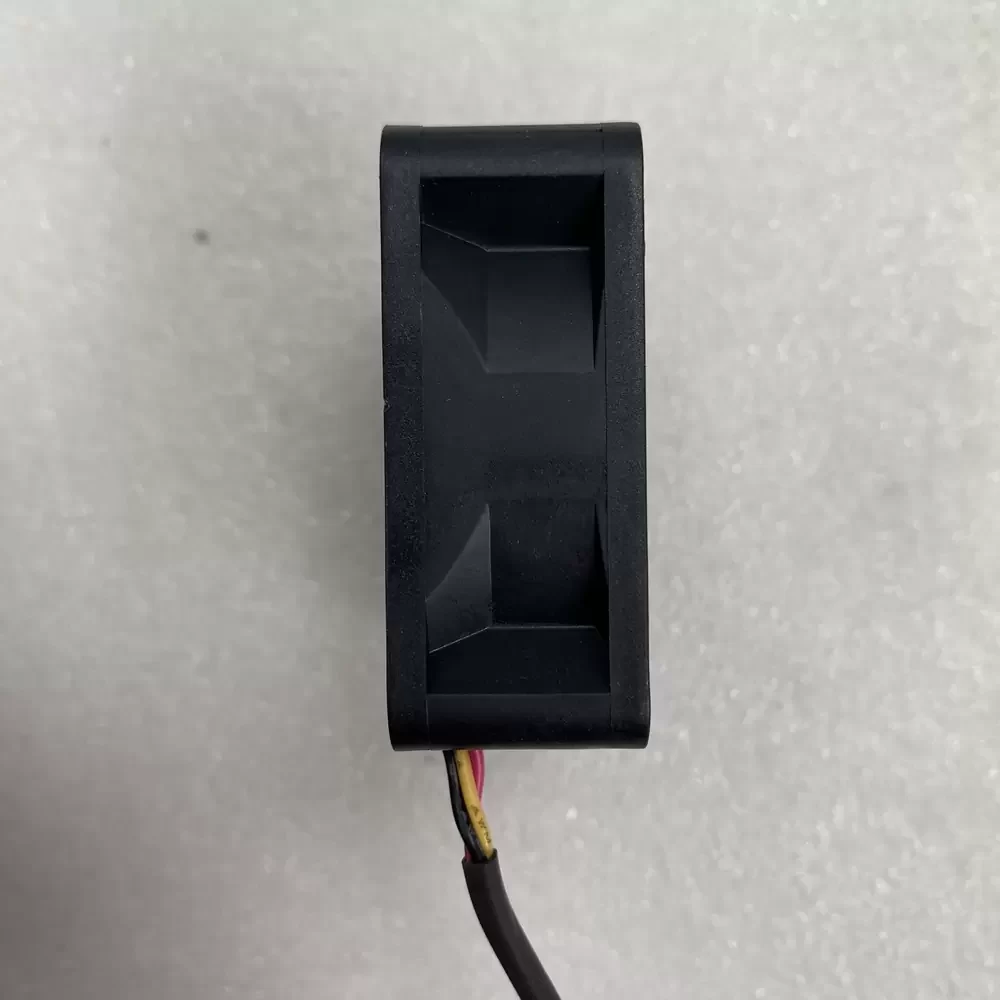

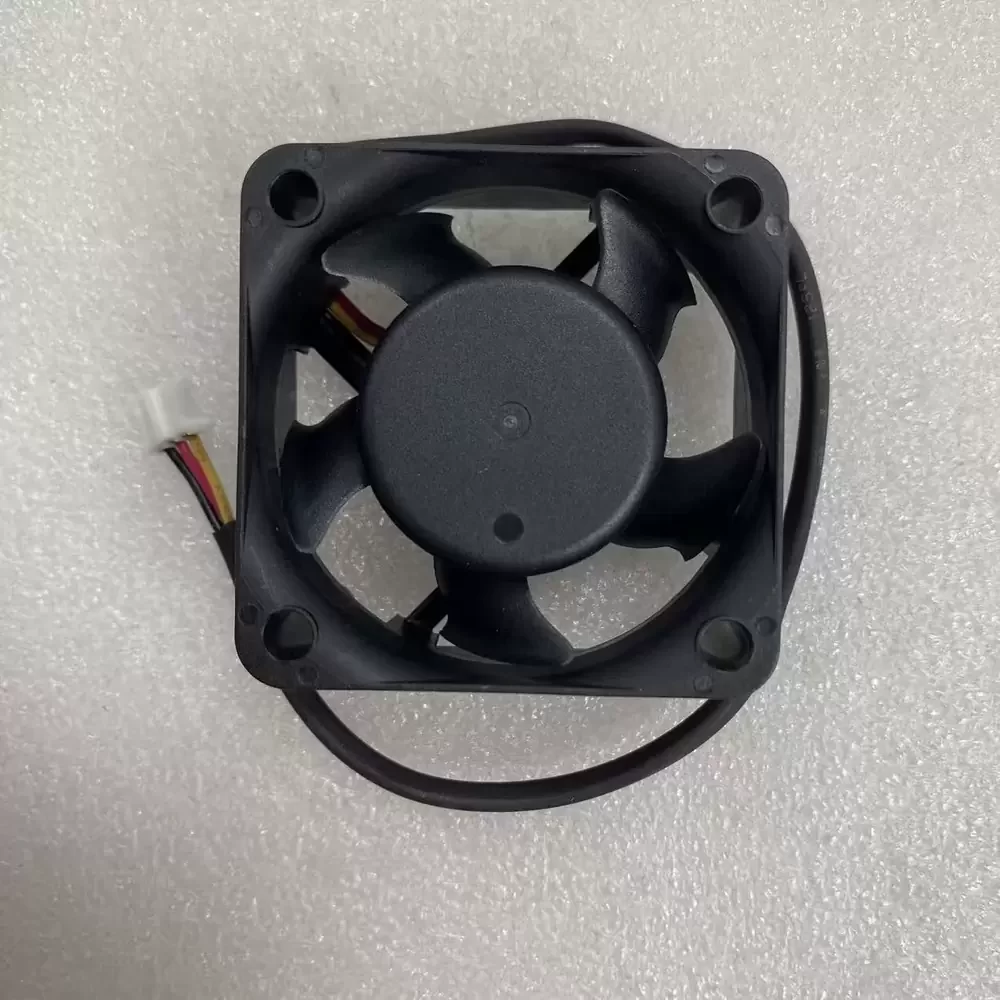

MGT5024XB-R20B Protechnic 24VDC 0.15A 50x50x20mm Cooling Fan

Description

Protechnic MGT5024XB-R20B is a 50 x 50 x 20 mm high-performance axial cooling fan designed for 24 VDC operation with a 0.15 A current rating. The unit features a dual ball bearing assembly and a high-speed impeller housed within a reinforced PBT plastic frame. It utilizes a 3-wire interface for power and signal transmission, delivering a maximum airflow of 19.93 CFM and a static pressure of 6.61 mmAq. The internal brushless DC motor includes integrated polarity protection and automatic restart functionality.

MGT5024XB-R20B Specifications
Model: MGT5024XB-R20B
Brand: Protechnic
Category: DC Axial Fan
Dimensions: 50 x 50 x 20 mm
Rated Voltage: 24 VDC
Operating Voltage: 14.0 to 27.6 VDC
Rated Current: 0.15 A
Actual Current: 0.10 A
Rated Power: 3.6 W
Actual Power: 2.4 W
Rated Speed: 6400 RPM
Maximum Airflow: 19.93 CFM (0.565 m³/min)
Static Pressure: 0.260 in-H2O (6.61 mmAq)
Noise Level: 35.6 dBA
Bearing Type: Dual Ball Bearing
Interface: 3-wire (Lead wires)
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Weight: 42 g
Safety Approvals: CE, TUV, UL

MGT5024XB-R20B Applications
Primary applications include integration into industrial power supply units, telecommunications rack cooling systems, and high-fidelity audio amplifier thermal management modules. Deployed within CNC controller cabinets and server chassis requiring high static pressure ventilation.
