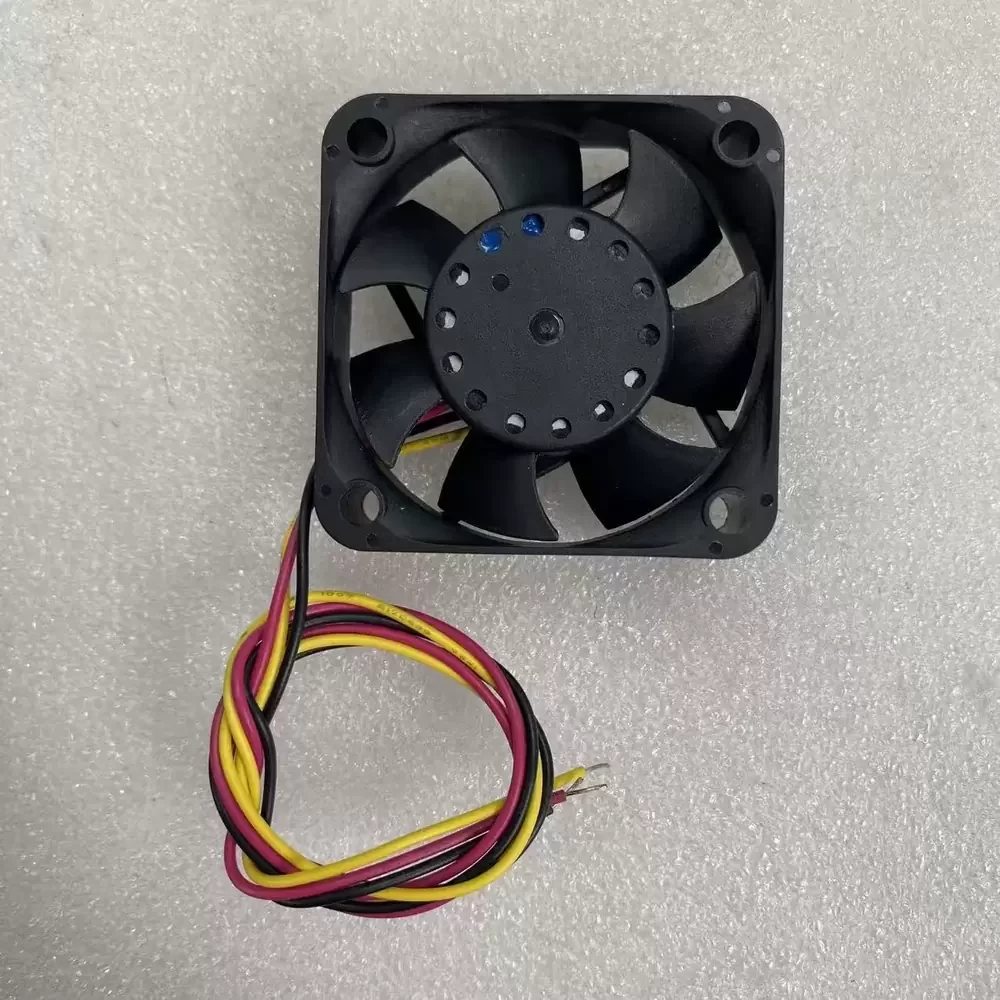

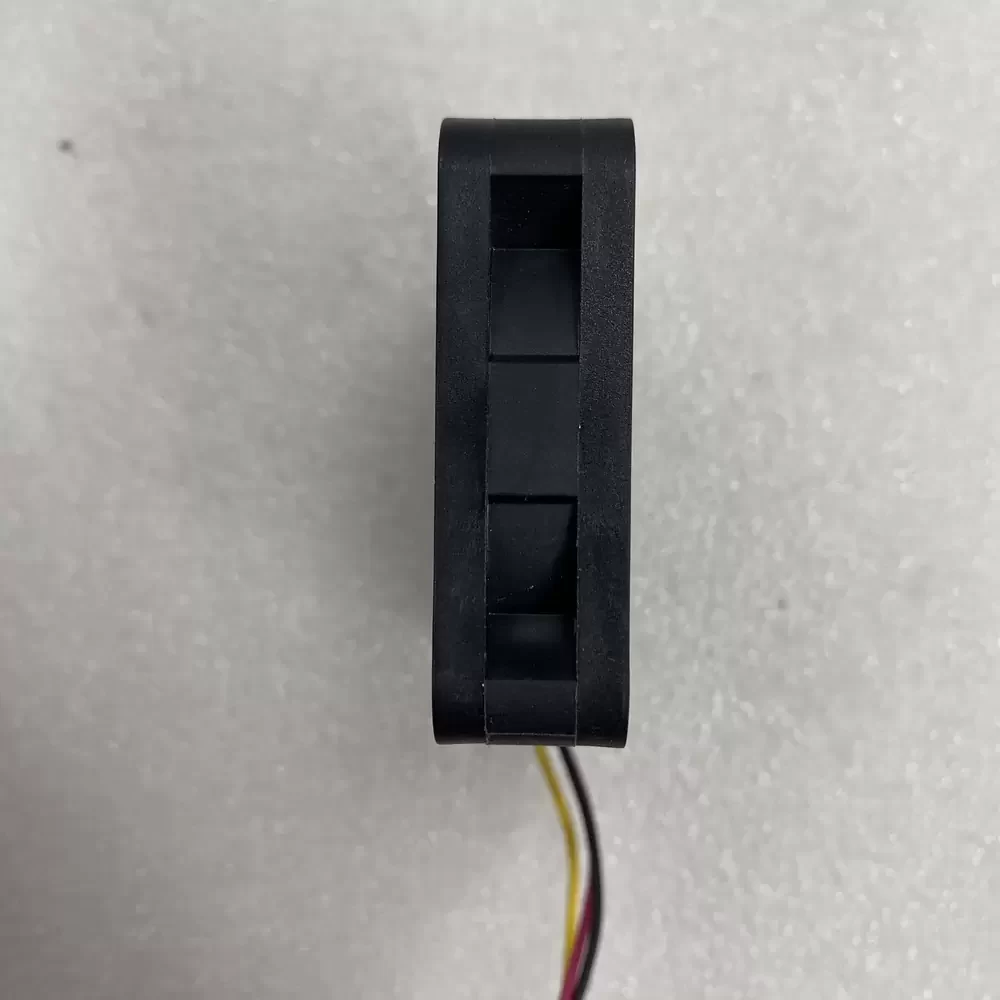

MGT5005MB-015 Protechnic 5VDC 0.25A 50x50x15mm Axial Fan

Description

Protechnic MGT5005MB-015 50 x 50 x 15 mm 5 VDC 0.25 A 13.2 CFM axial cooling fan is constructed with a PBT thermoplastic frame and impeller. The unit utilizes a brushless DC motor architecture and a proprietary Magic Bearing system for rotational stability. It features a 2-wire lead wire interface and is designed for high-pressure air displacement within compact enclosures. The housing material meets UL 94V-0 flammability requirements.

MGT5005MB-015 Specifications
Model: MGT5005MB-015
Brand: Protechnic Electric
Frame Size: 50 x 50 x 15 mm
Voltage: 5 VDC
Current: 0.25 A
Power: 1.25 W
Bearing Type: Magic Bearing
Speed: 5500 RPM
Airflow: 13.2 CFM
Static Pressure: 4.8 mmH2O
Noise Level: 33 dBA
Material: PBT Plastic (UL 94V-0)
Termination: 2-wire lead
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Weight: 35 g

MGT5005MB-015 Applications
Primary applications include integration into industrial PC chassis, network switch enclosures, and compact medical diagnostic equipment. Deployed within CNC controller cabinets and telecommunications power supply modules for localized thermal management.
