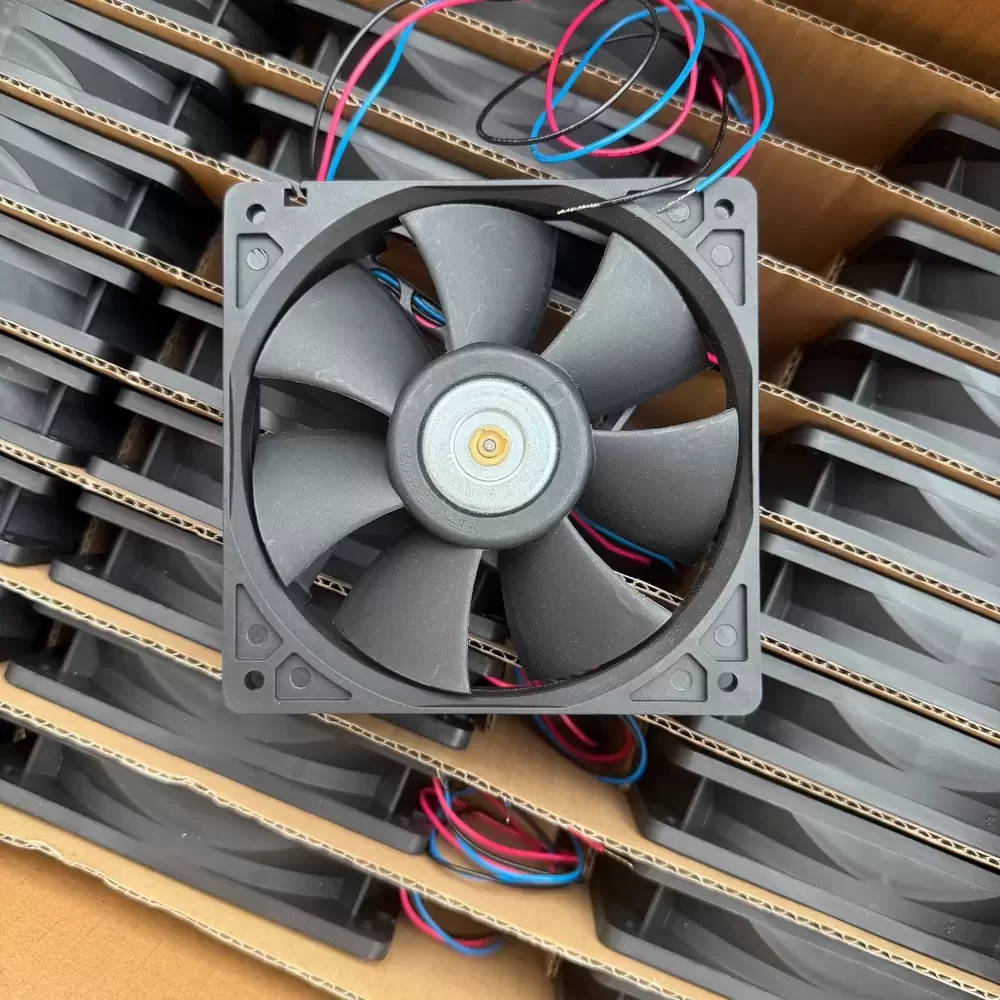

AFB1212M-R00 Delta 12VDC 0.27A 120x120x25mm Axial Fan

Description

Delta AFB1212M-R00 is a 120 x 120 x 25 mm axial cooling fan operating at a nominal 12 VDC with a 0.27 A rated current. The unit features a dual ball bearing system and a brushless DC motor housed in a UL 94V-0 plastic impeller and frame. It delivers an airflow of 2.090 m³/min (73.81 CFM) and a static pressure of 5.15 mmH2O while maintaining a noise level of 35.5 dBA. The electrical interface consists of a 3-wire configuration including a dedicated R00 locked rotor alarm signal for system monitoring.

AFB1212M-R00 Specifications
Model: AFB1212M-R00
Brand: Delta Electronics
Category: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 0.27 A
Input Power: 3.24 W
Rated Speed: 2200 RPM
Maximum Airflow: 2.090 m³/min (73.81 CFM)
Maximum Static Pressure: 5.15 mmH2O (0.203 inH2O)
Acoustic Noise: 35.5 dBA
Bearing Type: Dual Ball Bearing
Sensor Type: R00 (Locked Rotor Alarm)
Termination: 3-wire (Lead wires)
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 198 g
Insulation Class: Class A
Safety Certifications: UL, CSA, VDE, CE

AFB1212M-R00 Applications
Primary applications include integration into server rack enclosures, industrial power supply units, and telecommunications switching equipment. Deployed within CNC controller cabinets and medical diagnostic imaging systems requiring consistent thermal management and rotor status feedback.
