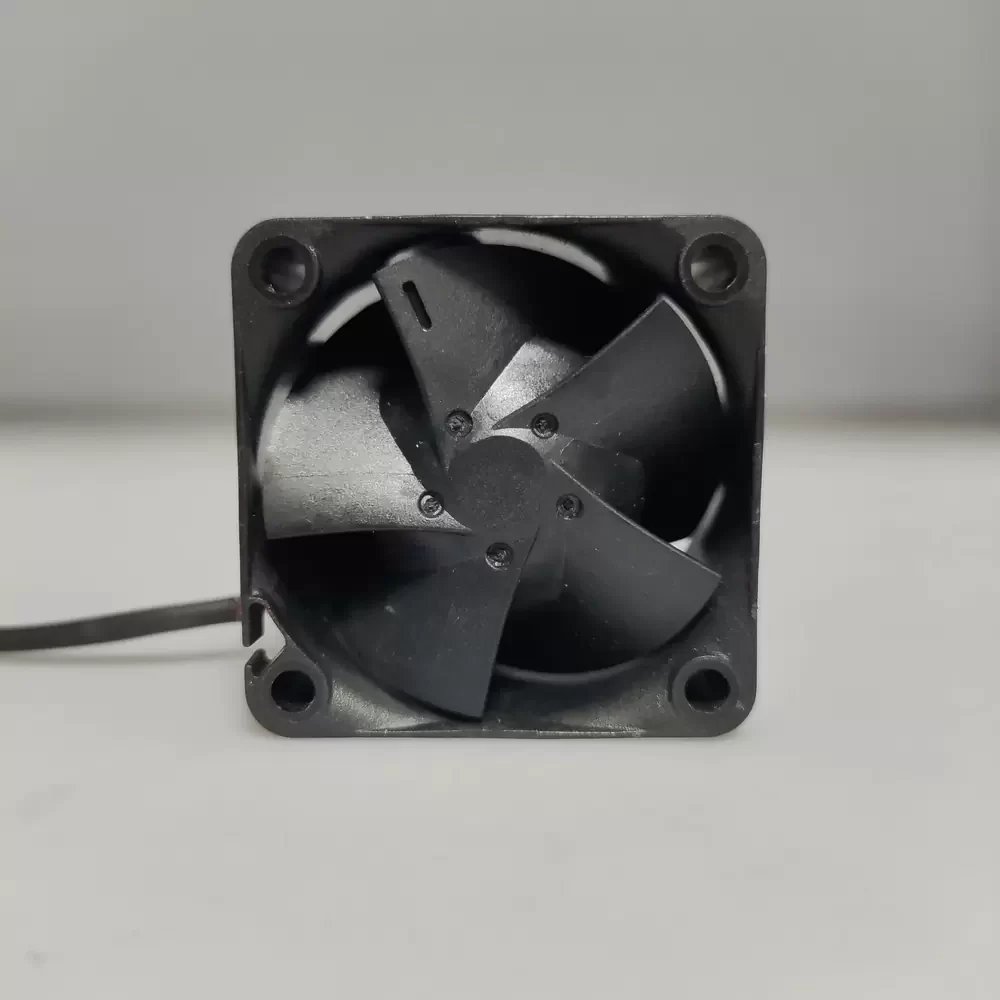

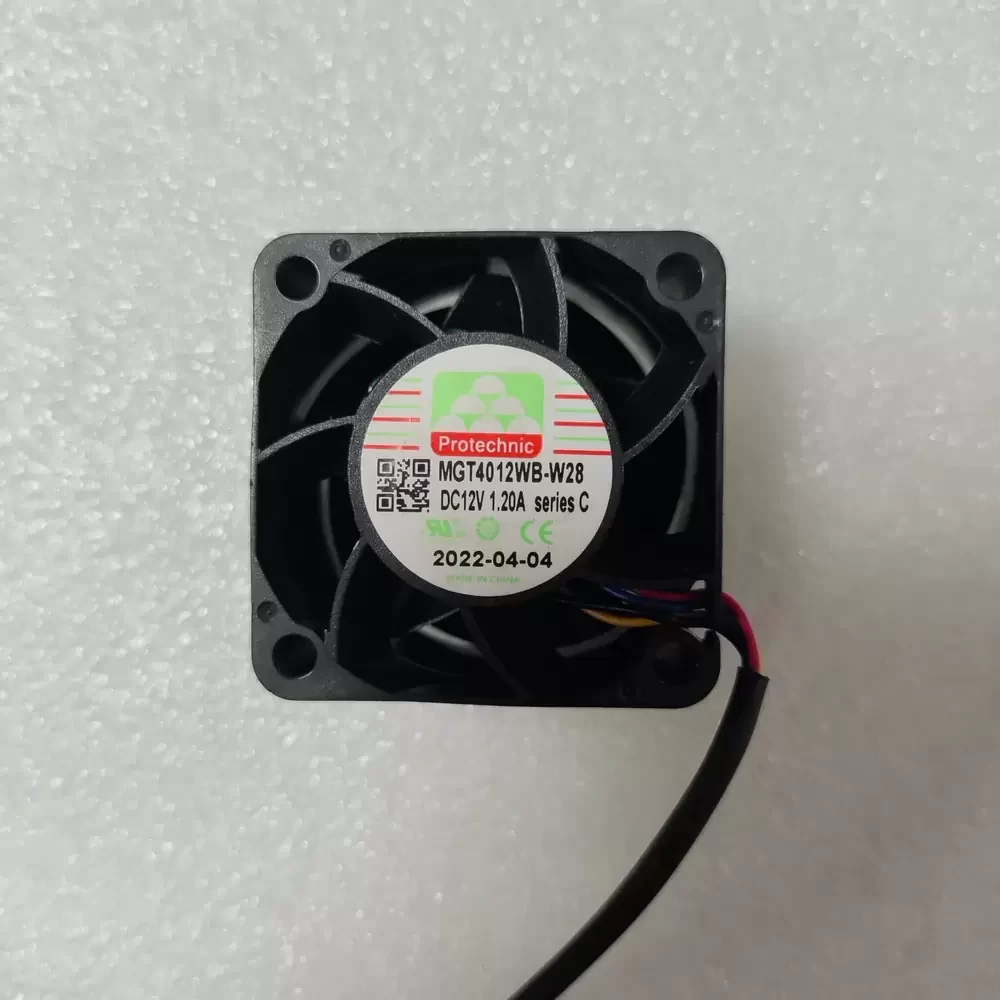

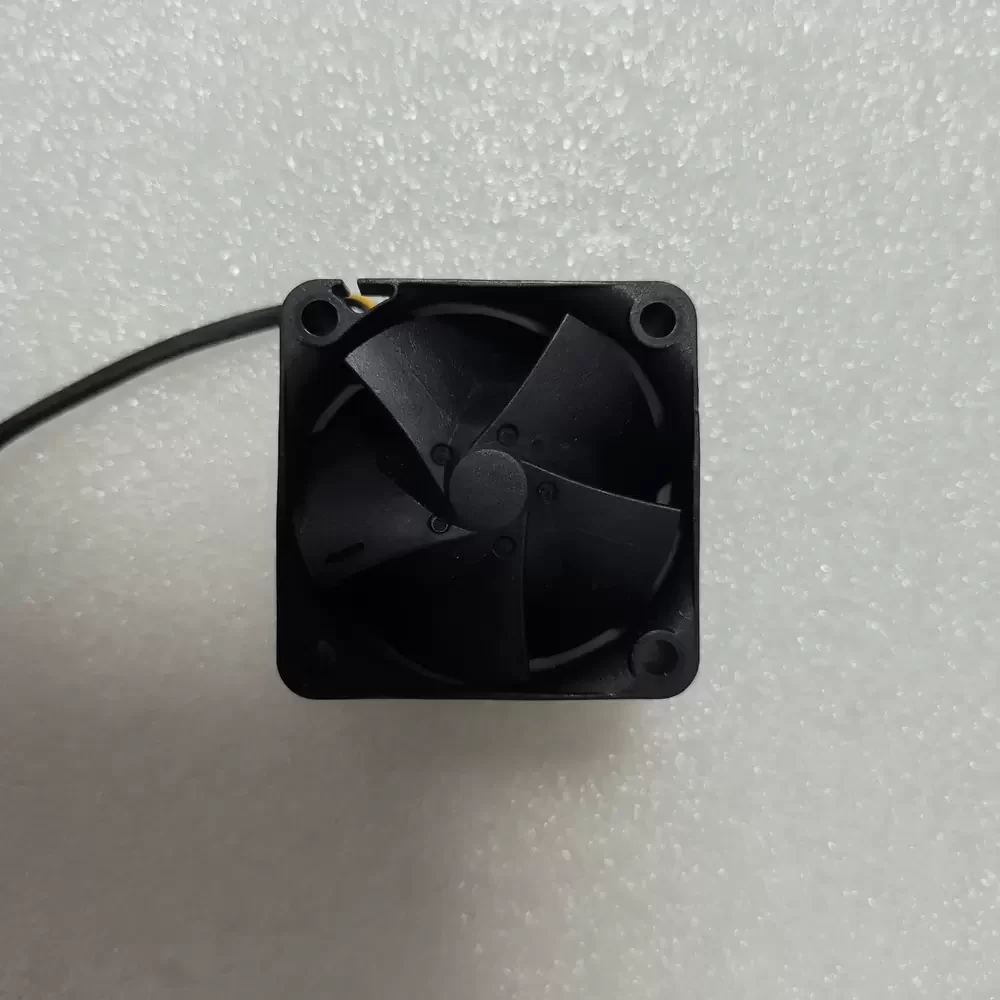

MGT4012WB-W28C Protechnic 12VDC 1.20A 40x40x28mm Axial Fan

Description

Protechnic MGT4012WB-W28C is a high-performance axial cooling fan measuring 40 x 40 x 28 mm with a nominal operating voltage of 12 VDC and a rated current of 1.20 A. This compact unit features a dual ball bearing system and a five-blade impeller design constructed from high-durability thermoplastic. The electrical interface utilizes a four-wire configuration supporting Pulse Width Modulation (PWM) speed control and a tachometer signal for real-time rotational monitoring. It operates at a maximum speed of 22,000 RPM, delivering a static pressure-optimized airflow of 28.64 CFM while maintaining structural integrity through a rib-style mounting frame.

MGT4012WB-W28C Specifications
Model: MGT4012WB-W28C
Brand: Protechnic Electric
Category: Axial Cooling Fan
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 4 VDC to 13 VDC
Rated Current: 1.20 A
Input Power: 14.4 W
Rated Speed: 22,000 RPM
Maximum Airflow: 28.64 CFM
Noise Level: 62.6 dBA
Bearing Type: Dual Ball Bearing
Number of Blades: 5
Interface: 4-wire (PWM, Tachometer)
Connector Type: 1.25 mm Pitch 4-pin
Mounting Style: Rib
Weight: 0.10 lbs

MGT4012WB-W28C Applications
Primary applications include integration into high-density server rack enclosures, enterprise-grade power supply units, and industrial control panel thermal management systems. Deployed within CNC spindle cooling assemblies and telecommunications base station hardware requiring high static pressure ventilation.
