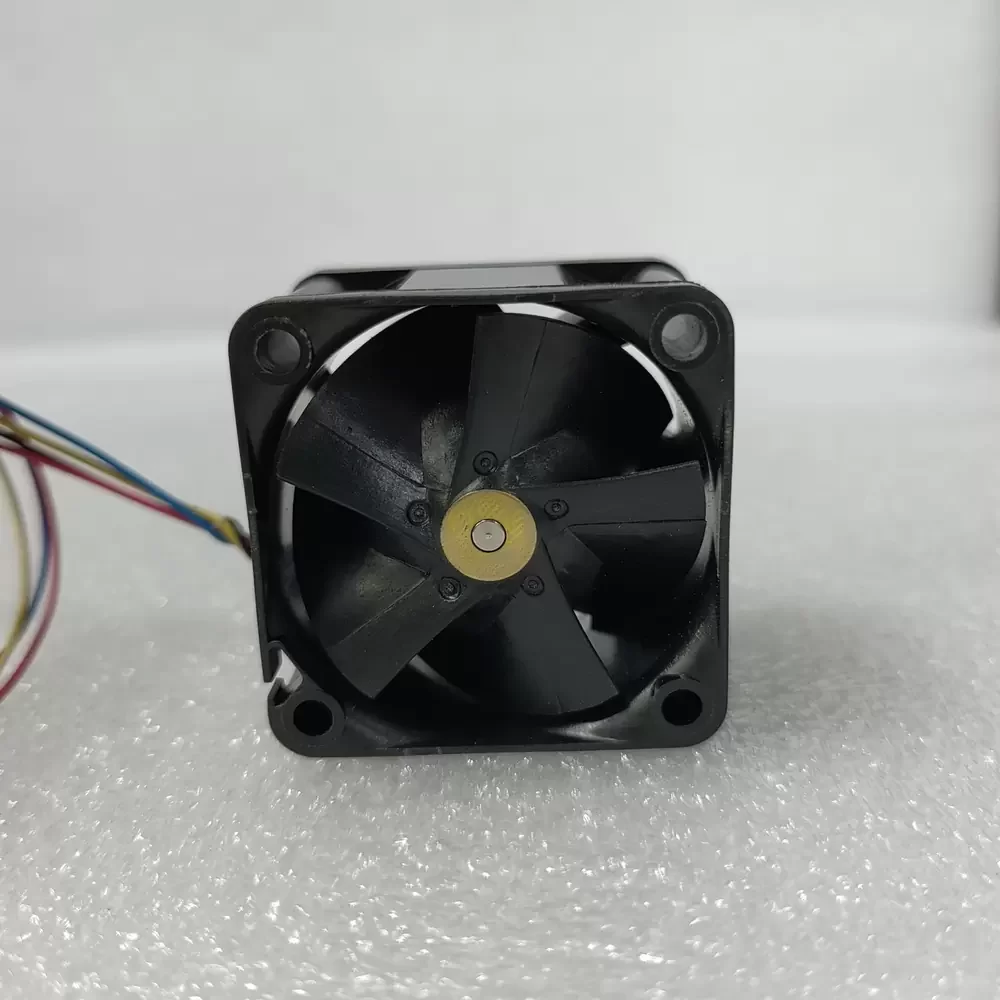

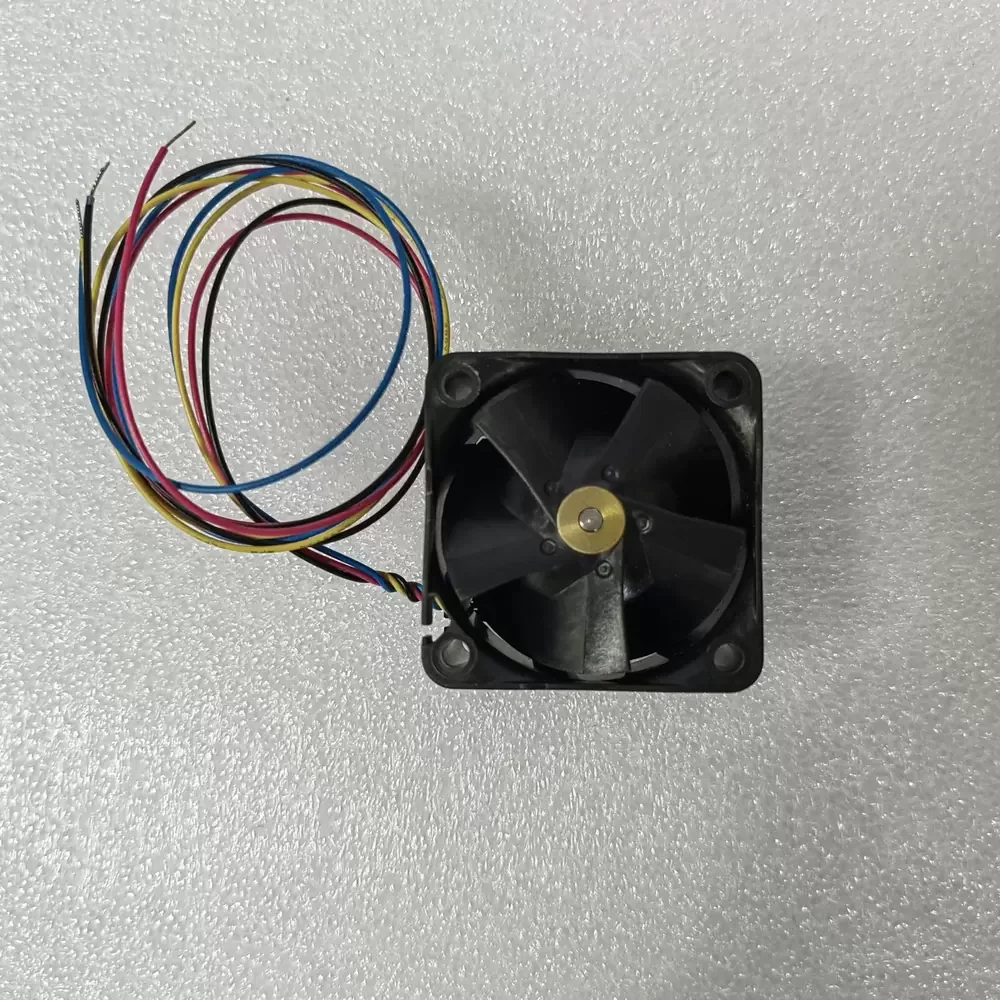

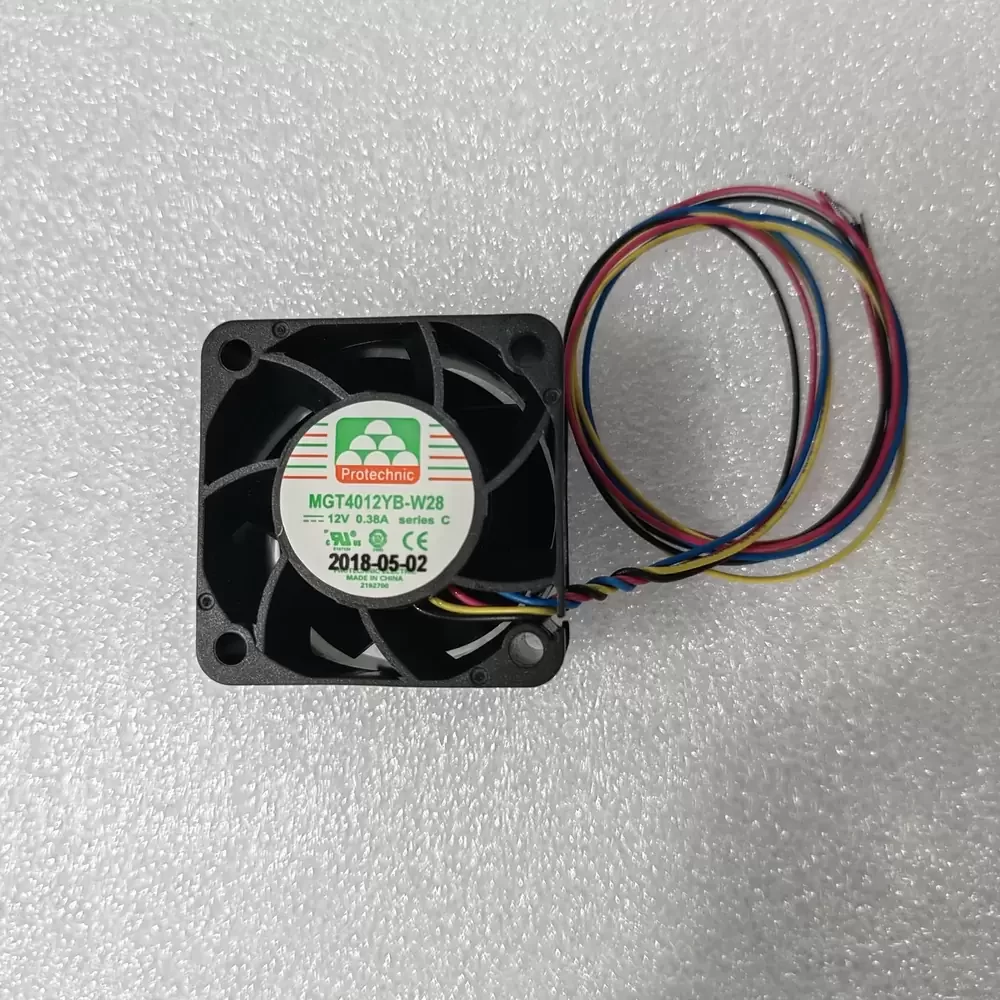

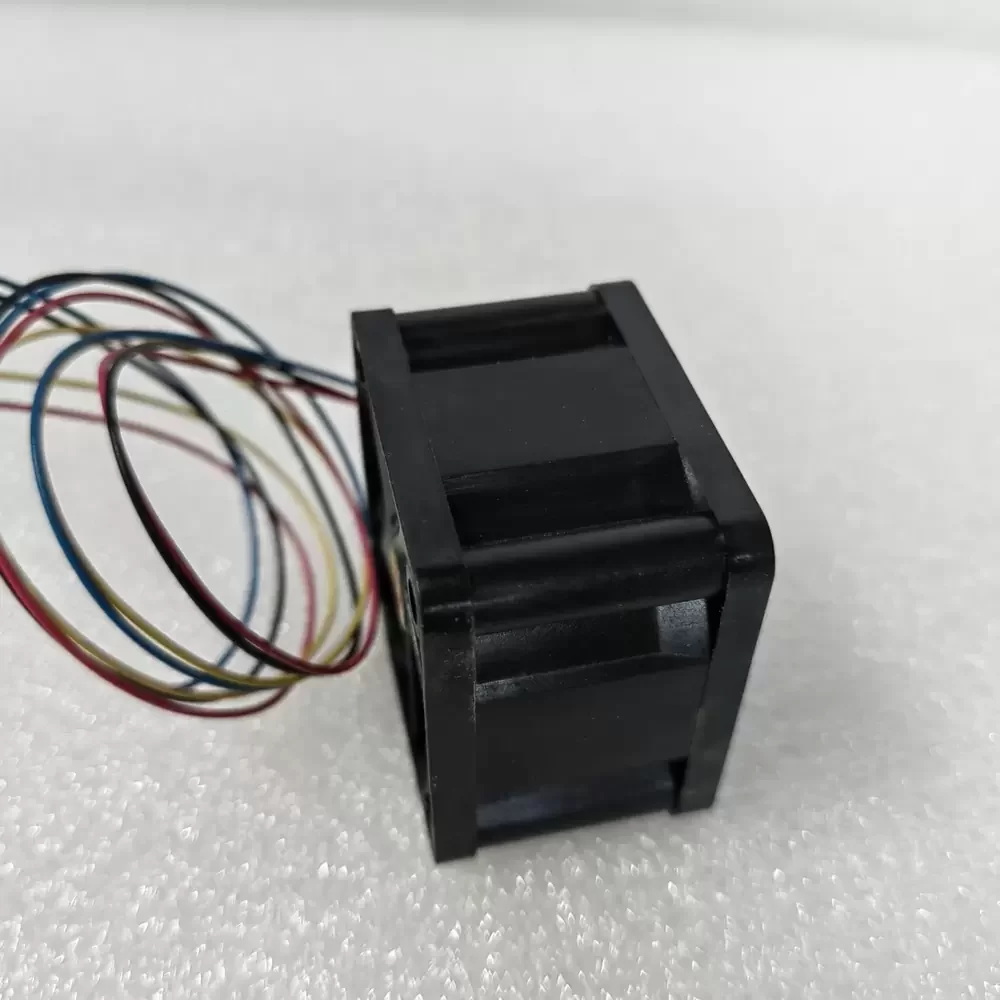

MGT4012YB-W28C Protechnic 12VDC 0.38A 40x40x28mm Axial Fan

Description

Protechnic MGT4012YB-W28C 40 x 40 x 28 mm 12 VDC 0.38 A axial cooling fan is a high-performance thermal management component. The unit features a dual ball bearing system for extended operational reliability and a 4-wire interface supporting PWM speed regulation and tachometer frequency generator output. Constructed with a PBT plastic housing and impeller rated UL 94V-0, it is designed to deliver high static pressure and concentrated airflow within a compact 4028 frame.

MGT4012YB-W28C Specifications
Model: MGT4012YB-W28C
Brand: Protechnic
Category: DC Axial Fan
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage: 7.0 to 13.8 VDC
Rated Current: 0.38 A
Input Power: 4.56 W
Bearing Type: Dual Ball Bearing
Rated Speed: 15,000 RPM
Maximum Airflow: 20.5 CFM
Static Pressure: 1.15 in-H2O
Noise Level: 51.5 dBA
Interface: 4-wire (PWM, FG)
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 50 g

MGT4012YB-W28C Applications
Primary applications include integration into 1U/2U rackmount server chassis, high-density network switches, and telecommunications base stations. Deployed within power amplifier thermal management systems and industrial CNC control cabinets requiring high-pressure localized cooling.
