Description

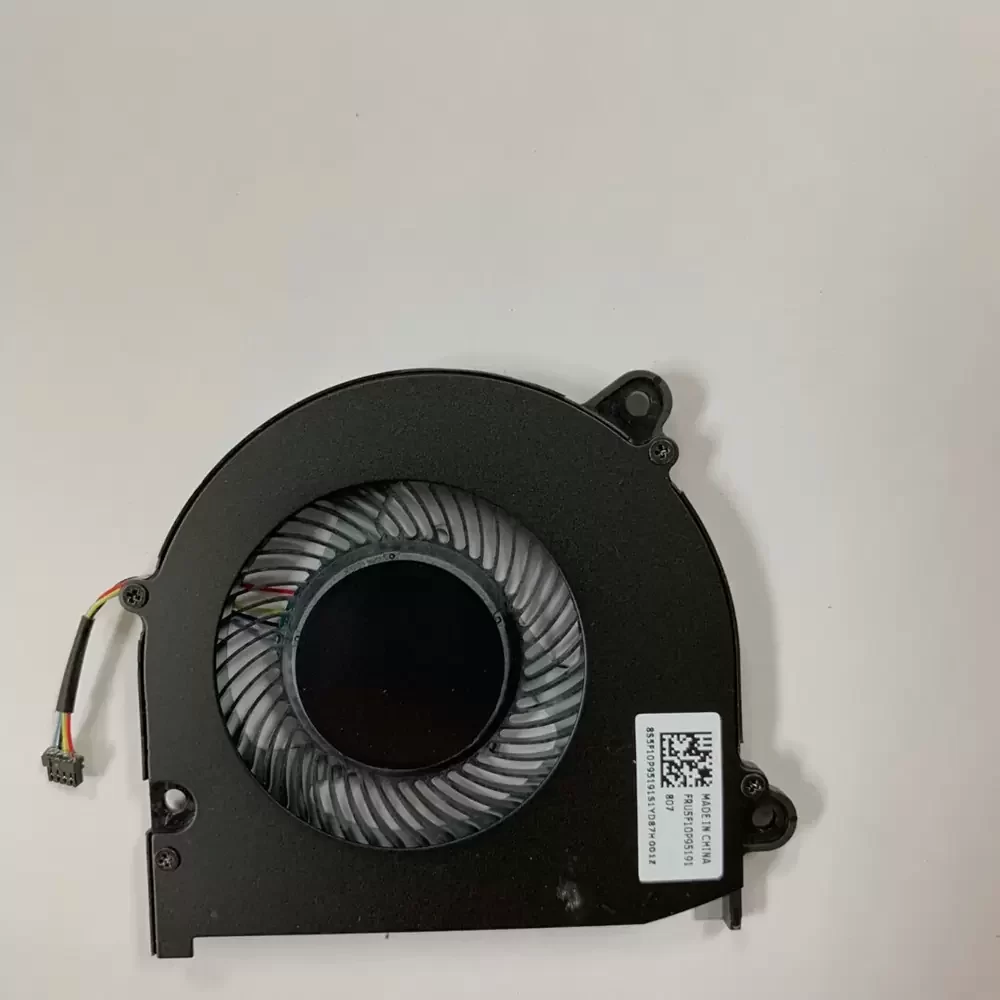

The Sunon EG50040S1-CC50-S9A is a high-precision laptop blower fan engineered for the thermal requirements of modern ultra-thin mobile devices. Operating at 5VDC with a 2.25W power rating, this industrial cooling fan is specifically designed for the Lenovo V330S and Xiaoxin Chao 7000-13 series. Utilizing a Vapo bearing system and a 4-pin PWM interface, the EG50040S1-CC50-S9A delivers efficient heat extraction with a compact 50x50x5mm footprint. This DC brushless blower ensures optimal airflow and static pressure to prevent thermal throttling in high-performance laptop environments, providing a durable and quiet cooling solution for critical internal hardware.
Model Number: EG50040S1-CC50-S9A
Brand: Sunon
Product Type: Laptop Blower Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.45A
Power: 2.25W
Rated Speed: 4800 RPM
Bearing Type: Vapo Bearing
Max. Air Flow: 4.2 CFM (7.1 m³/h / 0.12 m³/min)
Max. Static Pressure: 12.5 mmH₂O (122.5 Pa / 0.49 inH₂O)
Dimensions: 50x50x5mm
Weight: 15g
Life Expectancy: 50,000 Hours
Termination: 4-Pin 4-Wire
Speed Control: PWM
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +70 C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL
The EG50040S1-CC50-S9A is primarily integrated into the cooling assemblies of Lenovo V330S and Xiaoxin Chao 7000-13 ultra-portable notebooks. As a dedicated thermal component, the EG50040S1-CC50-S9A ensures consistent heat dissipation from the processor and motherboard within the confined spaces of slim laptop chassis.
