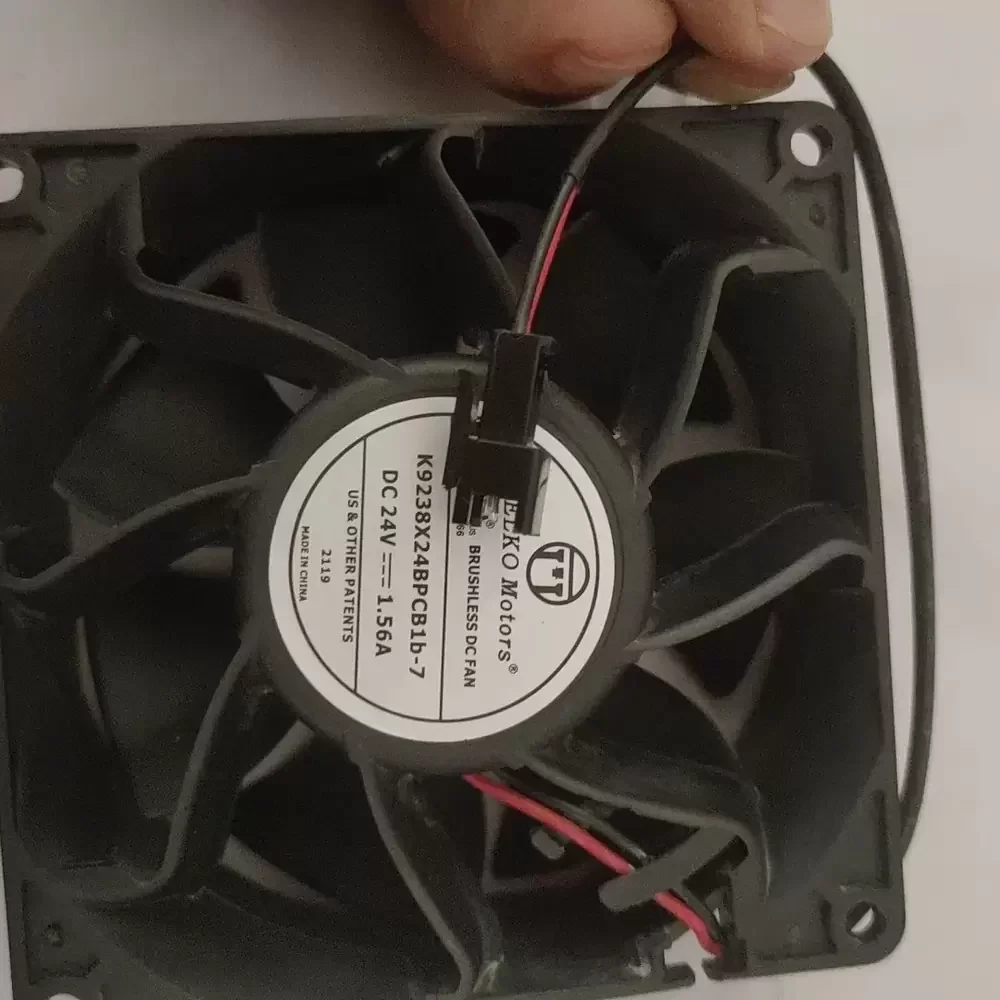

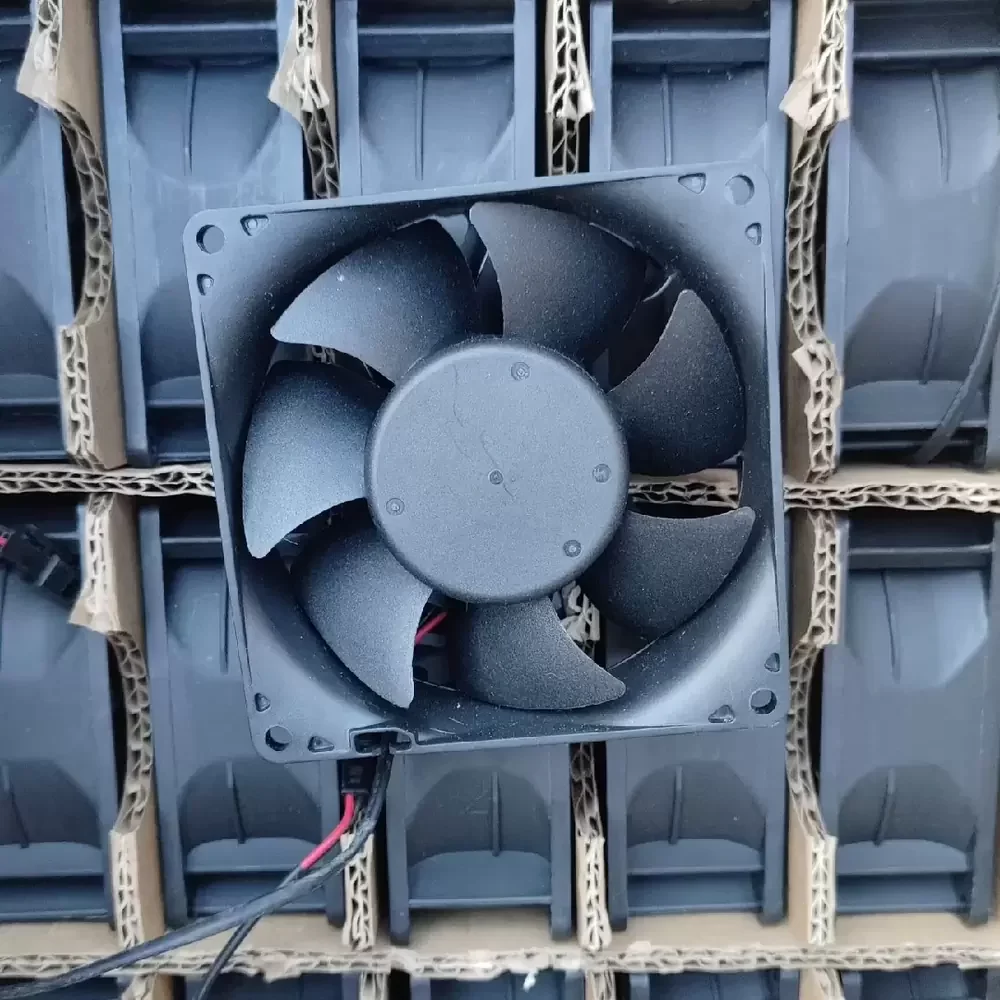

K9238X24BPCB1b-7 PELKO 24VDC 92x92x38mm Dual Ball Axial Fan

Description

The PELKO Motors K9238X24BPCB1b-7 is a high-performance DC Axial Fan engineered for critical industrial thermal management. Featuring a robust Dual Ball Bearing system and a specialized copper core tube design, this unit offers superior structural rigidity and enhanced thermal dissipation capabilities compared to standard plastic-hub fans. With a high rated current of 1.56A, it is designed to deliver exceptional static pressure and airflow, making it suitable for high-impedance systems. The fan operates on 24VDC and utilizes a durable frame construction to maintain stability and minimize vibration during high-speed operation, ensuring a long service life in demanding environments.

Model Number: K9238X24BPCB1b-7
Brand: PELKO Motors
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Rated Current: 1.56 A
Power Consumption: 37.44 W
Dimensions: 92 x 92 x 38 mm
Bearing Type: Dual Ball Bearing

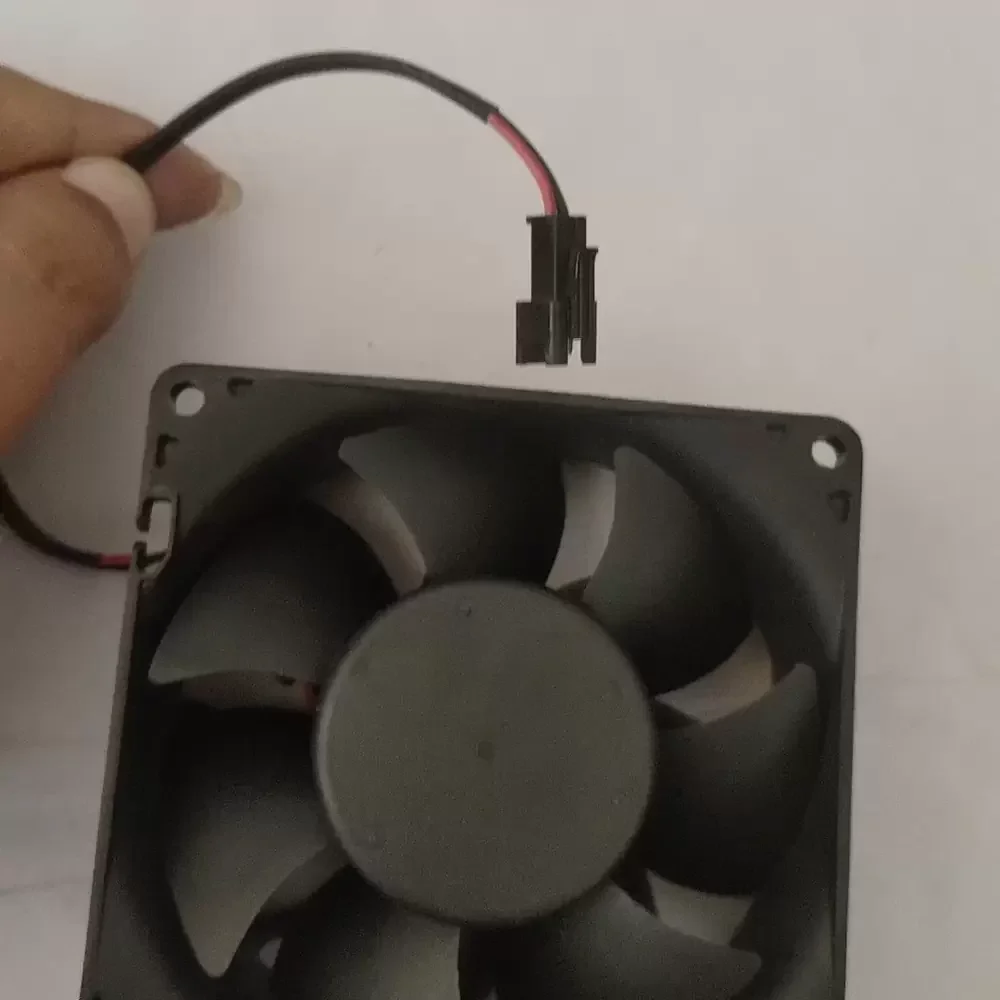

Termination: 2-Wire Lead
Construction: Reinforced Frame with Copper Core Tube
Mounting Orientation: Flange Mount
Application: Inverter / VFD Cooling

The K9238X24BPCB1b-7 is specifically calibrated for heavy-duty industrial electronics, particularly within Variable Frequency Drives (VFDs) and power inverters where rapid heat evacuation is essential. The high-power motor profile of the K9238X24BPCB1b-7 allows it to overcome the significant back-pressure found in densely packed control cabinets and server racks. It is also widely utilized in CNC machinery and telecommunications equipment requiring reliable, continuous cooling performance under thermal stress.
