Description

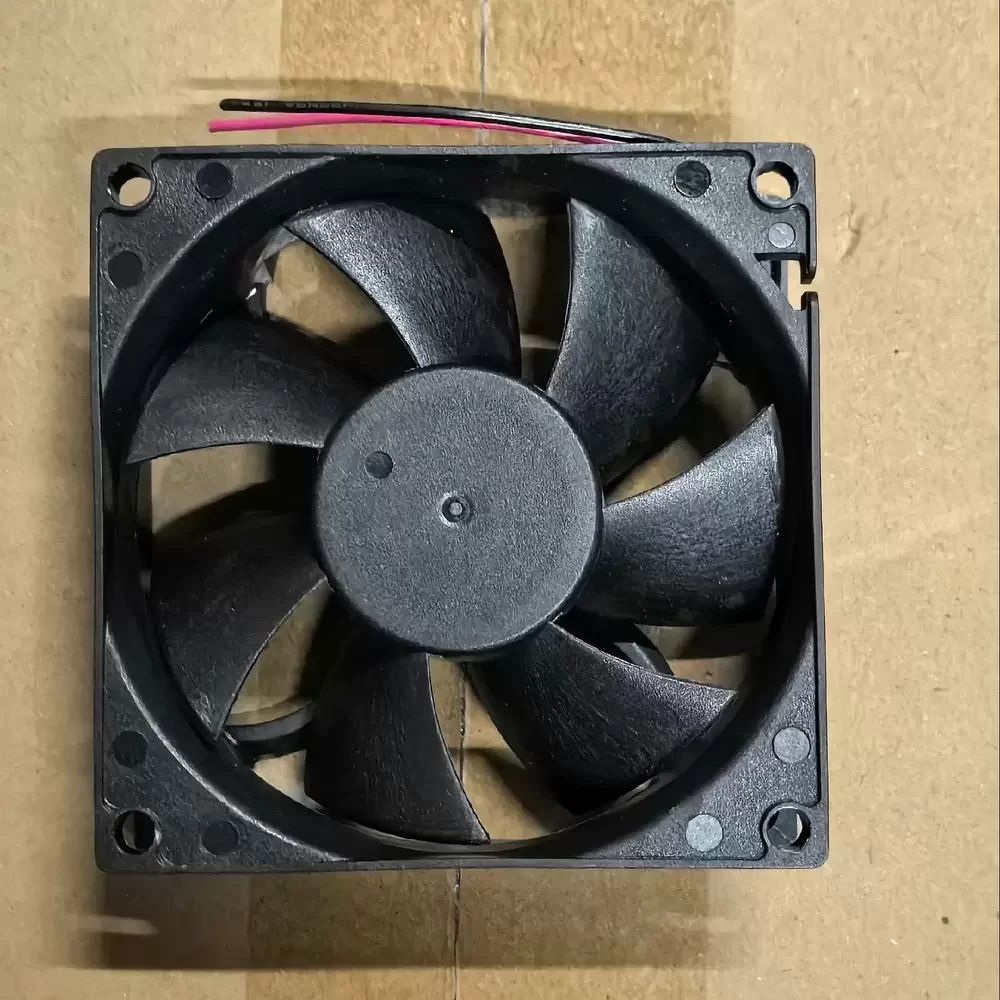

The ADDA AD0848VB-A71GP is a specialized DC Axial Fan engineered for critical industrial thermal management. Utilizing advanced Brushless DC (BLDC) motor technology coupled with a precision double ball bearing architecture, this unit ensures minimal frictional resistance and enhanced rotational stability. The aerodynamic impeller design optimizes airflow dynamics to reduce thermal impedance within high-density electronic enclosures. Constructed with a focus on structural rigidity, the thermoplastic frame maintains dimensional integrity under continuous operation, making it suitable for demanding ventilation requirements.

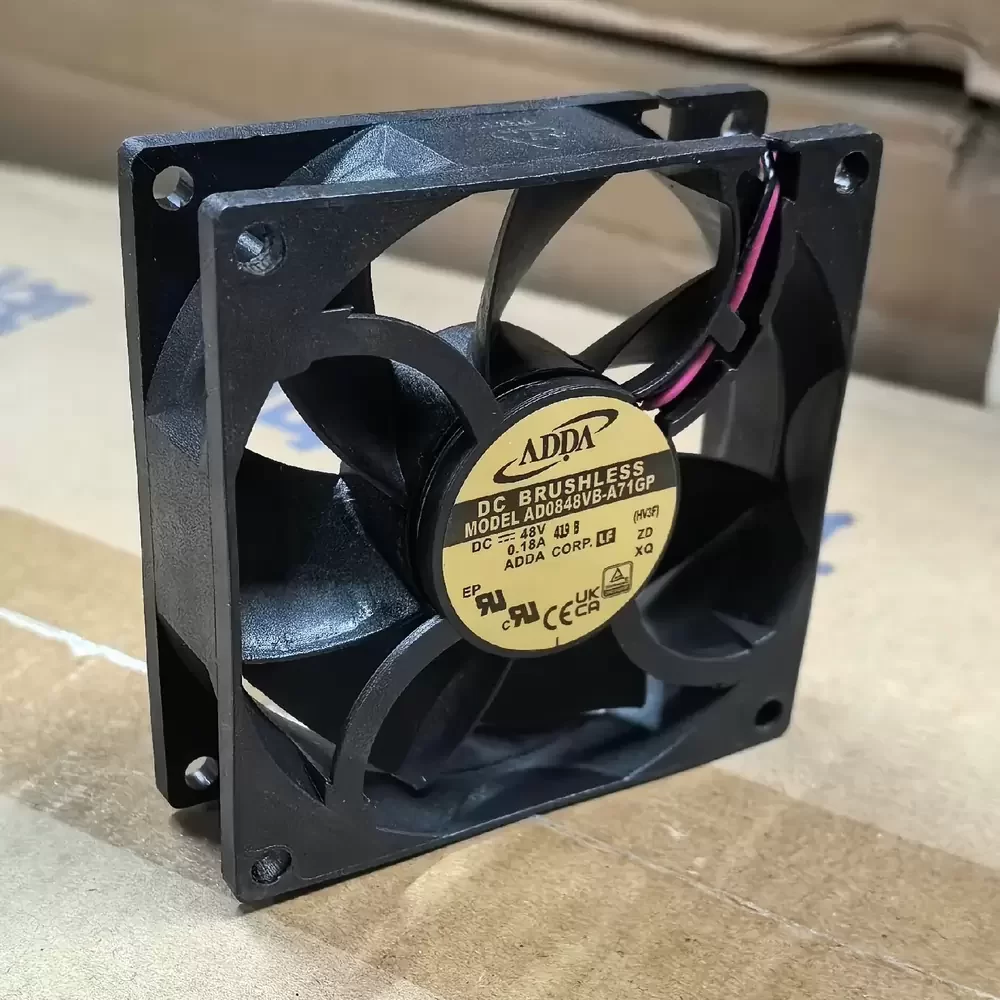

Model Number: AD0848VB-A71GP
Brand: ADDA Corporation
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 38.0 – 56.0 VDC
Rated Current: 0.18 A
Input Power: 8.64 W
Rated Speed: 3900 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 51.50 CFM (87.50 m³/h / 1.46 m³/min)
Max. Static Pressure: 7.62 mmH₂O (74.72 Pa / 0.30 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 86 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 43.0 dB(A)
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2 Lead Wires (Red/Black)
Wire Gauge: 24 AWG
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Direction of Rotation: Counter-clockwise
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Safety Certifications: UL, CUL, TUV, CE, RoHS
This AD0848VB-A71GP component is specifically designed for integration into telecom infrastructure and network switching equipment where reliable forced air cooling is mandatory. The AD0848VB-A71GP facilitates efficient heat dissipation in industrial automation control cabinets and server rack assemblies, preventing thermal throttling in sensitive electronics. Its robust design also serves well in power supply units, CNC machinery, and medical instrumentation requiring continuous duty cycles with high reliability.
