Description

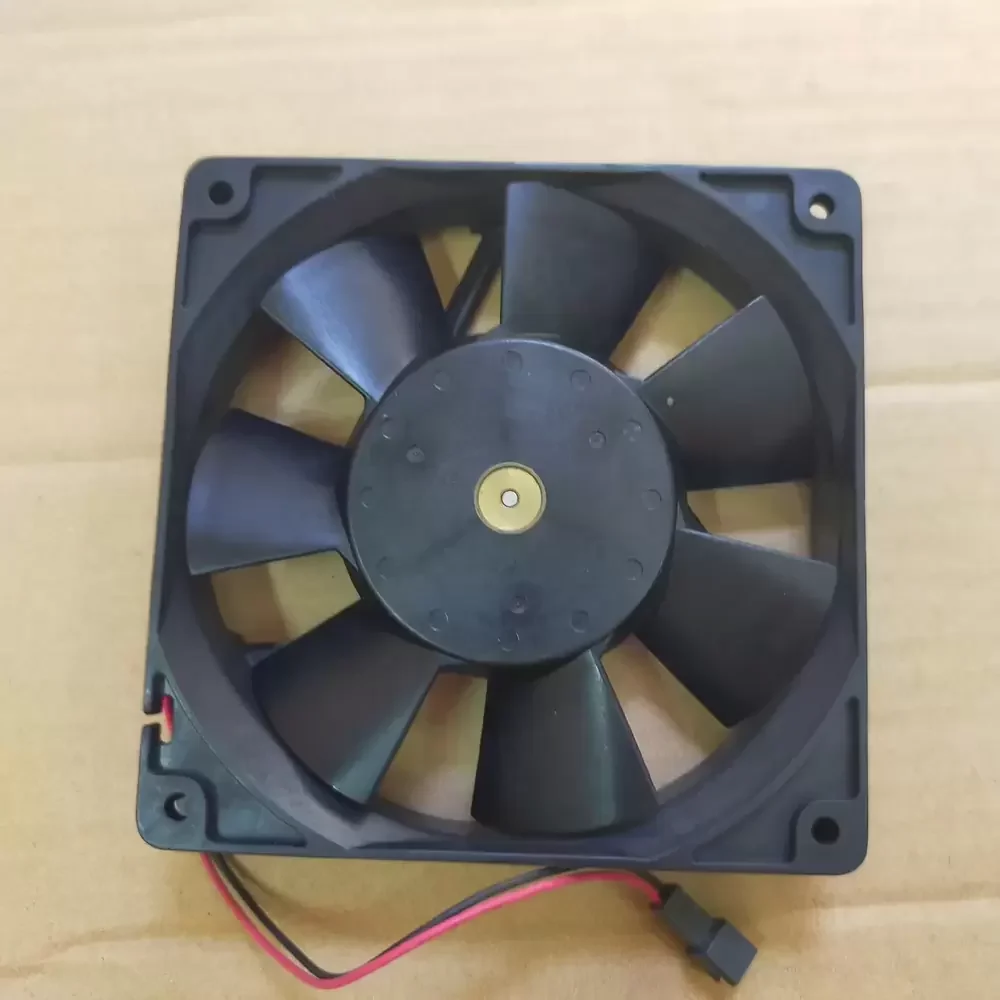

The Sanyo Denki 109P1224H402 is a high-reliability DC axial fan from the distinguished San Ace 120 series, engineered to deliver superior thermal management in industrial environments. This unit features a robust dual ball bearing architecture, which significantly reduces frictional resistance and enhances the lifespan of the motor compared to sleeve bearing alternatives. The aerodynamic impeller design is optimized for high static pressure and efficient airflow, ensuring structural rigidity and minimal vibration during operation. Designed for continuous duty cycles, the 109P1224H402 maintains stable thermal impedance, making it a critical component for protecting sensitive electronics from heat-induced degradation.
Model Number: 109P1224H402
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 120 (Type 9P)
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.24 A
Rated Input Power: 5.76 W
Rated Speed: 2700 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 88.3 CFM (2.5 m³/min)
Max. Static Pressure: 6.5 mmH₂O (63.7 Pa / 0.25 inH₂O)
Dimensions: 120 x 120 x 25 mm
Weight: 210 g
Life Expectancy: 40,000 Hours (at 60°C)
Noise Level: 40 dB(A)
Frame Material: Plastics (Flammability: UL94V-0)
Impeller Material: Plastics (Flammability: UL94V-0)
Termination: 2-Wire (Red +, Black -)
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
Insulation Resistance: 10MΩ or more at 500 VDC
Operating Temperature: -10°C to +70°C (Non-condensing)
Storage Temperature: -30°C to +70°C (Non-condensing)
Motor Protection: Locked Rotor Burnout Protection; Reverse Polarity Protection
Mounting Orientation: Any
Ingress Protection: Standard IP Rating
The 109P1224H402 is widely utilized in critical industrial applications, specifically excelling in the cooling of variable frequency drive (VFD) inverters and power supply units where reliability is non-negotiable. Its precise airflow characteristics make it an excellent choice for server rack ventilation and telecommunications cabinets, ensuring optimal operating conditions for high-density electronics. Furthermore, the 109P1224H402 is frequently integrated into CNC control panels and medical instrumentation, providing the necessary thermal regulation to prevent system downtime and extend the service life of expensive machinery.
