Description

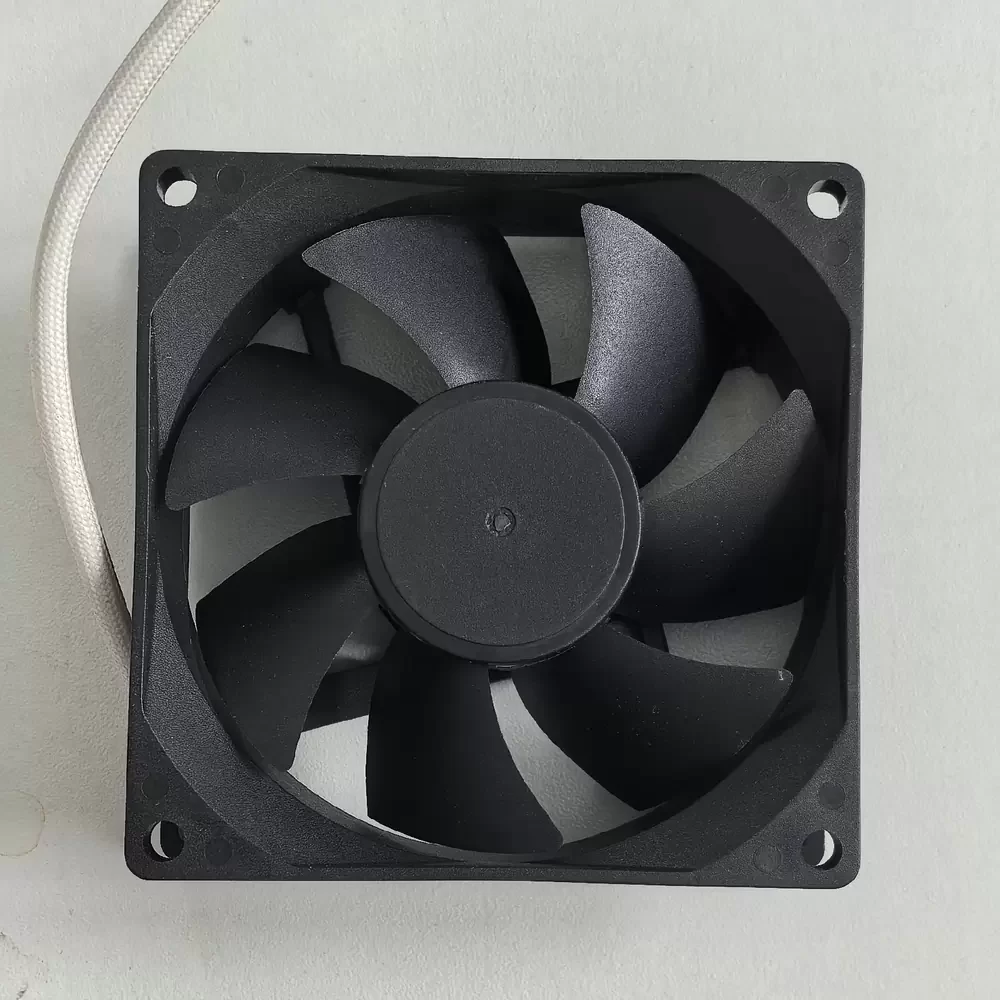

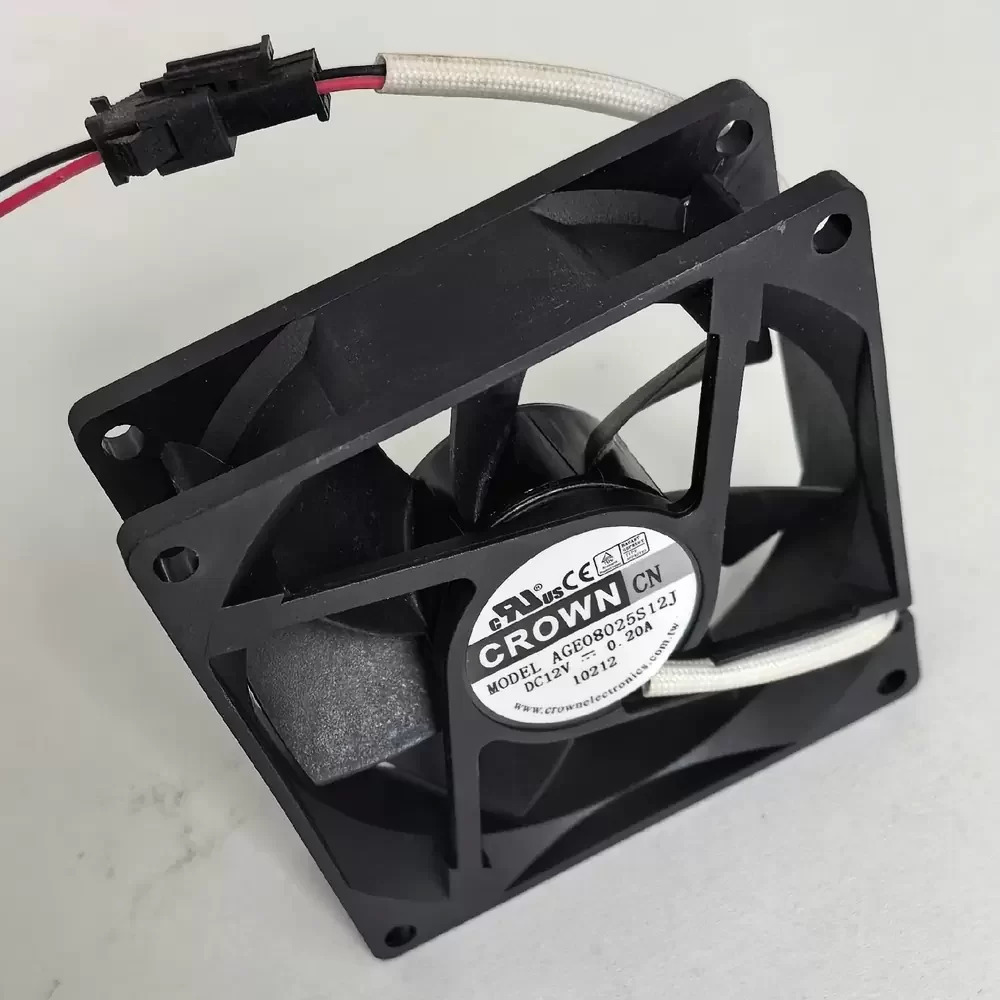

The CROWN AGE08025S12J is a precision-engineered DC axial fan designed for critical thermal management in electronic enclosures and power supply units. Utilizing a sintered sleeve bearing architecture, this unit balances rotational stability with acoustic performance, effectively minimizing vibrational harmonics during continuous operation. The 12VDC brushless motor features an optimized stator winding design that ensures consistent torque delivery and reduced electromagnetic interference. Constructed with a reinforced thermoplastic frame, the fan offers substantial structural rigidity and thermal impedance resistance. Its aerodynamic impeller geometry is calibrated to maximize static pressure while maintaining efficient airflow, making it an ideal solution for systems requiring reliable heat dissipation within a compact 80mm footprint.
Model Number: AGE08025S12J
Brand: CROWN
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.20 A
Power: 2.40 W
Rated Speed: 3000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 38.00 CFM (64.56 m³/h / 1.07 m³/min)
Max. Static Pressure: 3.80 mmH₂O (37.26 Pa / 0.15 inH₂O)
Dimensions: 80x80x25 mm
Weight: 86 g
Life Expectancy: 30,000 Hours at 25°C
Noise Level: 33.0 dB(A)
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Leads
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Mounting Orientation: Vertical or Horizontal
The AGE08025S12J is engineered for versatile deployment across various industrial and consumer electronics sectors. It serves as a critical cooling component in server rack cabinets, ensuring optimal operating temperatures for network switches and power supply units. Additionally, the AGE08025S12J is frequently integrated into desktop computer chassis and industrial automation enclosures where consistent airflow is required to prevent thermal throttling. Its compact profile allows for seamless installation in medical instrumentation and telecommunications equipment, providing reliable thermal regulation in space-constrained environments.
