Description

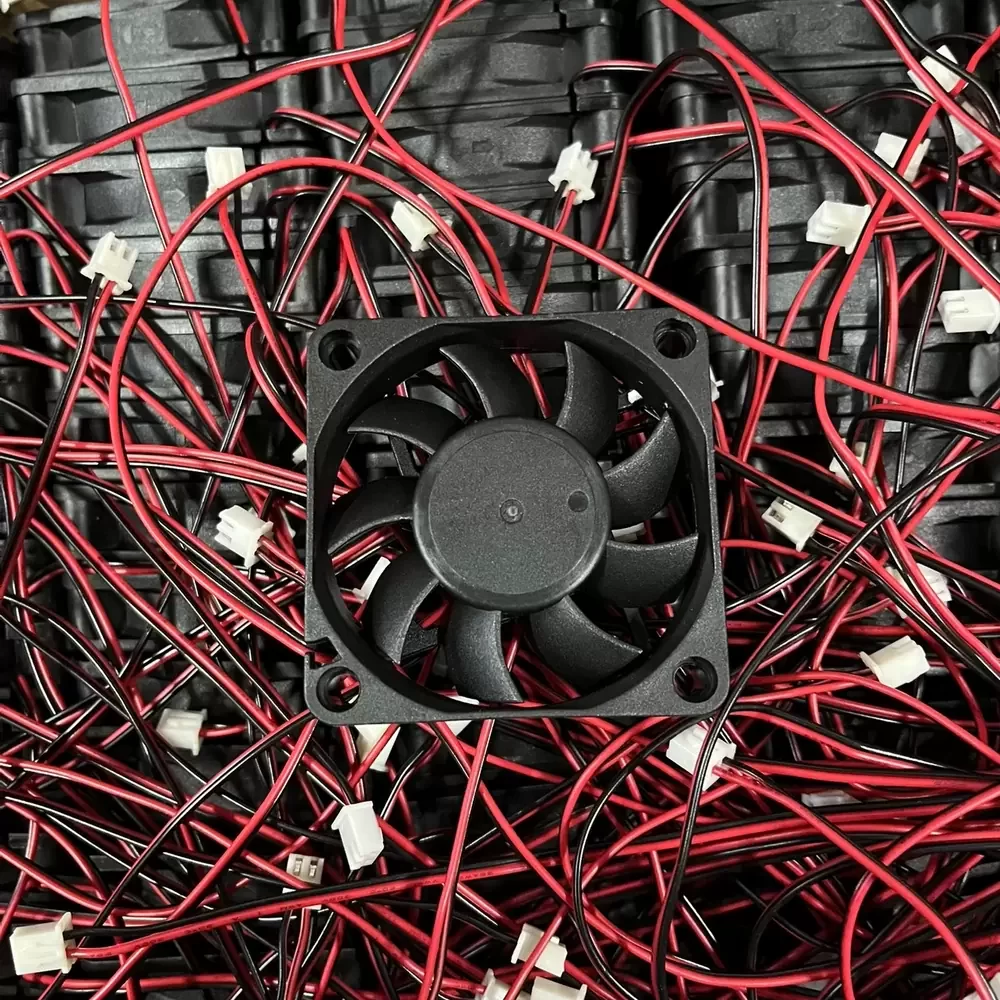

The MRWINNER SJ6015S12M is a precision-engineered DC axial fan designed for efficient thermal management in compact electronic enclosures. Utilizing a brushless DC motor architecture, this unit optimizes electromagnetic efficiency while minimizing commutation noise. The 60x60x15mm frame houses an impeller with advanced blade geometry, specifically calculated to balance static pressure against airflow requirements, ensuring effective heat dissipation through dense component arrays. Constructed with high-grade thermoplastic materials, the chassis offers superior structural rigidity and thermal impedance resistance. The bearing system is calibrated for reliable rotational stability, making it an ideal solution for power supply units requiring consistent air exchange under continuous operation.
Model Number: SJ6015S12M
Brand: MRWINNER
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.20 A
Power Consumption: 2.40 W
Rated Speed: 4200 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 20.50 CFM (34.83 m³/h / 0.58 m³/min)
Max. Static Pressure: 3.80 mmH₂O (37.26 Pa / 0.15 inH₂O)
Dimensions: 60x60x15mm
Weight: 35 g
Noise Level: 31.0 dBA
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Lead (Red/Black)
Wire Length: 250mm
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 30,000 Hours at 25°C
Motor Protection: Impedance Protected
Polarity Protection: Reverse Polarity Protected
The SJ6015S12M is engineered for integration into compact power supply units and small-form-factor electronic assemblies where space is at a premium. Its profile makes it suitable for rack-mounted server chassis, network switches, and industrial automation controllers requiring active cooling. Additionally, the SJ6015S12M serves effectively in 3D printer control boxes and LED lighting drivers, providing the necessary airflow to prevent thermal throttling in critical semiconductor components.
