Description

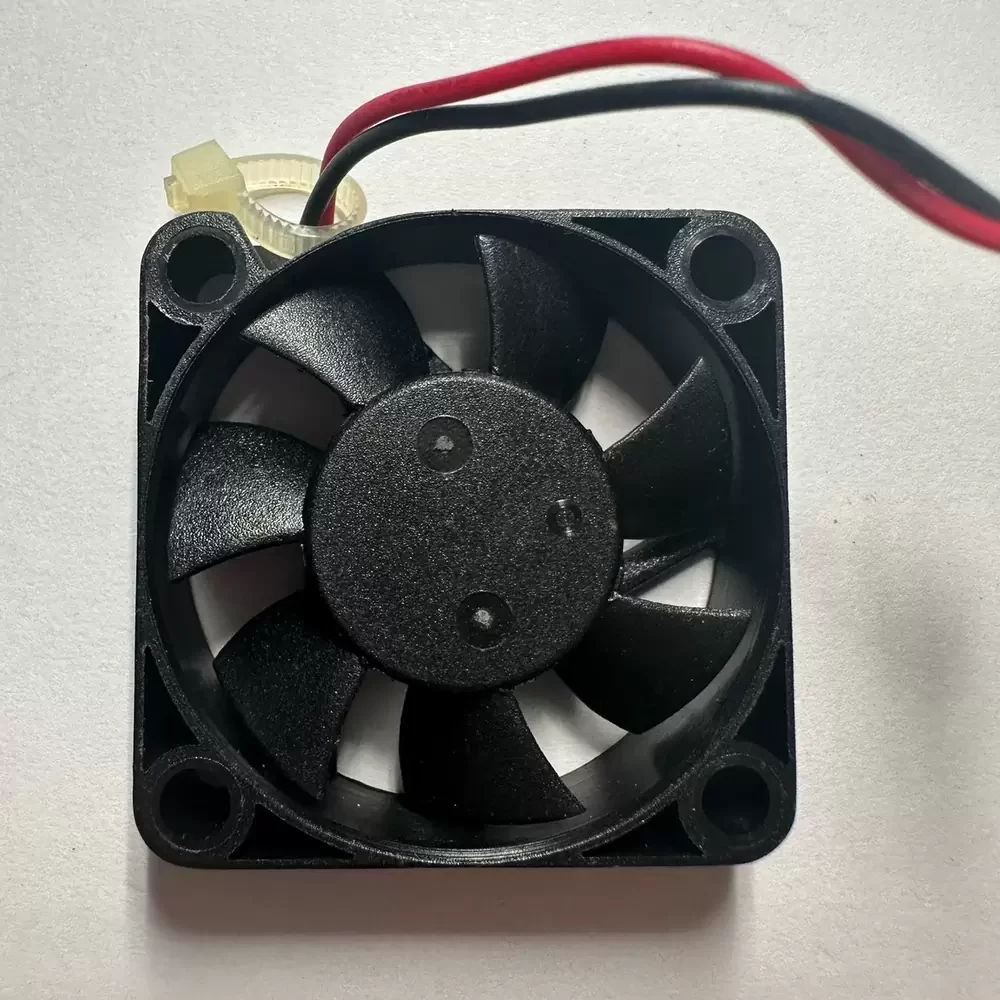

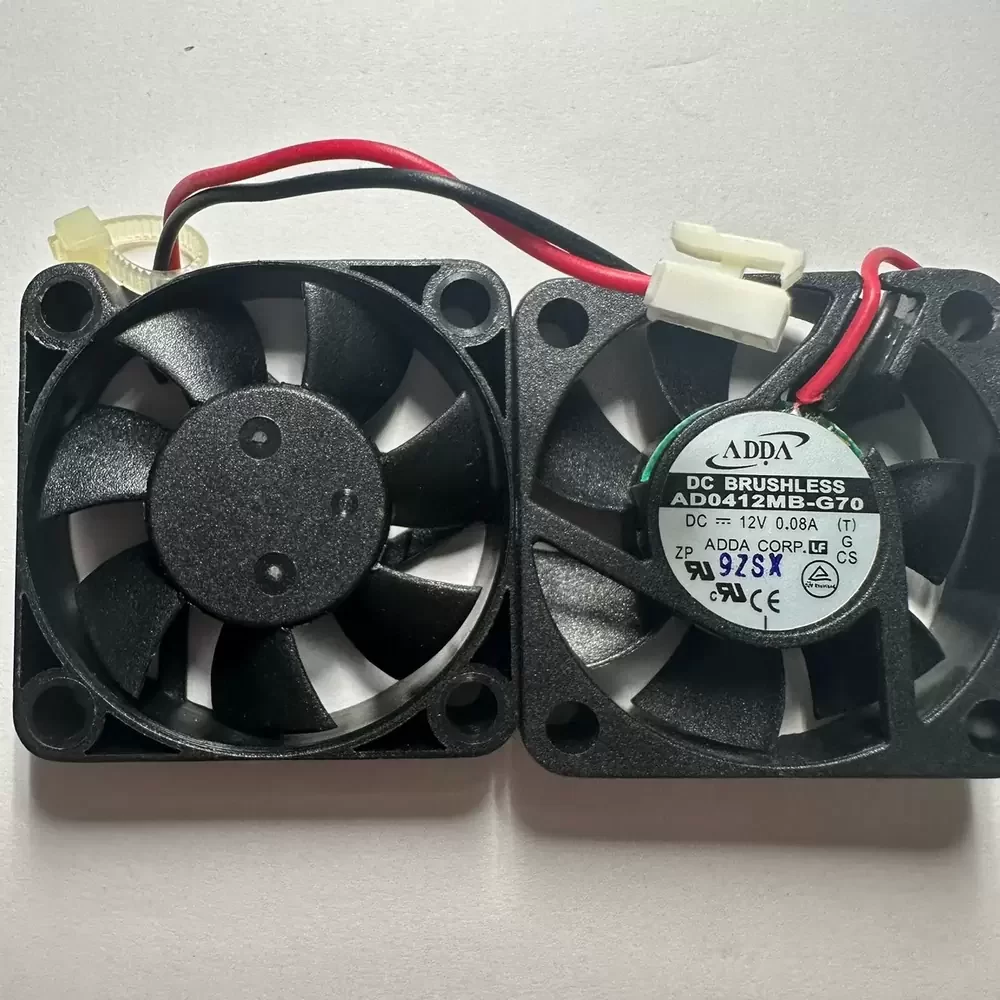

The ADDA AD0412MB-G70 is a high-precision DC axial fan engineered for critical thermal management in space-constrained environments. Utilizing advanced brushless motor technology, this unit operates on a 12VDC rail with a nominal current draw of 0.08A, ensuring optimal energy efficiency. The fan features a sophisticated bearing architecture designed to minimize friction and enhance structural rigidity, effectively reducing thermal impedance within compact enclosures. Its aerodynamic impeller design is optimized for stable laminar flow, providing consistent cooling performance for sensitive electronic components. Built with industrial-grade materials, the AD0412MB-G70 offers long-term reliability and durability for continuous operation in demanding network and computing infrastructure.
Model Number: AD0412MB-G70
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.08A
Power: 0.96W
Rated Speed: 5000 RPM
Bearing Type: Hypro Bearing
Max. Air Flow: 5.50 CFM (9.34 m³/h / 0.156 m³/min)
Max. Static Pressure: 2.54 mmH₂O (24.91 Pa / 0.10 inH₂O)
Noise Level: 21.0 dB(A)
Dimensions: 40x40x10mm
Weight: 16g
Life Expectancy: 50000 Hours at 25C
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 2 Lead Wires
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +70C
Protection Features: Locked Rotor Protection, Polarity Protection
Certifications: UL, CUL, TUV, CE
The AD0412MB-G70 is specifically designed for integration into high-density network switches and telecommunications equipment where space is at a premium. Due to its compact 40mm form factor, the AD0412MB-G70 is an ideal solution for cooling internal components in computer chassis and server racks. It is frequently utilized in medical diagnostic devices and industrial control cabinets to maintain stable operating temperatures. The low power consumption and quiet operation make the AD0412MB-G70 a preferred choice for 24/7 active cooling in sensitive electronic environments.
